AquaLogic Hydrocell12 Battery Replacement Instructions

HYDROCELL— Battery Replacement
These instructions covers 3 models: Hydrocell12 (2013 on)
Hydrocell (2006-2012) Hydrocell+ (pre 2006)
The above models are powered by a 6v lithium CRP2 with
leads attached to a molex plug. Use the sticky pad to fix
into back box.
Hydrocell 12 & Ultra
Reset
Fill Button
Button
Using the Blue DIL Switches, select the flush frequency, see above table for
1.
frequency options for standard model or 4 DIL Table (next page) for Ultra
model.
2. Connect the Lithium battery pack to either Battery terminal
3. Press the reset button. The Valve will briefly open & close, Green & Red
LED will alternately flash for 8 secs as unit performs self testing. Wait while
this test completes before moving onto step 4.
4. The PIR will now flash Red, open & close valve on detection. You can now set
'Fill time' (the length of time it takes to fill your cistern to cause it to flush). (If
the cistern is not empty: Press the Yellow fill button to open the valve,
wait until the cistern begins to flush, then press the Yellow fill button
again to close the valve. The Cistern will now be empty. Press Reset
Button again.)
6. Set Fill Time - Press and release the Fill button once. The solenoid valve will
open and allow water into the cistern and the Green LED will flash. Note: If
green LED does not flash, press the fill button again. Note: To re-enter pro-
gramming mode at any time, go back to stage 3.
7. When the cistern begins flushing, press the fill button again to close the
valve (Green LED will stop flashing). Your Hydrocell is now set and will be
armed in 50 seconds.
8. Carefully refit the fascia to the housing and secure with supplied screws.
Take EXTRA care when fitting fascia that internal buttons
are not depressed causing reprogramming.

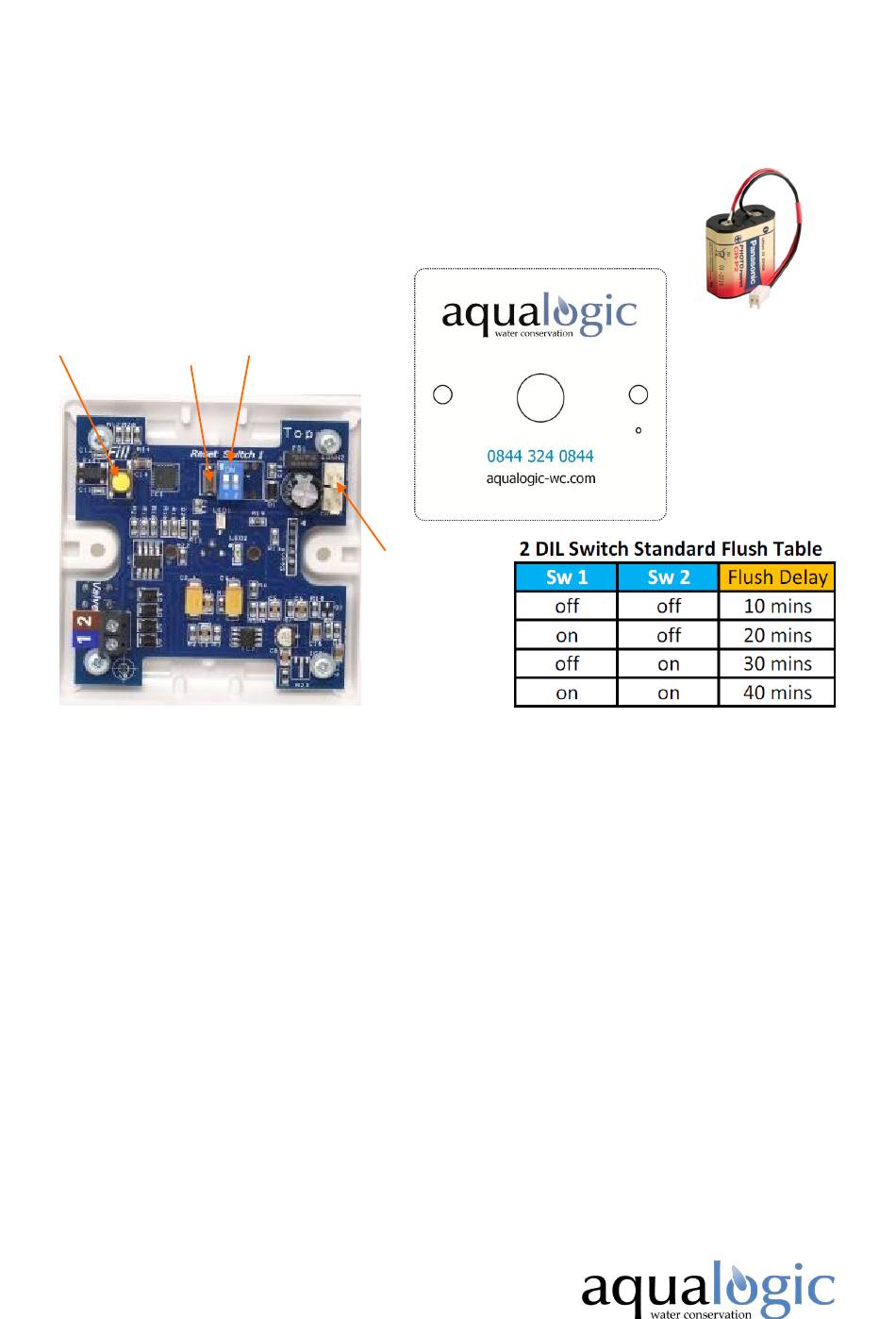

2 or 4 DIL
Switch
Battery Conn
Code AQUHCB
