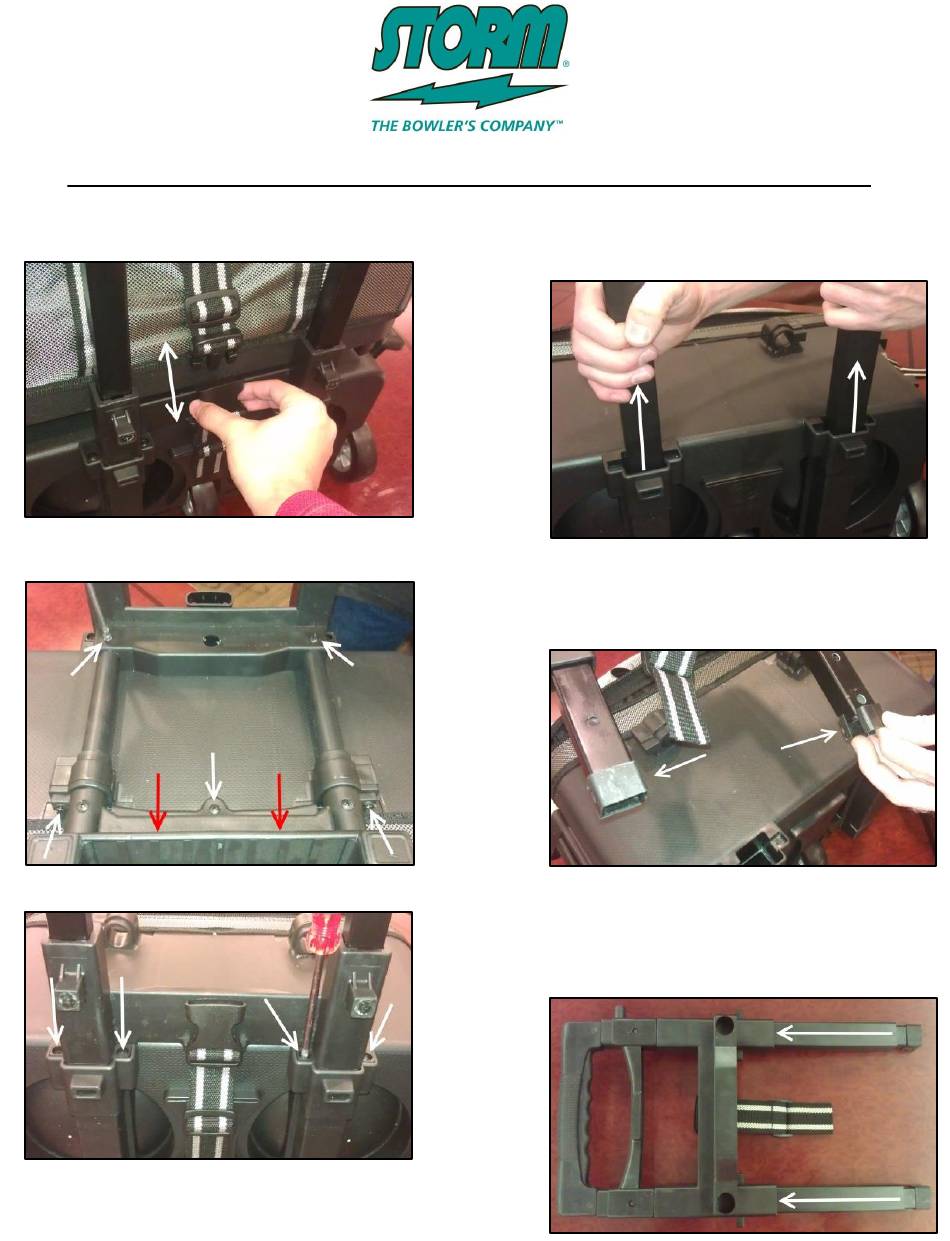

Storm 4-Ball Rolling Thunder
Step 1.
Making sure the strap clip is undone,
remove the top bag from the bottom bag.
Step 2.
Remove the bottom bag rack screws, (5)
total. Slide the rack away from handle.
Step 3.
Take screws out of handle, (4) total.
Handle Replacement Instructions
™
Step 4.
bottom bag base/frame. Make sure the square
outer sleeves are also removed.
Step 5.
that are on the bottom rails. These are very
important and MUST be on the replacement
handle in order for both locking stages to work.
Step 6.
collapsed and that the outer sleeves are pushed all
the way up into the handle. NOTE: it will take some
adjusting to get the sleeves to fit into the square
openings.
Pull entire handle assembly out of the
Save the intermediate wrapped sleeves
Make sure the replacement handle is fully
Advertisement
Summary of Contents for Storm 4-Ball Rolling Thunder
- Page 1 Storm 4-Ball Rolling Thunder Handle Replacement Instructions ™ Step 1. Step 4. Making sure the strap clip is undone, Pull entire handle assembly out of the remove the top bag from the bottom bag. bottom bag base/frame. Make sure the square outer sleeves are also removed.
- Page 2 Step 7. Step 9 Slide the handle into the bag base slots Slide the bottom bag rack into place. making sure the strap side is facing away from NOTE: It will take some taps with the hammer and the bag. Tap the frame lightly with a hammer alignment to get it fully into place, and the holes for until the screw housing is flush with the molded frame.
