Summary of Contents for King Industrial Excelsior XL-080

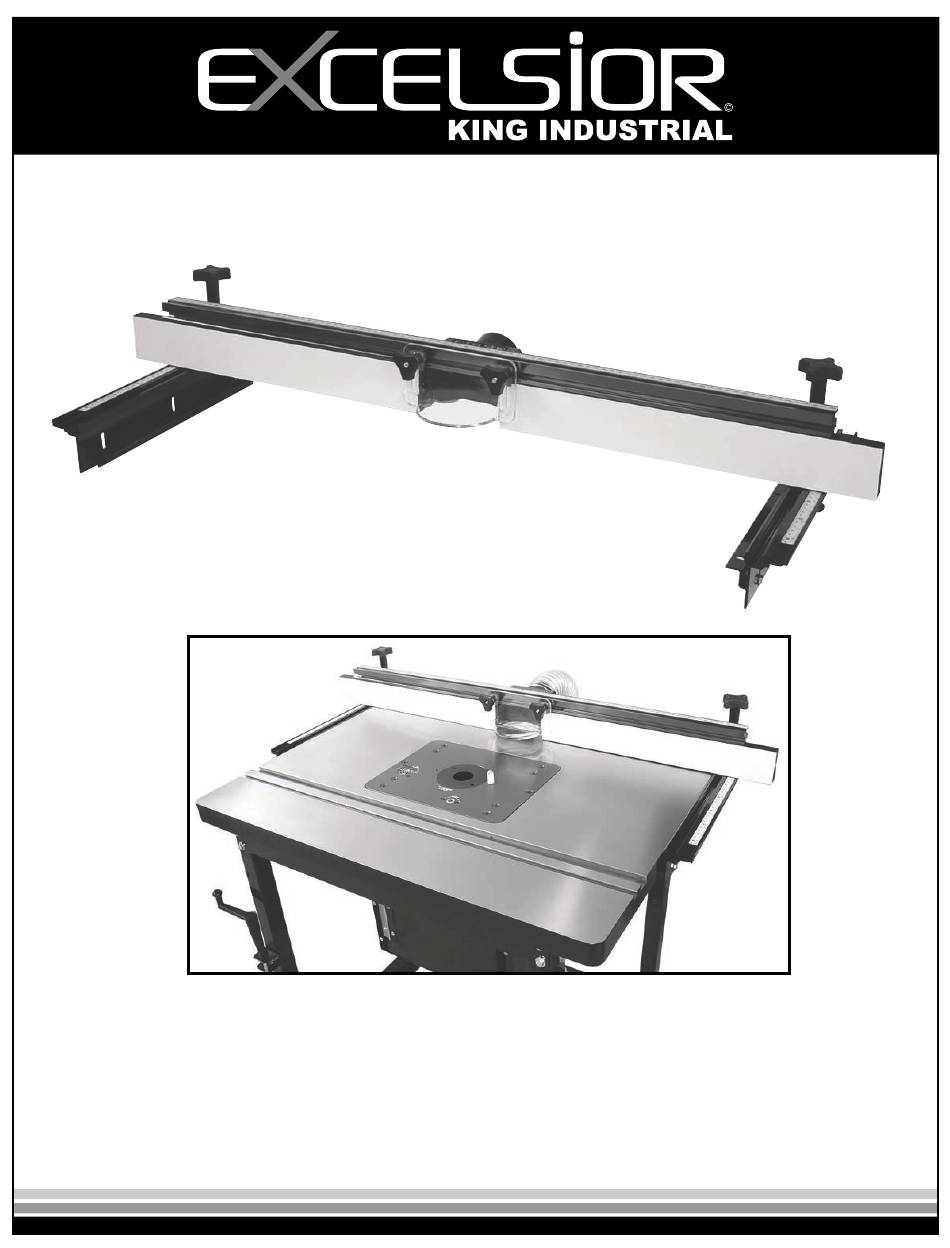

- Page 1 BY/PAR: ROUTER TABLE FENCE Shown here installed on Cast-iron Table (mod. XL-075), with Router Lift (mod. XL-125), Universal Dust Collection Kit (mod. XL-130) and Floor Stand (mod. XL-085). MODEL: XL-080 INSTRUCTION MANUAL COPYRIGHT © 2017 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
- Page 2 WARRANTY INFORMATION 2-YEAR kING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THIS ROUTER TAbLE FENCE FOR NON-COMMERCIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials.
- Page 3 1. kNOW YOUR TOOL glasses only have impact resistant lenses, thet are NOT safety glasses. Also use a face or dust mask if cutting Read and understand the owners manual and labels affixed to operation is dusty. the tool. Learn its application and limitations as well as its 12.
- Page 4 GETTING TO KNOW YOUR FENCE & ASSEMBLY 1. SIDE RAIL RULER. Ruler position can be adjusted to suit operator need. 2. FENCE FACE. The position of both MDF fence faces can be adjusted to suit a variety of workpieces or router bits. 3.
- Page 5 ASSEMBLY INSTALLING LOCk kNObS ON ALUMINUM FENCE 1) Position a large lock handle (A) Fig.3 and a large washer (B) into the opening at the end of the aluminum fence (C). 2) Loosely thread on a large hex. nut (D) underneath the fence as shown. 3) Repeat for the opposite side.
- Page 6 ASSEMBLY INSTALLING SAFETY GUARD continued... 4) Position the safety guard (A) Fig.7 over the T-bolts. Using two washers and lock knobs (B), tighten the lock knobs to secure safety guard. FIGURE 7 INSTALLING DUST CHUTE 1) Insert two square nuts (A) Fig.8 into the bottom T-slot at the rear of the aluminum fence as shown.
- Page 7 ASSEMBLY & ADJUSTMENTS INSTALLING OFFSET bARS FOR JOINTING Two offset bars are included for jointing operations. Offsetting the outfeed fence face provides a straight path for the workpiece to be guided as it passes by the router cutter, and the workpiece is completely supported throughout the operation.
