AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® TABLE OF CONTENTS General ..........4 1.1 System Overview . - Page 5 AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® Configuration ......... .24 5.1 Configuration - Outputs .
-
Page 6: General
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® GENERAL SYSTEM OVERVIEW The programmable lighting controller units are specifically developed to modulate the intensity of lighting products. Models LCL-0.2 and LEL-0.2 are dedicated to LED lighting products. The master controller LCL-0.2 can be configured in master mode to define up to 20 lighting periods distributed throughout the production cycle, or in slave mode to provide a master controller with additional power outputs. -
Page 7: Installation, Commissioning And Operation
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® INSTALLATION, COMMISSIONING AND OPERATION TECHNICAL ASSISTANCE Technical assistance on the unit can be obtained from your distributor. SAFETY All technical staff performing operations on a controller must have read and understood this manual and accepted the recommendations herein. Before controller commissioning, all connections must be checked. -
Page 8: Installation
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® INSTALLATION It is essential to observe the following installation instructions and to abide by the applicable local electric codes: 1. The controller is designed for wall mounting and must be installed vertically. -
Page 9: Electrical Connection
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® ELECTRICAL CONNECTION 2.6.1 Electrical wiring and connections TURN OFF THE POWER SOURCE BEFORE AND DURING THE CONNECTION WORK TO AVOID SHOCK HAZARD AND CONTROLLER DAMAGE. The controller installation must comply with the wiring diagrams provided. These furnish all information required by a qualified electrician to perform wiring operations. -
Page 10: Starting The System
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® STARTING THE SYSTEM Before using the controller for production purposes, it is essential to observe the following configuration steps (see relevant sections below for details): System configuration is the first step in starting a new system. Ensure the system has been connected and power supply is turned on to the unit per section 2.6. -
Page 11: Maintenance
® FINAL SETTINGS For safety reasons, all newly configured outputs are automatically set to MANUAL mode. Once all setup has been completed, switch all out- puts from MANUAL to AUTOMATIC mode. (See section 4.6 Output Control.) To apply the lighting curve, set the controller to Production mode. -
Page 12: Operator Interface

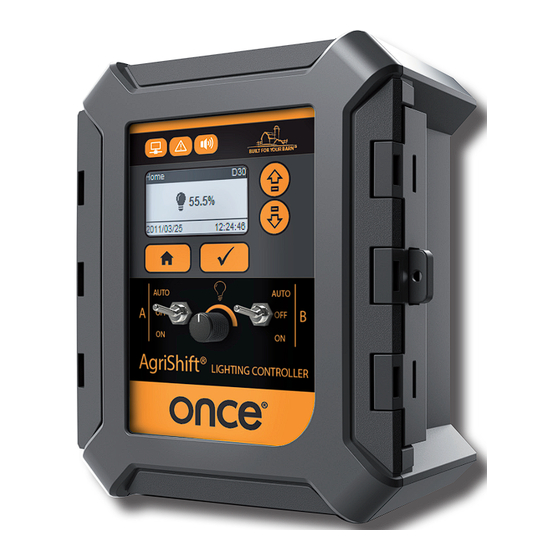

AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® OPERATOR INTERFACE CONTROL LOCATION AND UTILIZATION Status lights Selection or validation Navigation button buttons Menu-Back Output B button Control switch Output A Control switch Manual intensity adjustment knob (Output A and B) 3.1.1 Status Lights Blinks according to the flow of data exchanged over the... -
Page 13: Navigation Controls
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® 3.1.2 Navigation Controls Key to return to previous menu. From the main menu, this button allows accessing the summary page. It allows leaving a parameter-editing page without saving (cancellation). Menu-Back Selection or validation key. It allows saving changes when editing a parameter. - Page 14 AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® Editing alphanumeric variables To edit an alphanumeric parameter of the AgriShift system: ® 1. Use the keys to select and press . The parameter is then in editing mode (inverted color). 2.
-
Page 15: Control Switches
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® 3.1.4 Control Switches Manual control switches offer three possible positions: AUTO The output is automatically controlled accor- ding to the current program or a setting on the screen. The output is manually disabled. The output is set on manual operating mode. -
Page 16: Operating Parameters
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® OPERATING PARAMETERS SUMMARY The summary page shows the following information: - Current lighting intensity Home (D25) - Production day - whether the controller A. 0 % is in Non-Production mode. B. 0 % - Controller time and date 2013-11-20 09:12:45... -
Page 17: Navigation Diagram
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® NAVIGATION DIAGRAM HOME (Return to main menu) LIGHTING Summary Curve Temporary Override PRODUCTION MAIN MENU OUTPUT CONTROL CONFIGURATION Outputs Advanced settings Local settings System Version... -
Page 18: Lighting
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® LIGHTING Lighting Select the desired submenu and press Summary to view it. Curve Temporary Override To manage both outputs on separate Lighting curves, the option "Independant" must be selected in Advanced Para- Summary meters (see section 5.2 - Configuration Curve A... -
Page 19: Curve
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® 4.4.2 Curve Curve All lighting outputs operate along a curve constituted of up to 20 lighting periods, Daylight Duration Period including up to 12 cycles and 20 stimuli 95>>60% 00 : 50 each. -
Page 20: 4.4.2.1 Editing A Period
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® 4.4.2.1 Editing a period Each period can comprise up to 12 lighting cycles and 20 stimuli per day. Each lighting cycle is performed as shown in Figure 1. Transitions at the beginning and end of the cycle simulate the natural sunrise and sunset to reduce animal stress. - Page 21 Figure 2 : Variation of daylight intensity over the periods Daylight - Start: (0 to 100%) - Constant Daylight Mode: lighting intensity within the lighting cycles once the transition is complete. - Gradual Daylight Mode: lighting intensity used to calculate the current daylight value.
-
Page 22: 4.4.2.2 Cycles Settings
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® 4.4.2.2 Cycles Settings Select the option Cycles Edit to bring up the following page: Determine the following parameters for Cycles each cycle: Enable Start Stop Enable: Select this option to activate the 08:00 12:00 cycle. -
Page 23: Timed Manual Override Control
Manual Intensity of lighting (0 to 100%). 2. Start the temporary override by checking the Manual Control checkbox. The manual setpoint will be applied during the activation time; once this time has elapsed, the manual lighting control is automatically deactivated. -
Page 24: Non-Production
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® Note: After edition of the production day, the Changing production day following options will be available: Delete all history - Delete all history (water consumption): Modify the day only Select this option when starting a new Cancel production. - Page 25 AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® To change the control mode of an output, select the desired output and press The following page will appear: Control - Output A Control - Output A Mode Manual Mode AUTO Value 10 % MANUAL control...
-
Page 26: Configuration
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® CONFIGURATION Configuration Outputs The Configuration menu allows the user to Advanced Parameters configure all settings of the AgriShift ligh- ® Local Settings ting system. System Version From the Configuration menu, select the desired submenu among the following and press CONFIGURATION - OUTPUTS Outputs... - Page 27 Lighting Control Unit MASTER - Model LCL-0.2 ® 3. Calibrate the lighting output. Calibration - A Output This adjustment procedure is normally required only once during Stop controller installation. ON Threshold Select Calibration Edit and then press Intensity 1 % .
-
Page 28: Configuration - Advanced Parameters
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® - If this value is lower than desired for a 25% power, enter a larger value. - If this value is greater than that desired for a 25% power, enter a smaller value. Repeat as needed until the desired value is achieved. -
Page 29: Lighting Control
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® Master output (in master mode only): Determines the output A or B - whose value will be followed by the slave controllers (and thus applied to the power expansion bus). Note: Only applies when the curve is independent (see next section). 5.2.2 Lighting Control Curve:... -
Page 30: Annex A: Specifications: Lcl-0.2-120V
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® ANNEX A: SPECIFICATIONS: LCL-0.2-120V Power Voltage and Tension et fréquence de 85-250V, 50/60 Hz 120 AC, 50/60 Hz operating frequency fonctionnement Main fuse 1A-250VAC, fast acting (5x20 mm) Inputs Analog input (in slave mode) 0-10VDC, input resistance: 13k Outputs Variable output (A and B) -
Page 31: Annex B: Specifications: Lcl-0.2-240V
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® ANNEX B: SPECIFICATIONS: LCL-0.2-240V Power Voltage and Tension et fréquence de 85-250V, 50/60 Hz 240 AC, 50/60 Hz operating frequency fonctionnement Main fuse 1A-250VAC, fast acting (5x20 mm) Inputs Analog input (in slave mode) 0-10VDC, input resistance: 13k Outputs Variable output (A and B) -
Page 32: Annex C: Quick Troubleshooting
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® ANNEX C: QUICK TROUBLESHOOTING 1 - Control outputs do not seem to follow the instructions given. a) Make sure that the control switches of the relevant outputs (located on the front panel of the AgriShift controller) are in the AUTO posi- ®... -
Page 33: Annex D: Wiring Diagram - 1
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® ANNEX D : WIRING DIAGRAM - 1 The electrical loads distribution must be determined by a qualified electrician and installed as prescribed by the applicable regulations of the electrical code. AGRISHIFT® LCL-0.2 MAIN BOARD SEE DIAGRAM 2 FOR DETAILS SEE DIAGRAM 2 FOR DETAILS... -
Page 34: Wiring Diagram - 2
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® The electrical loads distribution must be determined by a qualified electrician and installed as prescribed by the applicable regulations of the electrical code. -
Page 35: Wiring Diagram - 3
AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® ANNEX D : WIRING DIAGRAM - 3... - Page 36 AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® NOTES...
- Page 37 AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® NOTES...
- Page 38 AgriShift Lighting Control Unit MASTER - Model LCL-0.2 ® NOTES...
- Page 40 ONCE, Inc. Plymouth, MN 55442 PN: 30-008-00057...
