MUD Cubby-Box Locker Fitting Instructions

Useful Information

The fixings and fixing positions within the base plate and lid of the MUD Cubby-Box Locker

have been designed around the factory-fit Land Rover cubby-box. It would be impossible

to cater for every type of aftermarket cubby-box that has ever existed so when fitting an

aftermarket Cubby-Box to the MUD Cubby-Box locker you may be required to enlarge or drill

additional/alternative fixing holes within the base plate and/or lid to suit your cubby-box.

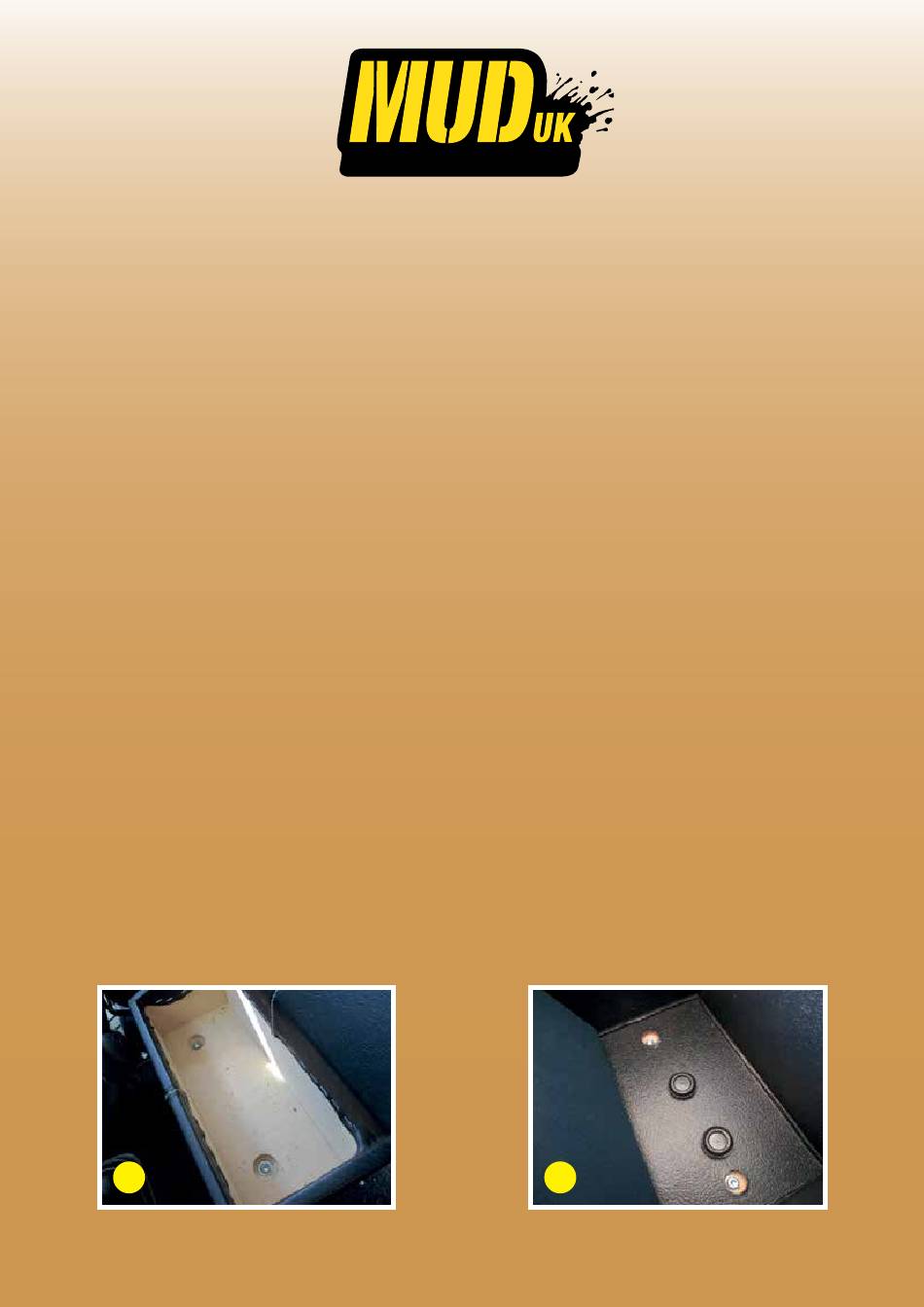

The factory-fit cubby-box in the Defender is fixed in place with bolts that go into Rivnuts

within the seat box base plate. It is very common, even on the newest cars for these

Rivnuts to come loose when trying to remove the cubby-box fixing bolts. If the fixing bolts

continue to turn and don't unscrew, you will need another pair of hands to hold the Rivnuts

underneath the base plate with a pair of grips. Either replace the Rivnuts or remove the

Rivnut and replace with M6 nuts on the underside of the base plate.

There are a total of four fixings that secure the factory cubby-box into the centre

baseplate. The two front fixings can be located beneath the plastic cup-holder insert. The

two rear fixings can be located underneath the two plastic caps within the inside of the

cubby-box. Depending on the age of the car these fixings will be either 10mm or a T27 Torx

headed fastener.

Table of Contents

Do you have a question about the Cubby-Box Locker and is the answer not in the manual?

Page 1 MUD Cubby-Box Locker Fitting Instructions Useful Information The fixings and fixing positions within the base plate and lid of the MUD Cubby-Box Locker have been designed around the factory-fit Land Rover cubby-box. It would be impossible to cater for every type of aftermarket cubby-box that has ever existed so when fitting an aftermarket Cubby-Box to the MUD Cubby-Box locker you may be required to enlarge or drill additional/alternative fixing holes within the base plate and/or lid to suit your cubby-box.
Page 2 First steps for installing the MUD Cubby Box Locker If you’re mounting power sockets into the MUD Cubby-Box Locker, the first job will be to drill into the base of the locker and seat box base plate to route the wiring for the power sockets.
Page 3 Hinging Cubby Box Locker Secure the MUD Cubby-Box Locker to the base plate between the seats using the 4 x M6 x 30mm fixings and washers. Secure the cubby-box to the lid of the MUD Cubby-Box Locker. Use the M6 x 30mm Torx Fixings for the front fixings.
Page 4 Position the lid onto the base. Align the fixing holes in the lid with the rivnuts in the drawer slides. Use the M4 screws and black plastic screw caps to fix the lid in place. Fix the MUD Cubby Box Locker into the vehicle using the 4 x M6 x 25mm socket button fixings and large washers.
