Micros Workstation 5 Adjustable Stand Installing Manual

Installing the Workstation 5 Adjustable Stand
This document describes how to install
the Workstation 5 Adjustable stand and
the optional Printer Power Supply.
1. Install the optional Printer Power
Supply, if required. Refer to Figure
1. Open the power supply
compartment door and attach the
AC power connector to the power
supply. Close the compartment
door.
2. Install the Optional LCD Customer
Display if required. Installation
instructions are provided with the
display.
3. Refer to Figure 2 and prepare the
workstation for mounting on the
stand.
4. Connect the AC Power Cable
supplied in the Workstation 5 loose
parts kit to the AC receptacle in the
base of the stand.
5. Cable the workstation. A pair of re-
usable tie-wraps supplied with the
stand can be used to bundle the
cables if required. Figure 2.
6. Before placing the unit on the stand,
make sure the locking latches are
unlocked and the I/O door is closed
as shown in Figure 2.

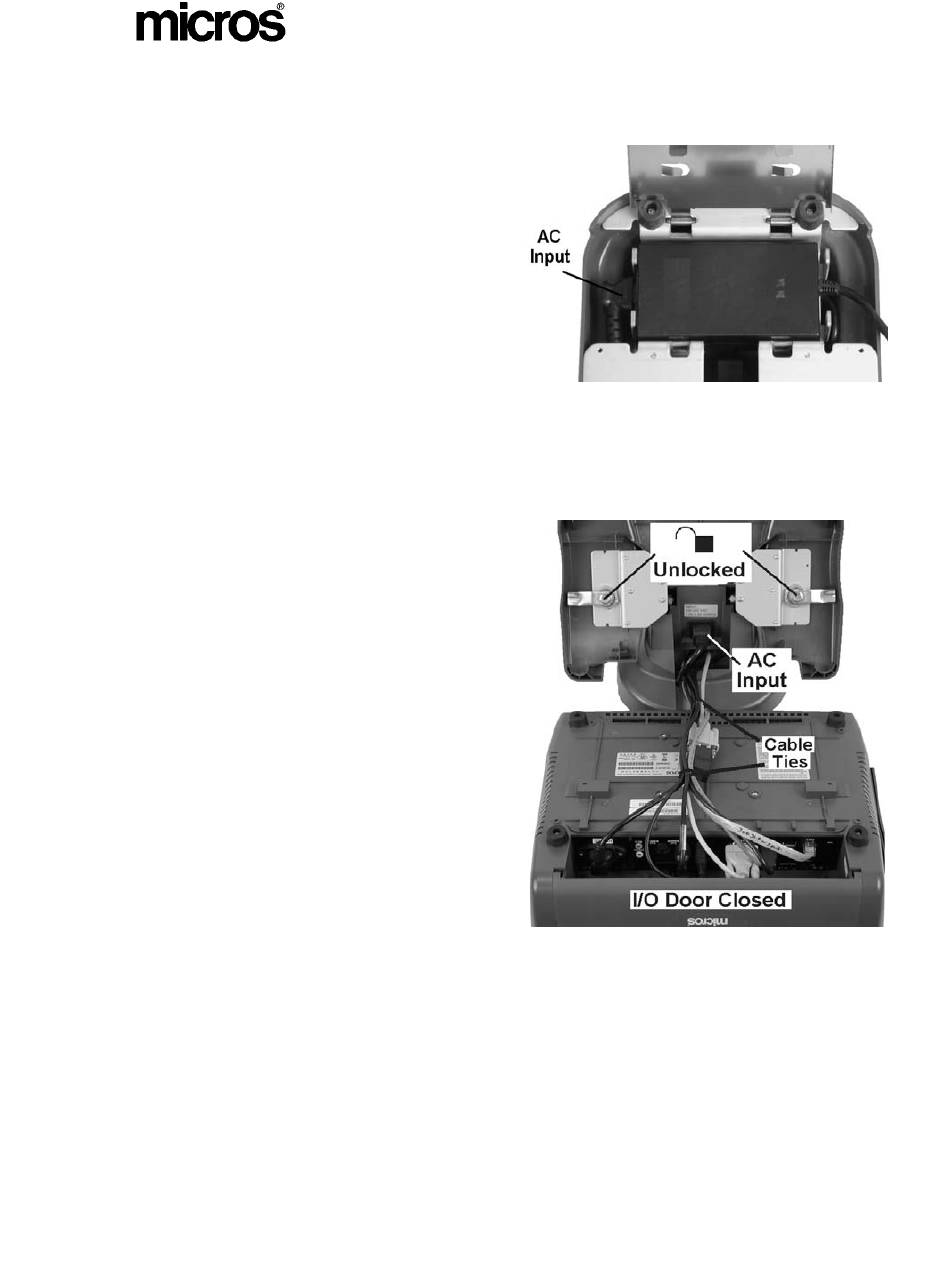

Figure 1: Installing the Optional Printer
Power Supply
Figure 2: Preparing to Install the
Workstation
MD0013-004
Page 1 of 2
