INSTALLATION AND USER'S INSTRUCTIONS
Thank you for purchasing a genuine Mazda accessory.
Before removal and installation, be sure to thoroughly read these instructions.
Please read the contents of this booklet in order to properly install and use the rear wing.
Your safety depends on it.
Keep these instructions with your vehicle records for future reference.
• There are several
safety when installing or removing the rear wing. Always read and follow them in order
to prevent injuries, accidents, and possible damage to the vehicle.
WARNING: Indicates a situation in which serious injury or death could result if the
CAUTION:
• Do not modify the rear wing.
• Do not install the rear wing in any way other than described in the following instructions.
• If in any doubt, please ask your Mazda dealer to install the accessory in order to prevent
errors in installation.
• If you have any questions about the use of the accessory, ask your Mazda dealer for
proper advice before using it.
• Mazda and its suppliers are not responsible for injuries, accidents, and damage to
persons and property that arise from the failure of the dealer or installer to follow these
instructions.
To ensure safety and reliability of the work, installation, removal and disposal work must
•
be carried out by an Authorized Mazda Dealership.
Be careful not to lose removed parts, and be sure that they are kept free from scratches,
•
grease or other dirt.
NOTE
To the dealer
• Please turn over these instructions to the customer after installation.
To the customer
• Keep these instructions after installation. The instructions may be necessary for
installing other optional parts or removal of this accessory.
Should the vehicle or this accessory be resold, always leave these instructions
•
with it for the next owner.

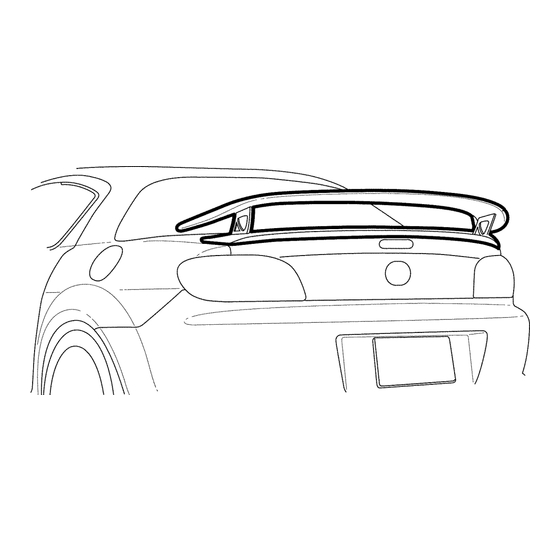

GENUINE REAR WING
WARNING
WARNING and
warning is ignored.
Indicates a situation in which bodily injury or damage to the vehicle
could result if the caution is ignored.
PART NAME:
PART NUMBER: QSEA 51 96Z
VEHICLE:
CAUTION sections in this booklet concerning
REAR WING
Mazda RX-8
1
Advertisement
Table of Contents
Summary of Contents for Mazdaspeed QSEA 51 96Z
- Page 1 Be careful not to lose removed parts, and be sure that they are kept free from scratches, • grease or other dirt. PART NAME: REAR WING PART NUMBER: QSEA 51 96Z VEHICLE: Mazda RX-8 NOTE To the dealer • Please turn over these instructions to the customer after installation.
- Page 2 INSTALLATION VIEW Rear wing PARTS Note • Before installation, verify that the kit includes all the following parts and that they are free of dirt, scratches, or damage. Part Part name Spec Qty. Part Part name Spec Qty. Rear wing ABS, same as ABS, same as Rear wing lower...
- Page 3 BEFORE INSTALLATION REQUIRED TOOLS Prepare the following tools or items before installation. ★Wrench (8 mm, 10 mm) ★Clean, soft cloth ★Clean rag ★Drill ★Allen wrench (3 mm, 4 mm) ★Phillips screwdriver ★Duct tape ★Scissors ★Socket wrench (6 mm) ★Fastener remover ★Masking tape ★Punch ★Drill bit (3 mm, 8 mm)
- Page 4 REAR WING INSTALLATION Note • The figures show the left side; however, perform the same procedure for the right side. Vehicle protection 1. Open the trunk lid, and cover the entire trunk lid opening with a soft cloth for protection. Rear wing (upper) assembly M5 truss screws Rear wing...
- Page 5 5. Drill 3-mm holes at the hole marks. Cloth tape 6. Widen the holes drilled in step 5 to 8 mm. (2 locations each side) WARNING 5 mm • Drills and other sharp objects can cause serious Touchup injury. Be careful when handling drills and other paint sharp objects.
- Page 6 CAUTION <Side view> • Press the rear wing (lower) as far forward up against the trunk lid as possible. A-A cross Adjust the position so that it is even on both sides section view when viewed from the rear. •...
- Page 7 Rear wing upper installation 1. Install the rear wing upper with the M5 hexagon socket head bolts, M5 spring washers, M5 plain washers, and cap nuts. Tightening torque: 3.5− − − − 3.9 N･ ･ ･ ･ m {36− − − − 39 kgf･ ･ ･ ･ cm,31− − − − 34 in･ ･ ･ ･ lbf} ...
- Page 8 For general driving, use the following angles given their excellent balance between high-speed stability and driveability. Vehicle with normal bumper Vehicle with genuine front air dam skirt and vehicle with Mazdaspeed front bumper face For circuit driving or increasing downforce on low-traction road *For A-D, see the figure below.
