Summary of Contents for AXELPROD GTM 1660 RAPSODY

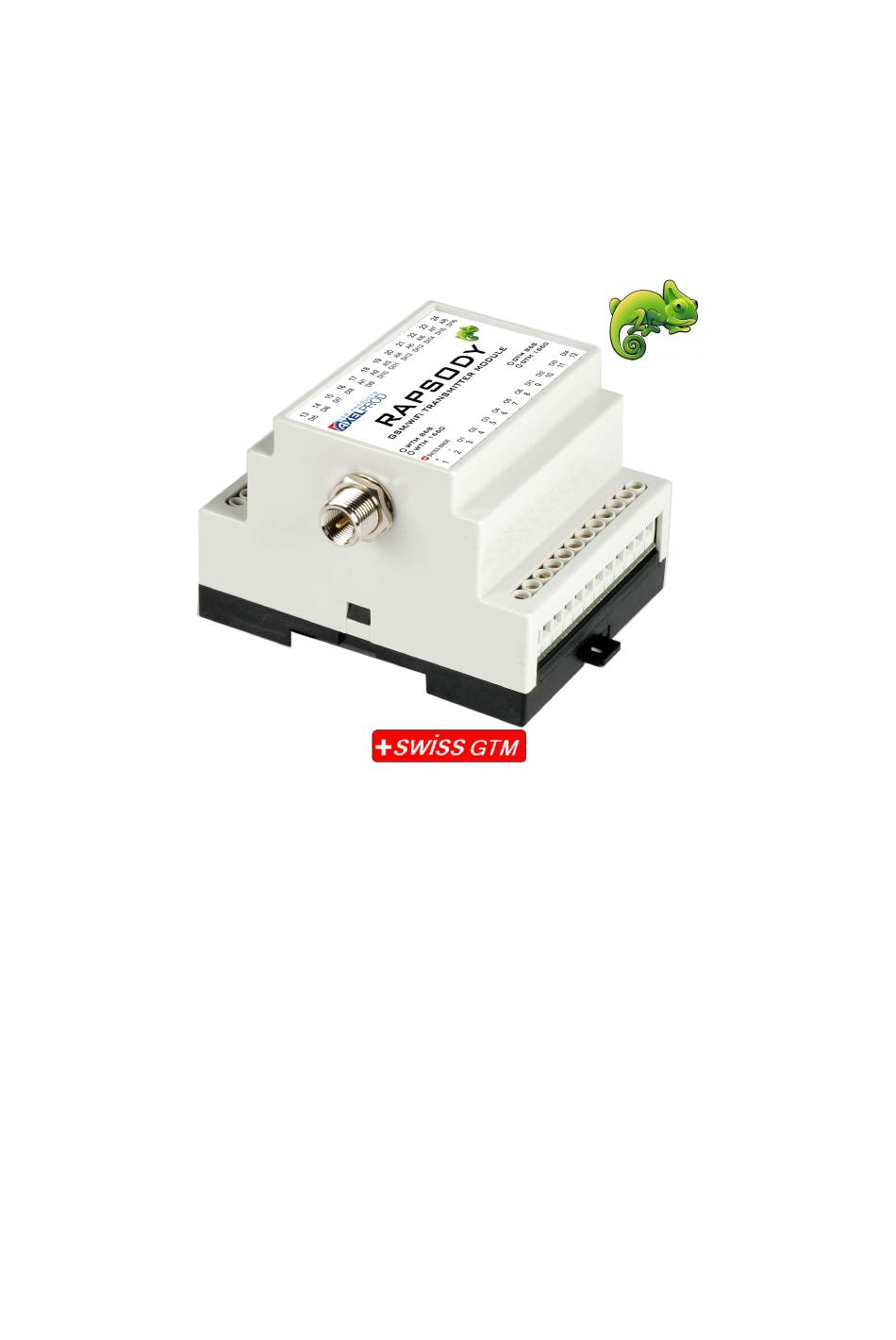

- Page 1 GTM 1660 RAPSODY Simple SMS alarm module MANUAL Manual Version : Eng 4.01-03.2019...
- Page 2 Such changes will, nevertheless be incorporated into new editions of this manual. All rights reserved. AXELPROD GSM Solutions, 2001 Trademarks...
- Page 3 – A magnet GSM antenna.(Order code ANT-MAG2). – A SIM card purchased from your GSM operator (AXELPROD does not provide SIM card). – (SIM PIN code must be disable before inserting the SIM card) A power supply (8 to 32 Volts).
- Page 4 GTM 1660 RAPSODY Contact Function Contact Function POWER SUPPLY + DI5: DIGITAL INPUT 5 POWER SUPPLY GND DI6: DIGITAL INPUT 6 DO1: DIGITAL OUTPUT 1 DI7: DIGITAL INPUT 7 DO2: DIGITAL OUTPUT 2 DI8: DIGITAL INPUT 8 DO3: DIGITAL OUTPUT 3...
-
Page 5: Digital Outputs
SMS programming, digital inputs: SMS for Input DIXXY : XX from 01 to 16, Y coud be «A» or «R» («A» is for Alarm text message and destination for incoming alarm) («R» is for Alarm text message and destination for outgoing alarm, if needed) +41256156456,+456514651651,+3365896532 DIXXY:Sms text 60 characters max, fake international phone numbers, program your own, separated by a coma... - Page 6 SMS command, digital outputs: SMS to turn on outputs X on/off, X from 1 to 6. OUTX=ON OUTX=OFF SMS example to turn output 4 on : OUT4=ON SMS example to turn output 4 off : OUT4=OFF An sms will be sent back to the sender for confirmation. Periodical SMS: A SMS can be sent periodically from the GTM to the destinations, 4 destinations maximum.
-
Page 7: Led Behavior
LED Behavior : The single green led represents the GSM unit signal status: (This led is managed by the GSM itself and not by the GTM. Therefore its behaviour will depend directly on the GSM network, the SIM card and your GSM operator) GSM Single GREEN LED status... - Page 8 AXELPROD,s warranty obligation is limited, at AXELPROD option, to refund of the purchase price, free of charge repair, or replacement on a defective product which is returned to a AXELPROD authorized service center within the warranty period.
- Page 9 A complete manual of each GTM product is available for more details. Any contact should be done to your nearest GTM dealer or to : AXELPROD 45, avenue de la Praille 1227 CAROUGE/SWITZERLAND http ://www.axelprod.net info@axelprod.net Other certications on request.
