TOOLS REQUIRED:
•
Tape Measure
•
Standard Screwdriver
•
Phillips Head Screwdriver
•
Drill Motor
•
1/8" Drill Bit
•
3/16" Drill Bit
•
Hack or Chop Saw
•
Framing Square
•
Level
Head Track
#R6046
Step 1
Fabricate / Verify Part Lengths Required
Note:
•
Assembled Roll-
Closer (#R8021)
Opening Height minus 1-1/8"
Track (#R6041 & #R6046)
Opening Width minus 3-1/16 "
Hinge/Housing assembly opening height 1-1/8".
•
KD "Kit" Roll-
Revison: 1.0
Date: 12 /01/2010
R6500 Series
Installation Instructions
(For Surface Mount Doors)
REVIEW ALL INSTRUCTIONS
Sill Track
Closer
#R6041
#R8021
Away
screens have already been cut to size. Verify cut size below and proceed to Step 2
®
Away
screens. Please refer to Page 1 of the Fabrication Instructions.
®
Tel: 800-677-5264 | Fax: 888-526-4329
IMPORTANT:
THOROUGHLY
BEFORE STARTING STEP 1

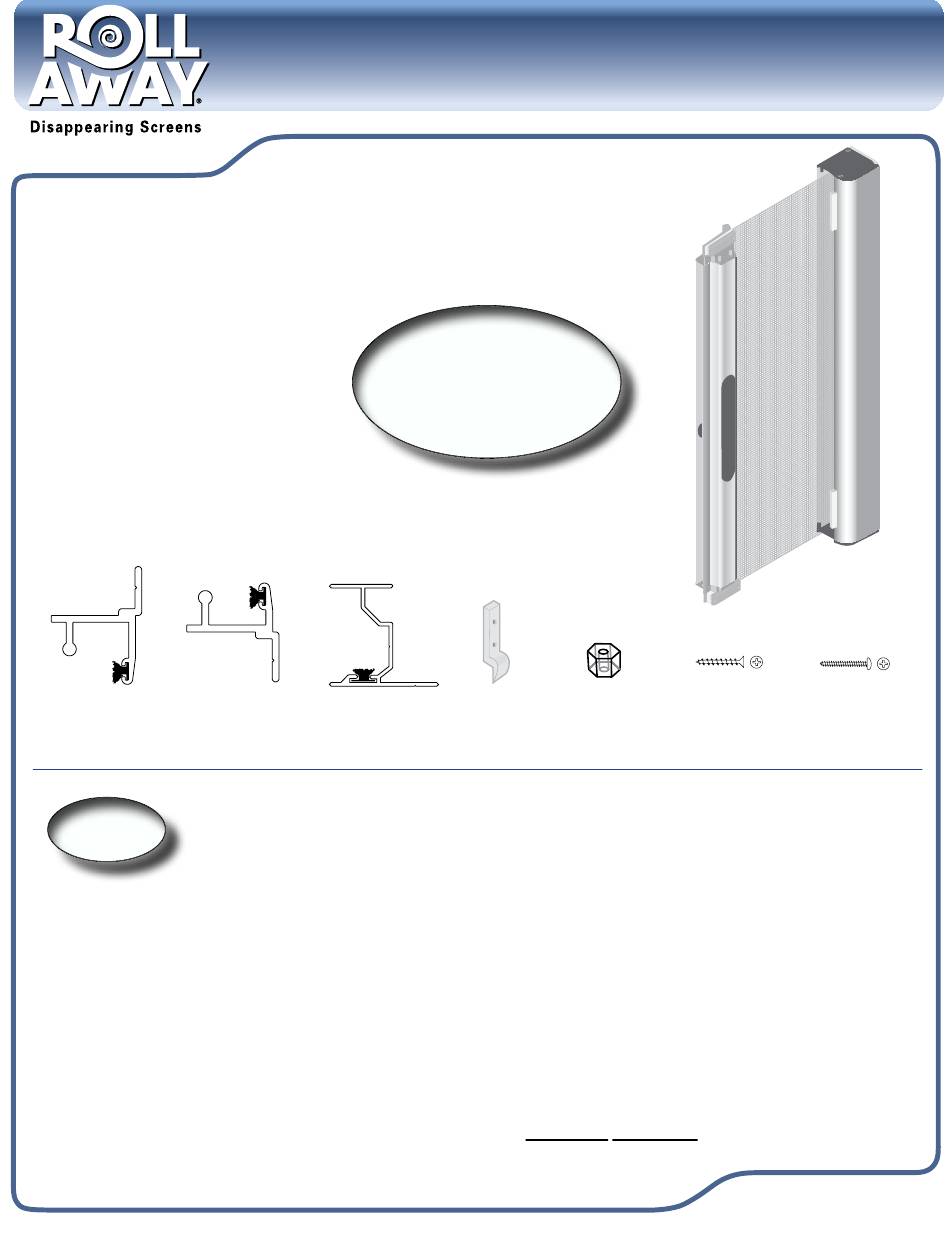

PARTS INCLUDED:
Strike
#D2160
R. Lang Company
R. Lang Company
Tel 800-677-5264 | Fax 888-526-4329
Tel 800-677-5264 | Fax 888-526-4329
#4-40
Flat Head Screws
Lock Nut
#6 x 3/4"
Partially
Assembled Unit
Pan Head Screws
#4-40 x 1/2"
#8 x 1"
Installation
Page 1 of 6
Advertisement
Summary of Contents for R. Lang Company Roll Away R6500 Series
- Page 1 R. Lang Company R. Lang Company Tel 800-677-5264 | Fax 888-526-4329 Tel 800-677-5264 | Fax 888-526-4329 R6500 Series Installation Instructions (For Surface Mount Doors) TOOLS REQUIRED: • Tape Measure • Standard Screwdriver • Phillips Head Screwdriver IMPORTANT: • Drill Motor REVIEW ALL INSTRUCTIONS •...
- Page 2 R. Lang Company R. Lang Company Tel 800-677-5264 | Fax 888-526-4329 Tel 800-677-5264 | Fax 888-526-4329 Step 2 Install Housing/Hinge Drill three (3) 3/16” clearance holes in the housing hinge, one approximately 2” from each end, Screw Hole one approximately in the middle. Locate the holes using the groove in the hinge flange (Figure 1). Groove Note: These hole locations may be pre-drilled from the factory.
-
Page 3: Step 5 Strike Installation
R. Lang Company R. Lang Company Tel 800-677-5264 | Fax 888-526-4329 Tel 800-677-5264 | Fax 888-526-4329 Step 4 Install Closer Drill three (3) 3/16” clearance holes in the closer (#R8021), two approximately 4” from each end, one approximately in the middle Figure 7 using the groove in the closer flange. The closer is designed to... - Page 4 R. Lang Company R. Lang Company Tel 800-677-5264 | Fax 888-526-4329 Tel 800-677-5264 | Fax 888-526-4329 French Door Instructions Amendments To Installation Instructions For French Door Opening ADDITIONAL PARTS (See Page 1 for Step 1) Step 1 INCLUDED: Install Housing / Hinge...
- Page 5 For a period of one (1) year from the date of purchase, any defective product or part may be sent, freight prepaid, to R. Lang Company, 8240 West Doe Avenue, Visalia, California (93291) for replacement or repair at no charge. Proof of purchase date and a pre-approved Return Materials Authorization must accompany any returned item.
-
Page 6: Parts List
R. Lang Company R. Lang Company Tel 800-677-5264 | Fax 888-526-4329 Tel 800-677-5264 | Fax 888-526-4329 Series 6500 1-1/16” Parts List R6110 1-3/8” HEAD R6046 R6075 JAMB 2-5/8” R6171L R6021 R5120 1-7/8” SCREEN WIDTH SCREEN HEIGHT R6465 JAMB R5170 15/16”...
