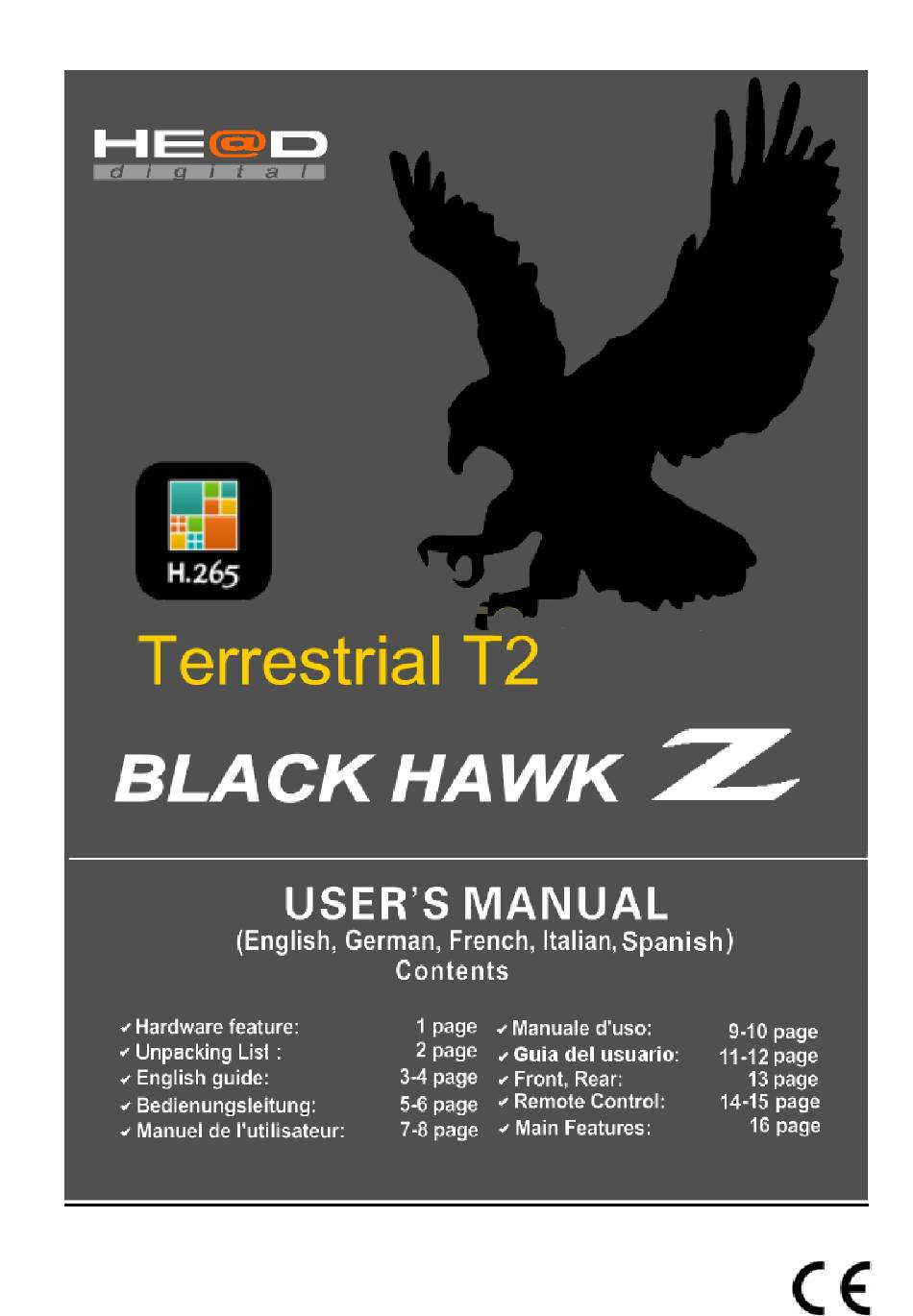

Summary of Contents for HEAD BLACK HAWK Z
-
Page 2: Hardware Features
USER’S MANUAL User Guide : BLACK HAWK Z Hardware Features MAIN CHIPSET High-Performance multimedia and codec specialized MIPS 24KEc MEMORY DDR3 SDRAM 64Mb Additional Flash VIDEO DECODER MPEG-2 ISO/IEC 13818-2 TRANSPORT STREAM MPEG-4 Part 2 MPEG-2 MP@ML, MPEG-2 MP@HL PROFILE LEVEL MPEG-4 AVC/H.264 HP@L4.1, MPEG-4 H.265 HEVC... -
Page 3: Unpacking List
USER’S MANUAL OPERATING TEMPERATURE 0℃ to +45℃ STORAGE TEMPERATURE -10℃ to +70℃ Unpacking List Unpack the receiver and check to make sure that all of the following items are included in the packagi 1 x Digital Set Top Box 1 x Remote 1 x User’s Guide 1x 5V 1.5A Adaptor 1 x 1m HD cable... - Page 4 USER’S MANUAL [ Init Install ] You can see this menu after first time booting. 1. OSD Language : - You can select the default OSD display languages. 2. Country : - You can select the searching country. 3. Active antenna : - You can select the active antenna ON and OFF.
- Page 5 USER’S MANUAL [ Main Menu ] 1. Channel : - You can manage the channels in this menu - Channel manager, Favorite list etc. 2. Installation : - You can install the antenna setting and searching channels. - Auto search - Manual search - Channel filter - Country...
- Page 6 USER’S MANUAL [ Init Install ] Sie können dieses Menü nach dem ersten Start sehen. 1. OSD-Sprache: - Sie können die Standard-OSD-Anzeigesprachen auswählen. 2. Land: - Sie können das Suchland auswählen. 3. Aktive Antenne: - Sie können die aktive Antenne EIN und AUS auswählen. 4.
- Page 7 USER’S MANUAL Hauptmenü 1 Kanal : - In diesem Menü können Sie die Kanäle verwalten - Channel Manager, Favoritenliste usw. 2. Installation: - Sie können die Antenneneinstellung und Suchkanäle installieren. - Automatische Suche - Manuelle Suche - Kanalfilter - Land - LCN - Aktive Antenne 3.
- Page 8 USER’S MANUAL [ Init Install ] Vous pouvez voir ce menu après le premier démarrage. 1. Langue OSD: - Vous pouvez sélectionner les langues d’affichage OSD par défaut. 2. Pays: - Vous pouvez sélectionner le pays de recherche. 3. Antenne active: - Vous pouvez sélectionner l’antenne active activée ou désactivée.
- Page 9 USER’S MANUAL [ Menu principal ] 1. Canal: - Vous pouvez gérer les canaux dans ce menu - Gestionnaire de chaî nes, liste de favoris, etc. 2. Installation: - Vous pouvez installer le réglage de l'antenne et rechercher des canaux. - Recherche automatique - Recherche manuelle - Filtre de canal...
- Page 10 USER’S MANUAL [ Installazione iniziale ] Puoi vedere questo menu dopo il primo avvio. 1. Lingua OSD: - È possibile selezionare le lingue di visualizzazione OSD predefinite. 2. Paese: - È possibile selezionare il paese di ricerca. 3. Antenna attiva: - È...
- Page 11 USER’S MANUAL [ Menu principale ] 1. Canale: - È possibile gestire i canali in questo menu - Gestore dei canali, elenco dei preferiti, ecc. 2. Installazione: - È possibile installare le impostazioni dell'antenna e cercare i canali. - Ricerca automatica - Ricerca manuale - Filtro canale - Paese...
- Page 12 USER’S MANUAL [ Inicializar instalació ntall ] Puede ver este menú después del primer arranque. 1. Lenguaje OSD: Puede seleccionar idiomas visualizació n predeterminados. 2. Paí s: - Puede seleccionar el paí s de bú squeda. 3. Antena activa: - Puede seleccionar la antena activa ON y OFF. 4.
- Page 13 USER’S MANUAL [ Menú principal ] 1. Canal: - Puedes gestionar los canales en este menú. - Gestor de canales, lista de favoritos, etc. 2. Instalación: - Puede instalar la configuración de la antena y buscar canales. - Búsqueda automática - Búsqueda manual - filtro de canal - paí...
- Page 14 USER’S MANUAL [ OVERVIEW OF THE EQUIPMENT ] [ Front and Rear design ] ANT-IN： Connect to Antenna (IF input from Antenna) Insert the Smart Card. ETHERNET: Connect to the Internet line. HD OUT: Connect to the TV using HD TV line SCART OUT: Connect to TV.
- Page 15 USER’S MANUAL [ Remote Control ]...
- Page 16 USER’S MANUAL...
-
Page 17: Key Definition
USER’S MANUAL Key Definition 1) (MUTE) : Mutes or un-mutes the audio temporarily. 2) (POWER ON) : Switches between operation and standby modes. 3) NUMERIC(0~9) Key : To select channels and input of channel numbers or characters. 4) RECALL : Displays the history channel lists 5) INFO : Displays the channel and program information. - Page 18 USER’S MANUAL [ Main Features ] High performance CPU, 32-bit MIPS Memory / DDR3 1Gb / Flash 64Mb USB Wi-Fi support Firmware upgrade by USB and from FTP server via internet DC IN 5V 1.5A [ Multimedia & IPTV functions ] USB Multimedia Applications (Movie, Music, Photo, Game, E-Book) support Most of Multimedia file format support include MKV (AVI, DIVX, MKV, XVID, MP4, SWF etc) SAMBA (Access and Play directly on TV any multimedia content stored and shared on the HDD of PC)
- Page 19 USER’S MANUAL...
