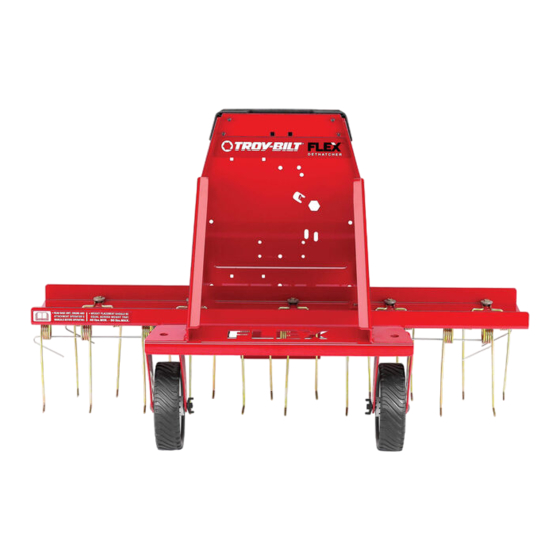

Dethatcher attachment
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Safe Operation Practices • Assembly & Set-Up • Controls & Features • Operation • Maintenance • Warranty
O
'
M
peratOr
s
anual
FLEX™ Dethatcher Attachment
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
NOTE: This Operator's Manual covers several models. Features may vary by model. Not all features in this manual are applicable to all
models and the model depicted may differ from yours.
TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Form No. 769-11015
(October 6, 2015)

Advertisement

Chapters

Table of Contents
loading

Related Manuals for Troy-Bilt FLEX

Summary of Contents for Troy-Bilt FLEX

  • Page 1 NOTE: This Operator’s Manual covers several models. Features may vary by model. Not all features in this manual are applicable to all models and the model depicted may differ from yours. TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 Printed In USA Form No.

  • Page 2: Table Of Contents

    How-To video; you can seek help from the experts. Have your full model number and serial number ready. Choose from the options below: Web: www.troybilt.com/equipment/troybilt ◊ ◊ Phone: (800) 828-5500 ◊ Mail: Troy-Bilt LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019...
  • Page 3 Disengage clutch levers and shift (if Start the engine according to the provided) into neutral (“N”) before starting instructions found in the FLEX™ Power Base Read, understand, and follow all instructions the engine. manual and keep feet well away from the on the machine and in the manual(s) before spring tines at all times.

  • Page 4: Safe Operation Practices

    Use only attachments and accessories Check bolts and screws for proper tightness Follow this manual for safe loading, approved by the manufacturer. Failure to do at frequent intervals to keep the machine unloading, transporting, and storage of this so can result in personal injury. in safe working condition.
  • Page 5 2 — i ection mportant peration racticeS...

  • Page 6: Assembly & Setup

    Controls & Operation Read the entire Operator’s Manual before you attempt to operate your new dethatcher. Starting and Stopping the Engine Start and stop the engine on the FLEX™ Power Base Engine Drive Control in accordance with the Operator’s Manual included Lever with that machine.
  • Page 7 Operation Practices section to determine how to made. Ensure that the kickstand is still in the properly operate the dethatcher on slopes. UP position, and swiftly tip the FLEX™ Power WARNING! Do not dethatch on Base backward with the top mount engaged.

  • Page 8: Maintenance & Service

    Carefully ease the spring tine backward (See FLEX™ Power Base. A new spark plug and clean air 3 in Figure 5-2), and slide the spring tine filter ensure proper fuel-air mixture and help your It is important to clean the tine assembly after each downward out of the dethatcher tray.

  • Page 9: Troubleshooting

    Troubleshooting Problem Cause Remedy Unit does not pick up thatch 1. Unit height is set incorrectly. 1. Adjust wheel height to lower spring tines. Unit pulls out live grass 1. Unit height is set incorrectly. 1. Adjust wheel height to raise spring tines. 2.

  • Page 10: Warranty

    LIMITED WARRANTY FOR FLEX ATTACHMENT PRODUCT The limited warranty set forth herein is given by Troy-Bilt LLC to the Initial Any expendable, consumable, or routine maintenance item which Purchaser (as defined herein) with respect to a new Troy-Bilt-branded FLEX needs replacement or service as part of normal maintenance, unless...
