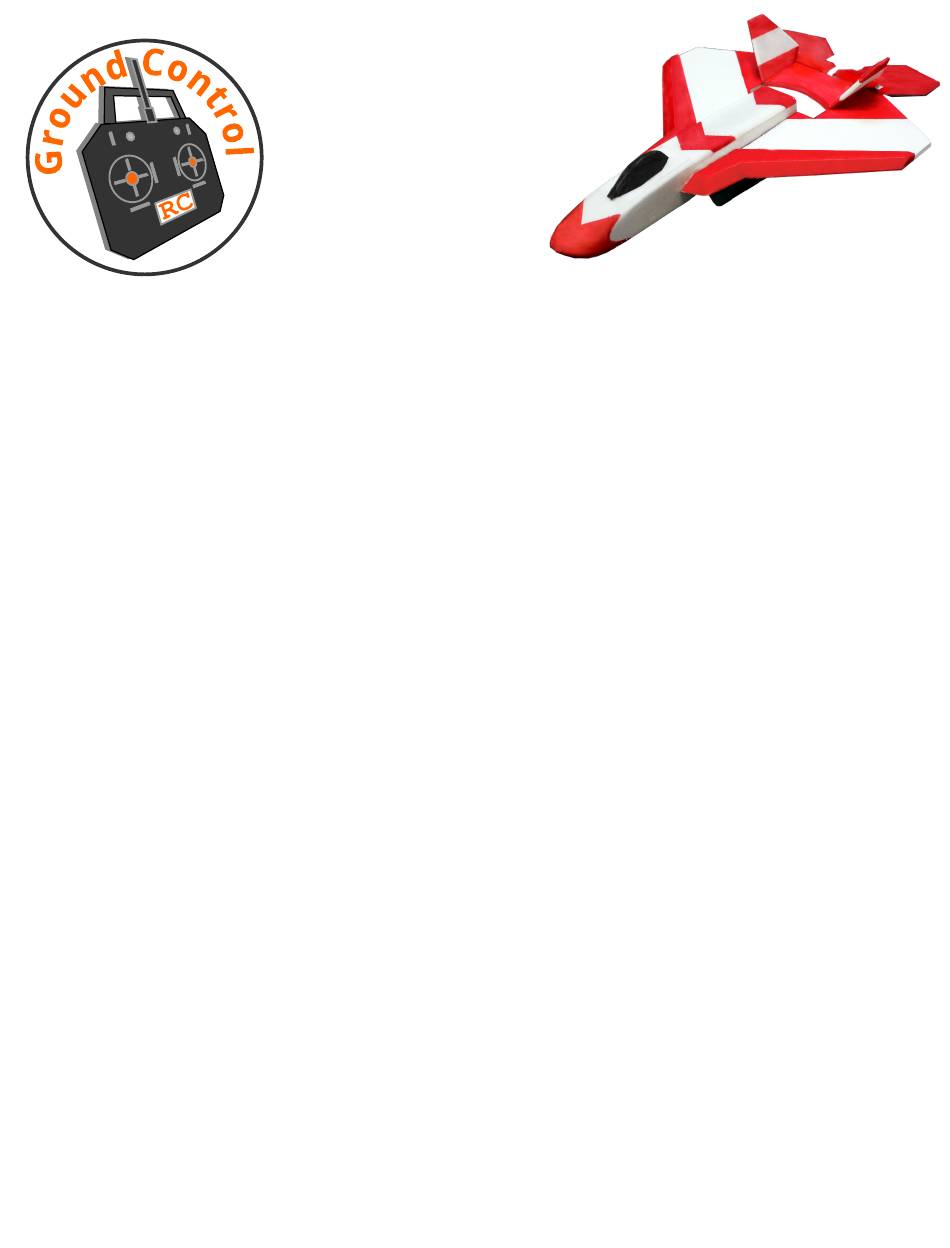

Features:
Designed to be very maneuverable and aerobatic.
Designed for vertical and horizontal center mass weight distribution.
Has a fully enclosed, full size fuselage.
The KF2 Airfoil provides lift like a traditional Airfoil.
Designed for build simplicity.
Made from 5mm Adams Readi-Board ;-)
Aircraft Specifications:
Description:
Build Version:
Designer:
Design Date:
Wingspan:
Length:
CG (From Nose):
Weight (Airframe):
Weight (AUW):
Proficiency:
Recommended Control Surface Deflection (From Neutral Position):
Elevon Mixing
Aileron:
Elevator:
Linkage Connections: Inner Hole on Servo Control Arm and Control Horn
Ground Control RC
www.groundcontrolrc.com
Glue & Fly
TM
Series F-22 Nano
V1
Ground Control RC
12/01/19
254mm (10.0")
388mm (15.3")
185mm (7.3")
19.0g (.67oz)
40.5g (1.43oz)
Beginner, Intermediate, Advanced
Deflection in Milimeters
17mm UP / 17mm Down
12mm UP / 12mm Down
TM
- F-22 Nano V1
Glue and Fly
TM
EXPO
40
40
Series
TM
Advertisement
Summary of Contents for Ground Control Glue and Fly Series
- Page 1 Ground Control RC - F-22 Nano V1 www.groundcontrolrc.com Glue and Fly Series Features: Designed to be very maneuverable and aerobatic. Designed for vertical and horizontal center mass weight distribution. Has a fully enclosed, full size fuselage. The KF2 Airfoil provides lift like a traditional Airfoil.
-
Page 2: Suggestions & Notes
Ground Control RC - F-22 Nano V1 www.groundcontrolrc.com Glue and Fly Series Diagram Keys Fold Types Score, Cut, and Remove Foam from these areas. A-Fold (Above) B-Fold (Beside) Suggestions & Notes Do not install your fuselage motor mount plate until you have marked the location of the rear of the motor with your prop and adapter installed to set the prop in the center of the prop slot. - Page 3 Ground Control RC - F-22 Nano V1 www.groundcontrolrc.com Glue and Fly Series Recommended Electronics & Components: *Electronics & Components Listed Below Are Actual Items Used In Flight Testing *Thrust to weight ratio: (1S) 1.4:1 Motor: HappyModel EX1102 13500kv Prop Shaft 1.5mm w/Servo Connectors 1S LIPO = 57.0g total thrust...
- Page 4 Ground Control RC - F-22 Nano V1 www.groundcontrolrc.com Recommended Electronics & Components: Glue and Fly Series *Electronics & Components Listed Below Are Actual Items Used In Flight Testing *Thrust to weight ratio: 1S LIPO 1.4:1 Happymodel EX1102 13500KV 2-3S Brushless Motor https://www.banggood.com/Happymodel-EX1102-8500KV-9000KV-10000KV-13500KV-2-3S-Brushless-Motor-Original-for-Mobula7-HD-Sailfly-X-Drone-p-1447084.
- Page 5 Ground Control RC - F-22 Nano V1 www.groundcontrolrc.com Glue and Fly Series Part - Fuselage Remove Paper Inside Score Lines Ground Control RC Aircraft: F-22 Nano Version : 1 Part : Fuselage Fixed Back Panel Top & Bottom : 1 ea.
- Page 6 Ground Control RC - F-22 Nano V1 www.groundcontrolrc.com Ground Control RC Aircraft: F-22 Nano Glue and Fly Series Version : 1 Part - Fuselage Part : Fuselage Access Panel Metal Tab for Magnet Fuselage Back Panel Ground Control RC Aircraft: F-22 Nano...
- Page 7 Ground Control RC - F-22 Nano V1 www.groundcontrolrc.com Glue and Fly Series Part - Wing Plate Center Line Vertical Stabilizer Pin Holes Landing Skid Pin Holes Ground Control RC Ground Control RC - F-22 Nano V1 Aircraft: F-22 Nano Version : 1...
- Page 8 Ground Control RC - F-22 Nano V1 www.groundcontrolrc.com Glue and Fly Series Part - Elevons Vertical Stabilizers KF2 Airfoils Landing Skids Nacelle Ground Control RC Aircraft: F-22 Nano Version : 1 Part : Virt Stabilizer Ground Control RC - F-22 Nano V1 Copyright 2020 - For Personal Use Only "Glue and Fly Series"...
- Page 9 Ground Control RC - F-22 Nano V1 www.groundcontrolrc.com Glue and Fly Series [ Aircraft Assembly Diagram - Fuselage ]...
- Page 10 Ground Control RC - F-22 Nano V1 www.groundcontrolrc.com Glue and Fly Series [ Aircraft Assembly Diagram - Wing Plate ]...
- Page 11 Ground Control RC - F-22 Nano V1 www.groundcontrolrc.com Glue and Fly Series [ Aircraft Assembly Diagram - Fuselage - Wing Plate ]...
- Page 12 Ground Control RC - F-22 Nano V1 Remove Paper Inside Copyright 2020 - For Personal Use Only Canopy Placement > "Glue and Fly Series" Test Scale = 2 inch Ground Control RC Aircraft: F-22 Nano Version : 1 Part : Fuselage Top Nose Panel...
