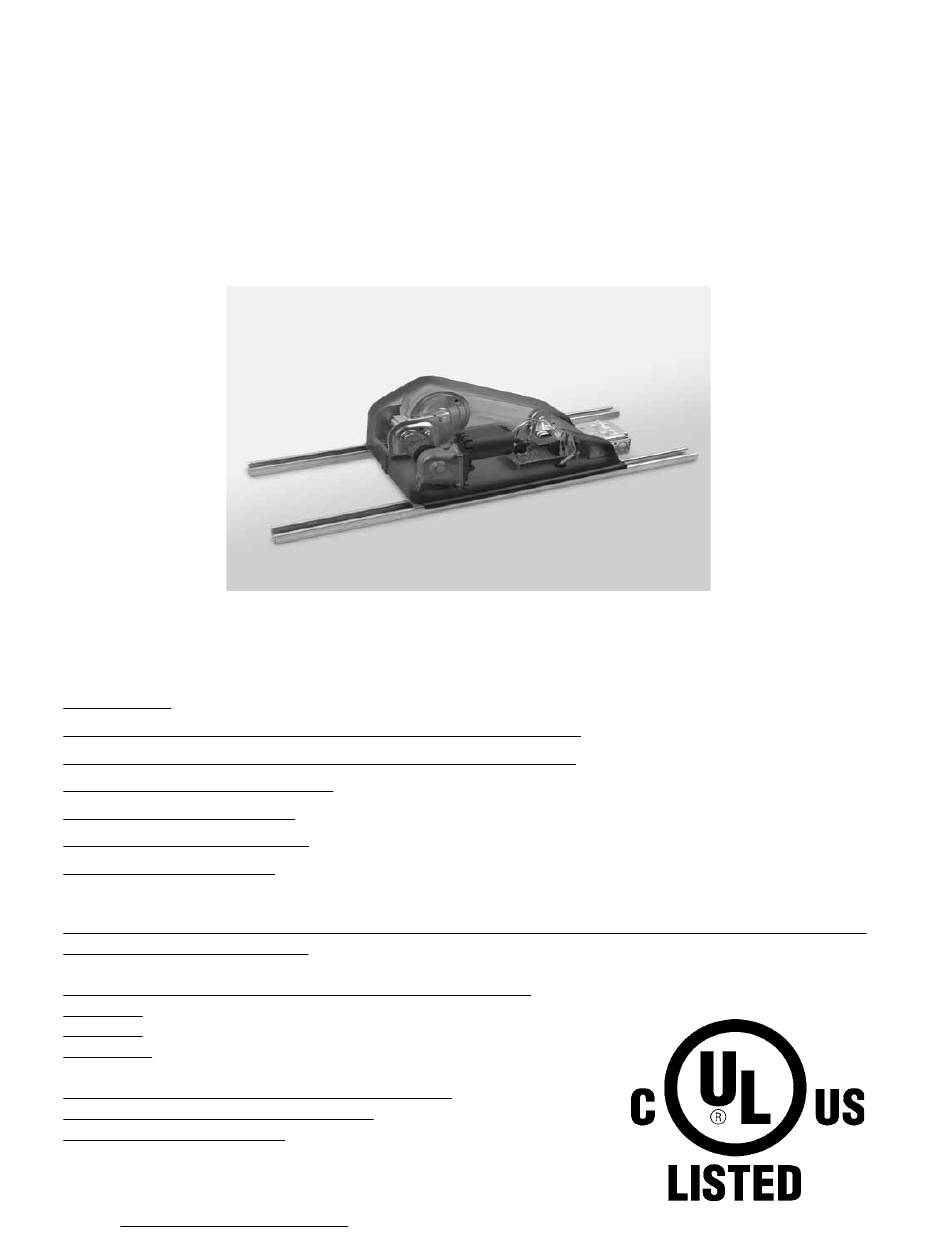

ALL300
INSTALLATION
INSTRUCTIONS
WARNING: Disconnect power source before servicing to avoid electrical shock
CAUTION: To Reduce the Risk of Electric Shock or Injury, Use Indoors Only.
Light and motor circuits are rated at 110V
Not suitable for air handling spaces
Pour usage seulement dans un endroit
Avec acces au dessus du plafonds
Model Number: ALL300 (300lb. rated working load, 1/8" steel galvanized lay cable, 1.5amp, 50/60Hz)
__
Greenfield _(if checked)
Light lift is equipped with a 35' cable unless checked below:
______65'
______90'
______120'
Light lift is equipped with a 1,650 watt (15 amps)
lighting capacity unless checked below:
______2200 watts (20 amps)
Patent #5105349
________________________
Electric Hoist
91F5
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for ALADDIN LIGHT LIFT ALL300
- Page 1 Pour usage seulement dans un endroit Avec acces au dessus du plafonds Model Number: ALL300 (300lb. rated working load, 1/8” steel galvanized lay cable, 1.5amp, 50/60Hz) Greenfield _(if checked) Light lift is equipped with a 35’ cable unless checked below: ______65’...
- Page 2 IV. During installation of the ALL300, take one step at a time and check off each step upon completion. V. The Troubleshooting Guide is located in the back of the Installation Instructions. Call Aladdin Light Lift (877) 287-4601 if assistance is needed for installation and/or operation of the ALL300.
- Page 3 Never install the ALL300 where the ceiling height exceeds five feet less than the exact length of winch cable. For example, if the ALL300 is equipped with a 35ft. cable, do not install the ALL300 in a ceiling that is greater than 30ft. This could cause the cable to become reverse wrapped on the winch. An ALL300 installed with a reverse wrapped cable could cause the chandelier to fall, which could cause death, personal injury, and/or property damage.
- Page 4 Tighten temporary five pound weight to fixure coupler on bottom contact plate. Make sure jam nut on weight is tight. Never install or operate an ALL300 before securing the temporary five pound weight to the fixture coupler. This could cause the temporary weight to fall, which could cause death, personal injury, and/or...
- Page 5 STEP 7 Position ALL300 where ceiling box will be centered in ceiling hole. Weight and bottom contact plate assembly should hang down through ceiling hole. Adjustments can be made loosening 3/8” channel strut bolts that hold ALL300 to channel struts. Retighten channel strut bolts after adjustments are made.
- Page 6 STEP 9 Shim and adjust ALL300 so that winch cable hangs plumb through center of hole in top contact plate on ceiling box. See Diagram E. Look up at ceiling box from floor level to verify cable is plumb. Never install the ALL300 where the cable is not plumb through the center of the ceiling box. This could interfere with the automatic shutoff system and could cause the chandelier to fall, which could cause death, personal injury, and/or property damage.
- Page 7 STEP 12 Turn off supply power before wiring ALL300. Turn off light switch in square box. Wire light switch with 110V wiring. The 110V light switch leg can not be used as motor feed. Keep light and motor neutrals separate.
- Page 8 Call Aladdin Light Lift (877) 287-4601 immediately if ALL300 does not shut off at CEILING POSITION. Never extend the full length of winch cable from the ALL300. This could cause the cable to become reverse wrapped on the winch. An ALL300 installed with a reverse wrapped cable can cause the chandelier to fall, which could cause death, personal injury, and/or property damage.
- Page 9 Adjust chandelier chain to desired length and attach to screw collar loop. Never cut, modify, or adjust the winch cable and never install an ALL300 with a cut, modified or adjusted winch cable. Adjust the chandelier elevation by adjusting the chandelier chain or stem. An ALL300 installed with a cut, modified, or improperly adjusted cable could cause the chandelier to fall, which could cause death, personal injury, and/or property damage.
- Page 10 STEP 23 Adjust screw collar rings so top of canopy is just below edge of bottom contact plate. Canopy should be at least 1 ¾” deep. See Diagram I. Never allow the chandelier canopy to make contact with the ceiling before the contact plates meet. This could interfere with the automatic shutoff system and could cause the chandelier to fall, which could cause death, personal injury, and/or property damage.
- Page 11 Apply supplied liquid thread lock (part D) to all fittings including fixture coupler and screw collar loop fittings. Never attach the chandelier to the ALL300 improperly. Failure to secure the fixture coupler set screws and properly apply thread lock could cause the chandelier to fall, which could cause death, personal injury, and/or property damage.
- Page 12 1. Confirm motor switch in the square box is turned on. The square box is mounted on the chassis plate of the ALL300, right in front of the control board. If it was found in the off position, flip it to the on position and use the controller to test the ALL300.
-
Page 13: Warranty Agreement
If the fuse reads continuity, place it back in the fuse clips. If it does not read continuity, it must be replaced with a new, 15 amp, fast blow fuse. If the ALL300 was equipped with a 2200 watt upgrade package, replace with a new, 20 amp, fast blow fuse.
