Summary of Contents for TK BBS20

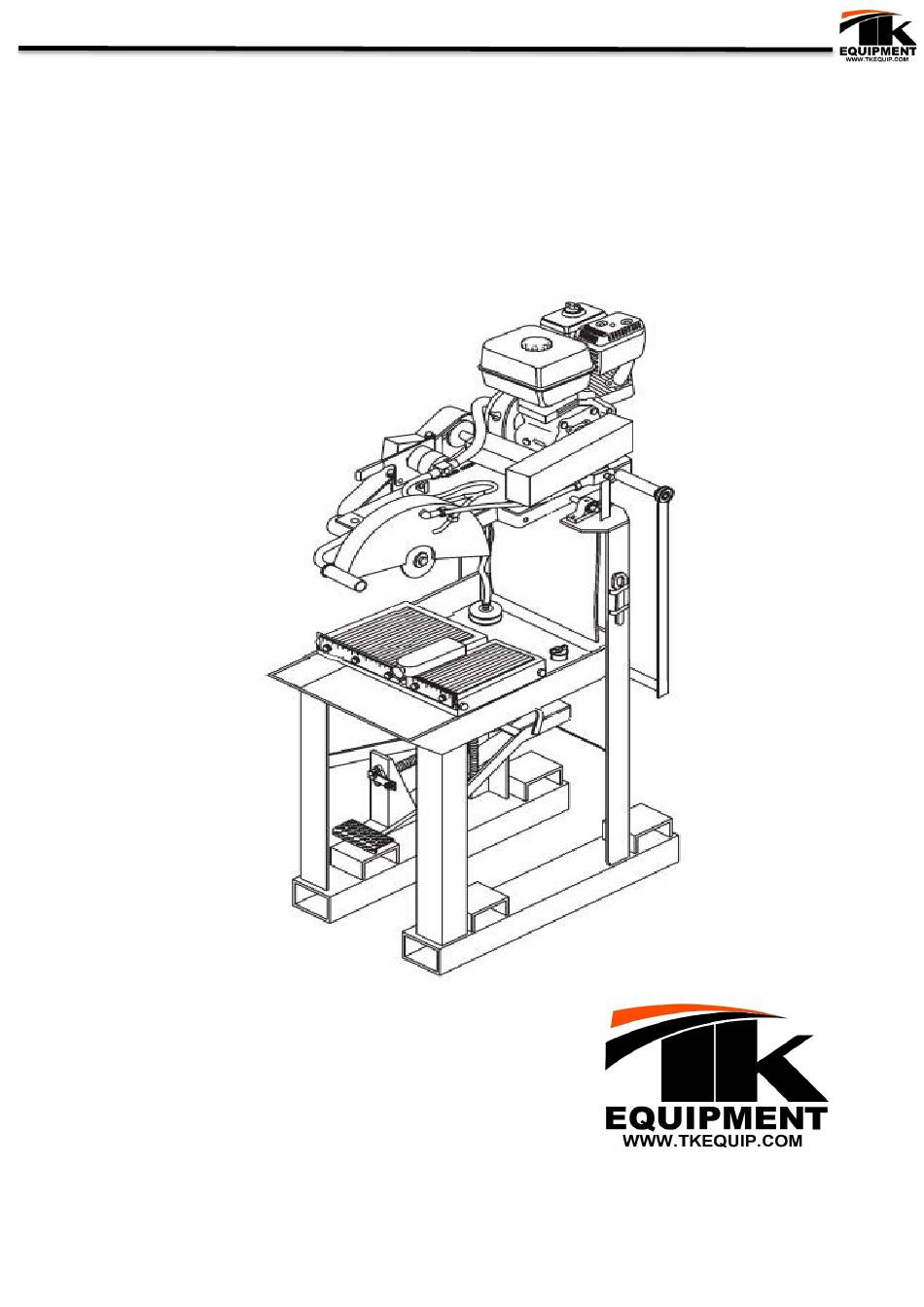

- Page 1 (956) 796 - 9411 Operator’s Safety and Service Masonry Block & Brick Saw BBS20 / BBS20-E 01012019...
-
Page 2: Table Of Contents
www.tkequip.com (956) 796 - 9411 It is the OWNER´S RESPONSABILITY to communicate information on the SAFE USE and OPERATION of this machine to the operators. TABLE OF CONTENTS 1.Serial Number Location ..........3 2.Parts Ordering Procedure .......... 3 3.Operating Instructions ..........4 4.Safety Precaution ............ -
Page 3: Serial Number Location
www.tkequip.com (956) 796 - 9411 1. SERIAL NUMBER LOCATION The model/serial number decal is located on the Frame. (Write model number) (Write serial number) The unit year of manufacturing can be determined by its serial number. So, keep this information handy at all times, use your unit serial number when ordering parts. This Unit warranty is stated in this Operational and Safety manual on page 16. -
Page 4: Operating Instructions
www.tkequip.com (956) 796 - 9411 REMEMBER – You own the best. If repairs are needed use only OEM purchased parts from authorized distributors. ALWAYS HAVE READY: 1. Dealer Account number 2. Dealer Name and Address 3. Shipping address and method of shipping if different than billing address. 4. -
Page 5: Safety Precaution
4. Clean and inspect arbor, lade, collars and bolts 5. Verify inside blade collar is fully engaged on arbor and key is positioned properly. NOTE: BBS20 uses 1” diameters collar. 6. Mount blade over shoulder of outside collar. Pin must engage 3/8” diameter hole in blade. - Page 6 www.tkequip.com (956) 796 - 9411 WARNING WARNING SILICOSIS WARNING SILICOSIS WARNING GRINDING/CUTTING/MIXING MASONRY, CONCRETE, METAL & OTHER MATERIALS WITH GRINDING/CUTTING/MIXING OF MASONRY, CONCRETE, METAL & OTHER SILICA IN THEIR COMPOSITION MAY GIVE OFF MATERIALS CAN GENERATE DUST, MISTS AND FUMES CONTAINING DUST OR MISTS CONTAINING CRYSTALLINE SILICA.
-
Page 7: Safety Notice & Decals
www.tkequip.com (956) 796 - 9411 WARNING - DANGEROUS FUELS! Use extreme caution when storing, handling and using fuels - they are highly volatile and explosive in the vapor state. Do not add fuel while engine is running. Stop and cool the engine before adding fuel. DO NOT SMOKE WHEN REFUELING! SAFETY GUARDS It is the owner's responsibility to ensure ALL GUARDS AND SHIELDS are in place and in working order. - Page 8 www.tkequip.com (956) 796 - 9411 READ SAFETY DECALS CAREFULLY Carefully read and follow all safety decals. Keep them in good conditions. If they become aged, replace as required. If repainting, REPLACE ALL decals. Decals are available from your authorized Distributors. Decals are not shown to scale. CAUTION WARNING EMERGENCY...
-
Page 9: Before Operating
www.tkequip.com (956) 796 - 9411 6. BEFORE OPERATING • REMEMBER! It is the owner´s responsibility to communicate information on the safe use and proper operation of this unit to the operators. • Before operating, review SAFETY PRECAUTIONS on this manual. •... - Page 10 www.tkequip.com (956) 796 - 9411 4. Choke the engine X3 times for warming, if necessary. 5. Pull the starter string. 6. Before the saw is placed into operation, run the engine for several minutes. Check for fuel leaks, and noises that would associate with a loose guard and/or covers. 7.
-
Page 11: Adding Fluids & Towing
www.tkequip.com (956) 796 - 9411 When finished cutting, slowly lift your foot up to raise the blade away from the conveyor cart and your cut material. Hold on to the mounting plate handle to prevent the plate from rising rapidly, possibly causing the saw to become unstable. -
Page 12: Service Instructions
www.tkequip.com (956) 796 - 9411 TRANSPORTING 1. Move saw on the jobsite with appropriate lifting equipment. CUTTING 1. Must know what you are sawing, before making any cuts. Be aware of all utilities i.e. gas/pipe lines, electricity, etc. take necessary precautions to prevent injury /death. - Page 13 www.tkequip.com (956) 796 - 9411 use abrasive blades that have been damaged i.e. missing blotters cracked or missing sections. Inspect diamonds blades to make sure they don’t have missing segments or stress cracks. 2. Use only blades rated to operate arbor speed of 3000 RPM. Use only proper size blade guards on your saw.
-
Page 14: Water Pump
www.tkequip.com (956) 796 - 9411 10. WATER PUMP (WET CUTTING) WET CUTTING (GASOLINE ONLY) To connect the mechanical water pump to the drive V-belts perform the following: 1. Loosen the 2 hex head cap screws (Figure 11) that secure the pump mount bracket. 2. -
Page 15: Maintenance Schedule
www.tkequip.com (956) 796 - 9411 11. MAINTENANCE SCHEDULE 1. Check all hardware after the first 5 hours of use, the follow the maintenance schedule. Tighten loose nuts or screws and replace any cracked or broken parts. 2. Clean the machine frequently. DO NOT use aggressive cleaners (i.e. containing solvents). DO NOT use high-pressure water jets, aggressive detergents or solutions and liquids with a temperature exceeding 86°. - Page 16 (956) 796 - 9411 BEARING LUBRICATION CARE There are two (2) grease points for the BBS20-E (Electric Motors) and four (4) grease points for the BBS20-GH (Gasoline Engine). Use only Premium Lithium 12 based Grease, conforming to NLG1 Grade #1 consistency. Grease daily.
-
Page 17: Replacements
Replacement hardware should be grade 5 and zinc plated. ✓ Replace if they become aged, damaged or cannot be Safety Decals easily read. 13. EQUIPMENT SPECS MODEL BBS20 E5 BBS20 GH13 20” (50) 20” (50) MAX Blade Capacity in (cm) Operating Weight 580 lbs. -
Page 18: Warranty
Before you use your machine please register your machine at https://tkequip.com/warranty/ TK Equip warrants each new machine against any manufacturing defect in material and workmanship under normal use and service for a period of (1) one year. Warranty period begins on first day of use by end user. - Page 19 TK Equipment, Inc. Lifetime Limited Warranty Application This warranty application must be filled in by the dealer/distributor at the time of the sale. Please Print TK Equipment Product Purchased at:___________________________ Phone (_______)____________ Street Address:______________________________________________________________________ TK Equipment, Inc. City:____________________________________ State:_______ Zip:___________________________ Model No.:___________________________Customer Invoice:_________________Date:___/___/___...
-
Page 20: Contact Us
Their sales engineers are available for professional consultation. If you cannot locate your nearest distributor contact our sales branch listed below so we can point you in the right direction. UNITED STATES TK EQUIPMENT OFFICE 13105 SPIVEY DRIVE LAREDO, TX 78045 TEL: (956) 796-9411... -
Page 21: Additional Notes
www.tkequip.com (956) 796 - 9411 16. ADDITIONAL NOTES: _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________...
