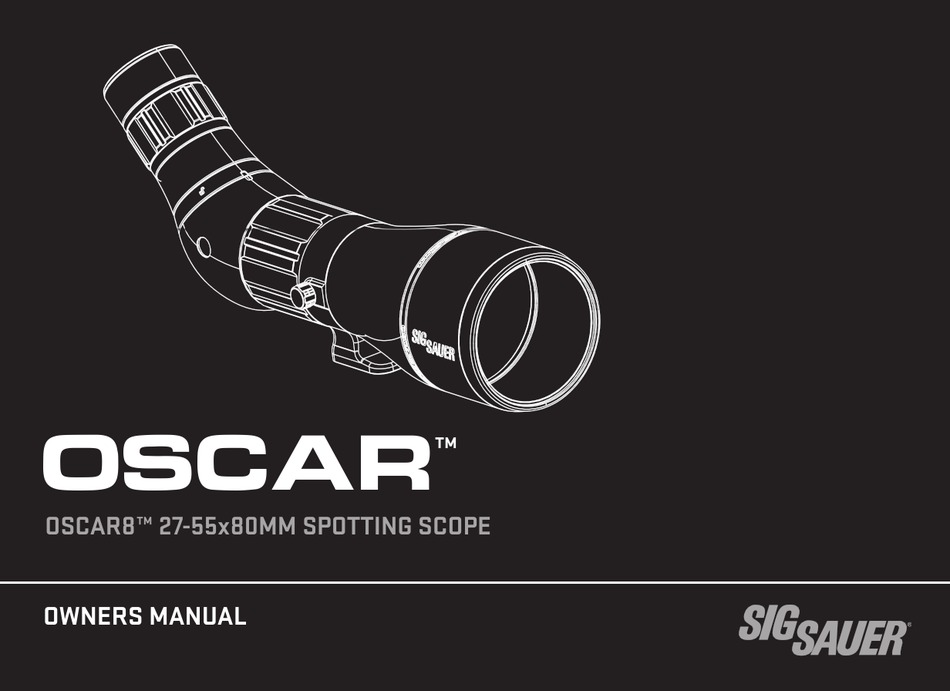

Page 1 OSCAR ™ OSCAR8™ 27-55x80MM SPOTTING SCOPE OWNERS MANUAL...
Page 2: Table Of Contents
Maintance ..........14 OSCAR8 Specifications ........15 OSCAR8 Overview .
Page 3: Introduction
INTRODUCTION The OSCAR8™ is a premium, angled eyepiece 27 – 55 x 80 mm spotting scope. The OSCAR8 features an industry leading HDX™ optical design - combining extra-low dispersion glass with high light transmittance glass, SCHMIDT-PECHAN prism and fully multi-coated lenses to provide unmatched resolution, image contrast, color clarity and image brightness.
Page 4: Contents
CONTENTS: • OSCAR8™ 27-55x80mm Angled Eyepiece Spotting Scope • True Fit Softshell Scope Cover • Lens Covers • Lens Cloth • OSCAR8 Manual...
Page 5: Key Features
sigsauer.com KEY FEATURES: • Angled eyepiece for easy alignment in varying terrain conditions • Multi-position twist-up eyecup for generous eye relief • HDX™ optical design combines extra-low dispersion glass with high light transmittance glass, fully multi-coated lenses and SCHMIDT-PECHAN prism for superior image quality and light transmission. •...
Page 6: Product Identification
PRODUCT IDENTIFICATION: A - Eyepiece Lens F - Rotating Collar Adjustment Knob B - Adjustable Eyecup G - Tripod Adapter Footprint C - Magnification Power Selector Ring H - Integrated Sunshade D - Interchangeable Locking Eyepiece Ring I - Objective Lense E - Fast Focus Adjustment...
Page 7: Setup
sigsauer.com SET UP Attaching the Eyepiece 1. Begin with the Eyepiece Lock Ring in the unlocked position, do this by turning the lock ring counter- clockwise. 2. Align the white magnification indication dot on the Eyepiece with the “Lock” image on the Eyepiece Lock Ring and insert.
Page 8 Detaching the Eyepiece 1. To detach the eyepiece, rotate the Eyepiece Lock Ring counter-clockwise until unlocked symbol matches up with the white indication dot on the scope body. 2. Rotate the eyepiece counterclockwise 1/8 turn and pull it straight out of the body.
Page 9 sigsauer.com Adjusting the Eyecup The eyecup rotates in or out to set eye relief. 1. To increase eye relief, rotate the eyecup counter-clockwise (out). 2. To decrease eye relief, rotate the eyecup clockwise (in). Note: Users who wear glasses may find the best eye relief with the eyecup fully in. Increase eye relief Decrease eye relief...
Page 10: Adjusting Magnification
Adjusting Magnification The magnification adjustments on the OSCAR8 allow you to see a wider field of view at lower settings and increased detail at higher settings. 1. To select lower magnification, rotate the power selector ring clockwise (-). 2. To select higher magnification, rotate the power selector ring counterclockwise ( + ).
Page 11: Focus Adjustment
sigsauer.com Focus Adjustment Proper focus adjustment provides clear image details as well as reducing eye fatigue. • Note: minor focus adjustments are usually required after adjusting magnification. • To adjust the focus, rotate the focus dial until images becomes crisp and clear. •...
Page 12: Tripod Mount Adjustment
Tripod Mount Adjustment The OSCAR8 can be easily mounted to a tripod or vehicle window adapter. The rotating collar allows the OSCAR8 to be mounted in multiple orientations. 1. Attach the Tripod Foot (G) to any tripod I vehicle mount that uses a 1/4 x 20 screw thread.
Page 13: Sun Shade
sigsauer.com Sun Shade The sun shade extends to reduce glare and stray light under bright conditions. 1. To extend the sun shade, pull forward (H) 2. To retract the sun shade, push rearward (I)
Page 14: Maintance
MAINTENANCE • Cleaning – Keep your lenses clear by using a soft cloth or lens pen. The best way to maintain image quality is by keeping your lenses clear of dirt and dust that cause scratches. TROUBLESHOOTING Image is blurry •...
Page 15: Oscar8 Specifications
OSCAR8 SPECIFICATIONS Model/Magnification 27-55x80mm Exit Pupil 2.96mm / 1.45mm Objective Clear Aperture 80mm Close Focus Distance Length 15.27in X 6.1in X 4in Eye Relief 17-16mm Linear FOV FT at 1000 yards 105-73ft Linear FOV M at 1000 M 35-24m Angular FOV 2°-1.4°...
Page 16: Oscar8 Overview
15.27” 4”...
Page 17: Sig Sauer Electro-Optics Infinite Guarantee
Guarantee has your back, forever. Period. We will repair or replace your SIG SAUER product in the event it becomes damaged or defective, at no charge to you. If we cannot repair your product, we will replace it with a product in perfect working order of equal or better physical condition.
Page 18 NOTES:...
Page 19 sigsauer.com NOTES:...
Page 20 FOR PRODUCT SERVICE ON THIS MODEL, PLEASE CALL 603-610-3000 27100 SW Parkway Avenue, Wilsonville, OR 97070 USA 72 Pease Boulevard, Newington, NH 03801 USA sigsauer.com P/N 7401562-01 R11...
