E-ZY EZ-Base Quick Install Manual

High performance 250mw outdoor base station/client with integrated 15 hour battery backup
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EZ-Base
High Performance 250mW Outdoor Base Station / Client
with integrated 15 hour battery backup
Integrated battery backup for powerline filtering
▫
and 24/7 operation
Achieve up to 15 Mbit/sec speed; 25Mbps for
▫
5GHz version
Includes TriBand omni antenna for up to 0.3miles
▫
range. Add external antenna for up to 20 miles.
Field Proven Wireless Technology
▫
Solar Ready
▫
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ-Base and is the answer not in the manual?

Questions and answers

Summary of Contents for E-ZY EZ-Base

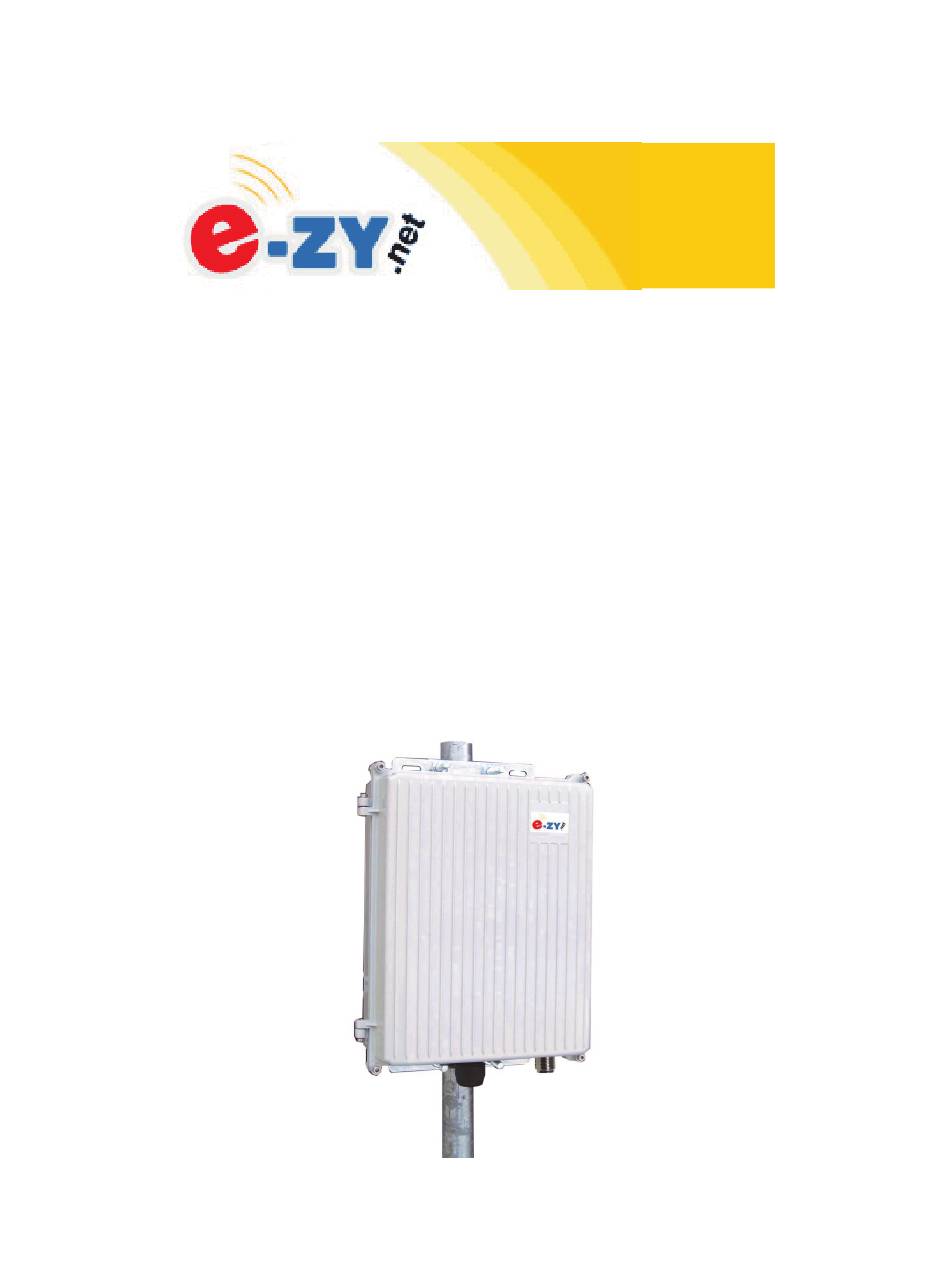

  • Page 1 ™ EZ-Base High Performance 250mW Outdoor Base Station / Client with integrated 15 hour battery backup Integrated battery backup for powerline filtering ▫ and 24/7 operation Achieve up to 15 Mbit/sec speed; 25Mbps for ▫ 5GHz version Includes TriBand omni antenna for up to 0.3miles ▫...

  • Page 2: Getting Started

    You should be comfortable with working on a ladder. Getting Started It is recommended that you setup the EZ-Base™system in your office or lab to get acquainted with the operation of the unit before installing outdoors.
  • Page 3 Install two bracket pieces to back of enclosure using 4 screws. The bracket can be mounted to a wall or to an existing pole up to 2” diameter. The EZ-Base can also be mounted indoors if desired. TECH TIP: Microwaves travel in straight lines and they lose strength quickly when going thru buildings and trees.

  • Page 4: Software Settings

    STEP 7: Install antenna that came with the unit or a larger gain external antenna. The small antenna that is supplied with the EZ-Base is good for about 500 yds. To cover greater distances you will need to use a larger antenna.
  • Page 5 TECH TIP: Download the EZ Discovery Tool from http://ez- bridge.com/support/support.htm . This tool will assist you in finding the EZ-Base™ on the network and allow you to change the IP address or set it as a DHCP client. Just select the unit, click on IP DETAILS, make selections and save changes directly to the device.
  • Page 6 Ethernet ports of the device. This is the most common use. The EZ-Base can also be set to ROUTER mode. In Router Mode there is a built in firewall and NAT that blocks traffic. If in AP mode and set to router then inbound Ethernet traffic is firewalled and to access the device you need to access thru the wireless side.

  • Page 7: Technical Specifications

    Technical Specifications Note: Subject to Change Without Notice 2.4GHz 5GHz Standards 802.11b/g 802.11a Certifications FCC / CE Radio Specifications Operating Frequency 2400 to 2497MHz 5100 to 5875MHz Available Transmit Power 802.11b 100 to 250mW 10 to 250mW (software selectable) 802.11g 50 to 100mW -73 @ 54Mbps -74dBm @ 54 Mbps Receive Sensitivity...

  • Page 8: Advanced Features

    It’s always good to do a site survey using the EZ-Base control panel to see what other wireless devices are in the area and then choose a wireless chan- nel that is at least 2 channels away from any strong offending signal.

  • Page 9: Typical Applications

    500yds at 5GHz and up to about 1 mile at 2.4GHz. To get more distance from the EZ-Base you will need to use an external antenna which you can purchase from any of our distributors. A good 24dBi antenna should give about 15 miles distance.
  • Page 10 The EZ-Base™ works with all network based security cameras. k. Create a streaming video conference link between buildings. Be- cause of the high bandwidth available with the EZ-Base™ , it easily supports streaming video technologies used for remote conferencing, like church meetings, business meetings, etc.

  • Page 11: Important Note

    The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Limited Warranty All e-zy.net products are supplied with a limited 12 month warranty which covers material and workmanship defects. This warranty does not cover the following: ▫...
  • Page 12 NFF charge is $200. This charge will be at the discretion of E-ZY.NET. The RMA number is valid for 14 days from date of issue. The product must be received by the repair depot within these 14-days or the shipment may be refused.
