FROMM
MASKED PARAMETERS FS 250 – FS 270 – FS 270+
As we have tried to make the machine as friendly a possibele, for maintenance purposes. We decided
to develop only one control board. All programms possibele in the FS 2XX series are already installed
on the board. We only have to change the different setting for some parameters to swich On or Off
these different functions.
To enter the parameter section:
Press the STOP button for five seconds
The indication of the parameter (F0, F1, F2, F3, F4, F5, F6 etc. ), which may be changed by means of
the «+» or «–», is shown on the left-hand side of the display.
The value of the parameter, which may be changed by means of the «+» or «–» is shown on the right-
hand side of the display.
These parameters are associated with:
F0 = Pallet overlap
F1 = Friction delay
F2 = Friction voltage
F3 = Film cutting system
F4 = Friction voltage before cutting
F5 = Cutting time ( 10 = 0,1 sec )
F6 = Slow time (10 = 0,1 sec )
We also have the possibility to regulate some parameters. This regulation can also be done on the
inverter itself. In any case it is advisebel the cheque the standard settings before any adjustment is be
done.
Regulation of the parameters

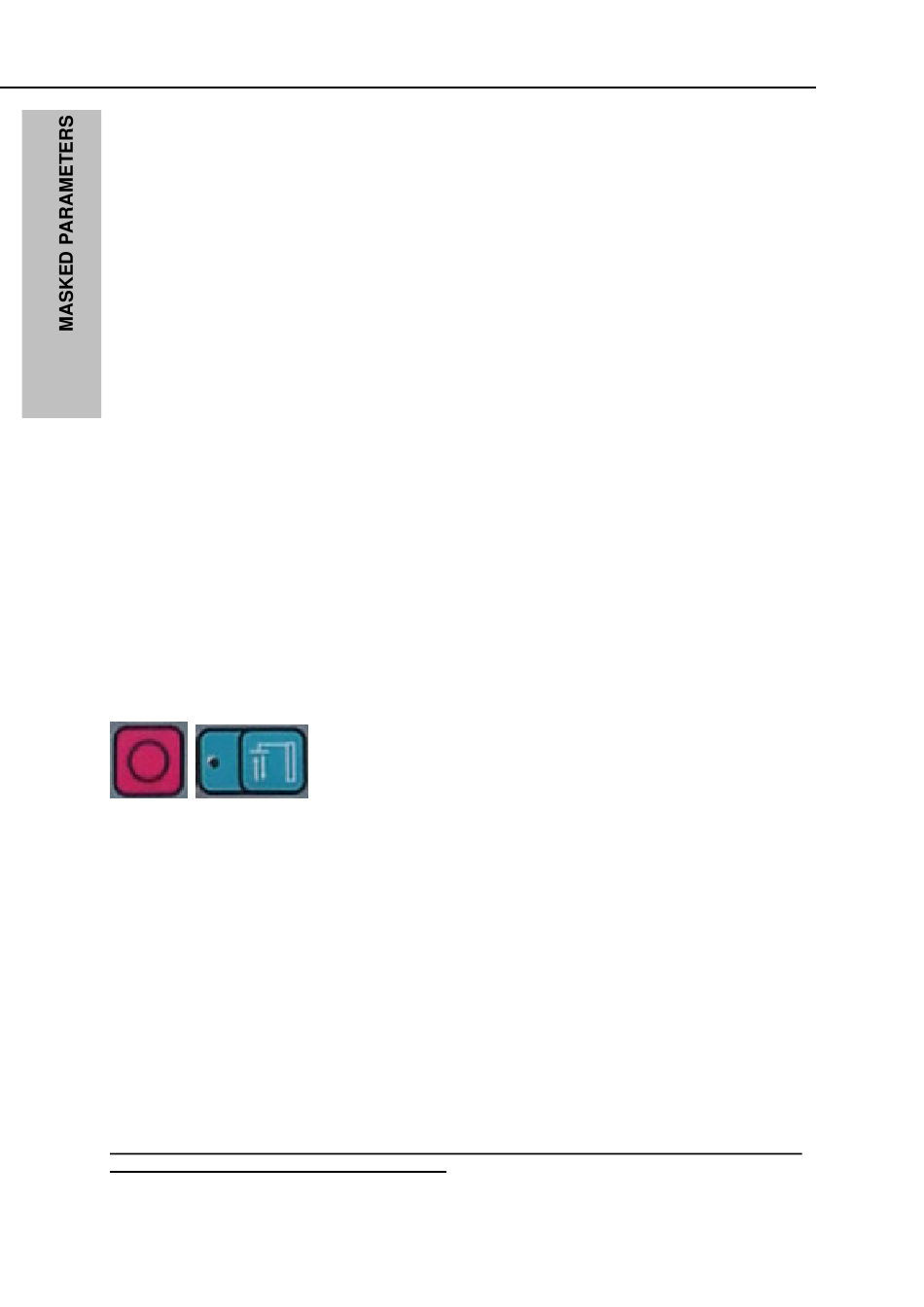

Push the button Stop + Manual toppress for 5 seconds
Insert password 16-07 than press stop again
T0 = Analog output 1 Inverter turntable
T1 = Analog output 2 Inverter carriage
T2 = Analog output 3 Inverter Pré – Stretch
T3 = Analog signal offset = 10 Inverter
T4 = Gain signal offset = 10 Inverter
T5 = Pré stretch
T6 = Top press
T7 = Film broken
T8 = Block parameters possible
T9 = Horse shoe turntable
T10 = Pre stretch indepentedly adjutabele
during carriage movement up and down ( 0 = No, 1 = Yes )
T11 = Sound of the alarm during the cycle
T12 = Different parameters for every cycle
T13 = Left side PW for un-blocking parameters ( 22 )
T14 = Right side PW un-blocking parameters
After changing or regulation of the parameters always switch of the machine. Wait for approx.
10 seconds and switch on the machine again.
( 7 ) (Settings between 0 – 100)
( 0 – 11 )
(motor pre stretch 100 )
( 0 = OFF, 1 = ON )
(Settings between 0 – 255)
(Settings between 0 – 255)
(Settings between 0 – 255)
(55Hz = 100 = 10V )
(60Hz = 100 = 10V )
(60 Hz = 100 = 10V )
( 0 = No, 1 = Yes )
( 0 = No, 1 = Yes )
( 0 = OFF, 1 = ON )
( 0 = No, 1 = Yes ) (Standard 1)
( 0 = No, 1 = Yes )
( 0 = No, 1 = Yes ) (Standard 0)
( 0 = No, 1 = Yes ) (Standard 0)
( 3 )
CH12-TI-FS250.EN10
