Summary of Contents for Romy HyLab

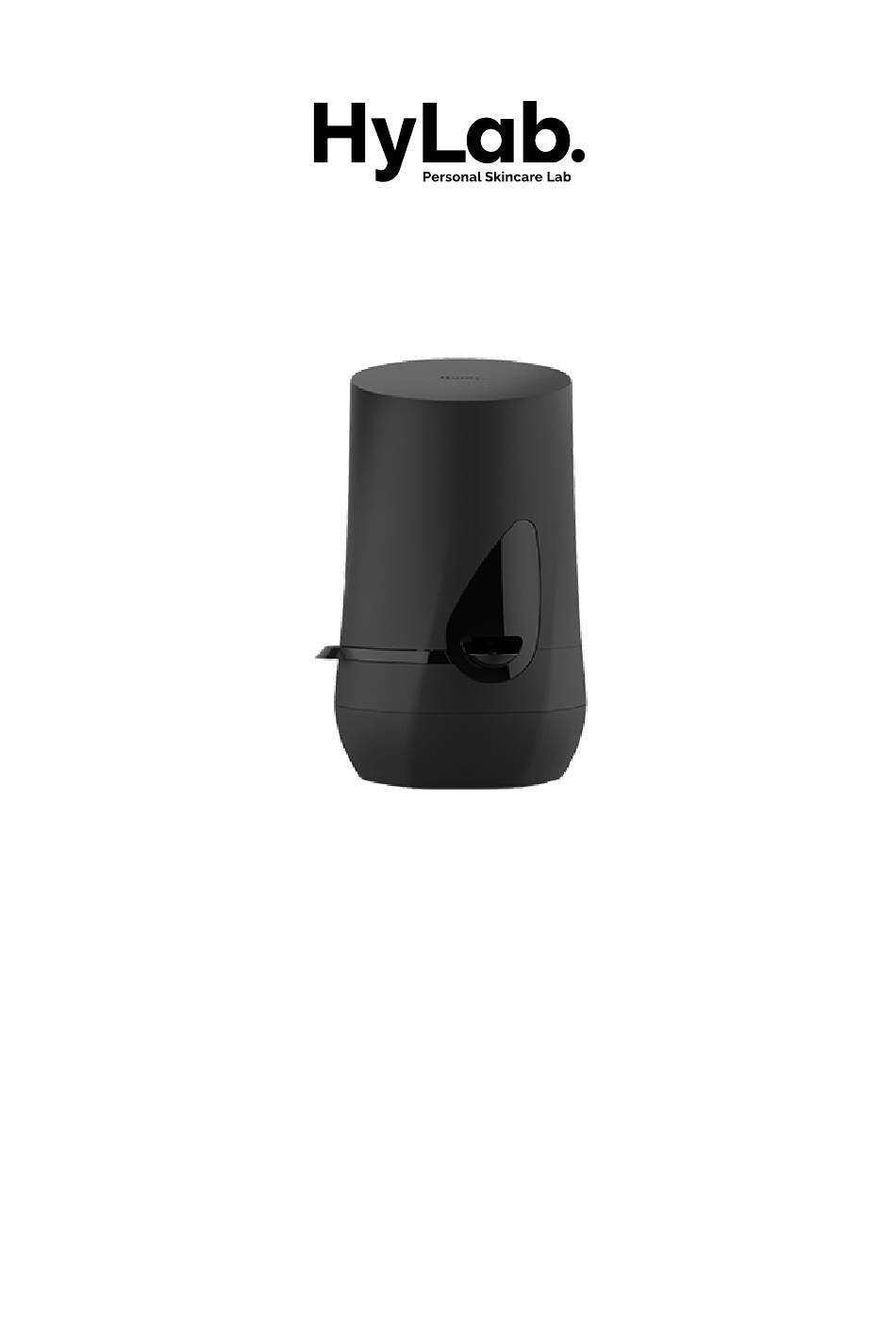

  • Page 1 User Manual...

  • Page 2: General Information

    This manual explains how to use and maintain your HyLab formulator. It also sets out safety instructions and technical specifications. The information contained in this manual is the property of Romy. It may not be reproduced without the express agreement of the brand.
  • Page 3 Not connecting the device correctly could be dangerous. Plug the connector to the unit before connecting the power supply to the mains. Plug your HyLab formulator into a power outlet. To unplug, grasp the power supply and not the cable.
  • Page 4 It is prohibited to open the housing of the device or to try and repair it. Apart from being dangerous, unauthorised opening of the device housing will de facto make the warranty void. Repairs may only be carried out by the Romy After-Sales service or by an approved person.

  • Page 5: Warranty

    The new device is guaranteed against all manufacturing faults or defects for two (2) years from the date of delivery. If necessary, contact your dealer or the Romy after sales team. This warranty does not apply to accessories or consumable products, nor does it apply to any part for which wear during the warranty period is normal.
  • Page 6 Description THE FORMULATOR Front face 1. Capsules tray 2. Spatula Back side 1. Back hatch 2. Flasks area 3. Tank...
  • Page 7 Some active ingredients are naturally tinted. This can have an impact on the final appearance of your skincare. Texture flask The textures are used as a base for skincares formulated by HyLab. Wash solution flask This flask contains a cleaner to automatically ensure the cleanliness of your HyLab.
  • Page 8 Find our complete products range at our website THE APP The Romy app is compatible with iPhone/iPad running iOS 11 or higher and with Android version 5.0 (Lollipop) or higher, available respectively through the App Store and the Google Play Store.
  • Page 9 Set-up UNPACKING When unpacking the product, the following items must be present: A box containing: 1 HyLab formulator 1 spatula 1 power box...
  • Page 10 A starter pack including: 1 texture flask 1 wash solution flask 2 sets of active ingredients capsules Remove all products from the package. Keep the packaging elements for possible return of the unit or for transport. Place the unit on a flat, level, stable surface. SETUP &...
  • Page 11 Step 2 [2] [3] Plug the formulator to the mains. Step 3 Go to the app and follow the association steps to connect your formulator.
  • Page 12 This step lasts about 5 minutes and allows a reset of the formulator. 1. Bluetooth® must be enabled when using the formulator with the Romy app. 2. First, connect the connector to the formulator before connecting the power supply to an electrical outlet.
  • Page 13 Formulation of a skincare WITH THE APP The step setup & association as well as the first cleaning have been done, it's time to formulate your first skincares. Step 1 Only if the machine reports an error: Fill the water tank (fill the tank). Insert a flask of wash solution and the desired texture flask (load flasks).
  • Page 14 Step 2 Check the presence and cleanliness of the spatula (cleaning the spatula). Step 3 Open the Romy app Select your care mode and follow the instructions.
  • Page 15 Step 4 Prepare the active ingredient capsules prescribed by the app (from 1 to 3 active ingredients). Step 5 Open the capsules tray. Tuck the active ingredients capsules in the tray holes (flat side up) Close the capsules tray.
  • Page 16 Step 6 Head back to the app to start your skincare. Step 7 Your skincare is being formulated.
  • Page 17 Step 8 After a few seconds, your tailor-made care will be dispensed on the spatula. Apply the skincare to your face. Step 9 After the distribution of the skincare, the formulator enters an automatic rinsing phase. Meanwhile clean the spatula before putting back into the formulator. 2-5 min 1.
  • Page 18 2. The delivered skincare can be tinted by the color of the natural ingredients. WITHOUT THE APP The step setup & association as well as the first cleaning have been done, it's time to formulate your first skincares. Step 1 Only if the machine reports an error: Fill the water tank (fill the tank).
  • Page 19 Step 3 Prepare the active ingredients of your choice (1 to 3 ingredients). Step 4 Open the capsules tray. Tuck the active ingredients capsules in the tray holes (flat side up)
  • Page 20 Step 5 Close the capsules tray in order to start the formulation of your skincare. Step 6 Your skincare is being formulated.
  • Page 21 Step 7 After a few seconds, your tailor-made care will be dispensed on the spatula. Apply the skincare to your face. Step 8 After the distribution of the skincare, the formulator enters an automatic rinsing phase. Meanwhile clean the spatula before putting back into the formulator. 2-5 min 1.
  • Page 22 2. The delivered skincare can be tinted by the color of the natural ingredients.

  • Page 23: Maintenance

    Maintenance LOADING FLASKS Make sure there is always a wash solution flask with a texture flask in the flasks compartment of HyLab. Be sure to position the pins on the side of the flasks face to face. Step 1 Unpack the flasks and remove the cap.
  • Page 24 Step 2 Open the rear tray by pulling on the hatch to gain access to the flask compartment. Step 3 Insert the wash solution flask into the slot further to the back of the formulator (see above). Insert your desired texture flask into the remaining slot.
  • Page 25 After loading the flasks, close the rear tray by pushing on the hatch. REPLACING EMPTY FLASKS Make sure there is always a wash solution flask with a texture flask in the flasks compartment of HyLab. Be sure to position the pins on the side of the flasks face to face.
  • Page 26 Step 1 The app shows you the flasks level. Step 2 Open the rear tray by pulling on the hatch to gain access to the flask compartment.
  • Page 27 Step 3 Remove the empty flask(s) from their compartment. Step 4 Insert the new flask(s). Make sure there is always a wash solution in the outermost slot of your formulator (see above). Insert your desired texture flask into the remaining slot.

  • Page 28: Refilling The Tank

    Step 5 Make sure that the pins on the side of the flasks are facing each other. Step 6 After loading the flasks, close the rear tray by pushing on the hatch. REFILLING THE TANK...
  • Page 29 Step 1 Open the rear tray by pulling on the hatch to gain access to the tank. Step 2 Hold the tank.
  • Page 30 Step 3 Remove the tank hood. Step 4 Fill in the tank with clean water. Use only water. 1. Clean water tank 2. Used water tank...
  • Page 31 Step 5 Put the hood back onto the tank. Step 6 Put the tank back in then close the rear tray by pushing the hatch. EMPTYING TRAYS...
  • Page 32 Step 1 Open the rear tray by pulling on the hatch to gain access to the tank. Make sure you don't spill any water inside the device. Step 2 Hold the tank.
  • Page 33 Step 3 Remove the tank hood. Throw away the empty capsules located on the hood of the tank. Step 4 Empty the used water tank and rinse it using clean water. Clean the tank hood with clean water if required. Dry it with a clean cloth...
  • Page 34 Step 5 Fill in the tank with a non-hard water. Put the hood back onto the tank. Step 6 Put the tank back in then close the rear tray by pushing the hatch. CLEANING THE SPATULA...
  • Page 35 Step 1 Rinse the spatula after each use. Step 2 Dry with a soft cloth. Do not forget to put the spatula back in place. CLEANING THE FORMULATOR OUTSIDE Careful: do not insert water inside the formulator except in the water tank. Clean the external surfaces of the formulator with a cloth slightly moistened with water and / or mild liquid soap.
  • Page 36 Never use an abrasive or a solvent. AUTOMATIC CLEANINGS Rinsing Rinsing ensures the cleanliness of the formulation system It occurs after each skincare formulation allowing you to enjoy your beauty ritual. Remember to check the water level of your tank before formulating your next skincare.
  • Page 37 Cleaning ensures the disinfection of the formulation system, ensuring the purity and innocuity of your skincares. It occurs: on first use then periodically automatically 5 min Only if the machine reports an error: Check the water level. Check the presence and level of the wash solution flask.

  • Page 38: Led Light

    Support LED LIGHT white slow Formulator ready blinking white fast Skincare being formulated blinking green still Skincare ready Collect your skincare from the spatula blue slow Automatic cleaning blinking Leave the formulator cleaning itself for several minutes, it will be available just after that blue fast...
  • Page 39 Unplug the formulator then plug it back in and if the error still occurs contact the After-Sales CONTACT THE SUPPORT You can contact our after-sales service by email: help@romy.paris Our teams will answer as soon as possible.
  • Page 40 Electrical supply of the formulator 12V DC - 3.33A Electrical classification Dimensions WxHxD 150 x 230 x 150 mm Weight (empty) NAMEPLATE The nameplate placed under the device certifies its conformity. Romy. © All rights reserved - 2020 Version 1.4...
