RAM AIR GEAR DRYERS
ASSEMBLY INSTRUCTIONS
TG-4, TG-6, TG-8
STEP ONE
Remove all bolts from deck leaving
rubber gasket in place.
STEP TWO
Install left vertical air chamber with
opening for the power pack facing
away from center. Tighten bolts.
TOOLS NEEDED FOR
ASSEMBLY:
5" BOLT
3" BOLT
9/16" WRENCH
(not included)
7/16" WRENCH
(not included)
1/2" WRENCH
(not included)
STEP THREE
Install right vertical air chamber,
aligning straight edge with edge
of base. Tighten bolts.
3/8" BOLT
1/4" BOLT
Advertisement
Table of Contents
Related Manuals for Ram Air TG-4
Summary of Contents for Ram Air TG-4

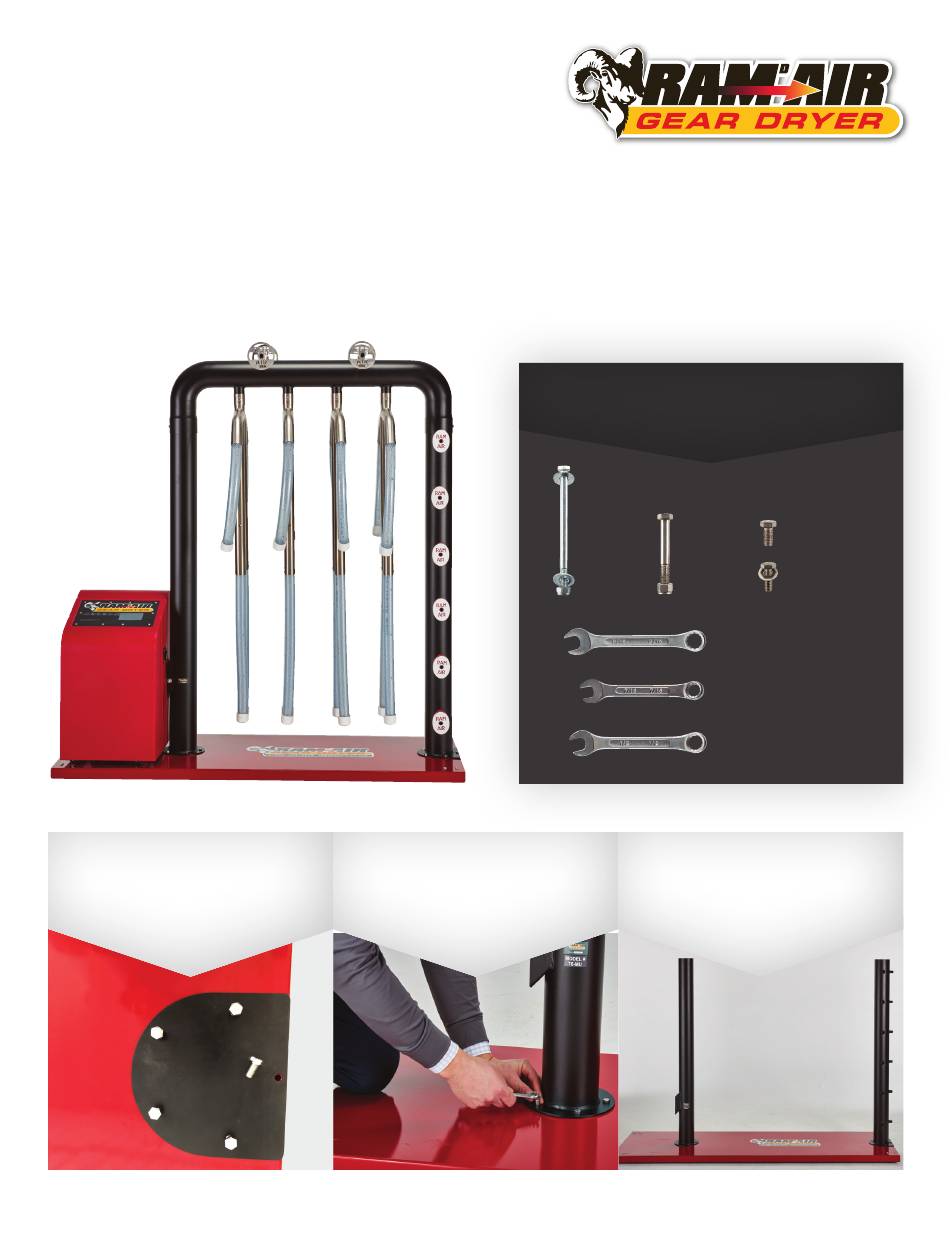

- Page 1 RAM AIR GEAR DRYERS ASSEMBLY INSTRUCTIONS TG-4, TG-6, TG-8 TOOLS NEEDED FOR ASSEMBLY: 3/8” BOLT 5” BOLT 3” BOLT 1/4” BOLT 9/16” WRENCH (not included) 7/16” WRENCH (not included) 1/2” WRENCH (not included) STEP ONE STEP TWO STEP THREE Install left vertical air chamber with...
