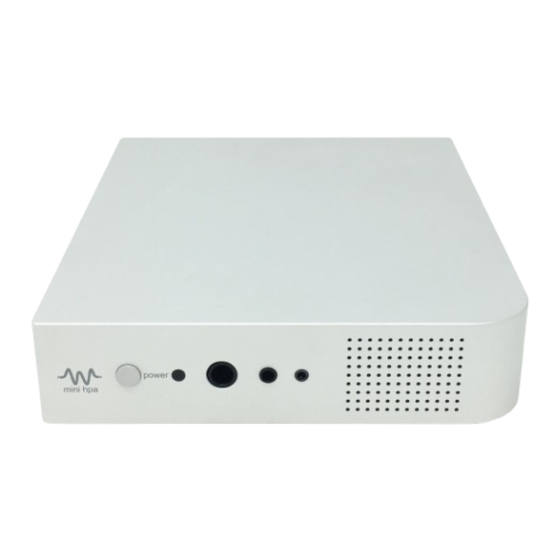

WMiniHPA MK2
Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the WMiniHPA MK2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Waversasystems WMiniHPA MK2

Summary of Contents for Waversasystems WMiniHPA MK2

  • Page 1 WMiniHPA MK2 Owner’s Manual...

  • Page 2: Important Notice

    14. Remove plug after checking the equipment power is off. Otherwise, it may cause equipment failure. WARNING: Unqualified personnel are not able to repair this equipments. To reduce the risk of electric shock, do not open bottom cover on purpose. WMiniHPA MK2 Owner’s Manual...
  • Page 3 About Waversa Systems Thanks for choosing Waversa Systems’ WMiniHPA MK2. Recent development of innovative IT/ Digital technology brings vast changes in concept and environment of old Analog based High-end Audio market. Waversa Systems is leading New High-end Audio paradigm combining world top class IT with digital technology under the goal of developing sophisticated sound and design.
  • Page 4 ① Balanced output : XLR male ② Unbalanced input/output : RCA female ③ SD card slot : Software update ④ Inputs Coaxial • Optical • Ethernet • USB A / B • ⑤ DC Input : 12V DC WMiniHPA MK2 Owner’s Manual...
  • Page 5 - Press power button 0.5 seconds for change source - Press select button of WMiniRemote. - Press source button of Remote Controller of “Quick Setting” • U : USB Input • C : Coaxial • O : Optical • N : Network WMiniHPA MK2 Owner’s Manual...

  • Page 6: Menu Description

    - “R2” : 88.2 / 96 KHz - “R4” : 176.4 / 192 KHz - “R8” : 352.8 / 384 KHz - Select the resolution depend on your preference - High resolution output will provide warm sound WMiniHPA MK2 Owner’s Manual...
  • Page 7 Menu Description - Volume Control Volume Control - 0 ~ 63 volume level supported WMiniHPA MK2 Owner’s Manual...

  • Page 8: Audio Input

    Menu Description - Audio Input Unbalanced Audio Input Output Control - AI : RCA connectors are used for analog input - AO : RCA connectors are used for analog output WMiniHPA MK2 Owner’s Manual...
  • Page 9 Front Connection - Headphone/Earphone ① ② ③ ① 6mm Single Ended Headphone ② 3.5mm Single Ended Earphone ③ 2.5mm Balanced Earphone WMiniHPA MK2 Owner’s Manual...
  • Page 10 ④ USB A - External USB Memory device extension ⑤ Ethernet - Network connection for various network players ⑥ Balanced Analog Output ⑦ Unbalanced Analog Input/Output ⑧ DC 12V Power Input ⑨ SDCARD for Built-in Software WMiniHPA MK2 Owner’s Manual...
  • Page 11 How to Find IP Address in PC Finding IP address in Windows - Windows Explorer → Network → Media Devices → Mouse right click in WMiniHPA MK2 → Properties → IP address in the below WMiniHPA MK2 Owner’s Manual...
  • Page 12 How to Find IP Address in Mobile Devices Finding IP address in Mobile Devices - Install App named “Fing” → Scan Devices→ Find WMiniHPA MK2 → IP address in the below WMiniHPA MK2 Owner’s Manual...
  • Page 13 How to Use WMiniHPA MK2 Quick Setting In PC / Mobile device, User can connect “WMiniHPA MK2 Quick Setting” web page. 2. Connect WMiniHPA MK2 to router with LAN cable 3. Connect PC / Mobile device to network. 4. Enter WMiniHPA MK2’s IP address into web browser(Explorer, Safari , Chrome) 5.
  • Page 14 Select “Remote Controller” and press “Remote Controller” button to open remote controller page 2. Power button for turn on/off WMiniHPA MK2 3. Menu, select button for using menu of WMiniHPA MK2 4. Source button to change input source WMiniHPA MK2 Owner’s Manual...
  • Page 15 How to Update Software If new version of software for WMiniHPA MK2 then browser indicate “New version available” 2. Select “Update” tab in WMiniHPA MK2 Quick Setting 3. Press “Update” button and wait for update done page displayed. 4. Press “Update” tab again and if it show “Update again” then press “Update button”...
  • Page 16 How to Use Apple Remote ④ ③ ② ① ① Menu button ② Select button ③ Source button ④ Power button ⑤ Volume Up button ⑥ Volume Down button WMiniHPA MK2 Owner’s Manual...
  • Page 17 How to Use WMiniRemote(Optional) ① ③ ② ④ ① Power button ② Source button ③ Volume Up button ④ Volume Down button WMiniHPA MK2 Owner’s Manual...
  • Page 18 Specification for the WMiniHPA MK2 Waversa System Processor(WAP) Type 1 applied Built-in Converter Type Ultra Low Power Universal Serial Bus Audio Class 2.0 USB Chipset with High Precision Clock Linux 3.2 with 1GHz TI OMAP Processor ( ARM CORTEX-A8 )
  • Page 19 Appendix Install Driver program to use Windows (MAC doesn’t need this installation) PC USB Driver Installation guide You can download driver file in following URL. http://www.waversa.com/download WMiniHPA MK2 Owner’s Manual...
  • Page 20 Appendix Select ”N” source mconnect Player(DLNA) for mobile devices 2. Install ‘mconnect” from App/Play store. 3. Select WMiniHPA MK2 from “Play to” tab 4. Browse media files which you want to play by “Browser” tab WMiniHPA MK2 Owner’s Manual...
  • Page 21 3. Enter “Settings” and select “Audio” tab 4. Enable “Waversa Systems WDAC” and set name as “WMiniHPA MK2” 5. Press Speaker Icon in bottom right and then switch to “WMiniHPA MK2” 6. Choose media file to play. WMiniHPA MK2 Owner’s Manual...
  • Page 22 Appendix Select “U” Source JRiver Media Center Setup and guide 2. Connect USB cable between PC & WMiniHPA MK2 and Run JRiver Media (1/2) Center 3. Select Player -> Playback Options -> Audio -> Audio Device and select XMOS USB Audio.
  • Page 23 Appendix 5. Select Player -> Player Options -> Audio -> Audio Device -> Settings -> JRiver Media Center Bitstreaming and check DSD. Setup and guide (2/2) 5. Play media files . WMiniHPA MK2 Owner’s Manual...
  • Page 24 Appendix 1. Select “U” source and Connect USB cable between Mac & WMiniHPA MK2 Audirvana Plus(MAC) Setup and guide 2. Run Audirvana and select Preference -> Audio Setting-> WMiniHPA MK2 3. Select Native DSD Capability DSD over PCM standard 1.0 from DSD Capability 4.
  • Page 25 Appendix 1. Select “U” source and Connect USB cable between Mac & WMiniHPA MK2 iTunes(Mac) Setup and guide 2. Run Finder -> Utility -> Audio MIDI setup 3. Select WMiniHPA MK2 from Audio Devices setup 4. Run iTunes and select Preference -> Advanced. Assign library folder and add music source.
  • Page 26 403, 10-9, Hwangsaeul-ro 258beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea http://www.waversa.com email: junho@waversa.com Copyright 2017 Waversa Systems...
