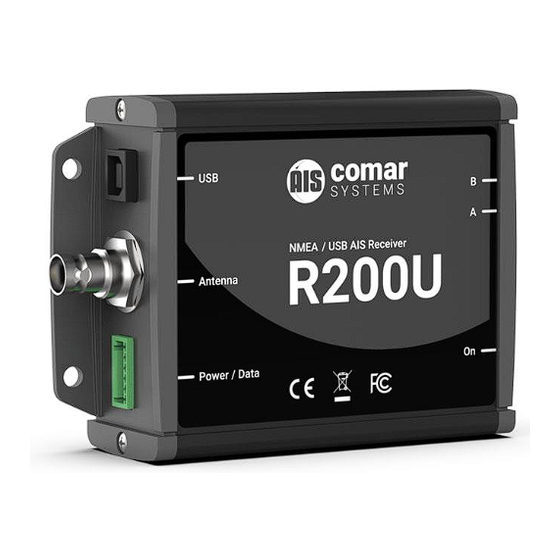

- Page 1 USER MANUAL R200U AIS Dual Channel Parallel Receiver with NMEA 0183 in/out and USB SKU 001-1034 R200U-MA-v06r04 2019-11-06 ENGLISH...
-
Page 3: Table Of Contents
R200U CONTENTS 1 AIS DUAL CHANNEL PARALLEL RECEIVER ........4 2 DOCUMENT ................... 5 2.1 About This Manual ....................5 3 NOTICE ....................6 3.1 Copyright ......................6 4 GENERAL NOTICES ................7 5 PARTS LIST ................... 8 6 INSTALLATION ..................8 6.1 Power Connection .................... -
Page 4: Ais Dual Channel Parallel Receiver
R200U 1 AIS DUAL CHANNEL PARALLEL RECEIVER... -
Page 5: Document
R200U 2 DOCUMENT 2.1 About This Manual This Manual provides installation, operating Instructions and fault-finding procedures for the equipment to which it relates. After installation, this manual should remain with the vessel to which it relates. This manual may also be made available in electronic Portable Document Format (PDF). In PDF format, the following categories are all enabled as active hyperlink references: (1) The titles of each section;... -
Page 6: Notice
COMAR SYSTEMS LTD. COMAR SYSTEMS Vittlefields Technology Centre Forest Road NEWPORT Isle of Wight PO30 4LY UNITED KINGDOM tel: +44 (0)1983 828900 email: sales@comarsystems.com web: www.comarsystems.com COMAR SYSTEMS reserves the right to make changes to its products and specifications without notice... -
Page 7: General Notices
When necessary, upgrades to the product will be accompanied by updates or addenda to this manual. Information contained in this manual is liable to change without notice. Comar Systems Ltd. disclaims any liability for consequences arising from omissions or inaccuracies in this manual and any other documentation provided with this product. -
Page 8: Parts List
6 INSTALLATION The R200U unit is not waterproof and should be installed in a dry location. The unit can be secured by the 4 mounting holes in the end flanges. It should ideally be installed in a location suitable for connection to power and a VHF antenna, observing a compass safe distance of 0.5m. -
Page 9: Operation
R200U Any 4800 baud NMEA data such as that from a GPS, Chart Plotter or Instruments can be connected to the NMEA input 4800 terminals, observing the correct polarity. This data will be multiplexed with the AIS data and sent out at 38,400 baud. -
Page 10: Specification
R200U 9 SPECIFICATION 9.1 Physical Weight: 400g Dimensions: L 120 mm W 86 mm D 37 mm Mounting: To flat surface Power/Data: 6-way Plug and Socket Antenna: BNC Coaxial Connections: Supplied: PL259 to BNC antenna adaptor Construction: Plastic housing 9.2 Electrical... -
Page 11: Limited Warranty
Comar Systems Ltd warrants this product to be free from defects in materials and manufacture for one year from the date of purchase. Comar Systems Ltd will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour. - Page 12 COMAR SYSTEMS Vittlefields Technology Centre Forest Road NEWPORT Isle of Wight PO30 4LY UNITED KINGDOM tel: +44 (0)1983 828900 email: sales@comarsystems.com web: www.comarsystems.com...
