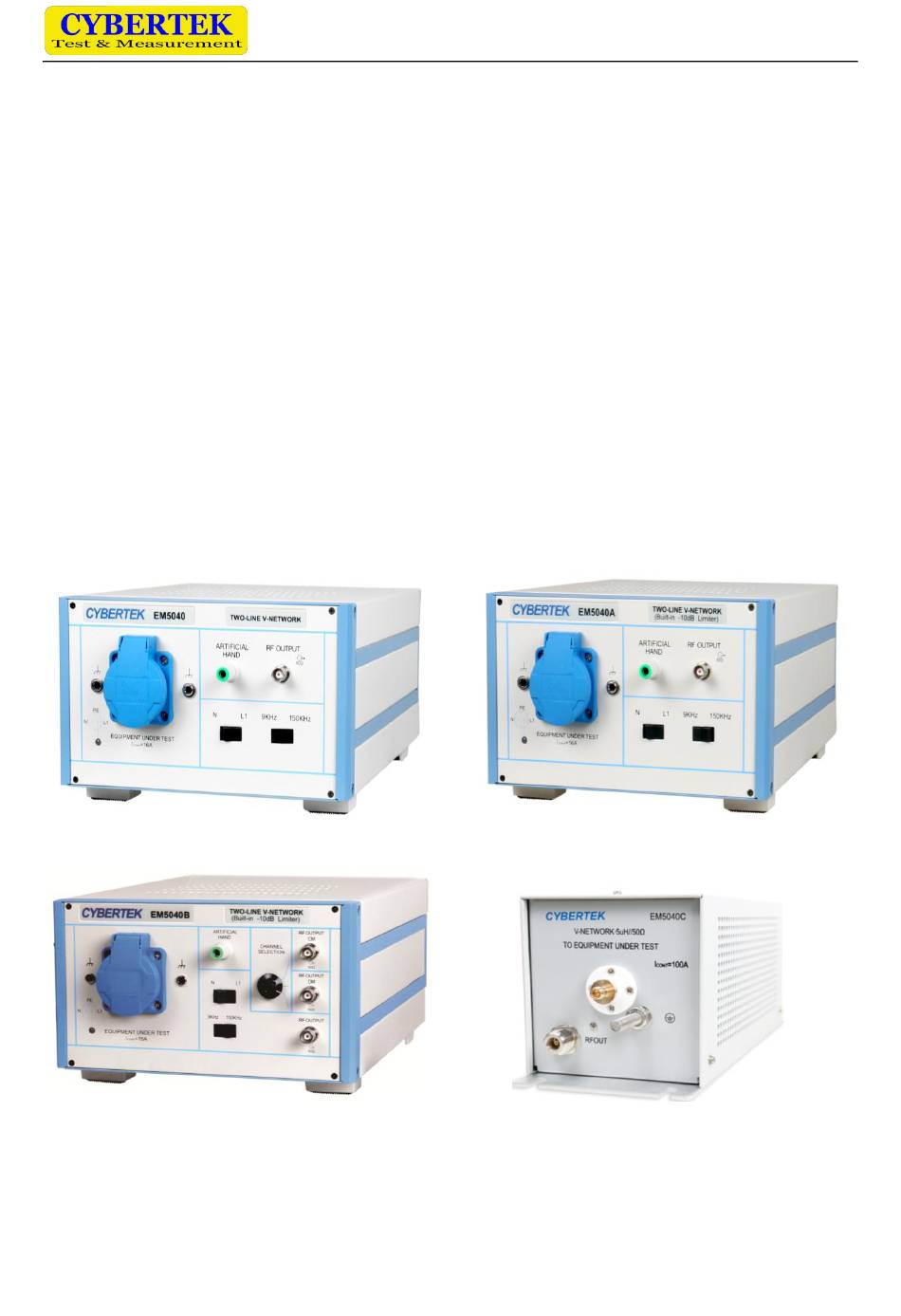

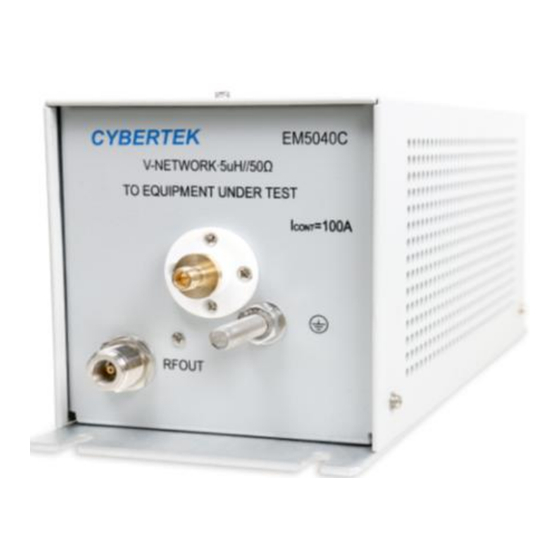

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd. Line Impedance Stabilization Network EM5040 (9kHz-30MHz/16A) EM5040A (9kHz/150kHz-30MHz，16A) EM5040B (9kHz/150kHz-30MHz，16A,with common mode and differential mode) EM5040C (100kHz-200MHz/100A) Shenzhen Zhiyong Electronics Co., Ltd. www.cybertek.cn...
- Page 2 Shenzhen Zhiyong Electronics Co., Ltd. Preface First of all, thank you for purchasing our products, this instruction manual is the description about the function, usage, operation attention points, etc. Before use, please read the instructions carefully and use correctly. Manual annotation will use the following symbols to distinguish. This symbol means it is harmful to the machine and human body;...
- Page 3 The artificial hand of the product can simulate the handle device to measure. EM5040 is a type of single phase standard LISN. EM5040A has a limiter (with attenuation of 10dB) and an optional 150 kHz high pass filter. Users can choose to start from 9 kHz or 150 kHz according to corresponding standard.
-
Page 4: Electronic Specifications
Shenzhen Zhiyong Electronics Co., Ltd. 2. Electronic Specifications EM5040 EM5040A EM5040B EM5040C Frequency range 9kHz—30MHz 100kHz—200MHz （50uH+5Ω）|| 50Ω Type V （5uH+1Ω）|| 50Ω Circuit type Measurement circuit Single phase two wire L/N1 Single wire phase number AC voltage/ 0～264VAC / 50～60Hz ± 5% 0～250VAC / 0～400Hz... -
Page 5: Basic Theory
EM5040/5040A/5040B’s have a same V type LISN section. The difference is the subsequent signal processing section. EM5040 only contain the basic Type V LISN section. To protect the test receiver, users should add limiter to it, or users can choose our EM5010. - Page 6 3 (Reference Ground Port): 4mm port used to connect the ground port of DUT. 4 (N/L1): The switch selecting the phase line under test. 5 (9 kHz/150kHz Switch): The filter switch. EM5040 doesn’t have this function...
- Page 7 Shenzhen Zhiyong Electronics Co., Ltd. 6 (RF output port): Standard BNC RF output port used for connecting receiver or spectrum analyzer. Because EM5040A has a 10dB transient limiter inside, so the receiver need to set corresponding correction factor 7 (Artificial Hand function): This function will simulate the actual influence when human hand touched the metal part of the handle tool.
- Page 8 Shenzhen Zhiyong Electronics Co., Ltd. 4.3 EM5040/5040A/5040B Introduction about side metal ground panel and rear panel Side metal ground panel is for ground protection Rear Panel Introduction Ground Port: This port has 4mm butterfly bolt for ground protection only. This is not for reference ground.
- Page 9 Shenzhen Zhiyong Electronics Co., Ltd. 1) EUT power port: power input port for EUT 1) Power input port: power supply input port 2) Ground port: the size of the bolt is 8mm, grounding 2) Ground port: the size of the bolt is 8mm, grounding 3) Output port: interference signal output port with Type N female port The bottom metal panel of EM5040C is the reference ground, users can connect it on the ground of...
- Page 10 Shenzhen Zhiyong Electronics Co., Ltd. term Description Metal Panel at least 2mX2m The method to fold the cable when it is longer than 1 meter. Power supply port for EUT Output shielded line LISN Isolation transformer Receiver Application of Common mode and Differential mode technology Using EM5040B.
- Page 11 Shenzhen Zhiyong Electronics Co., Ltd. interference generated between Line and ground or Neutral and ground. Set L/N interference voltage as VL and VN, and this signal can be seen as the combination of common mode voltage VC and differential mode voltage VD. VL= VC+VD VN=VC-VD ...
-
Page 12: Packing List
3 ranges by its distribution: 150kHz~500kHz is mainly for differential mode interference; 500kHz~5MHz is for differential mode and common mode interference; 5MHz~30 MHz is mainly for common mode interference. 7. Packing List Packing List EM5040/5040A/5040B EM5040C LISN RF cable BNC(male) 2 meter...
