OTMT OT10190BW Instructions Manual

Blade welder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model Number OT10190BW
Read carefully before attempting to assemble, install, operate or maintain the product described.
Failure to comply with instructions could result in personal injury and/or property damage!
Retain instructions for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OT10190BW and is the answer not in the manual?

Questions and answers

Related Manuals for OTMT OT10190BW

Summary of Contents for OTMT OT10190BW

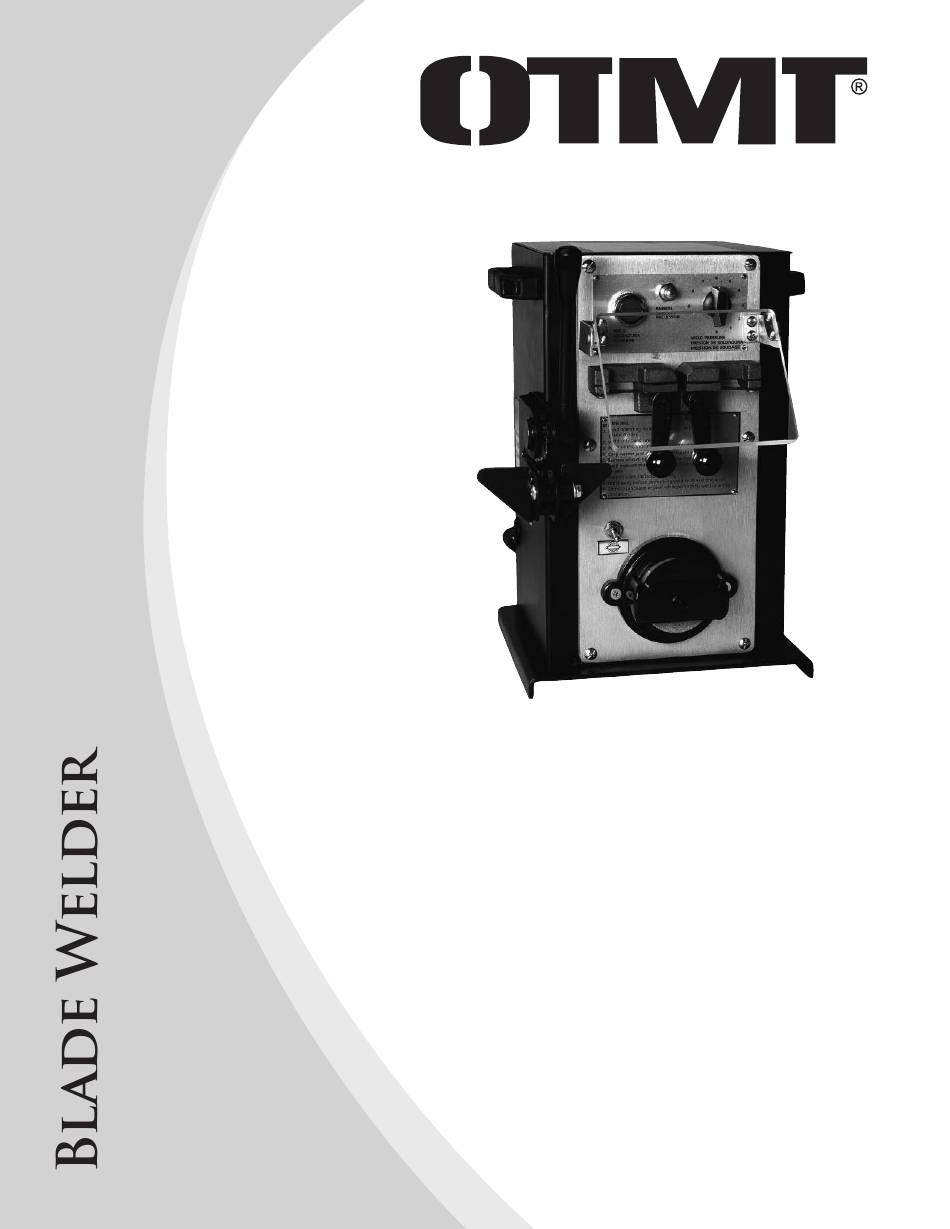

  • Page 1 Model Number OT10190BW Read carefully before attempting to assemble, install, operate or maintain the product described. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.

  • Page 2: Specifications

    Description  Wear protective hair covering to contain long hair. The OTMT Blade Welder is designed for the convenient production  Wear safety shoes with non-slip soles. of welded band saw blades. Blade widths of 1/2 to 3/4" and thick -  Wear safety glasses complying with United States ANSI Z87.1.

  • Page 3: Installation

    (continUeD) power source OTMT Blade Welder requires a 240 Volt, 60 Hz power source. A  Do not overreach. Keep proper footing and balance. qualified electrician should wire a 240 Volt, 20 AMP,  Never stand on tool. Serious injury could occur if tool is tipped 3-prong plug to the welder line cord.

  • Page 4: Operation

    installation (continUeD)  The ON/OFF Switch controls power to the unit.  The Weld Button connects transformer power to welder jaws. extension cords  The Weld Limit Switch disconnects power to the jaws when  The use of any extension cord will cause some drop in voltage the weld is complete.
  • Page 5 operation (continUeD) 1/4 Tooth 3/4 Tooth Blade mounting 4TPI Refer to Figure 5, page 5. 12TPI Clean welder jaw of any scale, oil, rust or dirt. Clean blade ends which contact welder jaws to provide proper electrical contact. Set weld pressure adjustment knob to "0" (released). Insert one 3/8 Tooth 3/4 Tooth end of blade into stationary jaw with teeth facing out and blade...

  • Page 6: Maintenance

    operation (continUeD) Weld should be ground to same thickness as blade. Grind flash off under-side of blade taking care not to grind into blade. To complete welding operation, flip spark deflector down. Step to left side of welder. Press weld button and hold down. The blade Turn blade inside out and grind the other side of the blade the ends will become red hot and soft.

  • Page 7: Troubleshooting Guide

    troUBlesHooting gUiDe symptom possible cause(s) corrective action Blade does not heat up 1. No power to welder 1. Check power at receptacle and check that when weld button is pressed power switch is ON. 2. Weld pressure adjustment not reset 2.
  • Page 8 parts illUstration for sHear anD Deflector (front of WelDer) figure 8 – parts illustration for shear and Deflector (front of Welder)
  • Page 9 parts list for sHear anD Deflector (front of WelDer) ref. part Description Qty. Welder cabinet 6-1.0 x 15mm Hex head bolt Handle 17692.00 Line cord 23927.00 Strain relief 23925.00 6-1.0mm Hex nut 6-1.0 x 35mm Pan head screw Left alignment bracket 23928.00 3CMI-6 E-ring 09845.00...
  • Page 12 Product Suitability. Many jurisdictions have codes and regulations governing sales, construction, installation, and/or use of products for certain purposes, which may vary from those in neighboring areas. While attempts are made to assure that OTMT products comply with such codes, we cannot guarantee OTMT MODELS comply, and cannot be responsible for how the product is installed or used.
