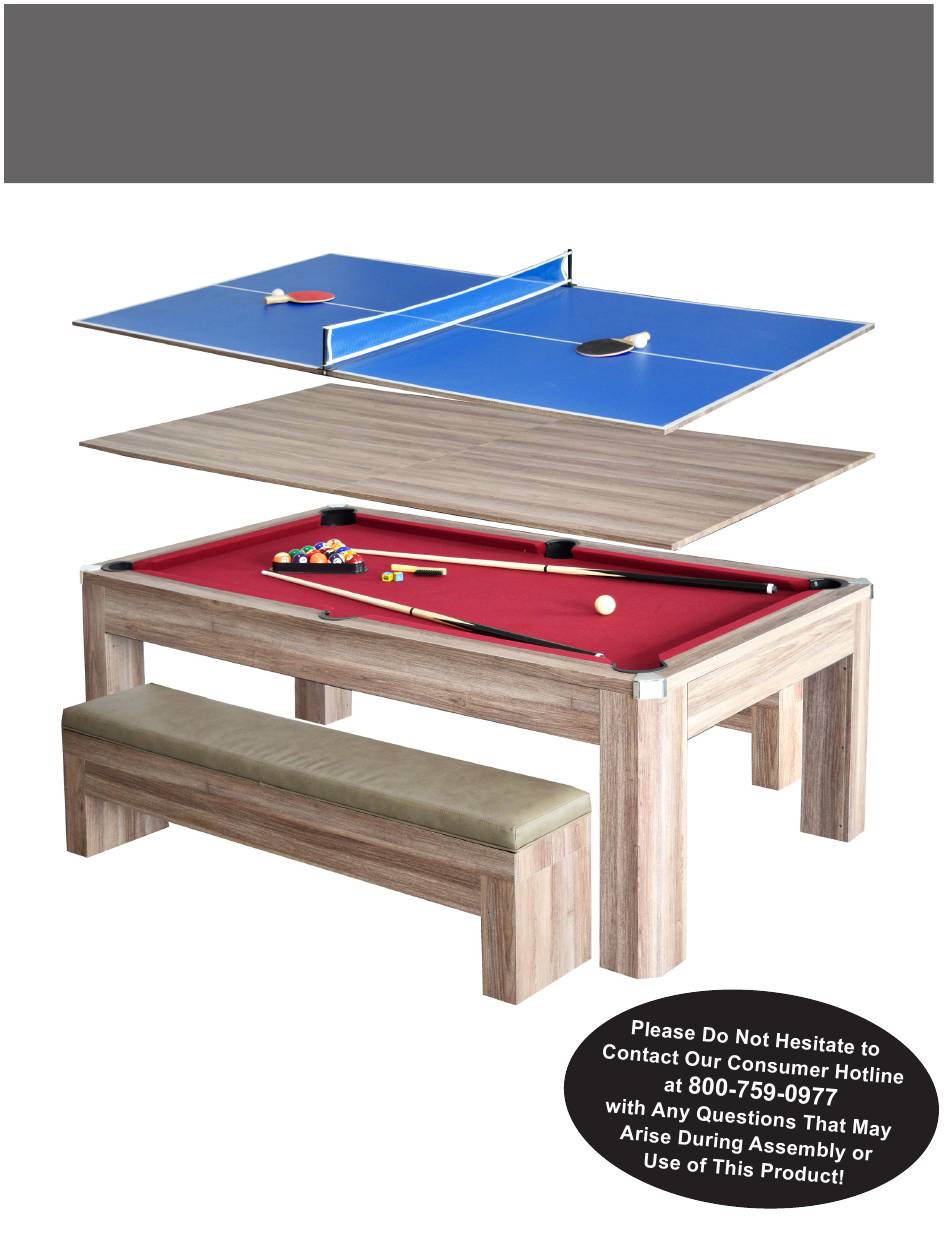

- Page 1 NEWPORT 7-FT POOL TABLE SET ASSEMBLY INSTRUCTIONS NG2535P...
- Page 2 THANK YOU! Thank you for purchasing this product. We work around the clock and around the globe to ensure that our products maintain the highest possible quality. However, in the rare case of issues during assembly or use of this product, please contact our Consumer Hotline at 800-759-0977 for immediate assistance before contacting your retailer.
- Page 3 PARTS IDENTIFIER (NOT TO SCALE) 5/16" Black Flat 5/16"X1-1/4" Bolt 1/4"X1-1/8" Bolt Leg Leveler Washer 32 Pieces 52 Pieces 4 Pieces 32 Pieces 1/4" Black Flat Washer 5/8" Flat Head Screw Table Body 52 Pieces 12 Pieces 1 Piece 1 Set Connecting Plate Table Tennis Top A Table Tennis Top B...
-
Page 4: Assembly Tips
ASSEMBLY TIPS 1. Find a clean, level surface to begin the assembly of your game table. The table will be partially assembled upside down and then turned over onto its legs. This is a heavy game and turning it over will require at least two strong adults. 2. - Page 5 ASSEMBLY INSTRUCTIONS NOTE: The BALL BASKETS #16 & #17 have been pre-installed in table to protect them during shipping. You may have to temporarily remove them to install the LEGS #11 as described below. An alternative method is show in Fig. 1. 1.
- Page 6 ASSEMBLY INSTRUCTIONS (CONT.) 5. Attach CORNER BASKET #16 and MIDDLE BASKET #17 to the pockets of the TABLE BODY #8 as shown below using 5/8” FLAT HEAD SCREW #6. corner pockets when attaching corner baskets. This will catch screws, and keep them from falling into leg cavity, if you accidentally drop any.
- Page 7 ASSEMBLY INSTRUCTIONS (CONT.) TOP at the center line, as shown below. Attach the net to each post.
-
Page 8: Care And Use
CONGRATULATIONS! You have now assembled your Game Table. Please note the Care and Use instructions below to ensure years of trouble free use of your game table. CARE AND USE 1. This product is intended for INDOOR use only. 2. Do NOT sit, climb or lean on the table. 3. - Page 9 180-DAY LIMITED WARRANTY This product is warranted to the original purchaser to be free from defects in material or workmanship for a period of 180 days from the date of the original retail purchase. This warranty does not cover defects or damage due to improper installation, alteration, accident or any other event beyond the control of the manufacturer.
- Page 10 NEWPORT 7' POOL TABLE SET - NG2535P Parts List TABLE BOTTOM PARTS #3 NGP50785 #8 NGP6226 #9 NGP6227 #10 NGP6228 #11 NGP6229 #12 NGP5956 #13 NGP6230 CONNECTING BENCH PLATE TABLE BODY LEG LEVELER TABLE TOP A TABLE TOP B #14 NGP6231...
