Summary of Contents for SSD Drives 5530

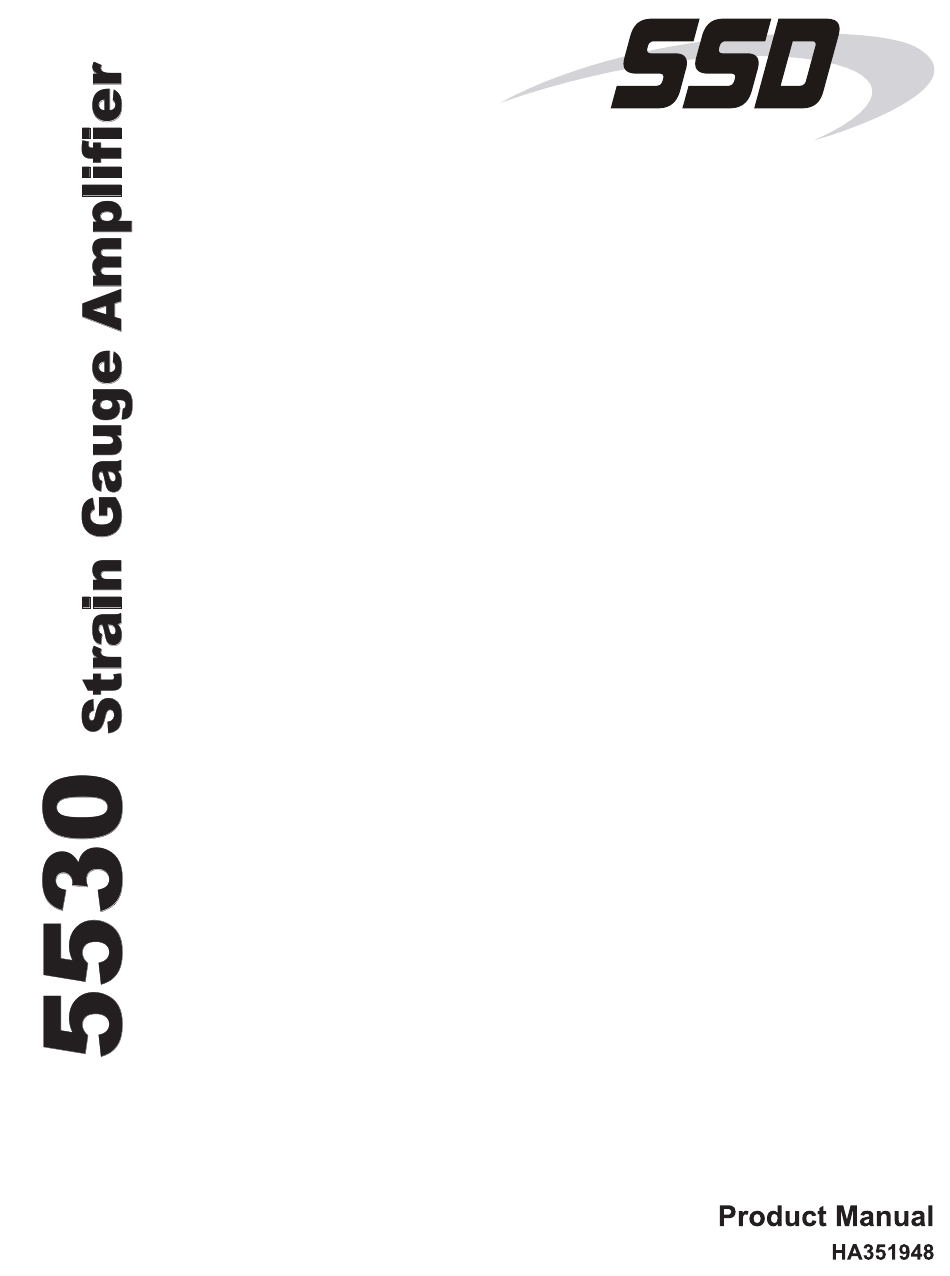

  • Page 1 D R I V E S...
  • Page 2 5530 Strain Gauge Amplifier Product Manual...
  • Page 3 WARNING! WARNING! Caution 5530 Strain Gauge Amplifier Warn. 1...

  • Page 4: Table Of Contents

    5530 STRAIN GAUGE AMPLIFIER CONTENTS Chapter 1 INTRODUCTION Chapter 2 HARDWARE OVERVIEW Power Supply........................2 - 1 Strain Gauge Amplifier....................2 - 1 Specifications........................2 - 2 Chapter 3 INSTALLATION INSTRUCTIONS Mounting..........................3 - 1 Bandwidth Configuration ..................3 - 1 Wiring ............................

  • Page 5: Chapter 1 Introduction

    INTRODUCTION Machine Frame Machine Frame Force due to tension in web, Ft Left Loadcell Right Loadcell T = Tension C = Compression Excitation Tension Signal (Input) (Output) Figure 1 -- Typical Loadcell Application 5530 Strain Gauge Amplifier 1 - 1...

  • Page 6: Chapter 2 Hardware Overview

    24 VDC Span Adj. Voltage Output Strain Gauge -10 to +10 VDC Amplifier Right Loadcell +15 VDC Offset Adj. Excite Adj. Figure 2 -- Strain Gauge Amplifier Block Diagram POWER SUPPLY STRAIN GAUGE AMPLIFIER 5530 Strain Gauge Amplifier 2 - 1...

  • Page 7: Specifications

    +18.0 to +27.6 VDC @ 130 mA, 24 VDC nominal Loadcell Compatibility: Type --Solid State Strain Gauge Output -2.5 VDC Nominal Bias Plus 200 mV Nominal Cell Output 50 mV minimum Output Per Cell 500 mV maximum Output Per Cell 2 - 2 5530 Strain Gauge Amplifier...

  • Page 8: Chapter 3 Installation Instructions

    Power-on LED Output Signal Supply Voltage OFFSET Fuse SPAN Load Cell +24 COM Left Transducer STRAIN GAUGE AMPLIFIER 5530 Right Transducer EXC COM IN- IN+ EXCITE Figure 3 - Connection Diagram BANDWIDTH CONFIGURATION 5530 Strain Gauge Amplifier 3 - 1...

  • Page 9: Wiring

    Chapter 3 INSTALLATION INSTRUCTIONS WIRING Signal Wiring Type Wire Routing Terminating Shielded Cable Grounding 0 VDC Signal Common 3 - 2 5530 Strain Gauge Amplifier...

  • Page 10: Terminal Designations

    INSTALLATION INSTRUCTIONS TERMINAL DESIGNATIONS Function Terminal 0 VDC Output Common -10 to +10 VDC Tension Output 0 VDC Power Common +24 VDC Power 0 VDC Excitation Common Excitation Supply Negative Input Positive Input 5530 Strain Gauge Amplifier 3 - 3...

  • Page 11: Chapter 4 Loadcell Calibration

    Figure 4 - Sample Rope Path The AC ripple should be less than 15 mV at terminals IN+ and IN-. Once the roll is installed, the output will only be close to 2.5 VDC. 5530 Strain Gauge Amplifier 4 - 1...
  • Page 12 Left Loadcell (term IN-) Right Loadcell (term IN+) No Load Value: ________ VDC ________ VDC Cal Load Value: ________ VDC ________ VDC Change = No Load - Cal Load: (+)______ VDC (-) ______ VDC 4 - 2 5530 Strain Gauge Amplifier...

  • Page 13: Appendix Aapplication Notes

    Appendix A APPLICATION NOTES Appendix A APPLICATION NOTES Left Loadcell Right Loadcell 5530 Strain Gauge Loadcell Amplifier TENS COMPR TENS COMPR BLACK WHITE WHITE BLACK Enclosure Left Loadcell Right Loadcell 5530 Strain Gauge Loadcell Amplifier TENS COMPR TENS COMPR BLACK...
  • Page 14 CANADA CHINA DENMARK SSD Drives Ltd SSD Drives Inc SSD Drives Ltd SSD Drives AB FRANCE GERMANY ITALY SWEDEN SSD Drives SAS SSD Drives GmbH SSD Drives SPA SSD Drives AB U.S.A. SSD Drives Inc ARGENTINA AUSTRALIA AUSTRIA BELGIUM BRAZIL...
