Eagle Group 501572 Assembly Instructions Manual

instruction sheet
#336672
Drawers #501572, 502943, 502946, 502947, 502971 and 502972
insPect contents iMMeDiAteLY AnD FiLe cLAiM With DeLiVerinG cArrier For AnY DAMAGe.
You Are resPonsiBLe For DAMAGe to Your unit iF returneD iMProPerLY PAcKeD.
#1
#3
#2
#4
#4
#2

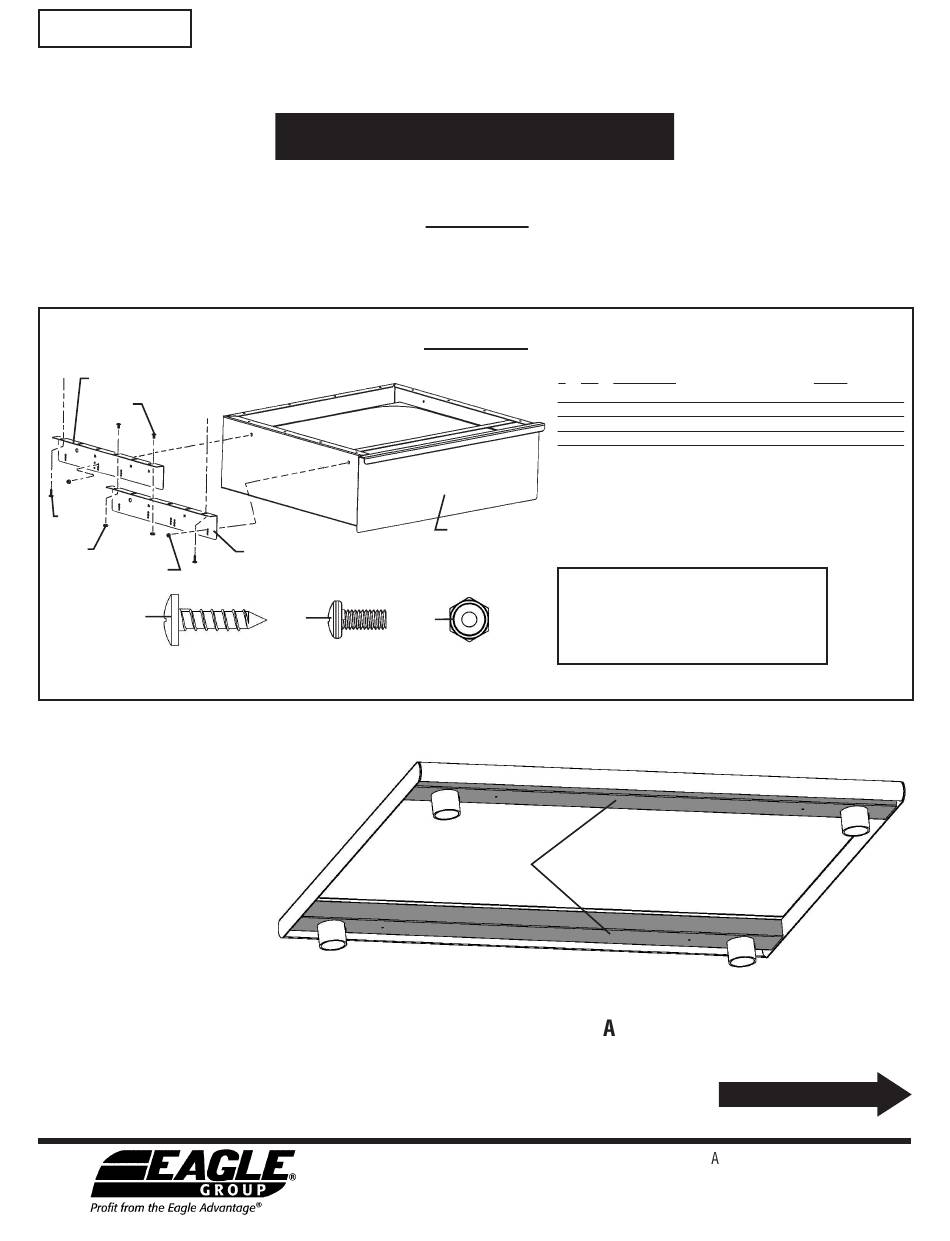

"Channels," indicated in illustration at right,
run left-to-right underneath tabletop.
If your table framing does not resemble the framing above,
turn to page 5 for "Drawers for Tables with ngle Frames."
eagle Foodservice equipment, eagle Mhc, specFAB
Enclosed Drawers for
Tables with Channel Frame
ASSEMBLY INSTRUCTIONS
SAVE YOUR BOX AND ALL PACKING MATERIALS.
#1
#3
(actual size of hardware)
How to determine if you have a "channel frame" table:
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S. . • www.eaglegrp.com
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: 302/653-2065
CAUTION
Parts List
# qty
#1 4
#2 4
#3 8
#4 8
#5 1
* For 20˝ x 20˝ bowls: these screws are premounted to the table
channel framing (underneath tabletop), and will be used to mount
drawer angles.
For 15˝ x 20˝ bowls: screws can be found in the hardware package
#5
provided with drawer.
Tools needed:
• 11/32˝ or 9mm socket or wrench
#4
• Phillips screwdriver
• Tape measure
channels
, and retail Display are divisions of eagle Group. ©2012 by the eagle Group
®
description
Drawer Mounting Bracket Angles
Drive screw, #12 x 3/4˝
Machine screw, #8 x 3/8˝
Lock nut, #8
Drawer Assembly
(continued on Page 2)
eG9834
part #
373770
313630 *
373748
313196
varies per order
revised 10/12
