IMPORTANT:
intercom base unit's battery
to charge for 12 hours before
XVLQJ WKH V\VWHP IRU WKH ¿UVW
time. See page 6 for details.

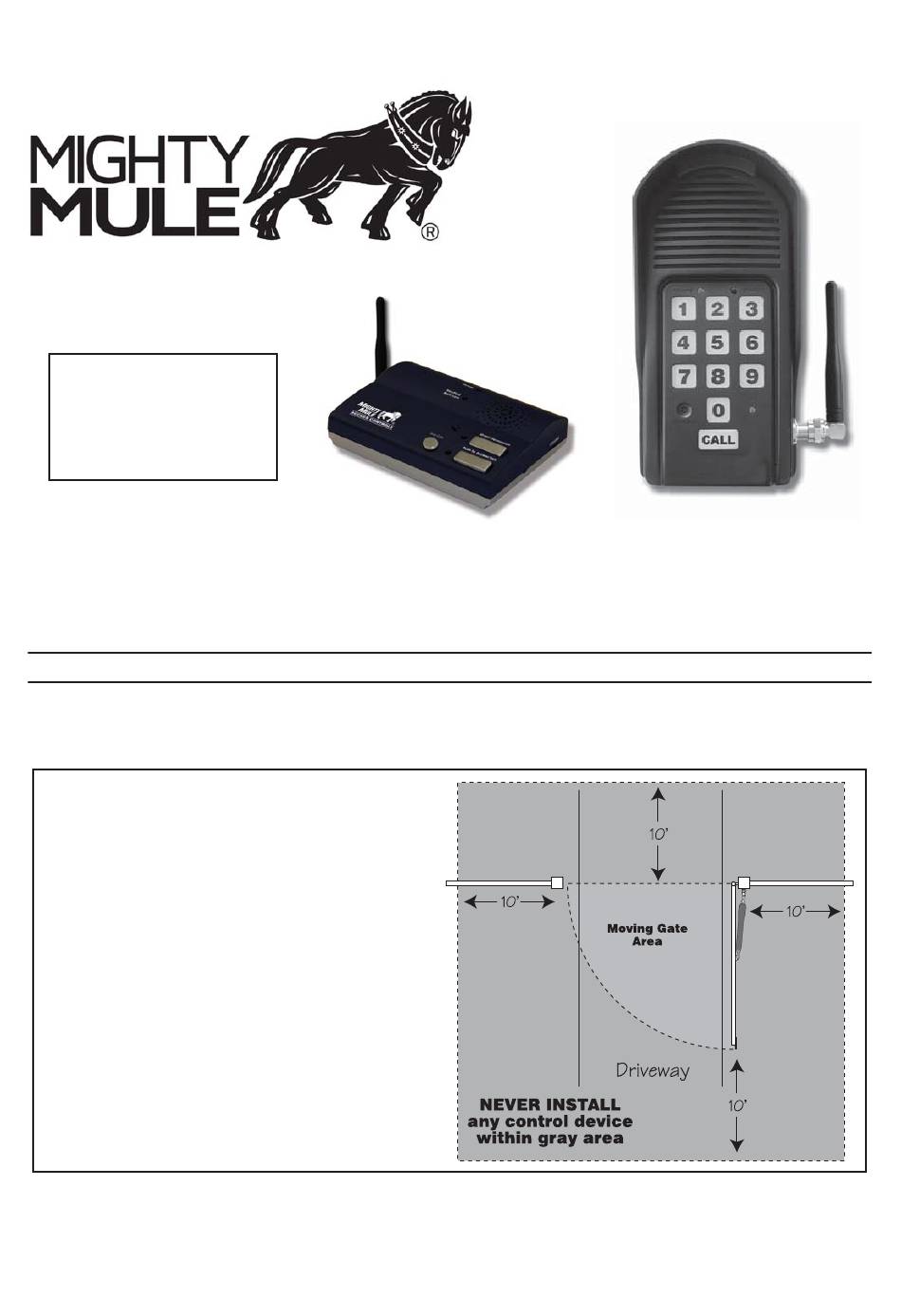

Wireless Gate Entry Intercom
Instructions for Wireless and Wired Installations
Thank you for purchasing the Mighty Mule Wireless Gate Entry Intercom.
SAFETY NOTE: Never install the keypad
portion of this unit where a person can
reach through the gate to activate it, or
where a person can touch the gate while
activating the keypad. The recommended
minimum distance between the gate and
keypad is 10 ft.
Nortek Security & Control • Telephone (800) 543-4283 • Fax (850) 575-8912 • website www.mightymule.com
rev - 1106-17
Allow the
Crystal clear two-way communication up to 500 feet wireless.
Please read the directions carefully and completely before installing.
Base Unit
Base Unit
Keypad Unit
©2017 Nortek Security & Control
Advertisement
Table of Contents
Summary of Contents for Nortek Security & Control MIGHTY MULE MM136
- Page 1 IMPORTANT: Allow the intercom base unit’s battery to charge for 12 hours before XVLQJ WKH V\VWHP IRU WKH ¿UVW time. See page 6 for details. Base Unit Base Unit Keypad Unit Wireless Gate Entry Intercom Instructions for Wireless and Wired Installations Crystal clear two-way communication up to 500 feet wireless.
- Page 2 Features of the Intercom/Keypad The INTERCOM has two separate units. The KEYPAD (outside unit) should be mounted outside the gate allowing the driver of the vehicle approaching the property to press the CALL button from their vehicle. The BASE (inside unit), with it’s rechargeable battery, can be plugged into any 110 Volt AC outlet for use while charging.
-
Page 3: Keypad Description
Keypad Description Keypad - Inside Keypad - Front CALLING Light: DIP Switches: LED is RED when calling and turns Match these switches to your remote GREEN when call is answered. transmitter to program the keypad. GRANTED Light: Power Input: LED turns GREEN when access CALLING GRANTED Used to connect keypad to gate opener for... -
Page 4: Control Board Connections
Step 2: For hard-wired communication between the keypad and gate opener, using 16 gauge (AWG) stranded, direct burial, low voltage wire (part no. RB509) strip the wires back 3/16” and attach the wires to the terminal block marked RELAY OUTPUT on the keypad control board as shown to the right. -
Page 5: Programming The Keypad
Programming the Keypad Programming Interface: Program (Add) New Temporary Entry Code: • All codes are four (4) digits in length. • Press and release PROGRAM button. • Entry code is a four (4) digit code needed to activate the gate. •... -
Page 6: Intercom Description
Delete ALL Entry Codes: Normal Keypad operation: • Press and release PROGRAM button. • If the user enters a 4-digit code that is matched to one of the • Enter the Master Code then press and release PROGRAM 25 stored codes, the STATUS light should blink twice and the button. -
Page 7: Connecting The Battery
Intercom Base Unit Installation Connecting the Battery Remove the battery access cover using a small phillips head screwdriver. Plug the rechargeable Ni-MH battery into the receptacle inside the battery compartment. See diagram to the right. When this is done, replace the battery access cover. - Page 8 Intercom ID Codes The Base and Keypad that came in this kit are programmed at the factory to communicate with each other, and do not need the ID Codes programmed. This Base is the MASTER or #1 unit. Adding Additional Base Units If you have purchased additional Base units to ID SET button enhance your system, each additional unit’s ID...
-
Page 9: Test The System
Test the System IMPORTANT: The Base unit and the Keypad can not be within 30 feet of each other when operating. If units are closer than 30 feet the signal will be inconsistent as well as emit speaker feed back. Also, multiple Base units must be no closer than 10 feet from each other to prevent interference. - Page 10 Hole Template for Mounting the Base Unit .H\SDG 6SHFL¿FDWLRQV )UHTXHQF\ 318MHz from keypad to gate opener 900MHz from keypad to base station Memory - Keypad Stores up to 25 four digit entry codes Power Consumption – Keypad 60 ma when relay is closed Power Supply –...
-
Page 11: Fcc Rf Radiation Exposure Statement
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐Reorient or relocate the receiving antenna. ‐‐Increase the separation between the equipment and receiver. ...
