Summary of Contents for Huntingdon Fusion Techniques PurgEye 300 Plus

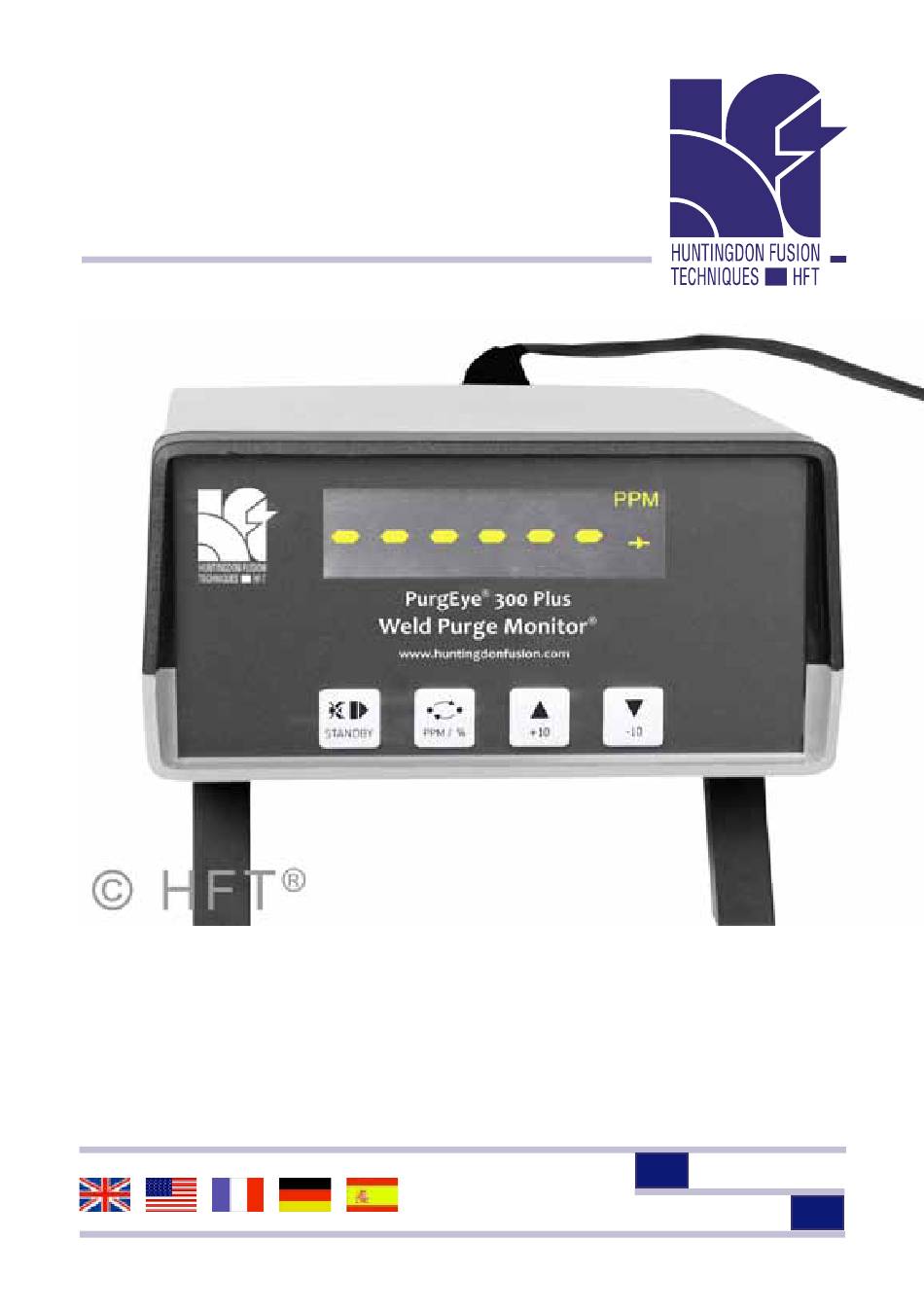

- Page 1 PurgEye 300 Plus ® WELD PURGE MONITOR ® Now with PurgeNet™ USER INSTRUCTIONS PurgEye a ‘Family’ Series of Weld Purge Monitors ® ®...
- Page 2 Copyright © HFT . All rights reserved. ® This publication may not be reproduced by any means without the written permission of Huntingdon Fusion Techniques HFT ®. All logos, names, trademarks are the property and ownership of HFT ® E&OE...
-
Page 3: Table Of Contents
INDEX PAGE 3 Index ..............Getting started ............ 4 - 5 Connections ............Controls .............. 7 - 8 Status icons ............PurgeNet™ interface ..........Care and maintenance ......... Warning .............. Other languages ..........Customer support and worldwide care ....Warranty ............. Address and contact details ........ -
Page 4: Getting Started
gETTINg STarTED PAGE 4 Your PurgEye 300 Plus Weld Purge Monitor is an instrument ® ® to read from 0.1% (1000 ppm) down to 0.0001% (1 ppm) oxygen. Your PurgEye 300 Plus Weld Purge Monitor delivery and ® ® storage box contains: •... - Page 5 gETTINg STarTED continued PAGE 5 4. Use the short length (150 mm) of red hose provided to attach to the red purge gas outlet at the rear of the monitor. (This is important and it is intended to prevent air with oxygen migrating back into the monitor through the exhaust and distorting the readings).
-
Page 6: Connections
cONNEcTIONS PAGE 6 PurgeNet™ The PurgEye 300 Plus Weld Purge Monitor is fitted with a 3-pin ® ® PurgNet™ connector at the rear as indicated on page 5. This connector is used to connect the PurgeNet™ lead which in turn enables the user to connect smart accessories and access the PurgeLog™... -
Page 7: Controls
cONTrOLS PAGE 7 Function The function button is used to activate the alarm mute and power on/off. Holding the function button for more than 1 second will turn your PurgEye 300 Plus on or off. ® If the alarm is activated and audible then pressing the function button once will mute the audible sounder. - Page 8 cONTrOLS continued... PAGE 8 Language and version information NOTE: Indicated by a speech symbol to the left of the display. NOTE: The unit is defaulted to English. NOTE: Connecting PurgNet™ accessories, will add further menu items to this list, as required. Alarm Adjust + Pressing this button will increase the currently displayed set-point by 10 ppm.
-
Page 9: Status Icons
STaTUS IcONS PAGE 9 When necessary, the following three status icons will be displayed on the right hand side of the display. Display units This will be either ‘PPM’ or ‘%’ for oxygen concentration values. Press and hold ‘display’ button to change the display units. Alarm status Whilst the alarm is active, a speaker icon will flash on the... -
Page 10: Purgenet™ Interface
PUrgENET™ INTErfacE PAGE 10 Smart accessories: When PurgeNet™ accessories are connected to the PurgeNet™ interface connection, they will be automatically detected by your PurgEye 300 Plus and extra menu options will appear. ® Language Support current support: The PurgEye 300 Plus product range currently ®... -
Page 11: Care And Maintenance
carE and MaINTENaNcE PAGE 11 Zirconium Oxide Sensor Care As a general guideline, the gases to be measured should be free from dust, organic vapours, condensation and products capable of condensing. Such components can block the gas conduits in the sensor and cause permanent damage. -
Page 12: Warning
WarNINg PAGE 12 Filter: If the sample gas flow rate is reduced too much due to an old clogged filter then the flow warning (flashing arrow) will be displayed. Filters should only be replaced with the correct type. The in-line filter MUST ALWAYS be used, or your PurgEye may read incorrectly ®... -
Page 13: Other Languages
Other LaNgUagES in PrOgrESS PAGE 13 Les autres langues sont actuellement dans le progrès. Pour le moment, s’il vous plaît contacter votre Distributeur local. Andere Sprachen sind momentan im Gange. Kontaktieren Sie vorläufig, bitte Ihren örtlichen Verteiler. Otros idiomas son actualmente en progreso. Para ahora, contacta por favor su Distribuidor local. -
Page 14: Customer Support And Worldwide Care
cUSTOMEr SUPPOrT and PAGE 14 WOrLDWIDE carE For further information and support, please contact us at: Internet: www.huntingdonfusion.com Email: hft@huntingdonfusion.com Tel: +44 (0) 1554 836 836 Worldwide Offices, Partners and Distributors are listed on our website or contact us and we will direct you to the correct location. -
Page 15: Warranty
Should you encounter a problem with your product, please notify us immediately upon receipt. Huntingdon Fusion Techniques HFT warrants this product to be ® free of defects in workmanship and material, with exceptions stated below. - Page 16 Tel +44 (0) 1554 836 836 Fax +44 (0) 1554 836 837 www.huntingdonfusion.com Email hft@huntingdonfusion.com E&OE Copyright © HFT . All rights reserved. ® This publication may not be reproduced by any means without the written permission of Huntingdon Fusion Techniques HFT ®...
