Siemens SIRIUS 3RS1040 Operating Instructions Manual page 3

Temperature monitoring relay
Hide thumbs


Advertisement

DE

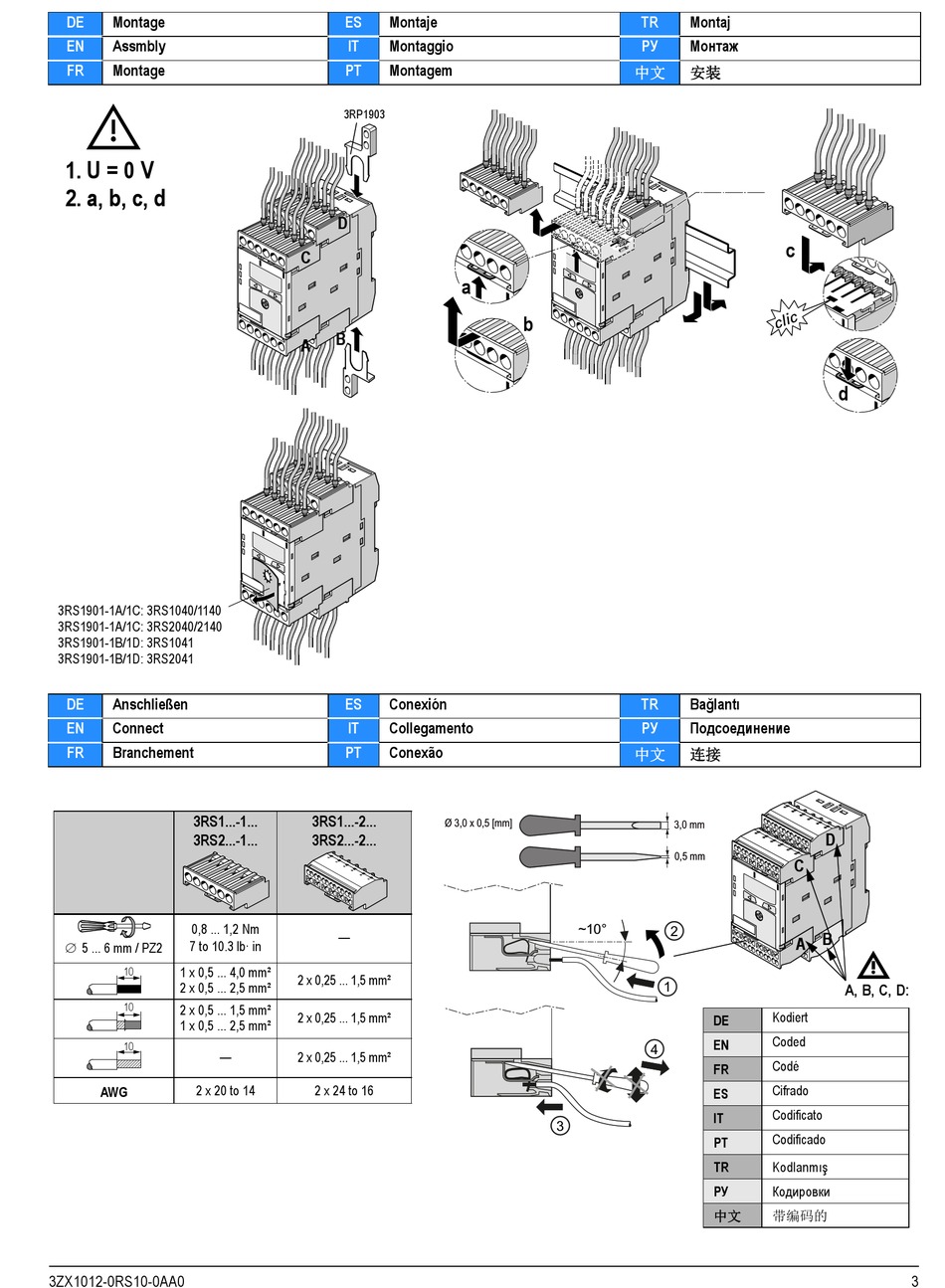

Montage
EN
Assmbly
FR
Montage
1. U = 0 V
2. a, b, c, d
3RS1901-1A/1C: 3RS1040/1140
3RS1901-1A/1C: 3RS2040/2140
3RS1901-1B/1D: 3RS1041
3RS1901-1B/1D: 3RS2041
DE
Anschließen
EN
Connect
FR
Branchement
3RS1...-1...
3RS2...-1...
0,8 ... 1,2 Nm
 5 ... 6 mm / PZ2
7 to 10.3 lb· in
1 x 0,5 ... 4,0 mm²
10
2 x 0,5 ... 2,5 mm²
10
2 x 0,5 ... 1,5 mm²
1 x 0,5 ... 2,5 mm²
10
2 x 20 to 14
AWG
3ZX1012-0RS10-0AA0
ES
Montaje
IT
Montaggio
PT
Montagem
3RP1903
D
C
a
B
A
ES
Conexión
IT
Collegamento
PT
Conexão
3RS1...-2...
Ø 3,0 x 0,5 [mm]
3RS2...-2...
2 x 0,25 ... 1,5 mm²
2 x 0,25 ... 1,5 mm²
2 x 0,25 ... 1,5 mm²
2 x 24 to 16
TR
Montaj
РУ
Монтаж
中文
安装
b
TR
Bağlantı
РУ
Подсоединение
中文
连接
3,0 mm
0,5 mm
c
d
D
C
B
A
A, B, C, D:
Kodiert
DE
Coded
EN
Codé
FR
Cifrado
ES
Codificato
IT
Codificado
PT
TR
Kodlanmış
РУ
Кодировки
中文
带编码的
3
