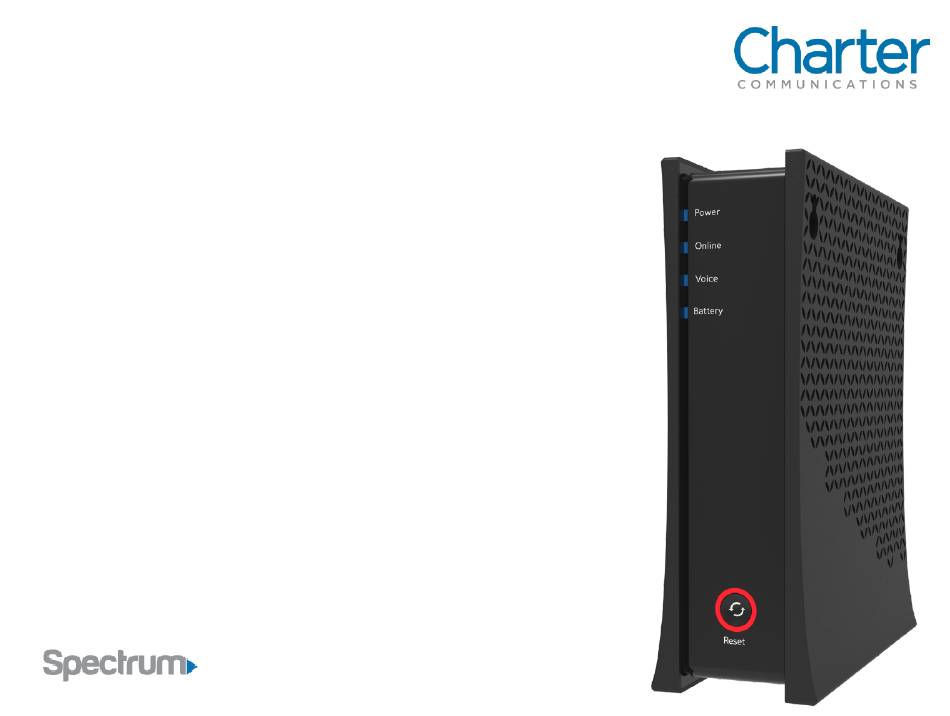

- Page 1 E31U2V1 DOCSIS 3.1 eMTA Quick Installation Guide...
-
Page 2: Preparing For Installation
PREPARING FOR INSTALLATION 2. Enable HTTP/HTTPs using RIO or DRUM. Verify package contents, RF cable connectors, and power outlet. 3. Use IPv4 or IPv6 to remotely access the UI of the E31U2V1 ✓ Unpack the box and confirm the following components: DOCSIS 3.1 eMTA. -
Page 3: Installing The Modem
E31U2V1 Quick Installation Guide • UNDERSTANDING DEVICE CONNECTIONS 3. Connect an RJ-11 phone cable (not supplied) to the Voice 1 or 2 port on the modem (when provisioned for voice service as REAR PANEL: specified by the service provider), and connect the other end to the phone port of the telephone. - Page 4 • DEVICE WALL MOUNT INSTRUCTIONS You can mount the E31U2V1 on a wall using the 2 mounting brackets on the side of the device. Two round or pan head screws are recommended. See the figure below for measurements. Label Size in Millimeters (mm) 9.5 +/- 0.2...
-
Page 5: Led Behavior
E31U2V1 Quick Installation Guide • LED BEHAVIOR COLOR DESCRIPTION • Powering Up: Flashing between On Blue and Off Status Light BLUE • Normal Operation: On Blue • Network Access Denied: If receiving power, On Blue Power Illuminated WHITE •... - Page 6 An Ethernet Device is Connected at 1000 Mbps Speeds (Gigabit Ethernet): On Orange Status GREEN Ethernet Lights ORANGE • An Ethernet Device is Connected at 10 Mbps Speeds: Off • Data is Being Passed Between the E31U2V1 and the Connected Device: Flashing Green Orange...
- Page 7 E31U2V1 Quick Installation Guide • • SAFETY FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENTS WARNING: Read all safety instructions in this guide before attempting to unpack, install, operate, or connect power to this This device complies with Part 15 of the FCC Rules. Operation is product.
Need help?
Do you have a question about the E31U2V1 and is the answer not in the manual?
Questions and answers
Can not get the voice (phone) led to light on the subject modem and cannot get an internet connection through the router to activate the new router. Had to reinstall the old modem & everything is now working with the old modem activated. What's next?
To troubleshoot the Spectrum E31U2V1 modem's voice LED and internet connection issues, follow these steps:
1. Check Cable Connections:
- Ensure the coaxial cable is securely connected to the modem and the wall outlet.
- Make sure the power adapter is properly connected to the modem and a power outlet.
- If using voice service, connect analog telephones to the Voice 1-2 ports using RJ-11 cables.
- If using Ethernet, connect an Ethernet-enabled device or router to the modem using an RJ45 cable.
2. Verify Service Activation:
- Confirm that telephone service is provisioned and enabled by the service provider.
3. Inspect LED Indicators:
- If the voice LED is not lit, voice service may not be active or the phone may not be connected properly.
- Check Ethernet port lights:
- Green: 100 Mbps connection
- Orange: 1000 Mbps (Gigabit) connection
- Flashing: Data is being transmitted
- Off: No 10 Mbps connection
4. Power Cycle the Modem:
- If the reset icon and ring are illuminated, press and hold the reset button for 4 seconds to initiate a power cycle.
5. Factory Reset (if needed):
- If necessary, after a power cycle, press and hold the reset button for 10 seconds to restore factory settings.
6. Avoid Heat and Sunlight:
- Ensure the modem is not exposed to direct sunlight or placed near hot devices.
These steps help resolve most voice LED and internet connectivity issues with the E31U2V1 modem.
