Introduction

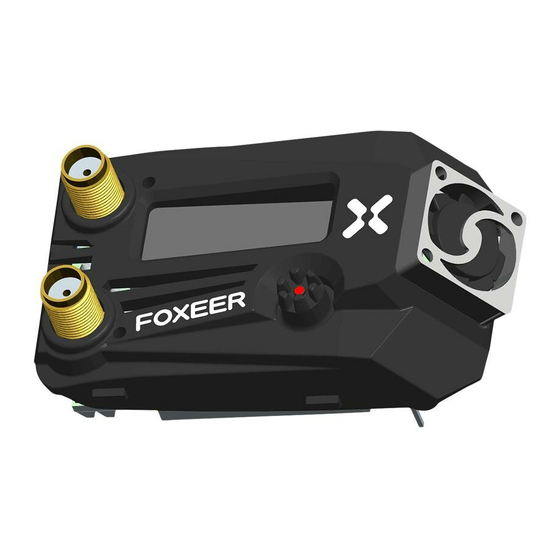

WildFire is a diversity receiver which provides stable video
feed in various environments such as indoor, outdoor and
multi-path areas.
WildFire adopts a unique algorithm which bene ts from fast
switch between antennas without harm to video feed which
may happen in other brand receivers, the algorithm can
e ectively minimize signal latency, increase switch rate and
prevent frame rolls.
01
Main Menu
Long press the middle button into Main Menu.
Short Left /Right click to browse
all the modes.
02
Check and choose all supported channels.
MAI N M ENU
CH ANNEL
FAVO RI TES
BA ND SC A N
SE T T INGS
Advertisement
Table of Contents
Summary of Contents for FOXEER WildFire
- Page 1 WildFire is a diversity receiver which provides stable video feed in various environments such as indoor, outdoor and multi-path areas. WildFire adopts a unique algorithm which bene ts from fast switch between antennas without harm to video feed which may happen in other brand receivers, the algorithm can e ectively minimize signal latency, increase switch rate and prevent frame rolls.
- Page 2 Ch an nel Favorites Channel Favo rites 5 6 5 8 5658 At CHANNEL mode, you can check the current frequency, At FAVORITES mode, you can check all the favorite frequency. choose frequency, check RSSI info , and choose the favorite frequency.
- Page 3 Settings F I N DER C H RN NEL : R1 (565 8) Set parameters. Long press middle button: Go to the Main Menu. Switc hing Fa st S e t tings OSD M e nu Short click up/down button: Turn to next frequency in the Show RSSI LB R same band.
- Page 4 Specification Size 42 x 25 x 23mm Weight(net) All FatShark Series, 3D STL Case Compatibility Provided for Attitude and Orqa Users 5 way button, 0.91" 128x32 OLED Interface screen, Micro-USB Firmware upgrade Voltage 5V~16V Consumption 0.4A±10%@5V Frequency 72CH 5.3-6.0Ghz (A, B, E, F, R, H, U, L, O) Channel, Favorites, Finder, Band Scan Menu and Settings...
- Page 5 产品简 介 用 户 WildFire野火是一款专为Goggle打造的分集接收机， 可在室 手 内， 室外和多路径反射等各种复杂环境中提供稳定的视频 册 输出。 WildFire采用独特的算法， 得益于天线之间的快速切换算 法， 能够提供无损的信号， 该算法可以有效地最小化信号延 迟， 提高切换速率并防止帧滚动。 Main Menu 主菜单 长按中间键进入主菜单 MAI N M ENU 短按左/右按键实现模式切换 CH ANNEL FAVO RI TES FINDER BA ND SC A N SE T T INGS Channel 频道...
- Page 6 在该模式下， 用户可以查看目前使用的频点， 选择频点， 查 看RSSI信号， 并且可以将频点加入收藏夹。 FAVO RITE C HA NN EL 长按中间键 - 返回主菜单 长按右键 - 选择/移除当前收藏的频点 短按上/下键 - 选择下一个频点 Finder 寻机 长按中间键 - 返回主菜单 长按右键 - 添加/移除当前收藏的频点 跟踪信号。 短按左/右键 - 选择不同频段 短按上/下键 - 选择同频段中不同频点 Find er Finde r 5658 Favorites 收藏夹...
- Page 7 Band Scan 频段扫描 Switching (切换速度): Fast (快)/ Slow (慢)/ Off (不切换)， 控制2个RX切换速度， 默认为快， 建议不更改。 查找最佳频点以及存在的干扰源 。 OSD (菜单): ON(开)/ OFF (关)， 开启/关闭OSD信息。 SHOW RSSI (RSSI显示): 6种显示模式。 LBR: 屏幕左柱状 B and S c a n CBR: 屏幕中柱状 S can RBR: 屏幕右柱状 在该模式下，...
- Page 8 Specification 尺寸 42 x 25 x 23mm 重量 Fatshark HD系列肥鲨眼镜, Attitude和 兼容 Orqa系列眼镜需要单独3D打印外壳 5向按键, 0.91" 128x32 OLED 屏幕, 接口信息 Micro-USB 支持 固件升级 支持 输入电压 5V~16V 功耗 0.4A±10%@5V 支持频率 72CH 5.3-6.0Ghz (A, B, E, F, R, H, U, L, O) 菜单 频率, 收藏夹, 寻机...
