5. wORKBENCH ASSEMBLY
5.1.

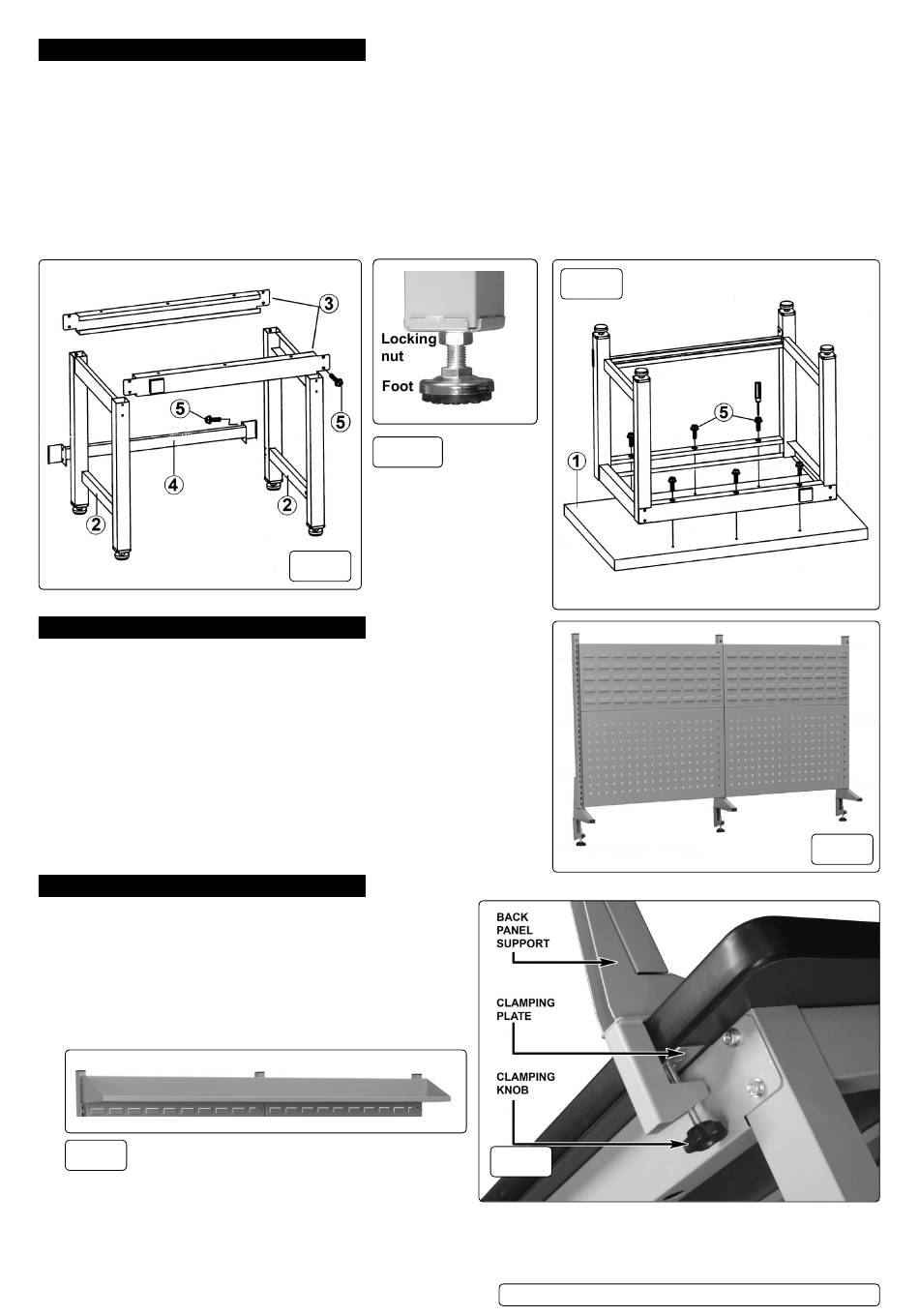

Refer to fig.2
Join the two leg frames (2) together using one of the upper beams (3) and four short screws (5). Ensure that the open sections on all
components are facing inwards. Fix the second upper beam (3) in place using four short screws (5). Align the fixing holes in the lower
beam (4) with the holes in the two leg frames and fix in place using four short screws (5).
5.2.
Refer to fig.3
5.2.1.
Lay the bench top (1) face down on a smooth clean surface. Invert the assembled frame and place it centrally onto the bench top. Align
the holes in the upper beams with the holes in the underside of the bench top and fix the frame onto the bench top using six short screws
(5).
5.2.2.
Turn the assembled bench onto its feet.
5.2.3.
Site the bench in the workplace observing the advice given in section 1.
5.2.4.
Adjust the feet to compensate for uneven surfaces and lock each foot using the locking nut shown in fig.2.A.
6. BACK PANEL ASSEMBLY
6.1.
Refer to fig.4
Back panel kits are available for all three sizes of bench and are
an optional extra to be purchased separately.
APIBP1500: Back panel assembly for API1500
APIBP1800: Back panel assembly for API1800
APIBP2100: Back panel assembly for API2100
6.2.
Take the three back panel supports and clamp them to the back edge of the
bench ensuring that a clamping plate is inserted between the clamping knob
spindle and the underside of the bench top as shown in fig.5. Adjust the
positions of the uprights until the tool panels can be slotted into position
followed by the bin panels above them as shown in fig.4 . On the outer
uprights the back panels should occupy the inner line of slots leaving one
row of slots visible.
7. SHELF ASSEMBLY
7.1.
Refer to fig.6
Three widths of shelf unit can be purchased as an optional
extra to match the three back panel kits. The shelves hook
into the outer uprights as shown in fig. 5 and stand away from
the panels slightly allowing them to be put at any height.
API11: Shelf for APIBP1500
API12: Shelf for APIBP1800
API13: Shelf for APIBP2100
fig.6
© Jack Sealey Limited
fig.2A
fig.2
Original Language Version
fig.3
fig.5
API1500, API1800, API2100| Issue:2 (H3F) 20/03/19
