Catoma Raider Manual

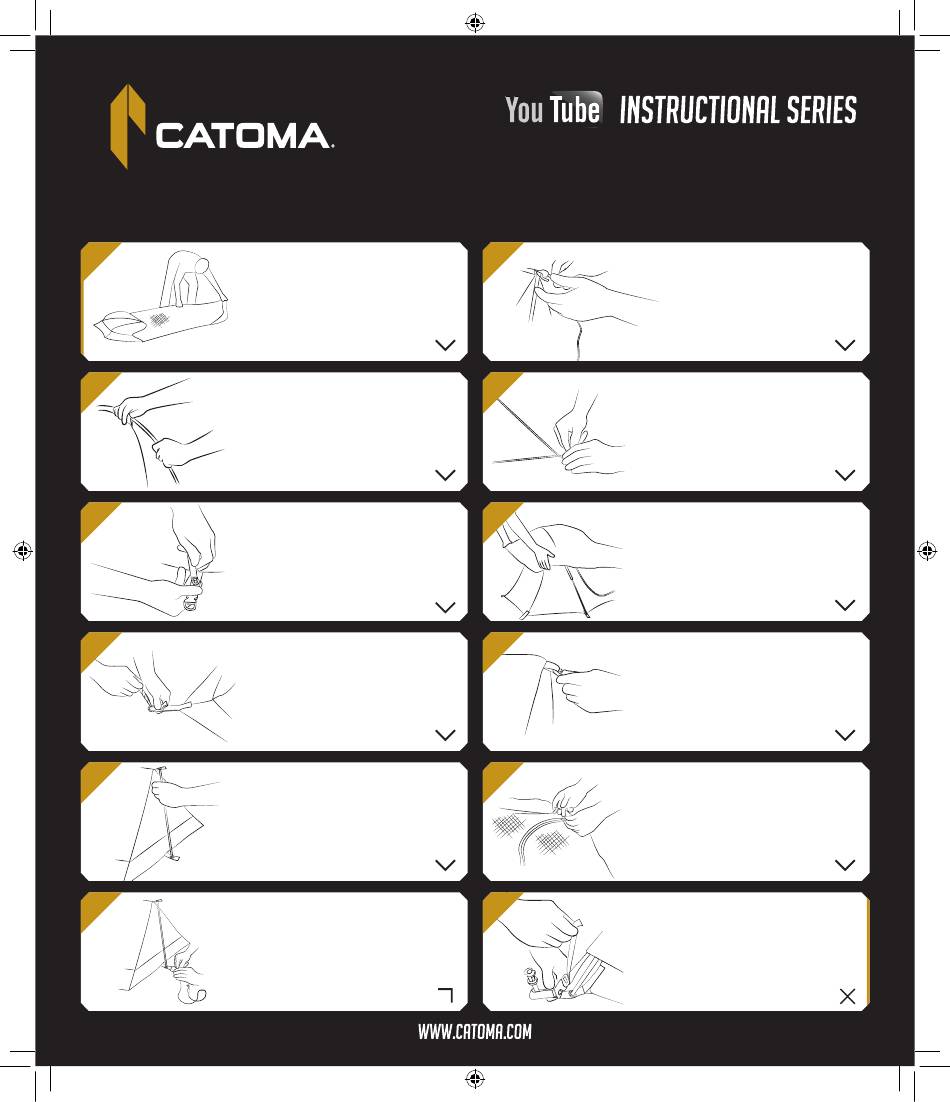

Raider Setup INSTRUCTIONS
1
After clearing your space, lay the
body of the Raider out on the ground
in position.
2
Assemble the longer of the two poles
- the head pole - and slide it through
its sleeve at the widest part of the
tent body.
3
Insert the pole ends into their
respective grommets at the sides of
the tent.
4
Stake the body out tightly in all
directions.
5
Assemble the shorter pole - the foot
pole - and insert its ends into the
grommets at the top and bottom of
the foot of the tent.
6
If not already attached, tie the foot
guy line - with hook attached - to the
bottom webbing tab at the bottom of
the foot of the tent. The resulting line
should be about 24" in length.
Catoma_RadierInstructionLabel.indd 1
Visit our YouTube Channel for more detailed
instructions on this and other Catoma products.
7
Hook the foot guyline to the tab at the
top of the foot of the tent.
8
Loop the foot guyline around one of
the stakes, pull tight, and drive into the
ground. This will tighten the ridgeline
of the tent, essentially erecting the
body using tension.
9
Drape the rainfly over the tent and
buckle all attachment points. Find
the grommet on the underside of the
rainfly that corresponds to the foot
pole's location and join the two.
10
Unhook the guy line hook at the foot of
the body. Re-hook the guy line to the
rainfly's appropriate tab.
11
Join the toggles and loops along the
ridgeline of the tent body and the
underside of the rainfly's ridgeline.
12
Make sure the rainfly is pulled tight.
This may involve moving the foot guy
line's stake outward to tighten the
ridgeline, or tightening the buckle
attachment points at the corners.
