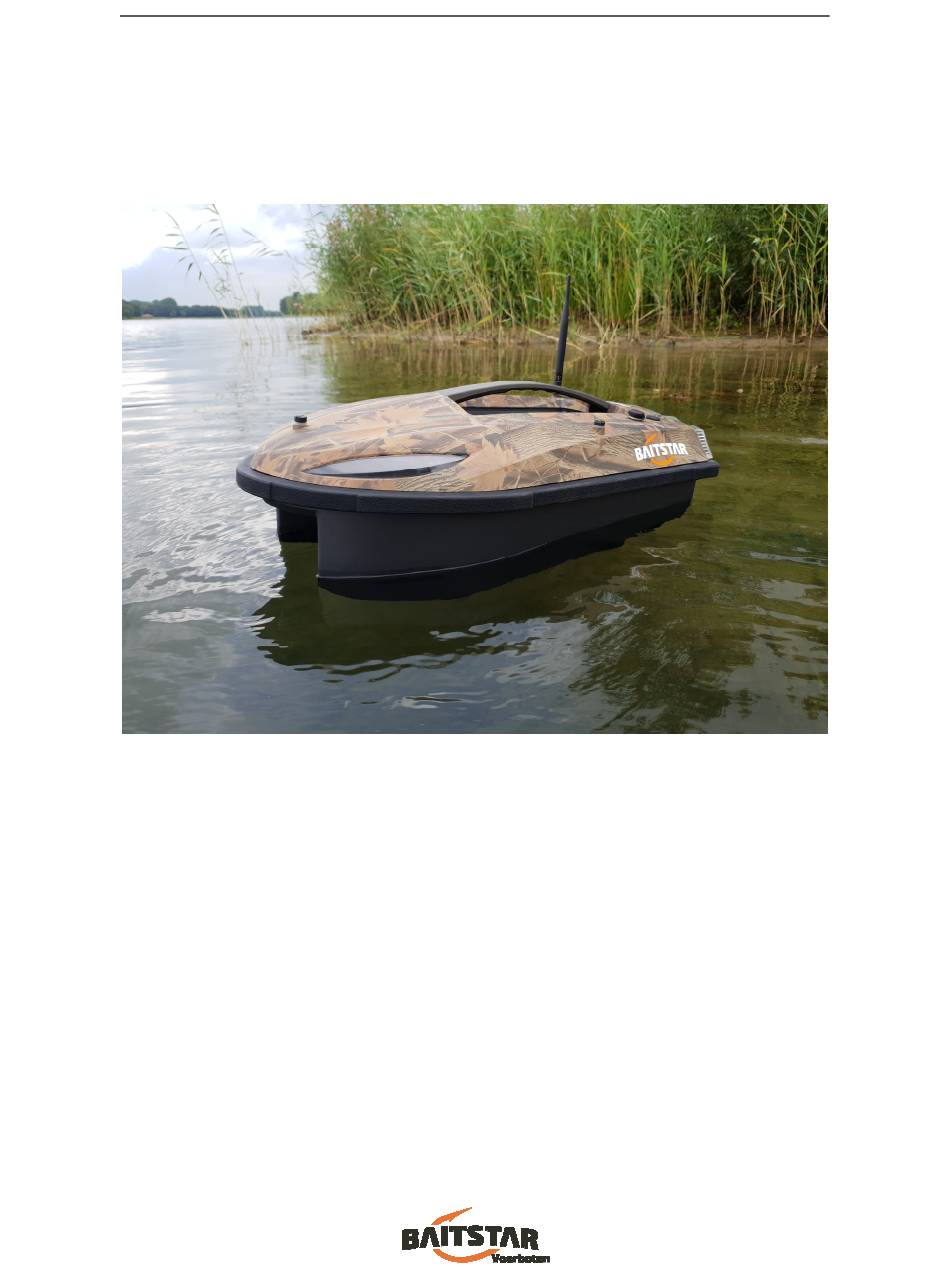

- Page 1 User Manual BaitStar Pro-X V20180130...
- Page 2 !Gouden voerboot regels! 1. Een voerboot is een hyper modern apparaat voorzien van zeer geavanceerde, gevoelige electronica en onderdelen dus behandel hem ten allen tijden met de grootst mogelijke zorg en voorzichtigheid! 2. Vaar nooit achteruit met je boot wanneer er een rig in ligt, hierdoor heb je kans dat de lijn achter de boot in de propeller komt met alle gevolgen van dien.
- Page 3 User Manual of the BaitStar Pro-X Baitboat Please read this manual thoroughly and follow the instructions of the manual. It’s hoped that this product will bring you extraordinary harvest and fun. Some functions will be modified with the upgrading of the versions, but the user manual will still work. Please accept our apologies for any possible inconvenience.
-
Page 4: Fish Finder
3. Fish Finder A. Major Functions: * Detect the current water temperature * Detect the current water depth with a maximum of 30 meters * the detection of water depth is of 4 levels: 3-5 meters, 5-15 meters, 15-20 meters, and 20-30 meters * There icons of fish size can be displayed: big, medium, and small * The sensitivity of fish detection is of three level: C1/C2/C3 from low to high * Indicate the actual contour of the riverbed... - Page 5 switch and the metal plate so as to keep the switch functional. F u n c t i o n S p e c i f i c a t i o n s o f B a i t S t a r P r o F u n c t i o n S p e c i f i c a t i o n s o f B a i t S t a r P r o - - - - X X X X B a i t b o a t B a i t b o a t...
- Page 6 L i t h i u m B a t t e r y ( 1 1 . 1 V / 2 0 A H ) 7. Product Standard Configuration and Packing List Name Specification Quantity Boat BaitStar Pro-X Remote-control Handset Charger for Boat Battery Indoor charging of the boat batteries Charger for RC Handset Battery Indoor charging of the handset battery Charger Conversion Plug(“Y”...
- Page 7 User Manual of Intelligent Remote Control Handset The remote control handset is developed by our company on its own with independent intellectual property rights. It’s equipped with LCD, which could display all the sailing and working status of the boat, and can realize automatic sailing and GPS navigation sailing.
- Page 8 Display of the LCD on the Remote Control Handset Name of the Icons Functions The strength of the signal between the boat and the remote control Signal handset Indicate the power status of the boat batteries. When the power is Boat battery status running low, there will be an audible alarm.
- Page 9 3. Options on the MENU and Operation Instructions: A) Select MENU: press menu “▲” or “▼” to enter the menu, and you can select the options. When a certain option is selected, press the power button to set the submenu options. After the options are set, press the power button, and the modified options will be automatically saved and return to the main menu.
- Page 10 EXIT Press this button and exit from the main menu D.Malfunction Monitoring ： ： ： ： This device could monitor the working status of boat and RC handset at any time.If some parts have malfunction ,the RC handset screen will automatically jump out of the following pictures,which indicate the phenomenon of malfunction.When the malfunction is eliminated,the picture will disappear.The following pictures from left to right successively means: RC compass malfunction,Boat compass malfunction,Fish finder malfunction,GPS malfunction.
- Page 11 B) GPS Buttons and Operations (the chart on the left) Name of the Icon Functions There are 9 different locations available. we usually set departure point at number “1” , and number 2-9 can be set as destinations. The flashing Moving the cursor number indicates the number that is ready to be set, and press the “+/-”...
- Page 12 5. The Display and the Functions of the Barometer Display of the Barometer Functions Current barometric pressure Indicate the current barometric pressure Trend of barometric pressure Chart of barometric pressure in the past 12 hours The barometric pressure suitable to fish Easy to fish in case of 1002~1028hpa, hard to fish in case of <1002hpa The horizontal axis: measure the barometric pressure at intervals of one hour and compare it with the previous values and see if there are any...
- Page 13 Functions and Parameters of the BaitStar Pro-X Remote Control Handset Function Configuration Remote Control Handset Working Time 20hours Real-time Monitoring of Boat Errors ◎ MANU Sailing/AUTO Sailing ◎ Indication of Signal ◎ Battery Status of Boat and RC Handset ◎...
