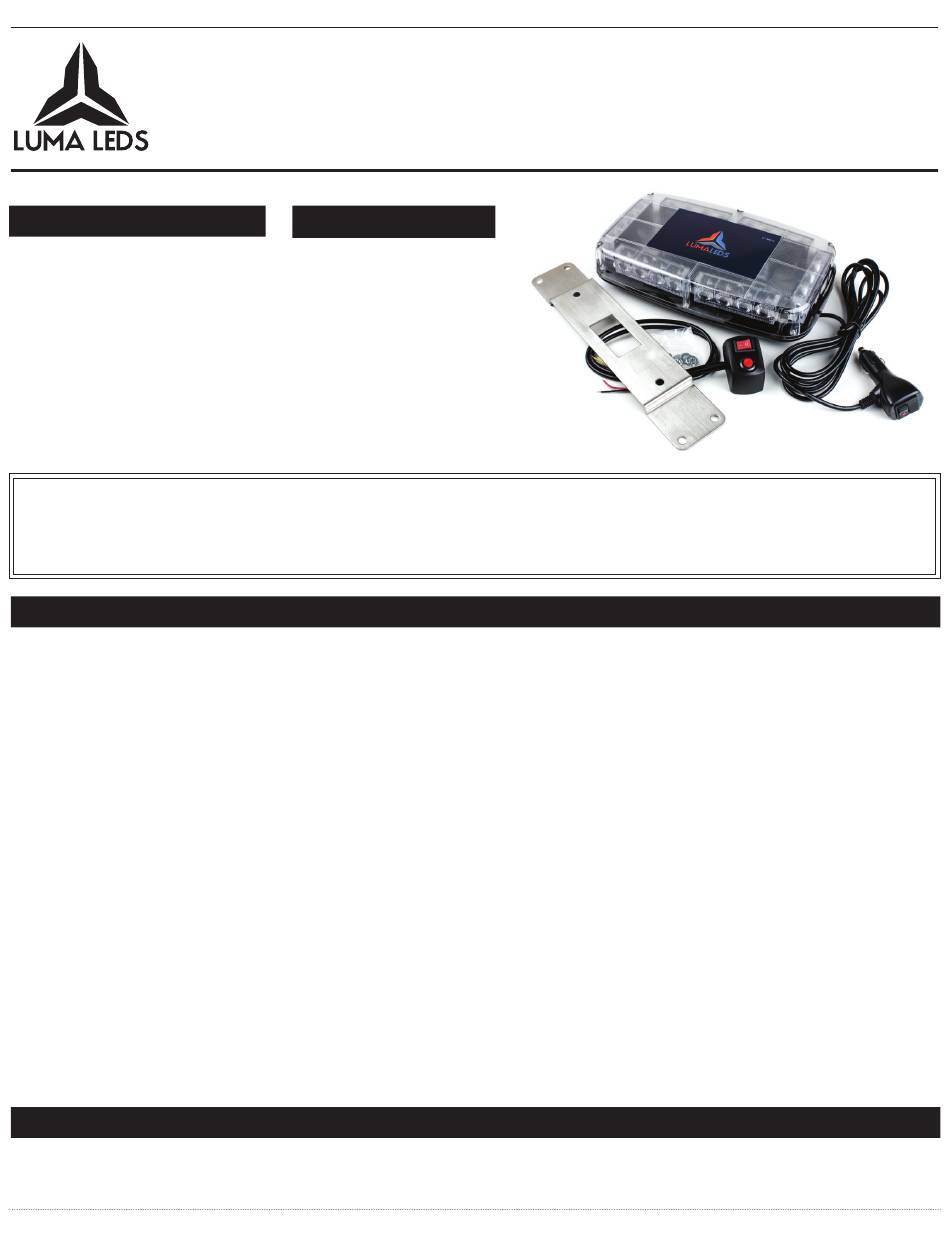

LUMA LEDS E1 Series Installation And Operation Instructions

Specifications

LEDs: 24 3 Watt GEN3 LEDs
Voltage: 10~30 VDC
Draw @ 12VDC: 6.84W / 0.57A
Draw @ 24VDC: 6.96W / 0.29A

Flash Patterns: 8

Compliance: SAE J595, J845, J578
Connector: 8' Lead w/Cigarette Plug
Optics: TIR
Mounting: Magentic / Bracket
IP Rating: IP67 Waterproof Resistant
Operating Temp: -30°~50°C
Important! Vehicle roof construction varies for most vehicles as well as driving conditions. Maximum recommended
vehicle speed for safe operation using the magnet mount is 65mph when fitted to a flat area in the center of a vehicle roof
with steel construction. Higher speed could cause the mount to fail, resulting in the light flying off of the vehicle, which
could cause damage to other vehicles, and injury or death to others.

Magentic Mount

Important! The mangetic holding power to the mounting surface is dependent upon the flatness, thickness, condition and
finish of the mounting surface. For maximum magnet strength, follow these recommendations:
1. The vehicle's mounting surface should be kept clean and free of wax, dirt, dust and foreign particles.
2. The bottom of the magnets' rubber cover should be kept clean.
3. Always make sure that the mounting surface is flat and that all two (2) magnets are fully secured.
4. Never attempt to secure the magnets to a vehicle that has a fabric or vinyl covering the mounting surface.
5. Make sure the lens is unobstructed so that the light can be seen 360 degrees.
Powering & Operating Warning Light
1. Turn the light bar on by simply inserting the light's cigarette lighter plug into the vehicle's power outlet. Press the on/off
button on the back on the cigarette lighter plug. When the light is on, the LED on the plug's rocker switch will illuminate.
2. To turn off the warning light, remove the cigarette lighter plug from the vehicle's power socket or position the on/off
switch to off.
3. To change the light pattern, there are seven (7) different light patterns to choose from. Press the pattern selector switch
button on the back of the cigarette lighter plug and the light pattern will change. Each time the pattern switch is pressed
the light pattern will change.
Important! The warning light's cigarette lighter plug has a built-in fuse to protect the light and the vehicle. If the warning light
does not turn on when the plug is inserted into the vehicle power outlet, check the fuse. The fuse is located in the tip of the
plug's chrome push-in contact which is secured by the plastic nut. Unscrew the nut, and you will have access to the fuse. If
the fuse needs to be replaced use a 5-amp fuse. Follow the reverse procedure to re-assemble fuse back into power plug.
Permanent Mount
Important! When drilling into any vehicle surface, make sure the area is free from any electrical wires, fuel lines, vehicle
upholstery, etc. that could be damaged.
lumaleds.com
Installation and Operation Instructions
E1 Series LED Mini-Bar Light
Flash Patterns
• Alternating Side-to-Side
• Alternating Front-to-Back
• Rotating Clockwise
• Rotating Counter Clockwise
• Alternating Sided-to-Side All
• Random
• Steady On
• Off
