Summary of Contents for aDigitaLife HDEX1

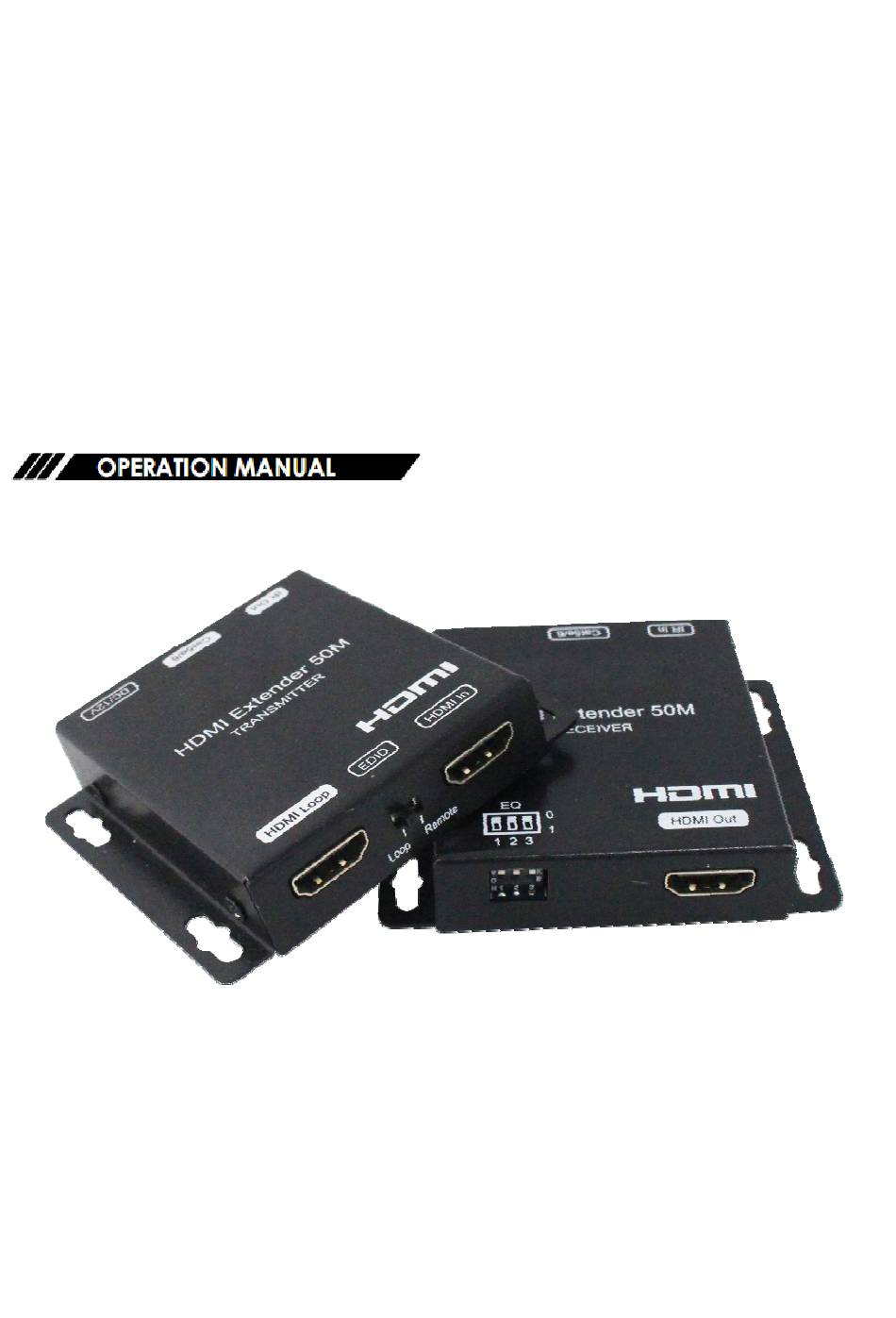

- Page 1 50m HDMI Extender over single Cat5e/6 cable with loop out Support 1080P60hz YUV4:4:4...
- Page 2 Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Notice The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied.
- Page 3 Operating Instructions SPECIFICATIONS Operating Temperature Range -5 to +40℃(+23 to +104℉) Operating Humidity Range 5 to 90%RH (No Condensation) HDMI Receptacle x 2 (1xHDMI input, 1xHDMI loop output) Connectors on Transmitter Power DC Receptacle x 1 IR Receptacle x 1(for IR TX ) HDMI Receptacle x 1 Connectors on Receiver IR Receptacle x 1(for RX cable)
- Page 4 Operating Instructions PANEL DESCRIPTIONS Transmitter Panel ① ② HDMI loop out port EDID Switch ③ ④ HDMI input port IR Out port ⑤ ⑥ Cat5e/6 output port DC 12V port Note :The transmitter of this product has the function of EDID copy, Dial to the left side means copy loop EDID, and dial to the right side means copy remote EDID.
- Page 5 Operating Instructions Connecting and operating 1. Connect 1 source such as a Blu-Ray Player, game console, STB, etc. to the HDMI input on the transmitter 2. Connect 1 display such as an HDTV or HD Projector to the Loop HDMI output on the transmitter.
- Page 6 Operating Instructions MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;...
- Page 7 Operating Instructions MAIL-IN SERVICE When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached. LIMITED WARRANTY LIMITS AND EXCLUSIONS 1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage.
