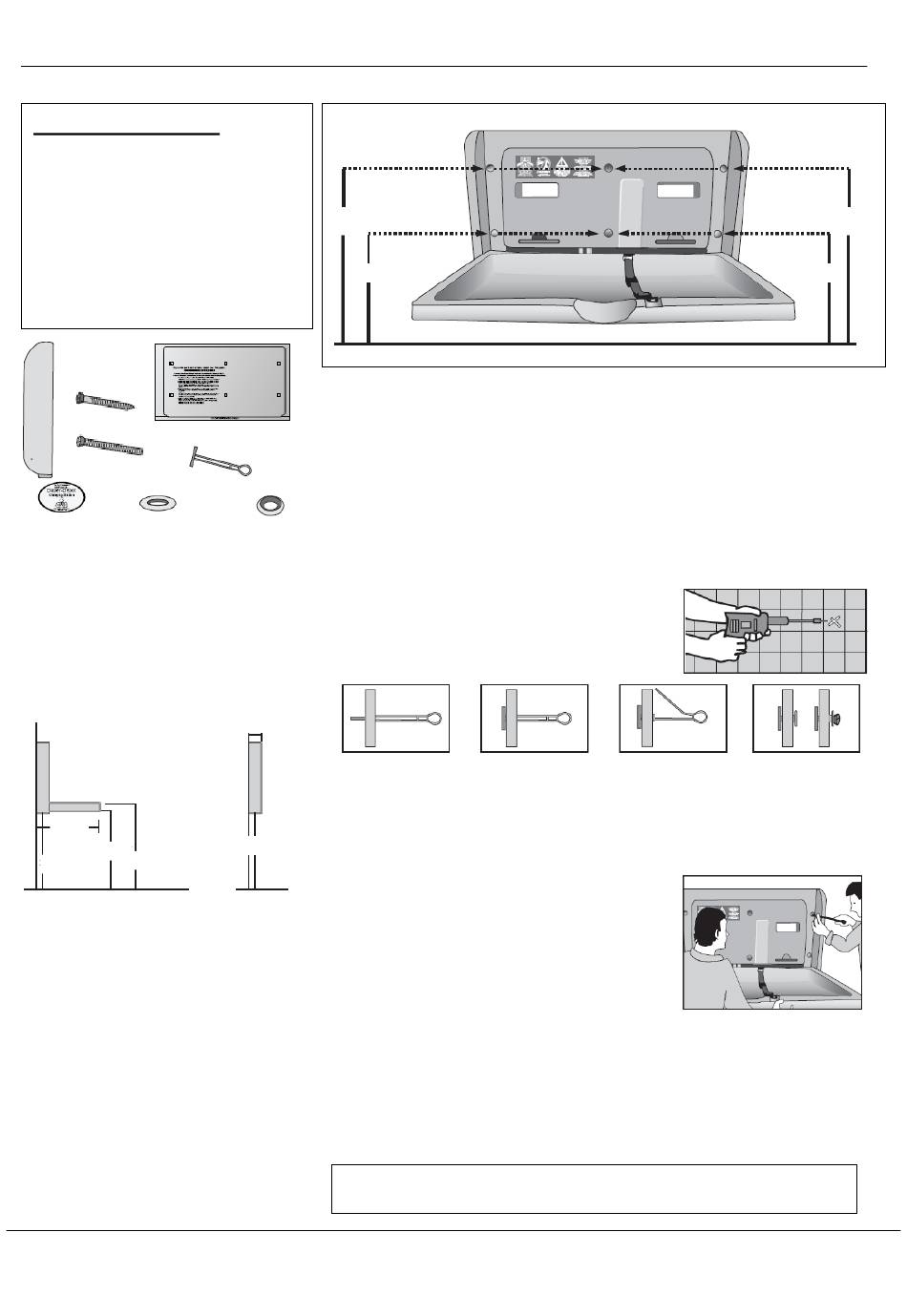

Diaper-Depot Horizontal Installation Instructions

DIAPER-DEPOT
Installation Instructions (IMPORTANT: Keep for future reference – Read Carefully)

What you will need:

• Measuring Tape
• Stud Finder
• Screwdriver
• 5.56mm Drill Bit(regular&masonry)
• 3.18mm Drill Bit(regular&masonry)
• 12.7mm Drill Bit(regular&masonry)
• Drill
• Pencil
1 Depot (side view)
6 Wood Screws
1 Mounting Template
6 Machine Bolts
1 Decal 6 Fender Washers
Determine which mounting hardware will
be used:
Set A – Wood Screws for mounting into
wood studs
Set B –Toggle Bolts for mounting into
metal studs or sheetrock/tile wall (a
clearance or 8.9cm is required behind the
wall for the toggle to expand).
Side View
Changing Arm
51.12cm
69.22cm
63.50cm
76.84cm
Open
Manufacturer strongly recommends
installation as shown. When installed at
63,5cm A.F.F., as depicted, along an
accessible route, the Diaper-Depot meets
the following requirements of the ADA
accessibility guidelines, when applicable:
4.4.1 Protruding objects (closed unit)
4.2.5 Forward reach
4.2.6 Side reach
4.23.3 and 4.23.7 fixtures
4.27.4 Hand operation
4.32.3 Knee clearances at counter
4.32.4 Height of counters
®
HORIZONTAL CHANGING STATION
103.5cm
80.43cm
1. Using the diagram above as a guide, mark the four mounting points on the
wall. Using 40.64cm stud walls, mark the top two holes 103.50cm above the floor
and the lower two holes 80.43cm above the floor. Measure the exact distance
between the holes you are using from the back of the depot,and transfer these
measurements onto the corresponding wall lines.
6 Toggles
2. A. For Wood Studs: Drill through the ceramic tile or surface finish at the
6 Finished Washers
marked hole locations with a 5.56mm masonry bit until you hit the stud, then
change to a 3.18mm regular bit to complete the hole through the stud.
B. For Metal Studs Or Underlying Surface of Concrete Block: Drill at the marked
hole locations with a 12.7mm masonry drill bit. You
must allow a minimum 8.9cm of inside wall space
for toggles to turn. Insert and tighten all four toggles.
10.16cm
A. Insert toggle in
hole drilled
3. Place a finishing washer first and then a fender washer over each screw.
63.50cm
A. For Wood Studs - Lift the depot in the open
position and align the wood screws into the upper
pre-drilled holes. Tighten each screw until the unit
Closed
is held firmly in place. Repeat installation of the
lower screws and tighten all screws until the unit
is held securely.
B. For Metal Studs Or Underlying Surface Of
Concrete Block - Lift the depot in the open
position and align mounting holes with pre-drilled
holes. Insert machine screws with washers into
pre-drilled holes. Tighten each bolt until the unit
is held securely in place.
4.Fill liner dispenser with liners. For replacement liners please
call +43 (0) 5285 63067.
For technical assistance please contact Schrama Handels GmbH
• phone: +43 (0) 5285 63067 • website: www.hygiene-shop.eu
Floor (not drawn to scale)
B. Pull ring and push
cap lightly against wall
Remove backing from decal and secure it to the outside
of the restroom door or other highly visible location.
C. Snap off strap D. Install unit using
screws and washer
supplied
103.5cm
80.43cm
