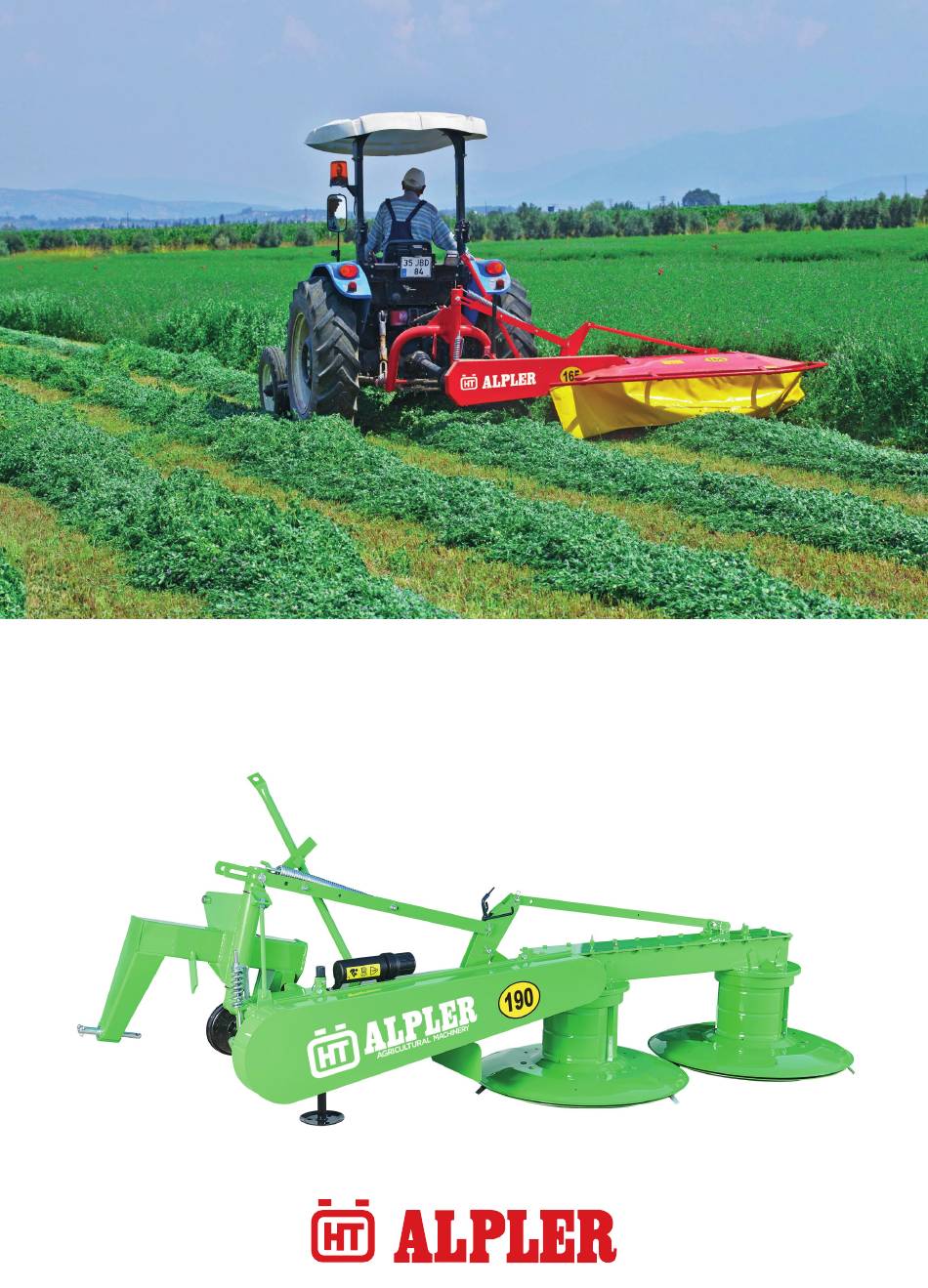

- Page 1 ROTARY DRUM MOWER USER GUIDE...
- Page 2 ATTENTION...
-
Page 3: Table Of Contents
INDEX 1. INTRODUCTION 2. SAFETY RULES 2.1. GENERAL SAFETY INFORMATION 2.2. SAFETY TRAINING 2.3. WORKING SAFETY 3. SETTINGS 6-10 3.1. INTRODUCING THE MACHINE 3.2. TRANSPORTING 3.3. INTRODUCTION 3.4. PREPARING THE MACHINE FOR WORK 9-12 4. MAINTENANCE AND REPAIR 13-14 4.1. MAINTENANCE PERIODS 5. - Page 4 Stay clear of mower knife area as long as tractor engine is running Shut off engine and remove key before Do not open or remove safety shields while the performing maintenance or repair work. engine is running w ww.alpler.uk ROTARY DRUM MOWER USER GUIDE...
-
Page 5: Introduction
Dear Farmer, Firstly, we congratulate you for your correct preference on the way to efficiency by selecting the brand “ALPLER”. As your agricultural partner, we offer you our product in which we combined high quality, low operational cost and effective after-sale service concept. -
Page 6: Safety Rules
This equipment is dangerous to children and persons unfamiliar with its operation. The operator should be a responsible adult familiar with the equipment and its operation. Do not allow persons to operate this unit until they have developed understanding of the safety precautions and of how it works. w ww.alpler.uk ROTARY DRUM MOWER USER GUIDE... -
Page 7: Safety Training
• Remember - Your best assurance against accidents is a careful and responsible operator. If there is any portion of this manual or function you do not understand, contact your local dealer or manufacturer. • If you have questions not answered in this manual or require additional copies or the manual is damaged, please contact your dealer or ALPLER company. 2.2. SAFETY TRAINING All machines have stickers glued on. -
Page 8: Settings
7. Knife holder 2. Cutter-bar (gear box) 8. Strecher spring 3. Three point hitch system 9. Upper disc 4. Belt drive 10. Knife 5. Drums 11. Proction plate 6. Support Leg 12. Curtain w ww.alpler.uk ROTARY DRUM MOWER USER GUIDE... -
Page 9: Transporting
Figure 1 - Dimentions of Rotary Drum Mower Alpler offers you the Rotary Drum Mower which is drived by the tractor tail spindle and connected to it with three point heatch system. It reaps, the feet plants, grass, meadow grass as well as wild plantsand heath borderind the roads. It achieves high capacity with low power consunption and provides propelland saving. -
Page 10: Introduction
Pay attention to be not under the machine while transporting Figure 2 - Transporting the machine by Forklift and Palette ATTENTION! Take care of the hooks and iron ropes of the crane and forklift to be safety enough. w ww.alpler.uk ROTARY DRUM MOWER USER GUIDE... -
Page 11: Preparing The Machine For Work
3. SETTINGS 3.4. PREPARING THE MACHINE FOR WORK Required Tractor Equipment; • Mower may only be driven by a tractor shaft with max. 540 rpm. • Three point connecting bars of the I or II category Connecting to the Tractor; Firstly connect the lower non adjustable arm then adjustable arm at the end connect upper connection arm. - Page 12 • Fasten the tractor bottom arm, so you can prevent the vibrations on the machine while it is working (3) (Figure 12). For a regular cutting, the cutting unit of the machine should not be higher or lower from the ground. w ww.alpler.uk ROTARY DRUM MOWER USER GUIDE...
- Page 13 3. SETTINGS ATTENTION! NEVER TOUCH THE MACHINE WITH HAND, FOOT WHILE IT IS WORKING Replacement of the protection curtain: • Untighten the screws for fastening the protection curtain. • Pull the curtain out of the noch. • Install new curtain and fasten it by screws. Protection of the Mower: Drum Mower is equipped with a safety fuse, which gets released when the mower hits an obstacle.
- Page 14 • Working with tractor in the tendency fields can give damage to the machine. But if you have to work in these tendency fields take care of working, do not turn the road bend fastly and sharply. For working in tendency fields you must be careful about if the tractor is decked out with the additional weights. w ww.alpler.uk ROTARY DRUM MOWER USER GUIDE...
-
Page 15: Maintenance And Repair
4. MAINTENANCE AND REPAIR ATTENTION! Maintenance, repairs, cleaning may only be executed when the drive and the engine are switched off and the ignition key is pulled out. Drum Mower is produced by full of quality. So this machine will not need so much maintenance and repair after working with the machine. Take care about the items that is written below for maintenance and repair: •... -
Page 16: Maintenance Periods
• Before garaging the machine (winter seaseon) an oil change and greasing of all lubricating points has to be done. Unprotected metal parts outside (joints e.t.c.) have to be protected against corrosion. The oil in the gear-box is 15-16 kg. Figure 19 Lubrication chart w ww.alpler.uk ROTARY DRUM MOWER USER GUIDE... -
Page 17: Warranty
Use original spare parts in ALPLER branded products. The customer will be responsible for the problems that occur due to not using original spare parts. The Rotary Drum Mower will not covered by the warranty when non-original parts are installed on the Rotary Drum Mower, additional equipment is attached on the Rotary Drum Mower or it is used after removing standard parts. - Page 18 Manufacturer: Alpler Agricultural Machinery Organize Sanayi Bölgesi, Umurlu - AYDIN / TURKEY UK Quarter: Units 2, Poplars Farm Forshaw Heath Road, Earlswood Solihull, B94 5JX / UNITED KINGDOM +44 121 740 0194 info@alpler.uk www.alpler.uk...
