Dinetik DT Series User Manual

Professional

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

DINETIK

DT series

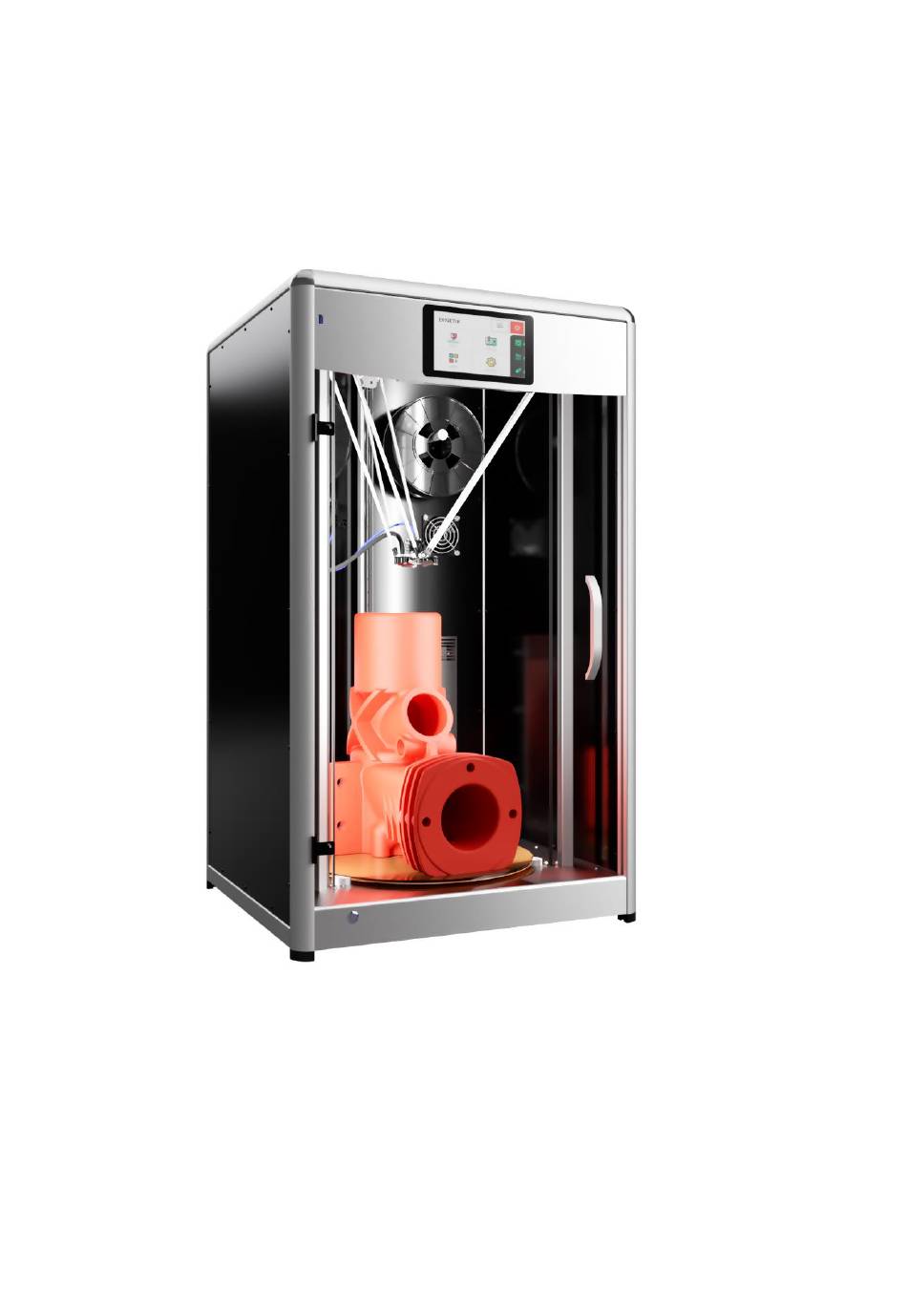

Professional 3D printer

User Manual

Table of Contents

Need help?

Do you have a question about the DT Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Dinetik DT Series

Page 2: Table Of Contents
Slice files online and send them to your 3D printer…....... Control your 3D printer from the astroprint mobile app (IOS & ANDROID) 27 Organize your designs with Project Folders on AstroPrint......Printer maintenance.................. Troubleshooting..................All rights reserved. © 2019 Dinetik.com...
Page 3: Safety
The printer should only be used in rooms with temperatures between 15 °C and 30 °C. Dinetik DT32 printer must not be exposed to high humidity, water, cold, excessive heat, or any other factor that could damage the electronics or mechanical parts. If the printer was transported, it should be left at room temperature for about 1 hour before switching it on, and switched on only then.
Page 4 The printer will emit a small amount of toxic fumes and smell when printing, especially with ABS plastic. Therefore, the premises where the printer is located, must be well ventilated. The odour, toxicity, and intensity of fumes will vary based on the type of material used. All rights reserved. © 2019 Dinetik.com...
Page 6: General Information
UI. ''Astroprint desktop'' can be used with Windows, Mac and Linux systems. Maintenance Dinetik 3D printers have been designed to last as long as possible without much maintenance. In order to ensure long and smooth printer operation, please use the tips provided in the ‘Printer maintenance’...
Page 7: First Startup
When the printer is ready, automatic calibration is required (Page: 14) 1. On the home screen press ''Utilities'' 2. Select ''Auto calibration'' and follow the on-screen instructions 7. Ready to print When calibration is completed, the printer is ready to print. All rights reserved. © 2019 Dinetik.com...
Page 8: Web Ui (User Interface)
AstroBox Gateway and it's useful when you want to reach your In order to access your AstroBox Web UI follow these steps: 1. Tap on Settings 2. Tap on Network 3. Tap on Internet All rights reserved. © 2019 Dinetik.com...
Page 9 4. Pay attention to the IP address and the network you're connected to. 5. Open in a browser http://<ip_address> by using a computer, tablet, or phone connected to the same network. All rights reserved. © 2019 Dinetik.com...
Page 10: Astroprint Desktop
Once you select your Printer, Material, and Quality in the bottom horizontal bar, the GCODE viewer button will become visible on the right-hand side next to the PRINT button It will be labeled PREVIEW. (not GCODE viewer) All rights reserved. © 2019 Dinetik.com...
Page 12: First Print
7. When the printer is ready to print, select the model you want to print and write Gcode using the ''Astroprint desktop'' Note: If you are using other slicer program you can save g code to usb drive and print from it or via Web UI. All rights reserved. © 2019 Dinetik.com...
Page 13: Bed Coating
Bed coating Dinetik DT32 printer is equipped with a glass print bed. Although you can print directly to the glass surface, some materials work better on a different coating. Glass Glass is the basic pad in the printer. It’s straight and level, even when heated. The Glass...
Page 14: Calibrating
Calibrating Dinetik DT32 don't have any screws for bed leveling, therefore, the print bed always lays evenly and firmly. For this reason calibration is sufficient. DT32 model have fully automated auto calibration which you can find by clicking on 'Utilities' and then 'Auto calibration'...
Page 15: Chamber Heaters
Chamber heaters/ventilation The Dinetik DT32 printer has integrated chamber heaters. The heaters help to raise the desired temperature of the printing chamber and keep it stable throughout printing (Max 60C) The chamber has two heating elements that are mounted on the rear wall...
Page 16: Astrobox Touch
3 - Wifi / Ethernet connection menu (green - online, - offline) 4 - Printer connection menus and status (green - online, - offline) 5 - Your astroprint account login status (green - connected, - not connected) All rights reserved. © 2019 Dinetik.com...
Page 17 Cloud - storage for files uploaded from your AstroPrint account Internal - internal memory of the printer. Stores files copied from the usb drive External - Here you can find your files which are in usb drive All rights reserved. © 2019 Dinetik.com...
Page 18 Nozzle and Manual chamber adjustment of temperature filament flow control during printing Manual fan control, layer cooling, and chamber ventilation Manual extruder control. Filament drive in / drive out. Need to pre-heat the nozzle. All rights reserved. © 2019 Dinetik.com...
Page 19: Upload & Import Your 3D Designs: Stls, Gcodes, & X3G Files
1. GO TO YOUR DESIGN LIBRARY Login onto AstroPrint.com, and you will be taken to your AstroCenter Dashboard. Once there, click on the Design Library App. This is where all of your cloud files 'live.' All rights reserved. © 2019 Dinetik.com...
Page 20 'Print Files' Column. Alternatively, you can Drag and Drop your file anywhere on the screen and AstroPrint will start the upload process automatically. Follow the progress of the upload in the Upload Progress Bar. All rights reserved. © 2019 Dinetik.com...
Page 21 Note: If you are uploading GCODE or X3G files, there are few special things you can do with those files. Check out our [GCODE upload article] for more info. This helps people who use 3rd party slicers, like Simplify3D, but also want to track analytics of their slices/prints. All rights reserved. © 2019 Dinetik.com...
Page 23: Slice Files Online And Send Them To Your 3D Printer
Printers, you'll need to make sure you enter all the proper settings for your printer! That's important! B. Material - Select your Material Profile. If you haven't configured the proper Material Profile, click "+add material" and put in the proper settings. All rights reserved. © 2019 Dinetik.com...
Page 24 E. Advanced Slicer Settings - Advanced users can use this screen to adjust any/all slicer settings. You can even save those settings as a new Custom Settings profile, to use again later. All rights reserved. © 2019 Dinetik.com...
Page 25 If everything looks fine, you have two options: A) Print Now B) Add to Queue - This option adds the file to one of your Printing Queues. Check out our [Printing Queue Guide] for more info on how Printing Queues work. All rights reserved. © 2019 Dinetik.com...
Page 26 5. Select the printer to run the print job The file will be sent to the printer and it will start the print job, wirelessly. How did your first print go? Let us know if you had any trouble getting started! All rights reserved. © 2019 Dinetik.com...
Page 27: Control Your 3D Printer From The Astroprint Mobile App (Ios & Android)
For example, with AstroPrint Mobile you’ll be able to receive push notifications when your print finishes You will also receive a notification on your e-mail account if you are logged in with your Astroprint account All rights reserved. © 2019 Dinetik.com...
Page 28 Total hours of printing you’ve done over time The amount of filament you have used over time We'll be expanding the analytics section in the future. In addition, we're developing specialized analytics dashboards for Business and Enterprise accounts. All rights reserved. © 2019 Dinetik.com...
Page 29 Side note: At the moment, if you have a Thingiverse account, you won’t be able to sign in and access your own design files. While it is currently not on our development roadmap, we will consider adding this feature in the future if there is enough demand. All rights reserved. © 2019 Dinetik.com...
Page 30: Organize Your Designs With Project Folders On Astroprint
Note: Keep in mind that the New Project button only shows up when you have 0 projects. After you have created a Project, you’ll have to use the smaller button on the top right- hand corner to create additional Projects. All rights reserved. © 2019 Dinetik.com...
Page 31 You also have the option of moving existing files from the File Manager to an existing Project Folder. This should be a convenient way to move specific designs into your Project Folder for better organization. All rights reserved. © 2019 Dinetik.com...
Page 32 Manager. Deleting Projects Warning: If you remove/delete a Project Folder containing design files, you will lose everything. Just in case you accidentally pressed “Delete” on a Project folder, you’ll be asked for confirmation, nonetheless. All rights reserved. © 2019 Dinetik.com...
Page 33: Printer Maintenance
The printing chamber must be kept clean. It must be free of dust and plastic residue. Be careful not to get any plastic residue in the drive belt cavities at the bottom of the chamber. If plastic has entered the cavities, clean them before using the printer. All rights reserved. © 2019 Dinetik.com...
Page 34 To clean the extruder Remove the filament from the printer Using a hard brush, thoroughly clean the red labelled gear After cleaning one side, turn the adjacent black gear and clean the remaining area All rights reserved. © 2019 Dinetik.com...
Page 35: Troubleshooting
Troubleshooting Technical support is available via e-mail support@dinetik.com Print not sticking to bed Turn off part cooling fans for first layer Increase print bed temperature (The temperature is specified by the plastic manufacturer) Print the first layer more slowly (15-30mm/s)
Page 36 3. Press and hold the metal ring to release the connector. 4. Pull out the tube without releasing the metal ring Remember that the nozzle is hot and do not use excessive force to avoid damaging the mechanical parts All rights reserved. © 2019 Dinetik.com...
