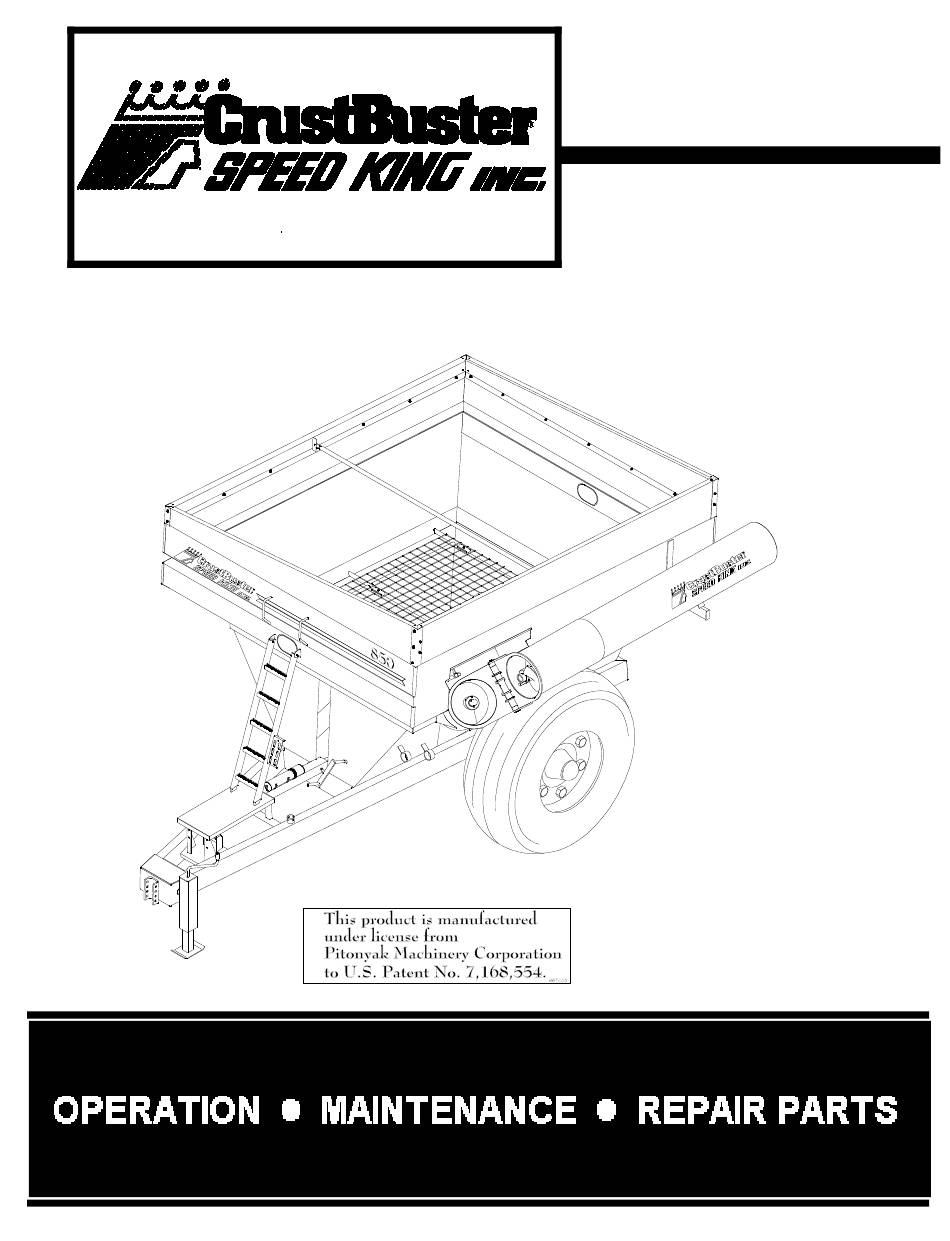

- Page 1 Grain Cart 850 Bu OWNER'S MANUAL #607812 (2007.5)
-
Page 2: Table Of Contents
CrustBuster/Speed King,Inc. an opportunity to inspect. Unless otherwise expressly agreed to by CrustBuster/Speed King,Inc., the consumer shall bear the expense of installation. CrustBuster/Speed King, Inc. will not be liable for consequential damages where the loss is commercial, including but not limited to loss of profit, delays or expenses. -
Page 3: Dealer Check List
Dealer Preparation Check List Complete the items below before delivering the cart. Gearbox filled with oil All fittings lubricated All shields in place and in good condition All fasteners torqued to specifications on chart Tires inflated to proper pressure according to chart Remove clevis attachment from hitch before field operation Check jack stand for proper stability All decals in place and readable... -
Page 4: Introduction
Please take the time to read this manual, especially the section on safety. If after reading the manual you have any questions that your dealer cannot answer, please feel free to contact: CrustBuster/Speed King, Inc. P.O. Box 1438 Dodge City, Kansas 67801... - Page 5 Move tractor draw bar to shortest position. Make sure the PTO shaft can telescope both inward and outward at least 3". Hitch cart to your tractor. The hitch used on the 850 cart requires a clevis type drawbar. If your tractor is not equipped with such, please contact your dealer. DO NOT USE clevis attachment for field use or when cart is loaded.
- Page 6 Operator’s Responsibility CAUTION: Operator’s Responsibility: Most accidents are caused because of neglect or carelessness. Avoid needless accidents by following all of the safety precautions listed below. The user is responsible for inspecting the cart before each use and for having necessary repairs done to prevent further damage to the cart or possible safety hazards.
-
Page 7: Safety
Safety Decals REMEMBER: If Safety signs have been damaged, removed, become illegible or parts replaced without decals, new decals must be applied. New decals are available from your authorized distributor or factory. Individual decals shown below. #02741700 #604512 #607291 #05327200 #607986 #05328000 #05374400... - Page 8 Safety Decals #608018 #608026 Operating Instructions NEVER allow anyone to ride or play on the grain cart. NEVER enter the grain cart with the PTO or hydraulic motor running or when it contains grain. Make sure all guards are in place. Daily grease auger hinge pin, u-joints, and over running coupler.
-
Page 9: Electrical
Black - Work Lights Yellow - Left Tail Light Green - Right Tail Light Brown - Amber Flashing Dimensions Model # Approx. Spindle Size Empty Tongue Capacity Weight Weight 850 Bu 8720 Specifications and design features are subject to change without notice. -
Page 10: Auger
Auger System General The 850 grain cart consists of a 17" diameter RH auger flighting mounted on a 5" tube. The auger housing is an 18" diameter tube. All carts employ a hydraulic folding auger. Therefore, each cart has a bottom auger and a top auger. The auger is driven by either a PTO or hydraulic motor and can easily be interchanged. - Page 11 Auger System Bottom Auger The bottom auger is replaced by sliding the auger downward through the housing tube. The auger may need to be turned to align the bottom drive pin with the matching holes in bottom drive plate. Make sure the bottom drive pin is completely engaged in bottom drive plate. Replace the hanger bearing.
- Page 12 Auger System Hanger Bearing The hanger bearing in your cart is a 2½" bronze bearing and should last many years. Grease periodically. Item Part No. Description 967513 Hanger Bearing Holder 403527 Bronze Bushing 2 33/64" x 3 1/4" x 1 3/4" 227520 Back Up Plate 01147800 HHCS ½"...
- Page 13 Auger System Top Auger The top auger is replaced by sliding the auger upward through the housing tube. Before doing so make sure you replace the single auger spring by sliding it over the top shaft followed by the square spacer washer. The top shaft of the auger will slide through the top bearing. Replace the top retainer washer and top retainer bolt.
-
Page 14: Drive System
PTO and (optional) Hydraulic Drive Systems The drive system on the 850 consists of a gearbox which is mounted on the bottom end of the auger and connected to the back drive shaft. The back drive shaft is then connected to the 1 3/8"... - Page 15 The PTO shaft should be greased daily when in use. Tractor PTO Driveshaft The PTO telescoping drive shaft used on the 850 cart has been selected for the use on this application by the Walterscheid engineers. It has a built-in friction clutch with over-running feature to virtually eliminate damage to the drive components by excessive torque or inertial stress from the 18"...
- Page 16 Drive System #608653 PTO Shaft - Front Item Part No. Description Item Part No. Description 608984 Lemon Tube Inner 609024 Yoke 1 3/8-6 Spline 608992 Lemon Tube Outer 609016 Cross Kit 609008 Yoke 1 3/4-20 Spline 609040 Lemon Yoke 609016 Cross Kit 609057 Roll Pin...
- Page 17 Drive System Hydraulic Drive Minimum tractor requirements for hydraulic drive: 22 gpm @ 2500 psi. Item Part No. Description Item Part No. Description 465385 Male Coupler 3/4" FOR 227942 Motor Mount 472951 Hose ½" x 84" 331926 HHCS ½" x 2" 3/4 MOR x 1 1/16 JICF Sw 968180 Sprocket #80 12 Tooth...
- Page 18 Drive System Gearbox The gearbox used on all carts is a heavy duty box and gears that will rarely need repairing. However, if repairs are required, the gear case can easily be unbolted for replacing the bearings, seals, gears, and shafts. Often, the gearbox shaft is stuck in the spline bushing of the bottom drive plate.
-
Page 19: Hopper
Hopper and Components General The hopper on the 850 cart is constructed of sheet metal. All carts are equipped with a grain flow control door (also referred to as a slide door) mounted on the bottom of the hopper. This door and the hydraulics required to operate it are considered part of the hopper assembly. -
Page 20: Frame And Axle
Your tractor must have a clevis type draw bar. The hitch on the 850 cart is a ring type hitch similar to those used on implements in Europe. It is adjustable up and down to allow for different draw bar heights. It also is adjustable for 1½" or 2"... - Page 21 26 psi. KEEP LUG NUTS TIGHT! Hubs and Spindles The 850 cart uses a 10 bolt hub mounted on a 4½" diameter spindle. Be sure to keep spindle nut tight and repack bearings with grease each season. #873588 - Axle & Hub Assembly Item Part No.
-
Page 22: Hydraulics
Hydraulic Schematic Auger Fold Item Qty Part No. Description 472423 Cylinder 3 x 18 1 1/4" Rod 472456 Adapter 90D 7/16 JICM x 3/4 MOR 472480 Adapter Straight 7/16 JICF Sw x 1/4 MP 472431 Hydraulic Flow Control Valve 472498 Adapter Straight 7/16 JICM x 1/4 MP 472548 Hose 1/4"... - Page 23 Hydraulic Cylinders 472415 472423 2½" x 30" 3" x 18" Item Part No. Part No. Description 461483 461483 Clevis 460824 472704 472720 469726 Head 472746 460964 Piston 472753 472712 Tube 472738 469718 Base Tie Rod 460451 460451 Clevis Pin 460329 460329 Wiper 460923...
-
Page 24: Repair Parts
Repair Parts Item Part No. Description Item Part No. Description 531038 Tire & Rim LH 967471 Ladder 531046 Tire & Rim RH 607770 Extension Front 531004 Tire Only 30.5L x 32 12 Ply 967562 Extension Side Right 531020 Rim Only 27 x 32 10 Bolt 607754 Extension Rear 531053... -
Page 25: Engineering Specifications
Engineering Specifications Standard Torque Data for Nuts and Bolts Pound/Feet Bolt Diameter Grade 2 Grade 5 Grade 8 Inches Min. Max. Min. Max. Min. Max. ½ 1090 1 1/4 1200 1350 1940 2180 Tire Inflation Table Tire Size Pressure psi 30.5 x 32 Standard Torque Data for Hydraulic Fittings Hydraulic Fitting Size... - Page 26 P.O. Box 1438 Dodge City, Kansas 67801 (620) 227-7106...
