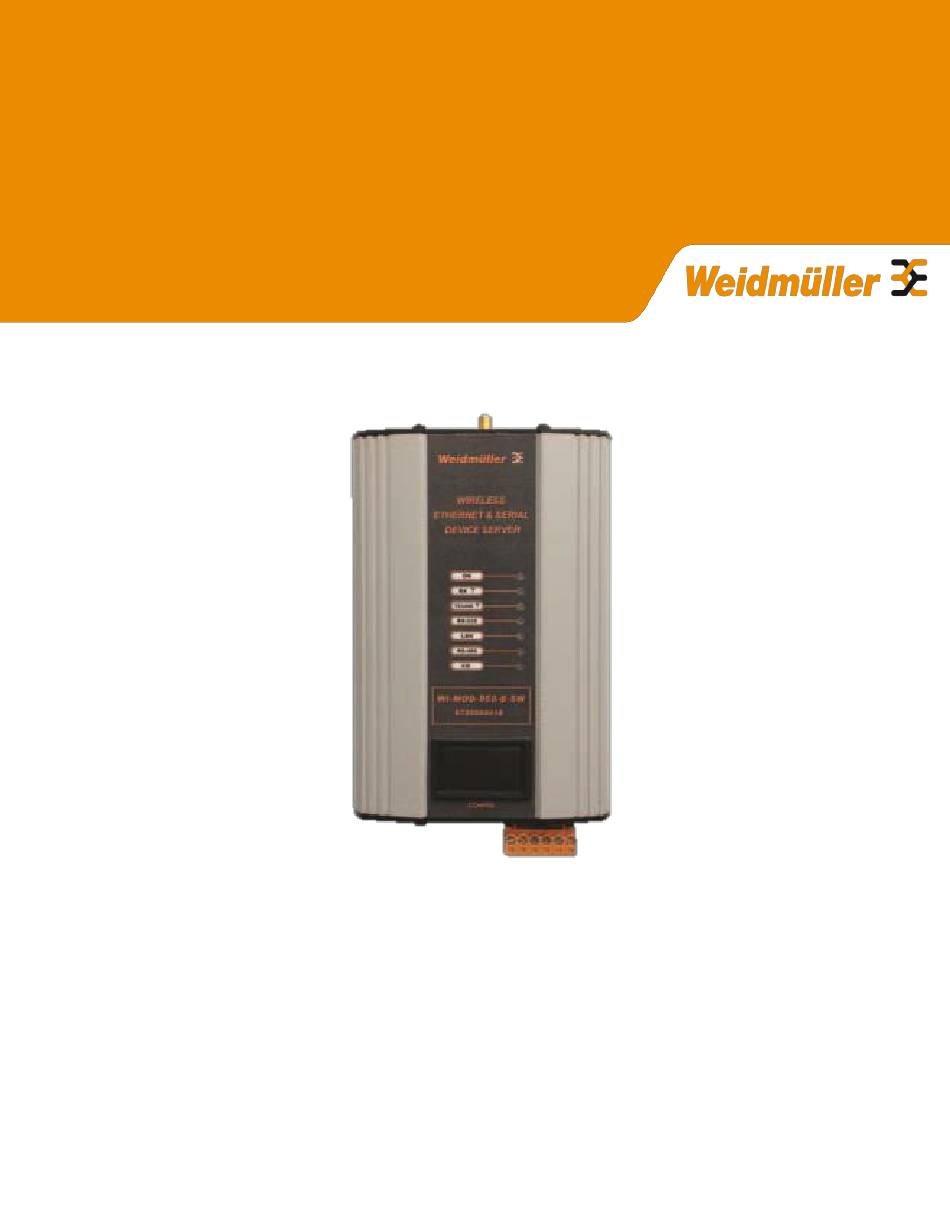

Weidmuller Wireless Ethernet Modem and Device Server User Manual
Industrial Wireless Ethernet Modem
and Device Server User Manual
WI-MOD-400-E & WI-MOD-950-E
Version 1.1
July 2015
Read and Retain for Future Reference
1
Rev Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WI-MOD-400-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weidmuller WI-MOD-400-E

Summary of Contents for Weidmuller WI-MOD-400-E

  • Page 1 Weidmuller Wireless Ethernet Modem and Device Server User Manual Industrial Wireless Ethernet Modem and Device Server User Manual WI-MOD-400-E & WI-MOD-950-E Version 1.1 July 2015 Read and Retain for Future Reference Rev Version 1.1...

  • Page 2: Fcc Notice

    ATTENTION! Incorrect termination of the supply wires may cause internal damage and will void the warranty. To ensure that your WI-MOD-xxx-E-5W enjoys a long life, refer to this user manual to verify that all connections are terminated correctly before turning on power for the first time CAUTION To comply with FCC RF Exposure requirements in section 1.1310 of the FCC rules, antennas used with this device must be installed to provide a separation distance of at least 20 cm from all persons to satisfy RF exposure...

  • Page 3: Gnu Free Documentation License

    The Free Software is copyrighted by Free Software Foundation, Inc., and is licensed “as is” without warranty of any kind. Users are free to contact WEIDMULLER for instructions on how to obtain the source code used in the WI-MOD-xxx-E-5W.

  • Page 4: Release Notice

    Designers must include this Important Notice in operating procedures and system manuals. These products should not be used in non-industrial applications, or life-support systems, without consulting WEIDMULLER first. • A radio license is not required in some countries, provided the module is installed using the aerial and equipment configuration described in the WI-MOD-xxx-E-5W Installation Guide.

  • Page 5: Chapter 1 - Introduction

    Weidmuller Wireless Ethernet Modem and Device Server User Manual Chapter 1 - Introduction The WI-MOD-xxx-E-5W Industrial 802.11-based Wireless Ethernet module provides wireless connections between Ethernet devices and/or Ethernet wired networks (LANs). The WI-MOD-xxx-E-5W is a fixed frequency wireless transceiver that operates within the 360 MHz to 512 MHz frequency spectrum in one of eight 20-MHz frequency bands, depending on the model purchased.
  • Page 6 Figure 2 AP and Client As the example in Figure 3 shows, an access point can connect to multiple clients. In this case, the access point should be the central unit. Figure 3 Multiple Clients An access point could be used as a repeater unit to connect two WI-MOD-xxx-E-5W clients that do not have direct reliable radio paths.

  • Page 7: Bridge Vs. Router

    Weidmuller Wireless Ethernet Modem and Device Server User Manual Bridge vs. Router Each WI-MOD-xxx-E-5W, when configured as a bridge, uses a single IP address for Ethernet and Wireless connections. A bridge connects devices within the same Ethernet network, for example, extending an existing Ethernet LAN.

  • Page 8: Getting Started

    If more than two routers are required within the same radio network, the routing rules may need to be configured (for details, see “4.9 IP Routing” on page 48). There is no limit to the number of bridges you can have in the same network, although a maximum of 128 client units can be linked to any one access point.

  • Page 9: Chapter 2 - Installation

    Weidmuller Wireless Ethernet Modem and Device Server User Manual Chapter 2 - INSTALLATION 2.1 General The WI-MOD-xxx-E-5W modules are housed in a rugged aluminum case suitable for DIN rail mounting. The terminals will accept wires up to 2.5 mm (12 gauge) in size. Before installing a new system, it is preferable to bench test the complete system.

  • Page 10: Dipole And Collinear Antennas

    • Antennas must be kept a suitable distance from each other. Check the receive signal strength on the Connectivity page of the module and ensure that the level is not greater than –45 dB. For more information, see “5.2 Connectivity” on page 70. Antennas Antennas can be either connected directly to the module connectors or connected via 50-ohm coaxial cable (such as RG58 Cellfoil or RG213) terminated with a male SMA coaxial connector.

  • Page 11: Directional Antennas

    (see Figure 11). Where antennas are mounted on elevated masts, the masts should be effectively grounded to avoid lightning surges. For high lightning risk areas, approved WEIDMULLER surge suppression devices, such as the CSD- Rev Version 1.1...

  • Page 12: Power Supply

    SMA-2500 or CSD-N-6000, should be fitted between the module and the antenna. If using non-WEIDMULLER surge suppression devices, the devices must have a “turn on” voltage of less than 90V. If the antenna is not already shielded from lightning strike by an adjacent grounded structure, a lightning rod may be installed above the antenna to provide shielding.

  • Page 13: Serial Connections

    Weidmuller Wireless Ethernet Modem and Device Server User Manual 2.4 Serial Connections RS-232 Serial Port The RS-232 serial port on the WI-MOD-xxx-E-5W is a nine pin DB-9 female connector that provides connection for host devices as well as providing a connection point for diagnostics, field testing, and factory testing.

  • Page 14: Fail-Safe Biasing

    Figure 14 RS-485 An RS-485 network should be wired as indicated in Figure 15 and terminated at each end of the network with a 120-ohm resistor. An on-board terminating resistor is provided in the modem and can be engaged by operating the single DIP switch on the end plate next to the RS-485 terminals.

  • Page 15: Usb Ports

    Weidmuller Wireless Ethernet Modem and Device Server User Manual USB Ports Module has a two USB ports housed under the plastic cover on the front of the module. • USB A Host Port—Used for performing a full upgrade of the module firmware. Patch files are not loaded via the USB, but rather through the module’s Web Server.

  • Page 16: Digital Output

    Digital Output The I/O channel can also be used as a discrete output. The digital output uses an field-effect transistor (FET) rated at 30 Vdc 500 mA, and can be used to switch a load, such as a relay coil or contactor. The output can be activated by manually writing a value of “1”...

  • Page 17: Chapter 3 - Operation

    Weidmuller Wireless Ethernet Modem and Device Server User Manual Chapter 3 - OPERATION This chapter describes the normal operation of the WI-MOD-xxx-E-5W Ethernet modem. The modem allows transparent communications between different Ethernet devices, and also allows some connectivity with RS-232 and RS-485 serial devices.

  • Page 18: Roaming Clients

    Roaming Clients Clients can roam within a system, but there are some limitations due to link timeouts. If the client is connected to an access point and the link fails due to a hardware problem or the signal level falls below the minimum threshold (–99 dBm, 25 kHz channel @19200 baud, or –100 dBm @ 9600 baud), the client will scan for beacon signals and connect to the access point with the strongest RSSI level (if more than one access points can be heard and provided the SSID and any encryption methods/keys are the same).

  • Page 19: Radio Operating Parameters

    Weidmuller Wireless Ethernet Modem and Device Server User Manual • Device mode: Bridge • IP address: 192.168.0.1XX, where “XX” is the last two digits of the serial number (the default IP address is shown on the printed label on the back of the module) •...

  • Page 20: Chapter 4 - Configuration

    Chapter 4 - CONFIGURATION The WI-MOD-xxx-E-5W provides an embedded Web Server that resides in the module’s memory. The Web Server allows you to perform configuration and diagnostics functions on the WI-MOD-xxx-E-5W using the Microsoft ® Internet Explorer ® or Google Chrome™ Web browser, which can be obtained from their websites. Using other browsers is not advised, since they may not be fully compatible with the WI-MOD-xxx-E-5W Web Server webpages.
  • Page 21 Weidmuller Wireless Ethernet Modem and Device Server User Manual 5. Select Internet Protocol (TCP/IP) and click Properties. Figure 22 Local Area Connection 6. On the General tab, enter IP address 192.168.0.1 and subnet mask 255.255.255.0, and then click OK. Figure 23 TCP/IP Properties 7.
  • Page 22 8. If the PC uses a proxy server, ensure that Internet Explorer will bypass the proxy server for local addresses. This option may be modified by opening Tools ->Internet Options ->Connections Tab -> LAN Settings-> Proxy Server -> bypass proxy for local addresses.

  • Page 23: First Time Configuration

    Weidmuller Wireless Ethernet Modem and Device Server User Manual 9. Type “http://” followed by the default IP address of the module, and then press Enter. The default IP address for the WI-MOD-xxx-E-5W 192.168.0.1XX where XX is the last two digits of the serial number.

  • Page 24: Quick Start

    NOTE You cannot navigate away from the Quick Start page until the operating parameters have been set. 3. After specifying the parameters on the Quick Start page, set the RUN/SETUP switch on the module back to RUN and click Save Changes and Reset to apply the settings. The home page appears, as shown in Figure 26.
  • Page 25 Weidmuller Wireless Ethernet Modem and Device Server User Manual Frequency Step Size The frequency step size is the spacing between frequencies that you can select when configuring the TX and RX frequencies. The steps sizes available are 5 kHz or 6.25 kHz.

  • Page 26: Full Configuration

    IMPORTANT If the module is in SETUP mode, remember to set the RUN/SETUP switch back to RUN before clicking Save Changes and Reset to restore normal operation. Figure 26 Home Page 4.3 Full Configuration The full configuration and diagnostics menu (see Figure 27) is displayed by clicking Full Configuration on the home page that appears when you log onto the module.

  • Page 27: Configuration Tips

    Weidmuller Wireless Ethernet Modem and Device Server User Manual Configuration Tips A system of WI-MOD-xxx-E-5W modules must have at least one access point configured as a master with one or more clients. All WI-MOD-xxx-E-5W modules should be given the same system address (ESSID) and radio encryption settings.
  • Page 28 Operating Mode Allows you to select the operating mode for the module: • Access Point—Configures the module to function as an access point • Client—Configures the module to function as a client. This is the default setting. System Address A WI-MOD-xxx-E-5W wireless network is comprised of modules that have the same (ESSID) system address.

  • Page 29: Device Mode

    no gateway on the LAN, set the default gateway address to the same address as the modules IP Address as configured above. Save Changes Save changes to non-volatile memory. The module will need to be restarted before the changes take effect. Save Changes And Reset Save settings to non-volatile memory, and reboot the WI-MOD-xxx-E-5W module.

  • Page 30: Dhcp Client Configuration

    Figure 29 Spanning Tree Protocol The Spanning Tree Protocol implemented is IEEE 802.1d compatible. The algorithm forms a loop-free network by blocking traffic between redundant links in the network. These blocked links are placed in a standby condition, and may be automatically enabled to repair the network if another link is lost. The Spanning Tree algorithm maintains a single path between all nodes in a network, by forming a tree-like structure.

  • Page 31: Wpa2 Encryption

    Figure 30 WEP Configuration WEP Key Enter the WEP encryption keys that will be used to encrypt radio data to protect data from unwanted eavesdroppers when WEP encryption is selected. This key should be the same for all WI-MOD-xxx-E-5W modules in the same system. The WEP key must be entered as pairs of hexadecimal digits, separated by colons.

  • Page 32: Radio Configuration

    WPA Passphrase Enter a passphrase to be used for WPA encryption. The passphrase must be between 8 and 63 characters, and the passphrase must be the same for all WI-MOD-xxx-E- 5W modules in the same system. For optimal security, consider using a passphrase consisting of a combination of letters and numbers (not just a simple word or phrase), as well as upper and lower case.
  • Page 33 Reducing the beacon interval will increase the amount of radio messages in the system, which could compromise normal communications. Do not change this setting unless advised by a WEIDMULLER Systems Engineer. Fragmentation (Client Stations only.) The maximum transmission unit (MTU) of data over the radio. If...

  • Page 34: Data Compression

    Modbus RTU slave devices are connected directly to the serial port. Modbus mappings will need to be configured in the table provided. For details, see “Modbus RTU Master.” • Expansion I/O—This type should be selected when WEIDMULLER Serial Expansion modules (WI- EX-IO-XX) are connected to the modem. For details, see “Expansion I/O.”...

  • Page 35: Modbus Rtu Master

    Modbus RTU Master To configure a serial port as a Modbus RTU Master, click Serial on the menu and select Modbus RTU Master from the Port Type drop-down list (see Figure 34). Configure the parameters described below. Figure 34 Serial Configuration - Modbus RTU Master Port Type Select Modbus RTU Master from the drop down list.
  • Page 36 Modbus Master Click Add Entry and specify the following mapping parameters: Mapping Table • Local Register—Enter the starting onboard I/O register number that the specified Modbus Master transaction will transfer I/O to/from, depending on whether it is a read or a write mapping. •...
  • Page 37 Expansion I/O To configure a serial port for an expansion I/O device, click Serial on the menu and select Expansion I/O from the Port Type drop-down list (see Figure 35). Configure the parameters described below. Figure 35 Serial Configuration - Expansion I/O Port Type Select Expansion I/O from the drop down list.

  • Page 38: Modbus Rtu Slave

    Modbus RTU Slave To configure a serial port as a Modbus RTU slave, click Serial on the menu, and then select Modbus RTU Slave from the Port Type drop-down list (see Figure 36). Configure the parameters described below. Figure 36 Serial Configuration - Modbus RTU Slave Port Type Select Modbus RTU Slave from the drop down list.
  • Page 39 Figure 37 Serial Configuration - Serial Gateway - Server Mode Figure 38 Serial Configuration - Serial Gateway - Client Mode Port Type Select Serial Gateway from the drop down list. Data Rate Select the data rate to match that of the serial device that is connected and communicating via the port.
  • Page 40 Flow Control Flow control is used by some serial devices to regulate the flow of data by turning on/ off flags that are used to tell the connected serial devices to start or stop transmitting data. The RS-232 supports CTC/RTS hardware flow control. •...
  • Page 41 To configure a serial port to allow Modbus TCP to Modbus RTU conversion, click Serial on the menu and select Modbus TCP/RTU Converter from the Port Type drop-down list (see Figure 40). Configure the parameters described below. Figure 40 Serial Configuration - Modbus TCP/RTU Converter Port Type Select Modbus TCP/RTU Converter from the drop down list.
  • Page 42 Modbus RTU Mappings Example The system in Figure 41 shows that Unit B is a Modbus RTU master that is configured to poll the RTU slave device at Unit A via the serial interface and read the status of eight onboard I/O registers, which will then be reflected to eight local I/O registers at Unit B.
  • Page 43 NOTE Care should be taken to ensure that the device ID (Modbus address) of the remote serial device is different from the device ID of the onboard Modbus TCP server (if its enabled, the TCP server only needs to be enabled if the I/O registers are to be read from another external TCP client). Figure 43 RS-232 Modbus Master Mappings 4.8 Repeaters Wireless networks can be extended by allowing access points to behave as repeaters and forward traffic to other...

  • Page 44: Extending Range Using Wds

    To configure an access point as a repeater, click Repeaters on the menu to display the WDS Configuration page (Figure 45). Figure 45 Repeaters Configuration Add Entry Add an entry to the WDS Connections table. This adds a virtual station to the device. Delete Entry Delete the currently selected entry in the WDS Connections table.
  • Page 45 Figure 46 Extending Range The WDS configuration is accessed by clicking Repeaters from the menu. Configuration for Site A is shown in Figure 47. Site A is configured with a virtual client that will connect to the access point at Site B using the SSID “REP1SSID”...
  • Page 46 Figure 48 Roaming The configuration for Site B is shown below in Figure 49. The WDS is configured with a virtual access point for the virtual clients configured at Sites A and C. For simplicity, the encryption method and key are configured the same as the main network.
  • Page 47 In some cases, it is not practical to have just one default gateway. For example, this is true in routed wireless networks with more than two WI-MOD-xxx-E-5W routers, and in some cases when WDS router interfaces are used. If more than one “next-hop router” is required, the WI-MOD-xxx-E-5W allows for up to 100 routing rules to be configured.
  • Page 48 Devices on LAN B and LAN C that needs to send messages back to LAN A will need to have their gateway addresses directed to the WI-MOD-xxx-E-5W on their respected networks. For example, a LAN B device needs to send data back to LAN A. The gateway address will need to be configured as 169.254.109.40 as this is the IP address of the wired side of the LAN B WI-MOD-xxx-E-5W .

  • Page 49: Filter Example

    If the MAC Address filter list is a whitelist, the message is accepted. If the MAC Address filter list is a blacklist, the message is dropped. • The MAC Address filter checks the source address of the message only. • The IP Address filter checks both the source address and the destination address of the message. If either address match, then the rule is activated.

  • Page 50: Mac Address Filter

    An ARP (Address Resolution Protocol) filters is also recommended because it would filter out broadcast ARP requests from other devices on the LAN that would normally be sent over the radio. ARP is a communication protocol used by Ethernet devices for associating MAC addresses and IP addresses, and is a crucial part of normal network communications.

  • Page 51: Ip Address Filter

    Blacklist Select whether the filter list is a blacklist or a whitelist. A blacklist will prevent all listed Whitelist devices from accessing the module and using the radio link. A whitelist will allow devices with the MAC addresses listed to communicate with the module and utilize the radio link—all other devices are blocked.
  • Page 52 Blacklist Select whether the filter list is a blacklist or a whitelist. A blacklist will prevent all listed Whitelist devices from accessing the module and using the radio link. A whitelist will allow devices with the IP addresses listed to communicate with the module and utilize the radio link—all other devices are blocked.

  • Page 53: Modbus Tcp Server

    Figure 58 Filtering - ARP Filter Blacklist Select whether the filter is a blacklist or whitelist. A blacklist will block ARP requests Whitelist that match the entry. A whitelist will allow only ARP requests that match the entry—all other devices are blocked. Add Entry Adds a new row to the table for you to enter a new address filter rule.

  • Page 54: Modbus Tcp Client

    to ensure that all serially connected Modbus devices use a different Modbus device ID (Modbus slave address) from that of the onboard Modbus TCP server. Up to 32 separate connections to the Modbus TCP server are supported. Figure 59 Modbus TCP Server Enable Modbus TCP Select this checkbox to enable the Modbus TCP server and allow the WI-MOD- Server...
  • Page 55 Figure 60 Modbus TCP Client Mapping Enable Modbus TCP Select this checkbox to enable the Modbus TCP client and display the client Client parameters. Scan Rate Sets how frequently the device will be polled. Add Entry Adds a default mapping to the table. Edit the entry to configure the parameters to match the application.
  • Page 56 Device ID Enter the Modbus device ID of the destination Modbus device. Server IP Address Specify the IP address of the destination Modbus TCP server for the specified transaction. Sever Port Specify the server port number used for Modbus TCP. The default/standard port number is 502.

  • Page 57: Input/Output Configuration

    Figure 62 TCP Client Next, the mappings need to be configured. The example TCP mapping in Figure 63 is configured to transfers the status of the onboard digital input at Unit C (Device ID #3) to the on-board digital output at Unit B. Figure 63 Unit B Modbus TCP Mappings •...

  • Page 58: Analog Input Configuration

    Figure 64 I/O Configuration Figure 65 Input Mode Name Name associated with the channel. You can change the default channel name to something more descriptive, such as “Tank Level”. Mode Select the input mode (digital input/output, or analog input). The default mode is digital input/output.
  • Page 59 Zero Configures the scale of the analog input. This is the starting variable (in counts) when the analog input is at the bottom or zero scale. The default is 8192, which equates to the number of raw counts in the register when the input is at the zero or minimum value (0 mA on the analog input).

  • Page 60: Digital Output Configuration

    Digital Output Configuration To configure the I/O channel as digital output, make sure that “Digital Input/Output” is selected in the Mode field on the External I/O Mode Configuration page ( Figure 65). After saving the changes, click Digital Output Configuration. The default parameters for the digital output should suffice for normal operation, but if you want to configure the output to have a fail-safe indication you need to configure the following parameters.

  • Page 61: I/O Register Locations

    Name You can enter a descriptive name for the input to help with configuration, or use the default. The name can be up to 30 characters, including spaces. Debounce Time Debounce is the time which an input must stay stable before the module decides that (Sec) a change of state has occurred.

  • Page 62: Expansion I/O Memory Map

    38003 Local supply voltage (8–40 Vdc) as a floating point Expansion I/O 115S Serial Expansion I/O modules can be added to provide additional I/O. When adding expansion I/O modules to the WI-MOD-xxx-E-5W , the appropriate serial port must be configured as “Expansion I/O.” The default serial parameters of the port should be 9600, N, 8, 1, which matches the defaults of the 115S Serial Expansion modules.
  • Page 63 Figure 69 Fail-safe Block Configuration - Analog First Register First local register in the fail-safe block. Count Number of registers to incorporate in the fail-safe block Timeout Time allocated to the fail-safe block before triggering a fail-safe state. Initialize at Startup Select this checkbox if you want to initialize the value on startup.

  • Page 64: Configuration Examples

    4.13 Configuration Examples Extending a Wired Network This example describes how to configure a bridged network. Figure 71 Example of Bridged Network Access Point Configuration 1. Connect a straight-through Ethernet cable between the PC and the WI-MOD-xxx-E-5W module. 2. Ensure that the PC and WI-MOD-xxx-E-5W are set up to communicate on the same network. 3.

  • Page 65: Connecting Two Networks Together

    11. Click Save Changes and Reset. The module restarts with the new settings. Client 1 Configuration 1. Perform the same configuration steps as the access point configuration with the following differences: • Ensure that the Radio, System Address (ESSID) and Encryption key are the same as the access point. •...

  • Page 66: Client Configuration

    Access Point Configuration 1. Connect a straight-through Ethernet cable between the PC and the WI-MOD-xxx-E-5W . 2. Ensure that the PC and WI-MOD-xxx-E-5W are set up to communicate on the same network. 3. Set the DIP switch on the WI-MOD-xxx-E-5W to SETUP. 4.
  • Page 67 Extending Network Range with Repeater Hop Configure units as described in the “Extending a Wired Network” on page 65. Place the access point at the remote intermediate repeater location. Additional repeaters can be added using Wireless Distribution System (WDS). For details, see “4.8 Repeaters” on page 44. Figure 73 Example of Repeaters Rev Version 1.4.1 Rev Version 1.4.1...

  • Page 68: Chapter 5 - Diagnostics

    Slow flash red / green Module boot sequence Radio RX Green flash Radio is receiving a valid WEIDMULLER WI-MOD-xxx-E-5W data frame Radio RX Red flash Radio is receiving a data frame with a low signal level. Threshold is –100 dBm for 2-level FSK and –90 dBm for 4-level FSK.
  • Page 69 5.2 Connectivity Click Connectivity on the menu to display information on the current connection with either the client or the access point, depending on how the module is configured. The Connected Wireless Devices area on the Connectivity page shows the MAC address, IP address, interface being used, radio data rate, received signal strength (RSSI), authentication status, compression status, connection time, and the number of access point connections.

  • Page 70: Throughput Testing

    NOTE The site survey list is only refreshed when the module starts up, and only if the client is not connected to an existing access point. When the client does connect to an access point, the list will refresh and only indicate the access point to which the module is connected. Figure 75 Site Survey Mac Address Mac address of the access point.
  • Page 71 The page provides detailed information about the state and performance of the WI-MOD-xxx-E-5W , and allows you to gather information about how the module is connected and communicating. Dynamic list boxes display statistics about various functions (see Figure 76). This information is useful to WEIDMULLER technical support personnel in diagnosing problems with the module.

  • Page 72: Network Traffic Analysis

    Figure 76 Statistics Interface Statistics Displays the number of bytes transmitted and received and the number of CRC errors, dropped packets, FIFO alarms, and types of frames (fragmented, compressed or multicast). This is the main area for gathering diagnostics information, because it indicates how the radios are communicating.

  • Page 73: Channel Survey

    • The connected modem is transmitting. • The connected modem is receiving valid data from other WEIDMULLER WI-MOD-xxx-E-5W modems in the system. • The connected modem is receiving valid data from other WI-MOD-xxx-E-5W modems that are not in the system but are on the same frequency, or from modems in the same system that are not communicating directly but through repeaters.
  • Page 74 There are three time periods displayed on the page—one second, one minute, and one hour. Each graph shows the channel utilization and background noise level over that time period. Figure 77 shows the radio traffic on the channel over the last 60 seconds and a calculated average percentage of utilization for the one minute period. Figure 77 Channel Utilization (Seconds) Figure 78 shows the radio background noise level for the last 60 seconds.

  • Page 75: Custom Survey

    Figure 80 Background Noise Minutes 5.6 Custom Survey The Custom Survey page (Figure 81) displays two separate charts that can be configured to show different radio channel characteristics over three time scales (seconds, minutes, or hours). The custom survey is similar to the channel survey (see the previous section) except that it allows two sets of channel-related data to be displayed—...
  • Page 76 “All Rx Frames,” which are all valid data frames received from any source (WEIDMULLER WI-MOD-xxx-E-5W data frames). From the results shown Figure 82, you can see that Chart 1 shows a large amount of data is being transmitted in the last part of the 60-second scan (the end of the chart), and the receive data in Chart 2 also shows a slight increase in traffic.
  • Page 77 Figure 82 Custom Survey 1 Example 2 In the second example, we can see that Chart 1 shows the radio is transmitting a large amount of data in the last half of the sixty second scan. Configuring the second chart to read specific information about the radio link can help us determine what is causing the increase in traffic.

  • Page 78: Network Diagnostics

    5.7 Network Diagnostics The Network Diagnostics page allows you to check the communications path to other modules within the system. Figure 84 Network Diagnostics Ping a Remote Ping is a standard network instruction that sends a small data probe to the IP Module address configured, letting you know whether you have a communication path.
  • Page 79 Figure 85 I/O Diagnostics Modem Module Information Registers There are registers available in the module that show modules characteristics, such as serial number and firmware version. This information is available on the home webpage of the module’s Web Server. Having the information available in registers allows a host system to read the values via Modbus (provided the Modbus has been activated).

  • Page 80: Monitor Radio Comms

    Figure 86 shows typical data frames from the communication log screen. Corrupted data frames are shown with an “ERROR!” within the frame. NOTE The Comms Log displays WEIDMULLER WI-MOD-xxx-E-5W data frames only. Figure 86 Monitor Radio Comms Time Message time stamp—the time from when module was last started.
  • Page 81 The frame designator (labeled “Des”) can be blank or any of the following characters: -, * , =, 1, 2, 3 or 4. • RX “blank” indicates a received packet is a broadcast packet; no acknowledgment is required. • RX “-” indicates a received packet requires a message acknowledgment. •...

  • Page 82: Monitor Ip Comms

    System Log File Shows an event log of the modules operation, used for diagnosing problems. The page can be saved and emailed to WEIDMULLER, if requested. Click Clear System Log to erase the log file and start fresh. Read Configuration This option shows the module configuration in XML format.

  • Page 83: Module Information

    Reset Resets the module. Factory Default Loads the factory default configuration and resets. Configuration CAUTION Loading the factory default configuration will overwrite any current configuration. Setting a WI-MOD-xxx-E-5W to Factory Default Settings 1. Access the Web Server on the WI-MOD-xxx-E-5W (for details, see “4.1 Connecting and Logging On” on page 22).

  • Page 84: Ping Command

    Owner Allows you to specify an owner name. Contact Owner phone number, email address, and other contact information. Description Description of the purpose of the WI-MOD-xxx-E-5W module. Location Location description for the WI-MOD-xxx-E-5W . Configuration Allows you to enter in a version for the configuration Version 5.13 Utilities Ping Command...

  • Page 85: Arp Command

    Figure 91 shows the response of the “ping –t 192.168.0.118” command. Figure 91 Ping-t This –t command is used to repeatedly ping the specified node in the network. To cancel, press CTRL+C. A good test for the network once it is first set up is to use ping repeatedly from one PC’s IP address to the other PC’s IP address.

  • Page 86: Route Command

    Figure 93 Arp Command The command used in the screen shot above is “arp –a”. It shows the PC’s IP address (like the previous ipconfig command). In this case, the IP address is still 192.168.0.17. It also shows the IP address and associated MAC address of any another device that has a connection to it.
  • Page 87 destined for the 192.168.0.0 network can be returned successfully. There are a number of route commands that can be used to edit, manipulate, and delete routing rules: • Route PRINT—Shows all active routes on PC • Route ADD—Adds a routing table to network, format: Route<IP Address> Mask<Subnet Mask> <Route IP Address>...

  • Page 88: Chapter 6 - Specifications

    Chapter 6 - SPECIFICATIONS Specifications Transmitter/Receiver Frequency 360–512 MHz (8 x 20 MHz bands) 928-960 MHz (8 x 20 MHz bands) Transmit Power Licensed: 5W (+37 dBm) Unlicensed: 0.5W (+27 dBm) Data Encoding 2-FSK, 4-FSK 25 kHz channel: –99 dBm @19,200 baud, –110 dBm @ 9600 baud Receiver Sensitivity 12.5 kHz channel: –100 dBm @9600 baud, –111 dBm @ 4800 baud Channel Bandwidths...
  • Page 89 Specifications LED Indicators Power/OK; RX; TX/Link; RS-232; LAN; RS-485; Analog/Digital I/O status Reported Diagnostics RSSI measurements (dBm) Connectivity information/statistics System log file Network Management Compatible with Cooper Network Management System Compliance USA - FCC CFR47 P 90,15; CAN - IC RSS 119; EU - EN301 489-3; AS/NZS - CISPR22 RF (Radio) USA- FCC CFR47 P 90,15, CAN - IC RSS 119, EU - EN300113-2/ EN300220-2, AS/...

  • Page 91: Appendix A - Firmware Upgrades

    The following procedures provides instructions for performing a full USB firmware upgrade on a WI-MOD-xxx-E-5W . Requirements • USB memory stick • Firmware files (contact WEIDMULLER Technical Support to obtain these files) • Ethernet cable • PC for transferring files To prepare the USB flash drive Not all USB flash drives are configured correctly for use as a firmware upgrade drive.
  • Page 92 • If the drive contains only one partition and the “Offset” value is non-zero, as shown in the example below, you can proceed to format the drive and use it “as is” for firmware upgrade. Skip to step 7 for instructions on how to format the drive using the Diskpart utility.
  • Page 93 Figure 95 Format USB Drive 3. Make sure that “Quick Format” is not selected, and then click Start. Figure 96 Quick Format To perform a full firmware upgrade 1. Copy the supplied firmware files to the root directory on the USB flash drive. The files should look similar to Figure 97.
  • Page 94 Do not remove the USB drive or interrupt the power to the module while the upgrade is in process. If the upgrade process is interrupted, the module may become unserviceable and need to be returned to WEIDMULLER for repair.
  • Page 95 Figure 100 Firmware Update LEDs 6. When the upgrade is complete, remove the USB drive from the WI-MOD-xxx-E-5W and replace the plastic cover. The upgrade process does not change or erase the configuration settings. 7. To verify that the firmware version has been updated and that all other configuration settings are unchanged, navigate to the home page of the Web Server on the WI-MOD-xxx-E-5W .

  • Page 96: Appendix B - Usb Ethernet Connection

    Appendix B - USB ETHERNET CONNECTION Connecting to the Secondary Ethernet Port To connect to the USB port on the module you will need a standard USB printer cable (USB-A to USB-B), which can be purchased from any electrical store. 1.
  • Page 97 Figure 105 Using Ping Command to Connect Figure 106 Using Web Browser to Connect Rev Version 1.4.1 Rev Version 1.4.1...

  • Page 98: Appendix C - Glossary

    Appendix C - GLOSSARY Acknowledgment. Access Point An access point connects wireless network stations (or clients) to other stations within the wireless network and also can serve as the point of interconnection between the wireless network and a wired network. Each access point can serve multiple users within a defined network area. Also known as a base station.
  • Page 99 Input/output. The term used to describe any operation, program, or device that transfers data to or from a computer. Internet Protocol. A set of rules used to send and receive messages across local networks and the Internet. IP address A 32-bit number that identifies each sender or receiver of information that is sent across the Internet.
  • Page 100 Transmission Control Protocol (TCP) is protocol used along with the Internet Protocol (IP) to send data in the form of individual units (called packets) between computers over the Internet. While IP takes care of handling the actual delivery of the data, TCP takes care of keeping track of the packets that a message is divided into for efficient routing through the Internet.

  • Page 101: Appendix D - Expansion I/O Registers

    Appendix D - EXPANSION I/O REGISTERS Adding 115S Expansion I/O modules to the WI-MOD-xxx-E-5W will automatically add the I/O to the internal WI- MOD-xxx-E-5W I/O store. To calculate the register location in the I/O store, find the address of the I/O point in the tables in this appendix, and then add the offset.
  • Page 102 I/O Store Description 30017 + Offset Modbus Error counter for this 115S module 30018 + Offset Modbus Last Error code for this 115S module. (See Appendix E for Modbus error codes.) 30019 + Offset Modbus Lost Link counter for this 115S module 30020 + Offset Module type (0x0301) = 769 / error status 40001–40008 + Offset...

  • Page 103: Appendix E - Modbus Exception Codes

    Appendix E - MODBUS EXCEPTION CODES The following are Modbus exception codes that the Master will generate and write to a general purpose analog register (30501, 40501, and so on) in the event of a poll fail. Dec Code Hex Code Name Meaning 65281 FF01...

  • Page 104: Appendix F - Power Conversion

    Appendix F – POWER CONVERSION dBm to mW Conversion Watts Watts 10 mW 10 dB 200 mW 23 dB 13 mW 11 dB 316 mW 25 dB 16 mW 12 dB 398 mW 26 dB 20 mW 13 dB 500 mW 27 dB 25 mW 14 dB...

  • Page 105: Appendix G - External Iperf Test

    Appendix G - EXTERNAL IPERF TEST This appendix provides instructions on how to set up and use the Iperf application to test the throughput of Ethernet modems. Iperf is a tool used to measure the throughput and quality of a network link. Jperf is an application that can be used in conjunction with Iperf to graphically display the Iperf data results.

  • Page 106: Jperf Application

    5. Enter the Iperf command “Iperf –c <IP address of Server PC> -w 65535” to start the client communication to the server. Figure 108 Iperf Client This command runs a test over the radio link to the server PC and reports back the results, as shown in Figure 109.
  • Page 107 Figure 111 Jperf Screen 3. When the Jperf screen appears, select “Client” as the Iperf Mode, and enter the IP address of the server PC. Leave the Port field at the default, and click Run Iperf. The test will run and then display the measured bandwidth (throughput) over time. You can run this test as often as needed to gather a more accurate average.

  • Page 108: Appendix H - Gnu Free Document License

    Appendix H - GNU FREE DOCUMENT LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
  • Page 109 1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.
  • Page 110 so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.
  • Page 111 10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.
  • Page 113 Weidmuller USA Corporate Headquarters 821 Southlake Boulevard Richmond, Virginia 23236 Main: 804.794.2877 Customer & Technical Support: 1 800.849.9343 Fax: 804.794.0252 Technical Support: support@weidmuller.com www.weidmuller.com Weidmuller Canada 10 Spy Court Markham, Ontario L3R 5H6 Main: 905.475.1507 Toll Free: 1 800.268.4080 Toll Free Fax: 1 877.300.5635 Fax Admin: 905.475.5855...
