Summary of Contents for ALDI Deco Style DS-FSS 500

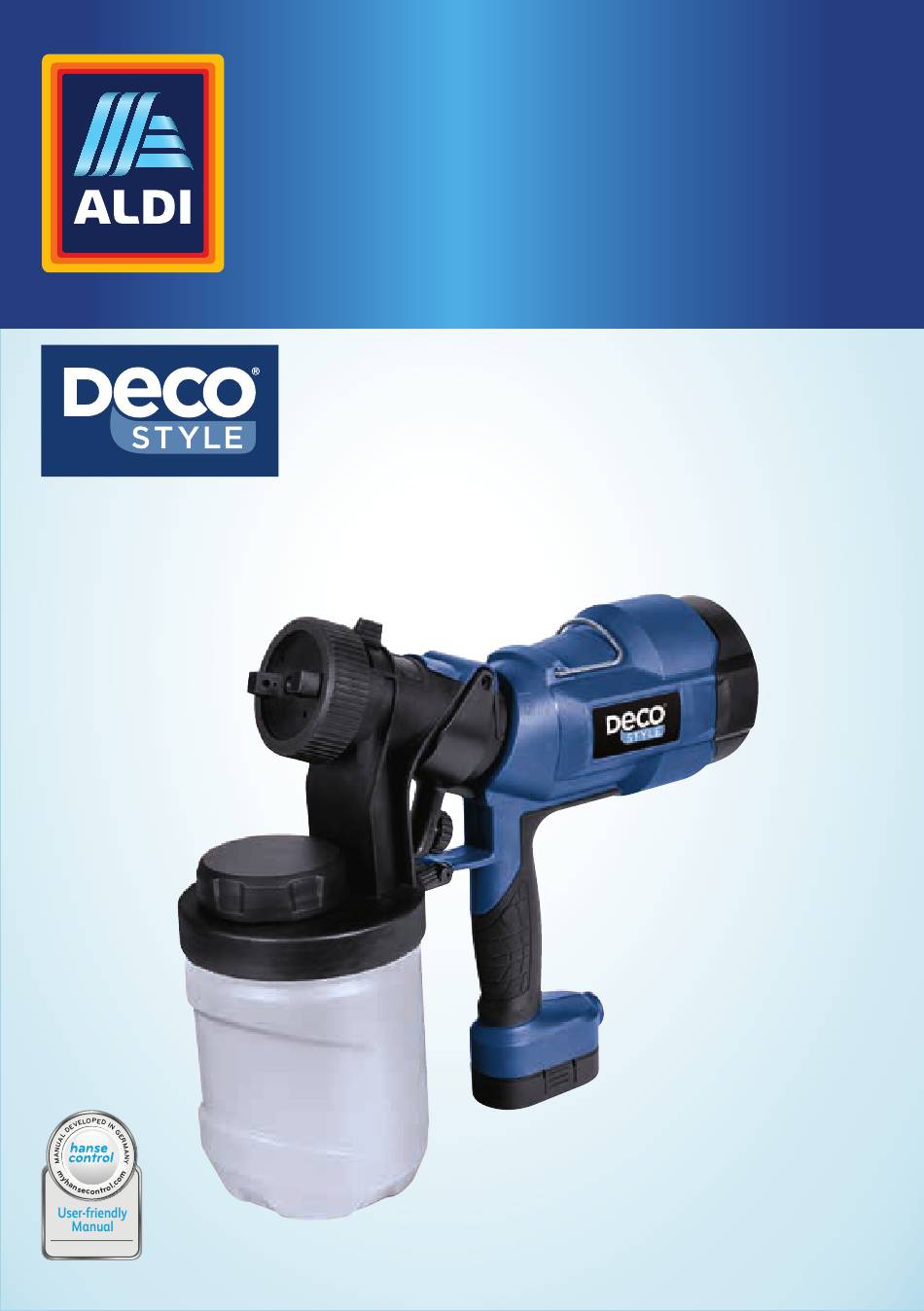

- Page 1 User Manual PAINT SPRAY SYSTEM Original instructions ID: #05007...
-
Page 2: Table Of Contents
Contents Overview ....................3 Use ...................... 4 Package contents/part list ............... 6 General information ................7 Reading and storing the user manual ..........7 Explanation of symbols ................7 Safety ....................8 Proper use ....................8 Residual risks ..................... 8 General power tool safety instructions ..........9 Special safety instructions for spray guns ...........12 Supplementary safety instructions ............12 Start-up ..................... - Page 5 50–300 mm...
-
Page 6: Package Contents/Part List
Package contents/part list Suspension device Cleaning needle Motor unit Cleaning brush Connection cable Locking handle Union nut Air cap (1× per spray unit) (spray unit for interior wall paints) Lever for spraying width setting Nozzle (1× per spray unit) (1× per spray unit) Trigger (1×... -
Page 7: General Information
General information General information Reading and storing the user manual This user manual is part of the paint spray system. It contains important information on safety, usage and care. Before using the paint spray system, read the user manual carefully. Pay particular attention to the safety instructions and warnings. -
Page 8: Safety
Safety Safety Proper use The paint spray system is designed only for private users in connection with hobby and DIY projects. The paint spray system is suitable for spraying: • solvent-based and water-based interior wall paints • lacquers • glazes •... -
Page 9: General Power Tool Safety Instructions
Safety General power tool safety instructions WARNING Read all the safety notes, instructions, illustrations and technical details supplied with this power tool. Failure to follow the safety notices and instructions may result in an electric shock, fire and/or severe injury. Save all warnings and instructions for future reference. - Page 10 Safety f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool.
- Page 11 Safety Power tool use and care a) Do not overload the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.
-
Page 12: Special Safety Instructions For Spray Guns
Safety Special safety instructions for spray guns − Do not use the spray gun for spraying flammable substances. − Take note of any risks associated with the substance being sprayed and also observe the labels on the corresponding containers or the notes provided by the manufacturer of the substance. -
Page 13: Start-Up
Start-up − Connect the paint spray system only if the mains voltage of the socket corresponds to the type plate specification. − Connect the paint spray system only to an easily accessible socket so that you can quickly disconnect it from the mains supply in case of a fault. −... -
Page 14: Selecting The Material And Spray Unit
Start-up Selecting the material and spray unit NOTICE! Risk of damage! Materials that are not permitted for use may damage the paint spray system. − Take note of the list of materials that are permitted and not permitted for use. Permissible materials Impermissible materials •... -
Page 15: Adding Material
Start-up Spray material Recommended level of Nozzle thinning diameter Interior wall paint thin by approx. 5–10 % 2.5 mm (max. 100 DIN-sec) Glazes, wood preservatives, stains, undiluted 1.0 mm oils, disinfectants (max. 40 DIN-sec) solvent-containing or water-dilutable thin by approx. 0–10 % 1.0 mm lacquers, priming coats, vehicle top (max. -
Page 16: Fitting/Changing The Spray Unit
Start-up Fitting/changing the spray unit CAUTION! Risk of injury! Improper handling of the paint spray system can cause injury. − Only connect the paint spray system to a socket when it has been com- pletely assembled and filled with paint. Fitting the spray unit to the motor unit as far down as it will go (see Fig. -
Page 17: Operation
Operation Operation CAUTION! Risk of injury! Improper handling of the paint spray system can cause injury. − Ensure that the connection cable does not pose a tripping hazard before you start work. − Always wear the required protective equipment such as respiratory pro- tection and make sure there is adequate ventilation. -
Page 18: Adjusting The Spray Pattern
Operation Adjusting the spray pattern CAUTION! Risk of injury! Improper handling of the paint spray system can cause injury. − Never depress the trigger when adjusting the air cap. − Before each adjustment, ensure that the paint spray system has been switched off. -
Page 19: Setting The Spraying Width
Operation Setting the spraying width The spraying jet can be widened or narrowed by means of the lever for spraying width adjustment (see Fig. D). − Push the spraying width adjustment lever up or towards position to widen the spraying jet ( position = maximum width). -
Page 20: Application Information
Operation 9. Push the nozzle of the selected nozzle set with the nozzle seal in place onto the spray unit. Ensure in doing so that you align the nozzle in such a way that the edge of the spray unit engages in the corresponding slot in the nozzle edge and the inserted needle sits in the centre of the nozzle opening. -
Page 21: Maintenance And Care
Maintenance and care − For paints that do not cover well or highly absorbent surfaces, spray in “cross- wise” direction (see Fig. I). − Clean the nozzle and the air cap as described in the section “Cleaning the nozzle” if the paint material accumulates and the spray pattern deteriorates. Maintenance and care NOTICE! Risk of short circuit and damage! - Page 22 Maintenance and care 6. Remove heavier dirt and paint residues from the paint container with a cloth. 7. Use the cleaning brush to remove heavier dirt and blockages inside the suc- tion and ventilation tubes and in the corresponding holders on the spray unit. 8.
-
Page 23: Cleaning The Motor Unit
Maintenance and care 8. Clean the needle thoroughly with a lint free cloth and solvent or water. 9. Check the nozzle seal for damage. 10. Let all parts dry thoroughly. 11. Insert the needle back into the holder inside the spray unit. Ensure that the needle is positioned correctly so that the side grooves on the end of the needle engage in the corresponding slots in the holder inside the spray unit. -
Page 24: Changing The Air Filters
Storage Changing the air filters NOTICE! Risk of damage! Improper handling of the paint spray system can cause damage. − Never operate the paint spray system without the air filter. Without an air filter, dust and dirt will be suctioned up affecting the spray result. −... -
Page 25: Troubleshooting
Troubleshooting 4. Protect the paint spray system when storing it (e.g. in the original packaging or in a box) if you do not use it regularly or will not be using it over an extended period. Troubleshooting Problem Possible cause Solution No material •... -
Page 26: Spare Parts And Accessories
Spare parts and accessories Problem Possible cause Solution Extensive • Not close enough to the • Reduce the spraying distance. paint mist object being sprayed. (overspray). • Too much material ap- • Turn the adjusting screw for plied. material flow control to the left (–). Poor cover- •... -
Page 27: Noise/Vibration Information
Noise/vibration information Noise/vibration information WARNING! Health hazard! Working without ear protection and suitable protective clothing poses a health hazard. − Wear ear protection and suitable protective clothing when working with the device. Measured in accordance with EN 60745-1 and EN 50580. The noise at your workplace may exceed 85 dB(A);... - Page 28 Noise/vibration information • Use of the right accessories and whether they are in good condition; • A firm grip of the paint spray system by the operator; • Proper use of the paint spray system as described in this user manual. Improper use of the paint spray system can cause vibration-related ailments.
-
Page 29: Disposal
Disposal Disposal Disposing of the packaging Dispose of the packaging separated into single type materials. Dispose of cardboard and carton as waste paper and film via the recyclable material collection service. Widely Not Yet Recycled Recycled Disposing of the paint spray system −... -
Page 30: Declaration Of Conformity
Declaration of conformity Einhell Germany AG · Wiesenweg 22 · D-94405 Landau/Isar Konformitätserklärung erklärt folgende Konformität gemäß EU-Richtlinie und deklaruje zgodność wymienionego poniżej artykułu z Normen für Artikel następującymi normami na podstawie dyrektywy WE. GB explains the following conformity according to EU directi- BG декларира... - Page 31 PRODUCED IN CHINA FOR: ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD.
