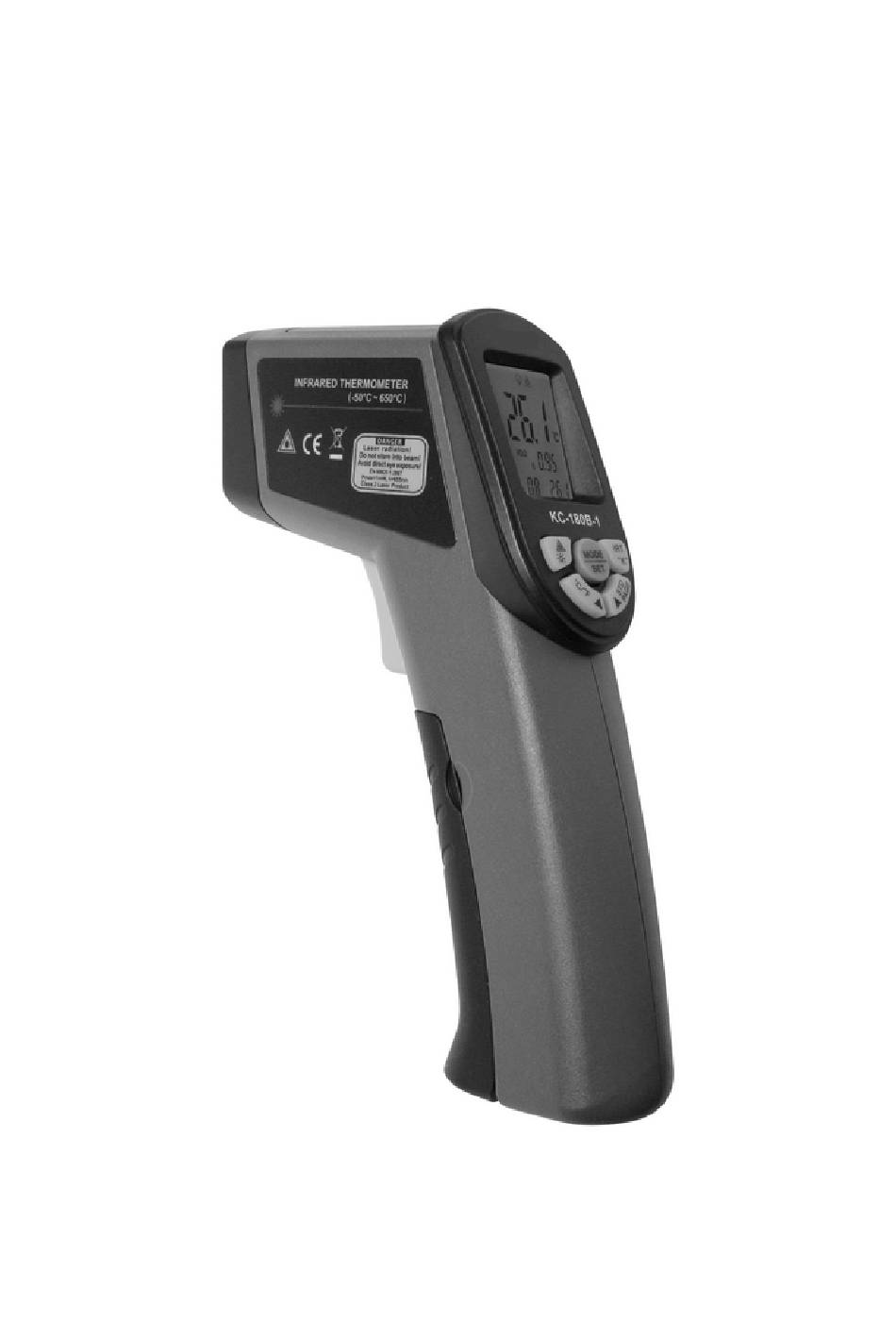

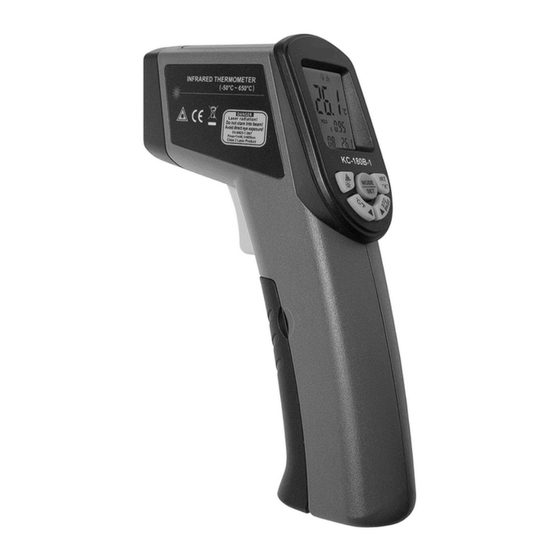

- Page 1 Infrared Thermometer Model: KC-180B-1 Operation Manual...
-
Page 2: Infrared Thermometer
The product KC-180B-1 provides a type K-thermocouple input socket, which makes it possible to measure wider temperature range. KC-180B-1 Infrared thermometer is a Class II laser product and in compliance with the safety standard EN60825-1. -
Page 3: Battery Safety Instructions
●Do not observe the laser beam by using optical tools such as binoculars, magnifying glasses. ●To avoid burning risk, please be advised that the readings of reflective objects may be lower than the actual temperature. ●Warning: DANGER Class II Laser Product Maximum Power Output<... -
Page 4: Display Illustration
A. Laser pointer B. Infrared sensor C. Trigger —— ON / Measuring key D. Battery compartment E. LCD screen with backlight —— display reading data and other information F. The middle key ——mode set/parameter set G. The right down key —— browse saved date/increase preset data H. - Page 5 the laser pointer, in the mean time the icon “ ” will be displayed or disappear. 4. While the product is inactive status (not scanning temperature), press the left upper key to switch on and off the backlight, meanwhile the icon “ ”...
- Page 6 3. Field of view: Be sure the target area is larger than the unit’s spot. The smaller the target area, the closer the distance between unit and target. However, if you want to have an accurate temperature of an object, be sure that the target is twice as large as the measuring area.
-
Page 7: Technical Specifications
● In case of damage of tool by deterioration of battery. ● Remove the battery when not in use for an extended period of time. Technical Specifications Name Infrared Thermometer Model KC-180B-1 Measuring range -50℃～650℃(-58℉～1202℉) Response wavelength 8～14μm ±2℃(±3.6℉) or ±2%（T>0℃）... -
Page 8: Warranty
Measure means include MAX/MIN/AVG/DIF √ Data save and delete √ Thermocouple range -99—1370℃(-146.2℉～2498℉) Thermocouple precision ±1℃ Measuring unit switch √ Max/Min threshold alarm √ Low battery indicator √ Auto backlight off time Synchronized with readings Auto shut off time Inactive in 30s Power supply One 9V battery (6F22/6LR61) Max.
