Summary of Contents for Sanjin SKW-101

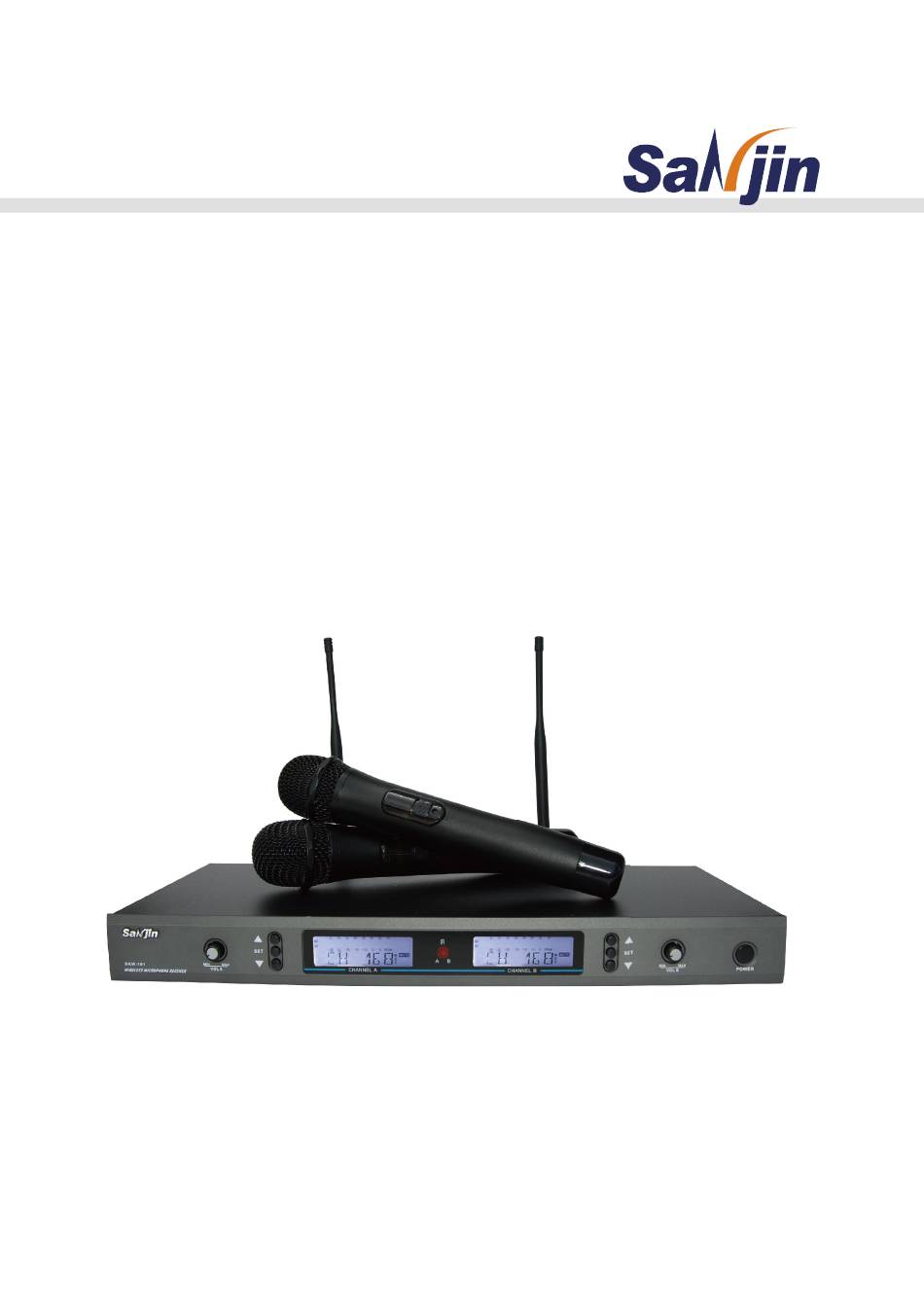

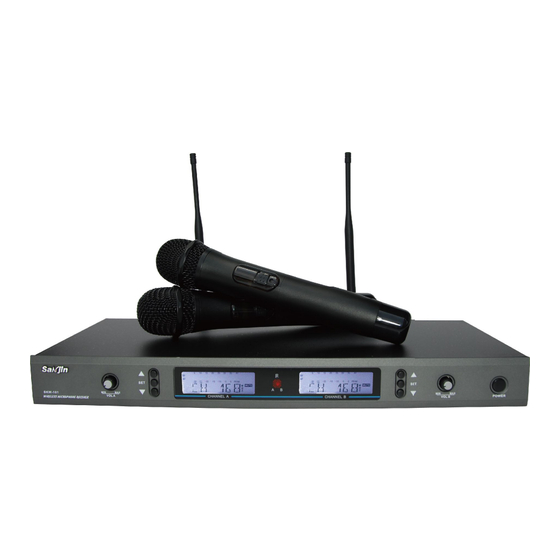

- Page 1 SKW-101 Professional UHF Wireless Karaoke Microphone...
- Page 2 UHF Wireless microphone system FEATURES Adopt UHF high band, with less interference and more reliable transmission Adopt multi-channel DPLL frequency synthesis technology, provided more than 200 channels(within the 50MHz frequency bandwidth, separated by 250KHz), easily to avoid all kinds of interferences when many sets use together at the same time.
- Page 3 UHF Wireless microphone system Only use provided power adapter, and confirm the voltage is correct to the adapter. The use of other power adapter may damage the machine and void your warranty. The machine use 220VAC power supply voltage, the use of other voltage may cause fire and fault.
- Page 4 UHF Wireless microphone system RECEIVER SKW-101 WIRELESS MICROPHONES REC EN ER ① Volume control ① 8-Step level display for receiver RF signal RF ② 8-Step level display for receiver audio signal AF ② Frequence/Channel set button ③ Frequency menu display ③...
- Page 5 UHF Wireless microphone system OPERATION OF THE RECEIVER 1.Adjust the volume to the smallest before turned on the transmitter, then turn on the receiver, the LCD lights up and the alphanumeric displayed, then LCD will display the channel and frequency of the receiver, press the SET button can change the status. 2.
-
Page 6: Lcd Display
UHF Wireless microphone system 2.LCD display A.Infrared frequency Press the “SET” button when the LCD display “PRG IR”,2-3 seconds later, transmitting the infrared frequency to the transmitter. B. Getting into the operating menu... - Page 7 UHF Wireless microphone system C. Channel/Frequency display...
- Page 8 UHF Wireless microphone system D. Lock control...
-
Page 9: Hand-Held Transmitter
UHF Wireless microphone system TRANSMITTER HAND-HELD TRANSMITTER... -
Page 10: Belt-Pack Transmitter
UHF Wireless microphone system OPERATION OF THE HANDHELD MICROPHONE 1. Click the power on. The Back Lights up ,LCD display the current channel and capacity of battery. 2. When you want to change the channel or frequency, you should change the receiver firstly, then take the transmitter pointing to the infrared window, press the “SET”... - Page 11 UHF Wireless microphone system RECOMMENDATIONS How to use the Belt-pack wireless transmitter properly 1. Belt-pack transmitter utilize a separate 1/4 wavelength whip .The effect will be reduced when the antenna be winded or touched by the user’s body. 2. Adjust the sensitivity moderately based on varies audio resources and microphones. 3.
- Page 12 UHF Wireless microphone system noise. 3. MIC bar of wireless conference transmitter should be connected better to the pedestal, or it will generate great interference. How to use the receiver properly 1. There are True diversity and Non-real diversity ,Non-real diversity is economic and the True diversity has better effort on transmission，you can chose reasonable according to you need .
-
Page 13: Troubleshooting
UHF Wireless microphone system TROUBLESHOOTING If the unit fails to operate normally, check the following points to determine whether the fault can be corrected by the simple measures suggested. If it cannot be corrected, or if the fault is not listed in the PROBLEM column, disconnect the power cord and contact your authorized YMIOO dealer or service center for help. -
Page 14: Maintenance
UHF Wireless microphone system SAFETY Care and maintenance: Keep the machine away from damp、electromagnetic field、high temperature. Never expose them to direct sunlight .Take out of the batteries of the transmitter and unplug the power wire of the receiver if you don’t use it for a long time. Cleaning:：... - Page 15 UHF Wireless microphone system RECEIVER Receive mode Double Conversion Super Heterodyne Intermediate frequency The frist medium frequency:100MHz second medium frequency:10.7MHz BNC /500Ω Wireless interface 12dBµV (80 dBS/N ) Sensitivity ≥75 dB Spurious rejection Sensitivity adjustment range 12-32dBV Maximum output level + 10 dBV TRANSMITTER Output power...
- Page 16 ZHUHAI SANJIN INDUSTRIAL CO., LTD...
