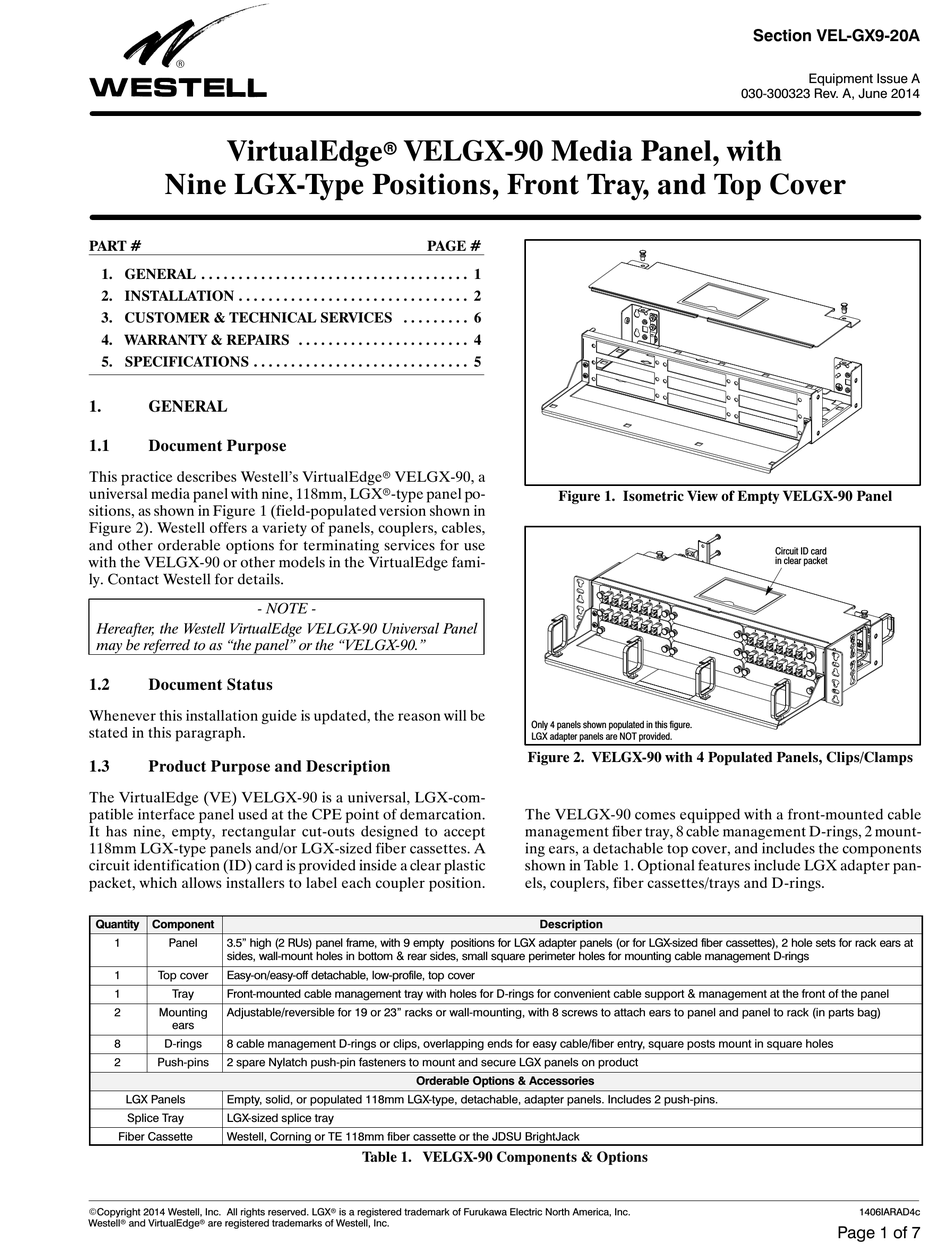

R
VirtualEdge
Nine LGX‐Type Positions, Front Tray, and Top Cover
PART #
1. GENERAL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. CUSTOMER & TECHNICAL SERVICES
4. WARRANTY & REPAIRS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.
GENERAL
1.1
Document Purpose
This practice describes Westell's VirtualEdger VELGX‐90, a
universal media panel with nine, 118mm, LGXr‐type panel po
sitions, as shown in Figure 1 (field‐populated version shown in
Figure 2). Westell offers a variety of panels, couplers, cables,
and other orderable options for terminating services for use
with the VELGX‐90 or other models in the VirtualEdge fami
ly. Contact Westell for details.
‐ NOTE ‐
Hereafter, the Westell VirtualEdge VELGX‐90 Universal Panel
may be referred to as "the panel" or the "VELGX‐90."
1.2
Document Status
Whenever this installation guide is updated, the reason will be
stated in this paragraph.
1.3
Product Purpose and Description
The VirtualEdge (VE) VELGX‐90 is a universal, LGX‐com
patible interface panel used at the CPE point of demarcation.
It has nine, empty, rectangular cut‐outs designed to accept
118mm LGX‐type panels and/or LGX‐sized fiber cassettes. A
circuit identification (ID) card is provided inside a clear plastic
packet, which allows installers to label each coupler position.
Quantity
Component
1
Panel
3.5" high (2 RUs) panel frame, with 9 empty positions for LGX adapter panels (or for LGX‐sized fiber cassettes), 2 hole sets for rack ears at
sides, wall‐mount holes in bottom & rear sides, small square perimeter holes for mounting cable management D‐rings
1
Top cover
Easy‐on/easy‐off detachable, low‐profile, top cover
1
Tray
Front‐mounted cable management tray with holes for D‐rings for convenient cable support & management at the front of the panel
2
Mounting
Adjustable/reversible for 19 or 23" racks or wall‐mounting, with 8 screws to attach ears to panel and panel to rack (in parts bag)
ears
8
D‐rings
8 cable management D‐rings or clips, overlapping ends for easy cable/fiber entry, square posts mount in square holes
2
Push‐pins
2 spare Nylatch push‐pin fasteners to mount and secure LGX panels on product
LGX Panels
Empty, solid, or populated 118mm LGX‐type, detachable, adapter panels. Includes 2 push‐pins.
Splice Tray
LGX‐sized splice tray
Fiber Cassette
Westell, Corning or TE 118mm fiber cassette or the JDSU BrightJack
ECopyright 2014 Westell, Inc. All rights reserved. LGXr is a registered trademark of Furukawa Electric North America, Inc.
Westellr and VirtualEdger are registered trademarks of Westell, Inc.
r
VELGX‐90 Media Panel, with
PAGE #
1
2
. . . . . . . . .
6
. . . . . . . . . . . . . . . . . . . . . . .
4
5
Orderable Options & Accessories
Table 1. VELGX‐90 Components & Options
Figure 1. Isometric View of Empty VELGX‐90 Panel
Only 4 panels shown populated in this figure.
LGX adapter panels are NOT provided.
Figure 2. VELGX‐90 with 4 Populated Panels, Clips/Clamps
The VELGX‐90 comes equipped with a front‐mounted cable
management fiber tray, 8 cable management D‐rings, 2 mount
ing ears, a detachable top cover, and includes the components
shown in Table 1. Optional features include LGX adapter pan
els, couplers, fiber cassettes/trays and D‐rings.
Description
Section VEL‐GX9‐20A
Equipment Issue A
030‐300323 Rev. A, June 2014
Circuit ID card
in clear packet
1406IARAD4c
Page 1 of 7
