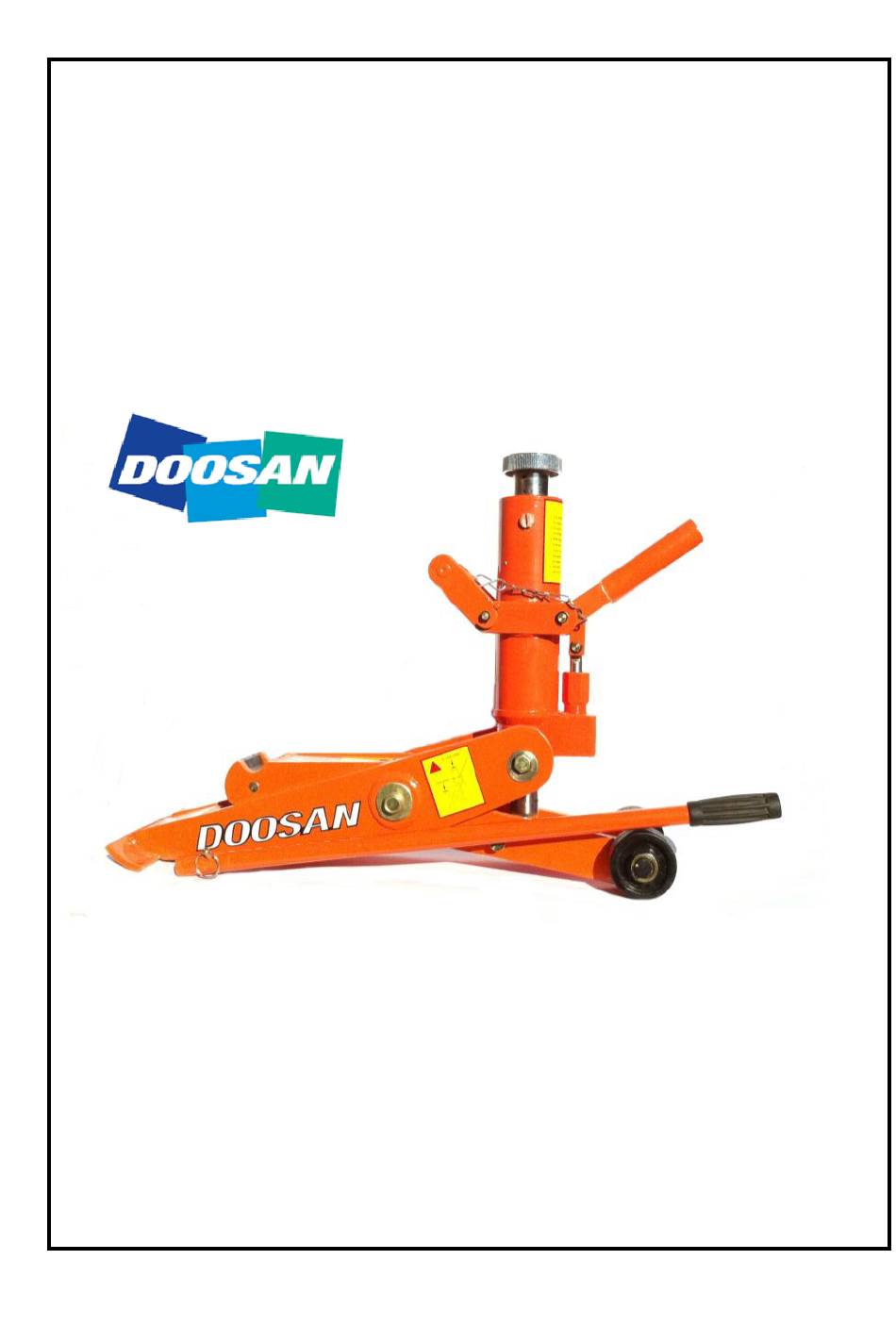

Instruction Manual

# FJ4B 8800 lb. CAPACITY

FORKLIFT JACK

4000kgs

CAPACITY

NOTE:

Owner / Operator must read and

understand this instruction manual

before using the forklift jack.

NOTE:

IT IS THE OWNER/OPERATOR'S

RESPONSIBILITY TO READ AND UNDERSTAND

THIS INSTRUCTION MANUAL BEFORE USING

THESE FORKLIFT JACKS. FAILURE TO DO SO

MAY CAUSE SERIOUS INJURY.

Table of Contents

Need help?

Do you have a question about the FJ4B and is the answer not in the manual?

Questions and answers

Summary of Contents for Doosan FJ4B

Page 1 Instruction Manual # FJ4B 8800 lb. CAPACITY FORKLIFT JACK 4000kgs CAPACITY NOTE: Owner / Operator must read and understand this instruction manual before using the forklift jack. NOTE: IT IS THE OWNER/OPERATOR’S RESPONSIBILITY TO READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE USING THESE FORKLIFT JACKS.
Page 2: Table Of Contents
CONTENTS 1. SPECIFICATIONS-----------------------------------2 2. IMPORTANT------------------------------------------2 3. FEATURES--------------------------------------------3 4. OPERATING INSTRUCTIONS------------------4 5. SAFETY TIPS-----------------------------------------7 6. MAINTENANCE INSTRUCTIONS--------------10 7. PUMP PRRMING INSTRUCTIONS-----------10 8. PLACARD PARTS LIST--------------------------11 9. PARTS LIST ﹠ EXPLODED FIGURE-------12...
Page 3: Specifications
This symbol is used to warn you of specific situations which may occur and must be avoided when using the FJ4B jack. Failure to observe these warnings may result in personal injury and/or property damage. You must refer this manual to all operators, using the FJ4B jack.
Page 4: Features
responsibility of the owner (or his designated representative) to instruct these people in the use of the jack. To avoid unnecessary risk of bodily injury or property damage, the operator MUST understand and observe these instructions and warnings. The owner must inspect, or appoint a knowledgeable person, to inspect the jack at regular intervals.
Page 5: Operating Instructions
OPERATING INSTRUCTIONS: 1. To raise: close the release valve (turn the knob clockwise) then pump the handle. 2. To lower: turn the release valve SLOWLY counter-clockwise. When lowering the jack lift truck. It is important to keep the rate of lowering under your control.
Page 6 When lifting from the end place the FJ4B at the center of Fig.3 the fork lift truck. Always chock the wheels at the opposite end of the fork lift. When lifting 3 wheeled lift trucks, never lift the 2 wheeled end.
Page 7 FJ4B lack as a lifting contact point. 7. Raise a fork lift with the FJ4B only when: a. The forks are in a lowered position b. There is no load of any kind on the forks c.
Page 8: Safety Tips
Do not attempt to lift from a polished or greasy floor. 2. The FJ4B may be used to lift from either side or end of the fork lift truck. However, 2 wheels of the lift truck must remain firmly on the floor.
Page 9 5. Do not use the FJ4B to raise all for 4 wheels of the fork lift from the floor. Two wheels of the lift truck must remain in contact with the floor at all times.
Page 10 FJ4B from the working area before beginning work.Fig.9 12. The FJ4B jack is designed solely for the lifting of fork lift trucks. Use of the jack for any other purpose constitutes misuse of the jack.
Page 11: Maintenance Instructions
2. Oil the handle joints while operating the pump handle to work the oil 3. Although the hydraulic unit on the FJ4B is a sealed unit and will probably never need fluid adding to the reservoir, the following instructions should be followed in the event fluid is needed: To refill the reservoir, place the jack in normal upright position, and completely lower jack by opening release knob.
Page 12: Placard Parts List
FJ4B PLACARD PARTS LIST ITEM NO. DESCRIPTION NO.REQ’D Warning Label (Use Stands to Support Vehicle) Jack Position Plate Lift Pad Instructions Identification Piacard,FJ4B Warning Label(Do Not Adjust) WARNING NOTICE POSITION LIFT PAD HFJ-400 WARNING 5...
Page 13: Parts List ﹠ Exploded Figure
Part No Description App Qty Part No Description App Qty FJ4B-01 SCREW FJ4B-38 LINK ROD FJ4B-02 LOCK WASHER FJ4B-39 FJ4B-03 TRUNION FJ4B-40 RETAINING RING FJ4B-04 FRAME 1 FJ4B-41 FJ4B-05 SCREW FJ4B-42 HANDLE FJ4B-06 WASHER FJ4B-43 O-RING FJ4B-07 AXLE FJ4B-44 OIL TANK...
