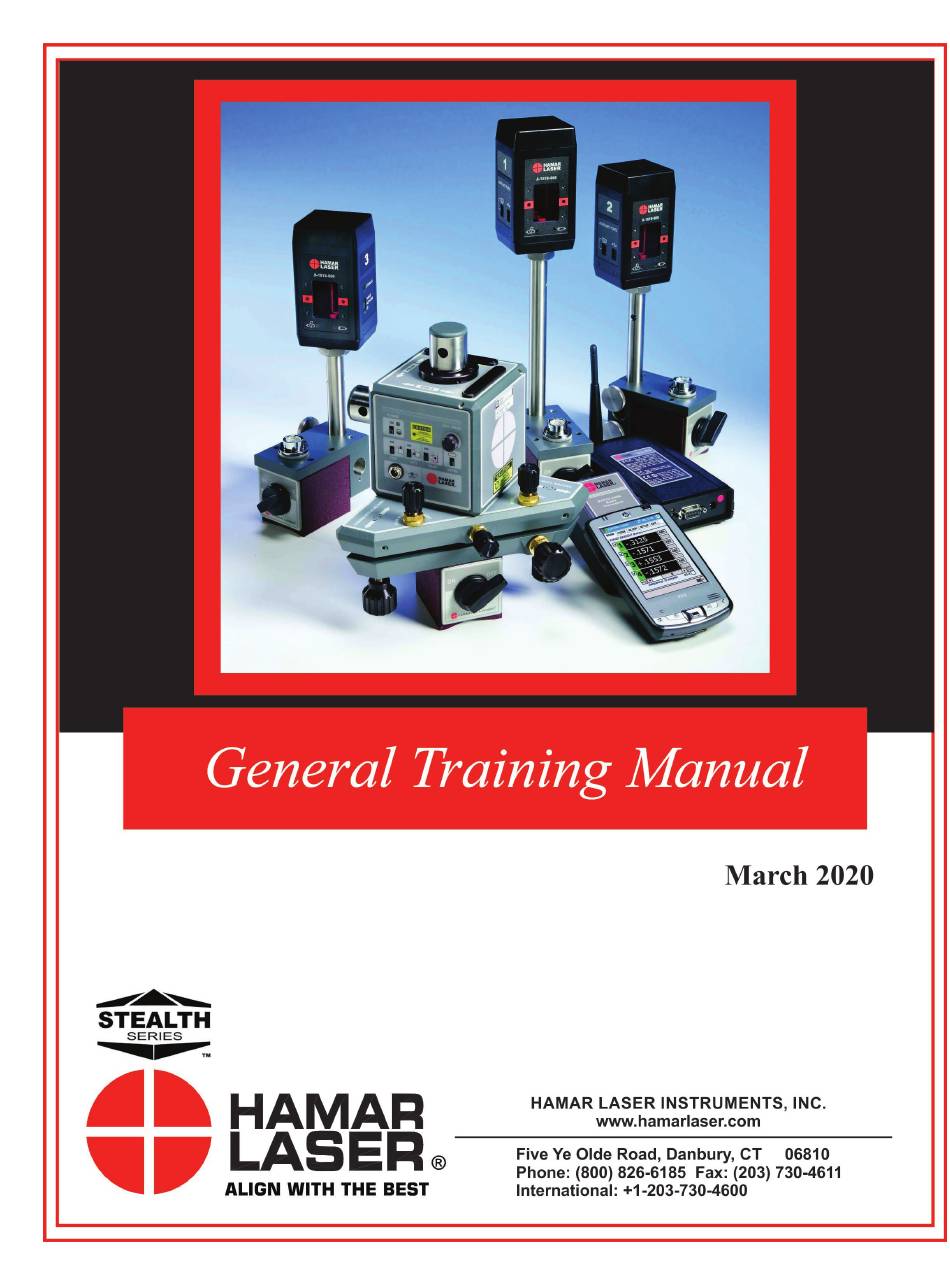

HAMAR LASER STEALTH Series General Training Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STEALTH Series and is the answer not in the manual?

Questions and answers

Related Manuals for HAMAR LASER STEALTH Series

Summary of Contents for HAMAR LASER STEALTH Series

  • Page 2: Table Of Contents

    Table of Contents An Introduction to Laser Alignment ......................1 Alignment System Components ........................2 Lasers ................................ 2 ® The L-743 Ultra-Precision Triple Scan Laser ................2 The L-733 Precision Triple Scan® Laser ..................4 The L-742 Dual Scan® Ultra-Precision Roll Alignment Laser ............5 The L-732 Dual Scan®...
  • Page 3 Measuring X-Axis Straightness and Flatness Simultaneously ..............34 Y-Axis Flatness and Straightness and Y-Z / Y-X Squareness ............... 35 W-Axis Flatness and Straightness, W-Z (in X) Parallelism, W-Z (in Y) Parallelism ......37 Z-Axis Flatness and Straightness, Z-X and Z-Y Squareness, Z-W (in X) Parallelism, Z-W (in Y) Parallelism ...............................
  • Page 4 Appendix I – Using Older Alignment Systems ..................91 Lasers ..............................91 Targets ..............................91 Target Cell Function and Accuracy ....................93 Readouts ..............................94 Target Connections for Scanning Lasers ..................95 Calibration of Readouts to Targets ......................95 Appendix J – Machine Tool Alignment Methods for Older Equipment........... 101 Level to Earth Measurements .......................

  • Page 5: An Introduction To Laser Alignment

    In addition to lasers that produce a straight beam of light, Hamar Laser also manufactures laser that produce a continuously sweeping plane. These planes are produced by bending a laser beam precisely 90°...

  • Page 6: Alignment System Components

    Laser ® The L-743 Ultra-Precision Triple Scan Laser is Hamar Laser’s most versatile and powerful machine tool alignment laser. It has been designed specifically for 3-5-axis machining centers to measure and correct machine geometry. In most cases, all it takes is one setup to measure flatness, straightness, parallelism and squareness of the main axes of most typical machining centers.
  • Page 7 Features 3 continuously rotating laser planes with operational Laser planes flat to ½ arc seconds (.00003 • • range of 100 ft. (30.5 m) in radius. in/ft or 0.0025mm/m) in 180º sweep and ¼ Instant on with virtually no warm-up arc second (.000015 in/ft or 0.0008mm/m) •...

  • Page 8: The L-733 Precision Triple Scan® Laser

    The L-733 Precision Triple Scan® Laser The L-733 Triple Scan Laser was specifically designed for machining centers to measure and correct machine geometry. It has all of the innovative and highly useful features of the L-743 Ultra- Precision Triple Scan Laser, with lower accuracy and a medium adjustment base.

  • Page 9: The L-742 Dual Scan® Ultra-Precision Roll Alignment Laser

    The L-742 Dual Scan® Ultra-Precision Roll Alignment Laser With two continuously sweeping, ultra-flat, orthogonal laser ® planes, the L-742 Dual Scan Laser is ideally suited to roll alignment applications. The laser can be configured at the factory to have either 2 vertical planes (typically used for roll alignment), or 1 horizontal and 1 vertical plane, allowing a user to not only measure, but also fix alignment problems in a fraction of the time needed with conventional methods.

  • Page 10: The L-732 Dual Scan® Precision Roll Alignment Laser

    The L-732 Dual Scan® Precision Roll Alignment Laser Primarily designed for roll alignment and other similar alignment applications that do not require the exacting ® tolerances of the L-742 Ultra-Precision Dual Scan Laser, ® the L-732 Precision Dual Scan Laser also offers 2 automatically rotating laser planes that can be configured at the factory to have either 2 vertical planes (typically used for roll alignment), or 1 horizontal and 1 vertical laser plane.

  • Page 11: The L-730 Precision Leveling Laser

    The L-730 Precision Leveling Laser Different applications require different levels of accuracy, which is why we developed two accuracy levels for our leveling lasers. The L-730 Precision Leveling Laser is ideal for precision-level work where tolerances are not as critical, such as simple fabrication alignment checks, fabrication machinery beds, soles plates, etc.

  • Page 12: The L-741 Ultra-Precision Leveling Laser With Plumb Beam

    The L-741 Ultra-Precision Leveling Laser with Plumb Beam For customers with limited budgets, the L-741 Ultra-Precision Leveling Laser with Plumb Beam is a good choice for measuring many different applications. It features a continuously sweeping, ultra-flat, laser plane with a perpendicular plumb beam for not only measuring, but also fixing alignment problems in a fraction of the time needed with conventional methods.

  • Page 13: Targets

    Targets Note: The targets discussed in this section can easily be converted to a height gage, as the center of the target cell is set to a known distance from the bottom of the target housing. By attaching precision spacers to the base of the target, the exact dimension from the laser plane to the measured surface can be obtained.

  • Page 14: Readouts

    • • Data display for up to five wireless targets. Wireless range of up to 133 feet. • Compatibility with any of Hamar Laser’s continuously rotating lasers. • Features of the Read16 Software Two-Point Buck-In Wizard • Roll Alignment Buck-In Tool •...

  • Page 15: The R-1356-2.4Zb Wireless, Ruggedized Pda Readout With Read15 Software

    The R-1356-2.4ZB Wireless, Ruggedized PDA Readout with Read15 Software The R-1356 is an innovative readout that comes with Hamar Laser’s Read15 alignment software preinstalled on a ruggedized personal digital assistant (PDA). The R-1356 operates with both the A-1519-2.4ZB and A-1520-2.4ZB radio wireless targets and any continuously rotating laser.

  • Page 16: The R-1307W Readout

    The R-1307W Readout The R-1307W Readout can be used for any 2-axis target as well as two A-1519-2.4ZB/A-1520-2.4ZB wireless targets. The readout may be configured in Master Mode or Listen Mode (see the R-1307 manual for complete configuration instructions). Figure 4 – R-1307W Readout Control Panel Features...

  • Page 17: Computer Interface

    USB port. The A-910-2.4ZB allows a data link for Hamar Laser software other than Read15, which is used on the R-1356. Both the R-1356 and the A-910-2.4ZB Computer Interface can be used in the same...

  • Page 18: Preparing To Perform An Alignment

    Preparing to Perform an Alignment Please Note! Our level vials are designed to be calibrated by the customer. We cannot guarantee that the level vials are calibrated when you receive the equipment because of movement during shipping. Please follow the procedure below specific to the level vials on your laser. Defining Flatness and Level “Measuring level”...

  • Page 19: Using The Control Panel

    Using the Control Panel Figure 6 shows the control panel for the L-743 and L-733 lasers, including the locations of: The battery pack/AC adapter connection • The power switches and POWER ON indicator for the • laser The power switches for the individual scanners •...

  • Page 20: The Precision Level Vials

    The Precision Level Vials Reading the Precision Level Vials Secure the laser base to a metal surface by turning the locking magnetic base ON. Once the laser is in position, power it on and use the adjustment knobs to bring the bubbles to the center of both vials (see Figure 8).

  • Page 21: Calibrating The Level Vials

    .0001 in. mode. If you are using the A-1519 or A-1520 Wireless Targets with the R- 1356 PDA or with Hamar Laser’s alignment programs, set the readout display through the software. Figure 10 -- Laser and Target Setup for Calibrating the Precision Level Vials Zeroing the Targets The following sections refer frequently to “zeroing”...

  • Page 22: Calculating The Calibration Of The Level Vials - Roll Axis

    Calculating the Calibration of the Level Vials – Roll Axis Note: It is very important to warm up the laser for at least 30 minutes before starting this procedure. It is also very important to level both the Pitch and Roll axis level vials during this procedure. Failure to do this makes it nearly impossible to calibrate the levels.
  • Page 23 5. Calculate the Set Point – Roll Axis Set Point = (Reading 1 + Reading 2) / Subtract the Set Point from Reading 1 and divide the result by the D1 (distance between the points). The result is the calibration of the level vial in units of in/ft or mm/m.

  • Page 24: Setting The First Level Vial - Roll Axis

    Setting the First Level Vial – Roll Axis 6. Tilt the laser to the Set Point Move the target back to the Near Point to verify it still reads zero. If not, re-zero it. Then move the target back to the Far Point and tilt the laser by adjusting the Roll Axis adjustment knob on the laser base until the readout displays the calculated Set Point (see Step 5).

  • Page 25: Calculating The Calibration Of The Levels Vials - Pitch Axis

    Calculating the Calibration of the Levels Vials – Pitch Axis 1. Level the laser. Rotate the entire laser unit 90° to calibrate the Pitch Axis level vial. Using the adjustment knobs, level the laser so that both the pitch and roll levels are exactly level. 2.

  • Page 26: Setting The First Level Vial - Pitch Axis

    Setting the First Level Vial – Pitch Axis 6. Tilt the laser to the Set Point Move the target back to the Near Point to verify it still reads zero. If not, re-zero it. Then move the target back to the Far Point and tilt the laser by adjusting the Pitch Axis adjustment knob on the laser base until the readout displays the calculated Set Point.

  • Page 27: Laser Buck-In

    Laser Buck-in Laser buck-in refers to the adjustment of a laser plane or line to be parallel to the surface being measured (a tabletop, a surface plate, or a way surface). Three points are required to buck-in a laser plane to a reference surface.

  • Page 28: Remote Buck-In

    appropriate pitch/roll/yaw adjustment knobs on the laser base so the reading on the far target is zero. The two steps are repeated until both targets show zero readings. Remote Buck-In As the distance between the laser and the near target increases with respect to the distance between the two targets, bucking in by the close method becomes nearly impossible.

  • Page 29: Three-Point Buck-In (Flatness)

    Any three points on a surface may be used, however Hamar Laser recommends the setup illustrated in Figure 17. Figure 17 – 3-Point Buck-in Using One Target (recommended setup) When performing this procedure, it is best to place the laser source in a position that is as close to the Near Target Position as possible.

  • Page 30: 3-Point Buck-In Procedure Using One Target

    You may also need to adjust the sampling rate to dampen the effects of atmospheric turbulence in the Read15 software (or in the Hamar Laser alignment program you are using). Performing the 3-Point Buck-In Using One Target 1.

  • Page 31: 3-Point Buck-In Procedure Using Multiple Targets

    4. Move the target to Far Position B and tilt the Pitch Axis of the laser until the readout reads zero. Be sure to use only Pitch Axis adjustment knobs that face the target when tilting the laser beam (in the setup displayed in Figure 18, this would be the PITCH adjustment).

  • Page 32: 2-Point Buck-In On Machine Tool Axis (Straightness)

    2-Point Buck-In on Machine Tool Axis (Straightness) A laser beam is often used as a "straight edge" to measure straightness. Examples are machine tool ways or bore straightness measurement. The laser beam must be adjusted to be parallel to or coincident with an edge or centerline.
  • Page 33 4. Return the column to its starting position and rotate the target toward the laser. Zero the target. 5. Send the column back to the far end of travel and tweak the Yaw-Axis adjustment knob to zero the laser. 6. When the target reads zero at both ends, the laser is aligned to the X-Axis.

  • Page 34: Measuring A Machining Center

    Measuring a Machining Center The following section describes how the laser is used to measure straightness, flatness, squareness, levelness and parallelism on a 6- axis horizontal floor mill. Note that if a machine is going to be aligned, rather than just measured, it is important to put the laser on an instrument stand.

  • Page 35: Procedure

    Procedure 1. Place the laser on the table at a spot that provides the ability to measure all the axes from the same setup. 2. Level the Pitch-Axis level via by using the coarse and fine adjustments to line up the edges of the bubble. Repeat the process with the Roll-Axis level vial.
  • Page 36 4. Turn on the laser rotation (which also turns on the targets). Target #1 data displays in the Read9 software on the PDA. Zero the display. Remove Target #1 and replace it with Target #2. Zero the Read9 display for Target #2. Repeat the process for Target #3.

  • Page 37: Aligning The Laser To The X-Axis Travel

    Aligning the Laser to the X-Axis Travel 1. Mount Target #4 on the ram, move the spindle and adjust the target height. 2. Power on the laser and zero the target in the Read9 PDA. Move the column down to the end of the X-Axis travel and rotate the target head to point towards the laser.

  • Page 38: Measuring X-Axis Straightness And Flatness Simultaneously

    Measuring X-Axis Straightness and Flatness Simultaneously The straightness and flatness for X can be measured simultaneously by adding a second measuring target to the bottom of the spindle ram. The targets come with a 3-piece post set, so a shorter post may be used to adjust the target height to pick up the red laser.

  • Page 39: Y-Axis Flatness And Straightness And Y-Z / Y-X Squareness

    Y-Axis Flatness and Straightness and Y-Z / Y-X Squareness After measuring the Y-Axis flatness and straightness, the Machine Geometry software calculates the Y-Z and Y-X Squareness. The Gold Plane (bottom left) measures Y Flatness and the Green Plane (bottom right) measures Y Straightness. 1.
  • Page 40 3. Move the column, pause a few seconds, and click Record. Repeat for each point. 4. The Gold Plane measures the squareness of the Y-Axis to Z and the Green Plane measures Y to X squareness. As before, the Machine Tool Geometry software does the straightness and squareness calculations.

  • Page 41: W-Axis Flatness And Straightness, W-Z (In X) Parallelism, W-Z (In Y) Parallelism

    W-Axis Flatness and Straightness, W-Z (in X) Parallelism, W-Z (in Y) Parallelism Without changing the L-743 setup, the W-Axis can be measured for flatness and straightness and parallelism to the Z-Axis in the Y direction, and the parallelism to the Z-Axis in the X direction. 1.
  • Page 42 3. The red plane measures the flatness of W, W-Y squareness and parallelism to Z (in Y). The software records the straightness of W and calculates the squareness and parallelism to the other axes. The results show .0003 in. for straightness and .0011 in.

  • Page 43: Z-Axis Flatness And Straightness, Z-X And Z-Y Squareness, Z-W (In X) Parallelism, Z-W (In Y) Parallelism

    Z-Axis Flatness and Straightness, Z-X and Z-Y Squareness, Z-W (in X) Parallelism, Z-W (in Y) Parallelism The final axis check is Z-Axis flatness and straightness, which provides the squareness to the X-Axis and the squareness to the Y-Axis. In addition, the parallelism for Z-W (in Y) and Z-W (in X) can be determined.
  • Page 44 3. Record the data in the Machine Tool Geometry program and the parallelism and squareness are automatically calculated. The Z-Axis results show errors of .0005 in. for straightness and .0008 in. for flatness. 4. The slope of the vertical Best-Fit line is -.0007 in/ft, which means the Z- Axis is sloping up...

  • Page 45: Additional Capabilities Of The L-743 Machine Tool Alignment System

    6. For Z squareness to X and Y, the Machine Tool Geometry program subtracts the Best-Fit slope of Z from the Best- Fit slopes of Y and X and calculates the squareness. Therefore, the result for the squareness of Z to X is .0002 in/ft, which means the Z-Axis is tilting to the left.

  • Page 46: Checking A And B Rotary Axes And Tramming The Spindle

    Measuring Rotary Axes Checking A and B Rotary Axes and Tramming the Spindle This section includes: Rotation flatness of each • axis Squareness and parallelism • to main axes A-X (in Z) Parallelism • A-Y (in Z) Parallelism • B-Z (in Y) Parallelism •...
  • Page 47 3. Rotate the table 90 degrees. The target now reads .0043, which is higher than the previous point and means the rotation plane is also sloping up and away from the spindle relative to the main table. 4. The last reading is .0031 and the data is uploaded to Plane 5 for analysis.

  • Page 48: Checking The A-Axis Flatness Of Rotation, A-X (In Z) Parallelism And A-Y (In Z) Parallelism

    Checking the A-Axis Flatness of Rotation, A-X (in Z) Parallelism and A-Y (in Z) Parallelism Parallelism • 1. To measure the A rotation, use the gold laser plane and a target mounted on the spindle. For both the A-axis and the Tram measurements, a simple tram bar can be inserted into the spindle with a target attached.
  • Page 49 4. Rotate to 90 degrees and zero the target. 5. Rotate to 270 degrees. This reading is -.0023, which means the A rotation axis is tilting toward the X-axis by .0023 in 18 in. Note: In Steps 3 and 5, the purple ellipse represents the measured plane.

  • Page 50: Tramming The Spindle

    Tramming the Spindle 1. To measure the “tram” (squareness of the A spindle axis to X and Y), move the target to the end of the tram bar and rotate the spindle. 2. As with the A-axis, begin at 0 degrees, zero and rotate 180 degrees.

  • Page 51: Measuring Sawmills

    Measuring Sawmills The critical alignments for a sawmill ensure that the log carriage is traveling straight and flat, is perpendicular to the blade, where the mill is cutting specific board lengths, and parallel to the blade, where the mill is cutting/shaping board lumber. The L-733/L-743 Triple Scan Laser systems offer the fastest and most accurate way to align sawmills on the market today.

  • Page 52: Checking Support Rollers For Squareness

    4. Then the L-106X Laser Translation Stage is used to translate (move the laser with very little angular change) the laser plane so both targets read close to zero, usually the tolerance is .010 in. (0.25 mm). This means the laser is now on the centerline of the machine. 5.

  • Page 53: Checking Saw-Blade Squareness

    (rotate the fixture/roll to put the target as close to the laser as you can and then sweep it through the arc to the other side). First, zero the target in the near position. Then rotate the roll so the target/fixture are as far away from the laser as possible (far position).

  • Page 54: Checking Saw-Blade Parallelism

    Checking Saw-Blade Parallelism To check the parallelism of saw blades that cut parallel to the carriage travel, the setup procedure for “straightness” above is followed. Place the A-1519-2.4ZB target on the blade at the closest point to the laser (3:00) and zero. Rotate the blade 180 degrees so the target is at farthest point on the blade from the laser (9:00).

  • Page 55: Roll Alignment Buck-In And Laser Transfer Procedure

    The vertical parallelism or levelness can easily be checked using a machinist level. Hamar Laser provides two systems for roll alignment: The L-742W Ultra-Precision Roll Alignment System for printing presses and paper machines, and the L-732W Precision Roll Alignment System for lower-accuracy roll alignment applications, such as rubber mills and textiles.

  • Page 56: The L-742 Alignment Procedure

    The L-742 Alignment Procedure Horizontal Roll Parallelism When aligning rolls for paper mills, printing presses or film lines, most difficult alignment is the horizontal parallelism (vertical parallelism or levelness can easily be checked using a machinist level). The following section provides suggestions choosing a reference and step-...
  • Page 57 Here’s how the process works for picking up a reference roll: (keep in mind that using the L-742W or L- 732W is like having two walls, both perpendicular to each other, 100 ft. (30.5 m) in radius and very flat). 1.
  • Page 58 3. Adjust the height of the target by loosening the thumb screw and sliding the post in/out of the magnetic base until the target detects the laser plane. 4. Zero the value for Target 1 using Read15 in the R-1356-2.4ZB PDA Readout and move the target to the far end of the roll.
  • Page 59 5. “Buck in” or tilt Laser Plane #1 (LP#1) using the Yaw Adjustment until Target #1 reads zero at the Far Point. Move Target #1 back to the Near Point, re-zero, and repeat the process until the target reads zero at both locations, which usually takes 2-3 tries.
  • Page 60 7. Since the LP#2 is perpendicular to LP#1, LP#2 becomes the offset centerline of the mill. This offset centerline has a range of 100 ft. (30.5 m) on either side of the laser. 8. Place Target #2 and #3 on floor fixtures at both ends of the machine and adjust until the laser beam hits the middle of the...
  • Page 61 10. Adjust the yaw adjustment on the laser base so that LP#2 is tilted until both Target #2 and #3 show the same readings. LP#2 is now parallel to the offset centerline. Note: The readings do not have to be zero, but just the same number and same sign.

  • Page 62: Remote Buck-In Formula

    13. Since the laser generates a plane, rolls at any elevation in that section that are within 2 ft. (610 mm) horizontally of the laser plane can be measured for parallelism without changing the setup of the laser. Remote Buck-in Formula Often in Roll Alignment, the laser has to be far from the edge of the machine.

  • Page 63: Using Read15 For Remote Buck-Ins On Rolls

    Using Read15 for Remote Buck-Ins on Rolls The Two-Point Buck-in tab is used to make the process of making the laser parallel (bucked-in) to two reference points easier. There is a short procedure to follow that requires measuring the dimensions between the target and laser.
  • Page 64 Step 2 – Zero Target and Record Data a. Place the target on the Near point, and when the displayed readings settle down, tap the yellow ZERO button. b. Place the target on the Far point, and when the displayed readings settle down, press RECORD.

  • Page 65: Leveling Rolls

    Step 3 – Tilt Laser to be Parallel to Reference Points a. There are two ways to use the Set Point: To Go – This is the amount the laser beam • needs to be tilted until the Far point value is equal to the Near point value.

  • Page 66: Arc Measurement Method - Sweeping Through The Arc

    Arc Measurement Method - Sweeping Through the Arc For hard-to-reach rolls that are farther than 2 ft. (610 mm) from the laser, or where the roll radius is greater than 2 ft., the Arc Measurement Method must be used to get accurate results. In this method, instead of using the bullseye level, the target is swept through an arc to find the Top Dead Center (TDC), or the highest point on the arc that is tangent to the laser plane.

  • Page 67: Tramming Method For Hard-To-Reach Rolls

    Tramming Method for Hard-to-Reach Rolls There are times when the side of the roll is impossible to reach with the target. In this case, we can attach a tram bar to the end of the shaft and put the A-1519-2.4ZB Target on it. Rotate the shaft to 12:00 and zero it in Read15.

  • Page 68: The T-1600 Non-Magnetic Roll Fixture For The A-1519-2.4Zb Targets

    The T-1600 Non-Magnetic Roll Fixture for the A-1519-2.4ZB Targets The T-1600 Non-Magnetic Roll Fixture is used for aluminum, rubber and stainless steel rolls. Also available is the T-1601 Tight Space Roll Fixture/Tram Bar, which uses two A-1519-2.4ZB Targets to measure alignment in tight spaces. The following procedure describes the setup and procedure for using the T-1600.

  • Page 69: Appendix A - Equipment Drawings

    Appendix A – Equipment Drawings L-733 Precision Geometry Laser...
  • Page 70 L-743 Ultra-Precision Geometry Laser...
  • Page 71 A-1519/A-1520 Universal Wireless Targets...
  • Page 77 Appendix B – The NORMIN Method (Bore and Spindle) NORMIN method developed Hamar Laser Instruments compensating for laser or target mounting errors in bore or spindle work. The word is a contraction of “NORMal-INverted,” which briefly describes the method. It is quite similar to the four clock readings taken with dial indicators but uses a laser and a target instead.
  • Page 78 The readout always shows the displacement between the Target Center and the Laser Beam Center. When the Target Center is not on the True Bore Center, the numbers and the signs on the readout will change when the target is rotated because the Target Center is moved to a different location in relationship to the laser beam.

  • Page 79: Appendix C - Care And Cleaning Of Target Optics

    Appendix C – Care and Cleaning of Target Optics The proper care and cleaning of optical windows and/or lenses of Hamar Laser’s position-sensing devices (targets) assures optimum performance. Contaminants on an optical surface increase scatter, absorb laser energy, and eventually degrade the accuracy of the position-sensing devices. Because cleaning any precision optics risks damaging the surface, optics should only be cleaned when absolutely necessary.

  • Page 80: Appendix D - Coping With Atmospheric Effects

    Appendix D – Coping with Atmospheric Effects The performance of a laser system is affected by turbulence in the atmosphere. The accuracy of the system is .0001 in/10 ft between the laser and the target in typical machine shop conditions. This accuracy can be lessened by a factor of 2 in the winter when the air is cold and dense and can improve by a factor of 2 in the summer when the air is hot and humid and not very dense.

  • Page 81: Reducing Atmospheric Effects With Fans

    Reducing Atmospheric Effects with Fans The most practical way of eliminating vertical temperature gradient and substantially reducing the fluctuations caused by turbulence is to place a fan behind the target with the air blowing toward the laser. When fans are used in conjunction with the “slow response” position on the readout switch, the effects of turbulence can be reduced up to a factor of 10 and vertical temperature gradient can be virtually eliminated.

  • Page 82: Air Turbulence And Outdoor Use - Fixed Centerline Alignment

    These blowers are usually mounted in elbows or T’s that can be obtained from Hamar Laser. We recommend that you contact Hamar Laser for detailed instructions when working in a situation like this.

  • Page 83: Appendix E - Interpreting The A-1519/1520 Calibration Reports

    Appendix E – Interpreting the A-1519/1520 Calibration Reports The A-1519-2.4 Target has a 0.5 micron resolu- tion and 3.5 micron accuracy, versus the A-1520- 2.4 Target, which has a 0.25 micron resolution and 1.5 micron accuracy. When the elevation of either target is set near zero (within ±...
  • Page 84 Total Error = +/- 3.3 microns Approx. +/- 4 mm of measuring area – each vertical line on the graph equals 1 mm. + 2 microns 0.000 - 2 microns Error in this area is 1 micron or less + 2 microns 0.000 - 2 microns Each green vertical line equals 1 mm of...

  • Page 85: Appendix F - Troubleshooting Guide

    Appendix F – Troubleshooting Guide Problem Possible Solutions Laser turret spinning • Power off laser and turn back on (all L-740 and L-730 series lasers have a power protection circuit that needs to be reset if a power surge causes the and A-1519/1520 target laser to turn off).
  • Page 86 No target readings in Check radio receiver battery. Plug in A/C adapter to ensure it has power. • PDA. Target LEDs • Ensure “check box” to the left of the display window in Read15 (see manual) is checked for each target. illuminated (means Ensure channel setting (system ID) on A-1519/1520 matches the setting in •...
  • Page 87 “OFF TGT” shown in Radio communication is working, but the target does not “see” the laser. • Ensure laser beam is not blocked. target display – PDA  Ensure laser beam is bright.  Check laser power supply, especially if using a battery pack. ...

  • Page 88: Appendix G - The A-910 Radio Transceiver/Hub And The A-910-2.4Zb Radio

    Appendix G – The A-910 Radio Transceiver/Hub and the A- 910-2.4ZB Radio Front Panel Features 1. Power ON indicator and Low Battery indicator 2. Internal backup battery charging indicator LINK ESTABLISHED indicator 3. TX indicator: blinks when device is transmitting data to the target(s) 4.

  • Page 89: The Zigbee ® Radio Utility For The A-910-24.Zb

    ® The Zigbee Radio Utility for the A-910-24.ZB Pre-installing the Common USB Port Driver (A-910-2.4ZB) This driver is required for the A-910-2.4ZB Transceiver and to communicate with targets via the computer’s USB port. The driver creates a virtual COM Port that is recognized by the applications as a standard serial port.

  • Page 90: Configuring The Hardware And Utility Settings

    Configuring the Hardware and Utility Settings 1. Insert the A-910 AB dongle into any unused USB port. The computer should automatically assign a COM port number to the dongle. 2. Start the A-910 Utility Software. The software should display the COM port assigned to the Zigbee Dongle (see Figure 34).

  • Page 91: Manually Selecting The Com Port

    Manually Selecting the COM Port The A-910 Utility should automatically detect the COM Port upon startup. If not, use the following steps to locate the correct COM Port. Windows XP 1. Right-click My Computer. 2. Click Properties and then select the Hardware tab. 3.

  • Page 92: Setting The Target System Id And Target Network Id

    Setting the Target System ID and Target Network ID (A-1519-2.4ZB/A-1520-2.4ZB Targets, A-910-900/2.4, A-910-2.4ZB) The System ID is a radio network address that is used by the Radio Communications Protocol to filter unwanted data from other radio transceivers and targets using a different address. Only targets and radio transceivers that are set to a matching System ID can communicate with each other.

  • Page 93: Appendix H - Centering The Targets On The Floor Monuments

    When performing roll alignments, it is often necessary to use floor benchmarks at the side of the machine as a reference. Hamar Laser offers floor plates on which to mount targets so that these floor benchmarks may be used as a reference.
  • Page 94 2. Level the floor plate by adjusting the two thumbscrews. Be particularly careful as any out-of-level condition can influence the target centerline. 3. Record the target reading, paying close attention to the plus (+) or minus (-) signs. 4. Rotate the entire floor plate 180°. Be sure that the target face is rotated to receive the laser beam and is square to the incoming beam.

  • Page 95: Appendix I - Using Older Alignment Systems

    Figure 43 – Left to right: L-700, L-705, L-720 and L-723 Targets Any of the following targets may be used with any older laser manufactured by Hamar Laser. Each target, however, was developed with a specific purpose. The list below provides descriptions of the most commonly used targets and their capabilities.
  • Page 96 A-510 A two-axis target used mainly with straight line lasers, this target displays vertical and horizontal center readings. It is ordinarily used with a self-centering adapter that can be placed in various locations inside of a continuous bore. The A-510 target was developed specifically for extruder barrel to extruder gearbox alignment, but it has also proved very useful in a number of other bore applications.

  • Page 97: Target Cell Function And Accuracy

    Target Cell Function and Accuracy Hamar Laser targets use a position-sensitive cell with varying ranges of detection. This type of cell will integrate to and find the center of energy of any light shining on the surface, regardless of the light spot's shape or size.

  • Page 98: Readouts

    Readouts The R-307 Digital Readout The Model R-307 is a portable two-axis readout used for measuring a stationary laser beam. Used with the T-251 Scanner Preamp, the R-307 can also measure data from single axis scanning targets (see Figure 46). The R-307 Readout can display data supplied by the A-510, A-517 (T-214 with stand), T-212, T-218 and the T-261 targets.

  • Page 99: Target Connections For Scanning Lasers

    All Hamar Laser equipment is aligned and calibrated when it leaves the factory. The alignment or calibration of most units can be checked or verified in the field. No adjustments in the calibration should be necessary unless a new target has been added to the setup.
  • Page 100 Calibration Checking Procedure To ensure that a readout display accurately reflects changes in target position, perform the following procedure. 1. Set the Readout Scale Switch Set the Readout Scale Switch to the scale with the highest resolution (the .0001 in. setting). 2.
  • Page 101 Calculating Error in Calibration 1. Calculate the difference between actual micrometer travel and change in the readout display Determine the difference between the actual .025 in. micrometer move and the number displayed on the readout window. If the .025 in. physical micrometer move is displayed as a number between 23.7 and 26.3, (within •...
  • Page 102 The Calibration Trimpot If the error in the calibration checking procedure is between 5 and 15 percent, calibrate the readout to the target as follows: Figure 48 - Op en R-307 Readou t w ith trimpots exposed 1. Unscrew the screws on the back of the readout housing Separate the top and bottom half of the readout to gain access to the Master (vertical) and Slave (Horizontal) Input Trim Screws.
  • Page 103 Adjusting the Vertical Trimpot 1. Manually center and square the target to the oncoming laser beam Make sure that the target is mounted in the target stand with the cable hanging down from the lowest (6 o'clock position) on the target. 2.
  • Page 104 Adjusting the Horizontal Trimpot If you are using Model R-307 Readout, the horizontal axis display may also require calibration. 1. Turn the horizontal axis micrometer +.025 in. (one full turn) Turn the horizontal axis micrometer control one full revolution (+.025 in.). Be sure to eliminate micrometer backlash.

  • Page 105: Appendix J - Machine Tool Alignment Methods For Older Equipment

    L-723, the L-123 leveling base) and adjust the tilt of the instrument to roughly center the level bubble in each of the level vials. Note: Some Hamar Laser alignment systems use level bubbles, some use split prism levels with level bubbles and some use digital levels.

  • Page 106: Three-Point Buck-In Procedure Using One Target

    Three-Point Buck-In Procedure Using One Target Figure 49 - Three-Point Buck-in Using One Target (Recommended Setup) 1. Position and secure the laser. Position the laser as shown and turn the lever on the magnetic base to ON to lock it securely to the metal surface.
  • Page 107 3. Position and secure the target. Place the target in the Near Position. Move the target in its magnetic base until the laser beam roughly hits the mid-position of the target and turn the lever on the magnetic base to ON to lock it securely to the metal surface.

  • Page 108: Three-Point Buck-In Procedure Using Multiple Targets

    Three-Point Buck-In Procedure Using Multiple Targets This method requires three A- 517 Targets and three readouts. The procedure is basically the same as with one target but saves the time required to move a single target to the three different footprints.

  • Page 109: Close Versus Remote Buck-In

    Repeat this until both positions read zero and no further adjustments are necessary. Note: Place the target in exactly the same place each time you move from near to far or from far to near. Marking the footprint is usually the best way to ensure that you are back in the same spot each time you move the target.
  • Page 110 Close Buck-In The close buck-in procedure can be remembered by the rule, “Zero Near, Point Far.” Buck in the laser beam by zeroing it on the near target, and then tilt the entire laser unit to "point" the laser beam, centering on the far target.
  • Page 111 If the calculated Set Point exceeds the linear range of the target, (.1 in. or 2.5mm) the laser unit itself must be moved by the Set Point amount. New measurements must then be taken for both targets and a new set point calculated. Figure 54 shows how to move the laser depending upon the sign of the calculated Set Point.

  • Page 112: Appendix K- Agency Certifications

    Appendix K– Agency Certifications Agency Certifications for the 2.4 GHz Radio Transceiver (United States of America) Certification Contains FCC ID: OUR-24XSTREAM The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 113 Agency Certifications for the 900 MHz Radio Transceiver (United States of America) Certification Contains FCC ID: OUR-9XCITE The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

Table of Contents
