Summary of Contents for SIS AURA System

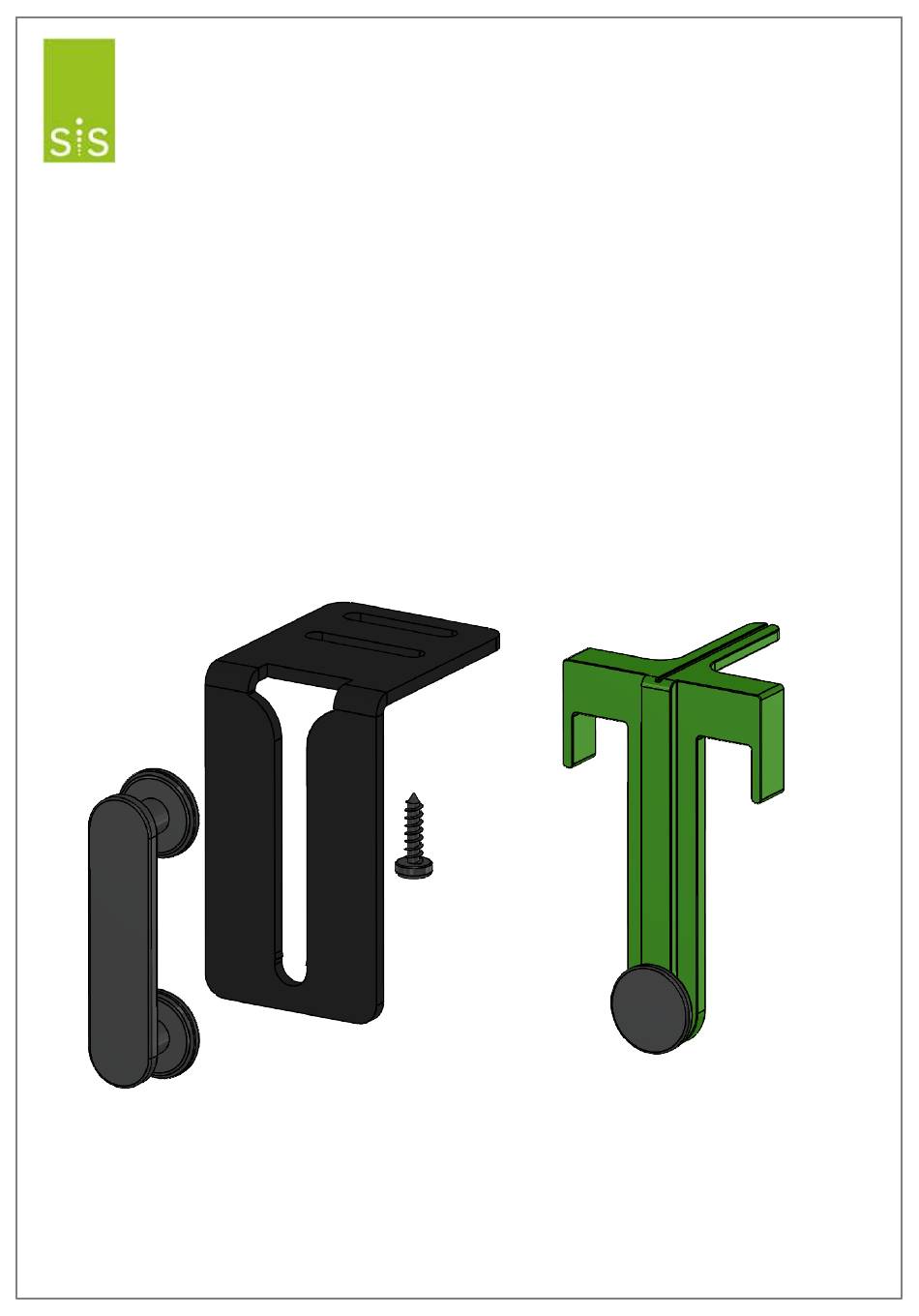

- Page 1 AURA System AURA Install Assembly Instruction...
- Page 2 Table of Contents Components..............Hardware Bag..............Assembly guide............
- Page 3 Components AURA System/QTY. ITEM NO. PART NUMBER AURA - Cover AURA - Bolt AURA - Bracket AURA - Wood Screw M4 x 16 AURA Install/QTY. ITEM NO. PART NUMBER AURA - Bolt AURA - Install Clamp Page 1...
-
Page 4: Hardware Bags
Hardware bags The two different items comes in two seperate hardware bags: AURA System: A. (1)x Bracket B. (1)x Cover C. (2)x Bolt D. (2)x Wood Screw AURA Install: E. (1)x Clamp C. (2)x Bolt Tools required: Drill driver, Phillips bit PH2 Page 2 ***For technical support, please call 800.374.7438 #2007 servicetech@sisergo.com***... - Page 5 Step 1. Prepare the AURA Bracket to Install Mount the bolt(1) on each clamp(2), but don't screw it all the way in. Then glide the clamp into the bracket(3). Step 2. Mount the bracket to the tabletop Place the tabletop between the clamp(2) and the bracket(3). Push it all the way into the tabletop and let the clamp(2) be the stop.
- Page 6 Step 3. Mount the Bracket to the tabletop Mount the bracket(3) to the tabletop with 4x M4x16 wood screws(4). Step 4. Remove the Install Clamp Loosen the bolt(1) in the clamp(2) and pull it up from the bracket(3). Tools required: Drill driver, Phillips bit PH2 Page 4 ***For technical support, please call 800.374.7438 #2007 servicetech@sisergo.com***...
- Page 7 Step 5. Repeat for all Brackets Repeat step 1 - 4 with all the brackets you need. NOTE: Look at the PET how many brackets are required and what distance you need between them. Step 6. Prepare the PET for install Locate the concealed mount holes in the screen.
- Page 8 Step 7. Repeat for all the holes in the PET Repeat step 6 for all the bracket positions in the PET. NOTE: There are concealed mount holes in every pleat. Only remove the holes needed for bracket mounting. There is one cover for each bracket Step 8.
