Summary of Contents for C&T PC400 Series

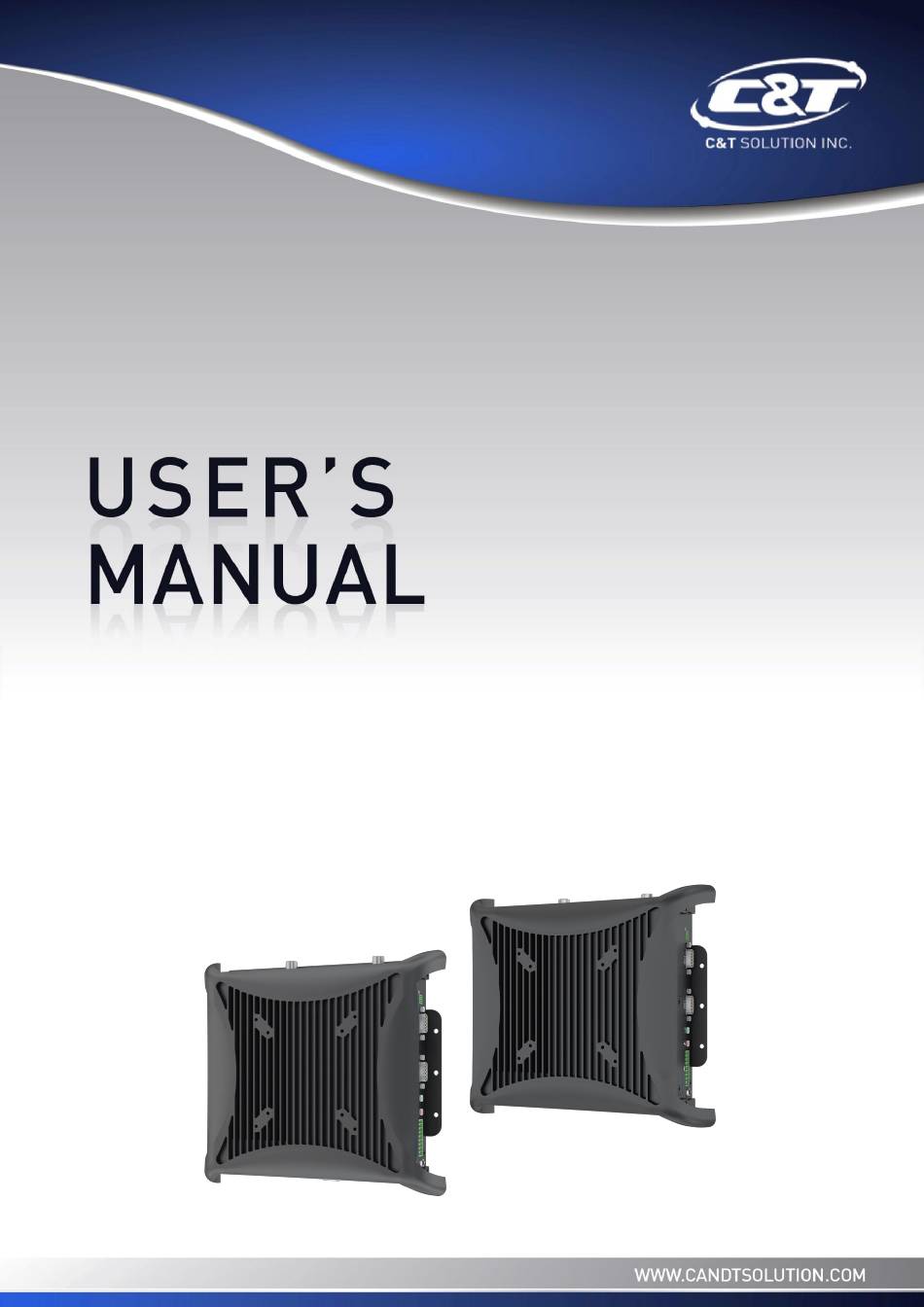

  • Page 1 PC400 Series PC Module...
  • Page 2: Table Of Contents

    PC400 / PC410 l User’s Manual Table of Contents Prefaces …………………………………………………….……………………………………………. 04 Revision …………………………………………………………………………………………..……………….……….. 04 Disclaimer ………………………………………………………..…….…….………………………….……………….. 04 Copyright Notice …………………………………….…………………….…………………………………………… 04 Trademarks Acknowledgment …………..………………………………………………………....04 Environmental Protection Announcement …………………………….………………….……………….. 04 Safety Precautions ………………………………………….……………………………….…………….………….. 05 Technical Support and Assistance …………………………………….…………….…………….…………….06 Conventions Used in this Manual ………………………………………………………………….….………..06 Package Contents …………………………………………………………………………………………….…………...
  • Page 3 PC400 / PC410 l User’s Manual Chapter 4 BIOS Setup ……………………………………………….…………….…………… 43 BIOS Introduction …….……….…………………………………..….…….…..…..…………... 44 Main Setup ……..……….………………….…………………………..….….……….………..45 Advanced Setup ………………………………………………………………………….………….. 46 4.3.1 CPU Configuration ……………………………..…………….………….….….….…..47 4.3.2 PCH-FW Configuration ……..………………………………..…..…..……….………. 48 4.3.3 SATA and RST Configuration …………………………….…………………………... 48 4.3.4 RST (UEFI RAID) Configuration ……………………………………….……….…..
  • Page 4: Prefaces

    Preface PC400 / PC410 l User’s Manual Prefaces Revision Revision Description Date Manual Released 2019/08/13 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading. The information in this document is subject to change without notice and does not represent a commitment on the part of C&T Solution Inc.
  • Page 5: Safety Precautions

    Preface PC400 / PC410 l User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions:  Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage.  The power outlet shall be installed near the equipment and shall be easily accessible. ...
  • Page 6: Technical Support And Assistance

    Preface PC400 / PC410 l User’s Manual Technical Support and Assistance 1. Visit the C&T Solution Inc website at www.candtsolution.com where you can find the latest information about the product. 2. Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance.
  • Page 7: Package Contents

    Preface PC400 / PC410 l User’s Manual Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty P4300 Series PC Module Utility DVD Driver Screw Pack Ordering Information Model No.
  • Page 8: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...
  • Page 9: Overview

    ° temperature extremes (-40~+70 Featuring with completely cable-less designed and high functional, PC400 series are ruggedized display systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection (OCP), reserve voltage protection, and wide range DC power input makes PC400 series are safety system for all industrial applications.
  • Page 10: Hardware Specification

    • Relative humidity: 10%~95% (non-condensing) and PXE • 1x Intel® I210-AT GbE LAN Port, Support Wake-on-LAN and PXE Physical • PC400 Series Audio Dimension (WxDxH, mm): 246 x 220 x 42mm • Codec: Realtek ALC888S Weight: 1.57 kg • 1x Mic-in and 1x Line-out •...
  • Page 11: System I/O

    PC400 / PC410 l User’s Manual Chapter 1: Product Introductions 1.3 System I/O 1.3.1 PC400 Front Panel Removable HDD Bay SIM Card Socket Used to inserts a 2.5” HDD device Used to insert SIM card Antenna hole CFast Socket Used to connect an antenna for optional Mini- Used to insert CFast card PCIe WiFi module Antenna Holes...
  • Page 12 PC400 / PC410 l User’s Manual Chapter 1: Product Introductions Side (Left) Line-out ATX power on/off switch Used to connect a speaker Press to power-on or power-off the system Mic-in Power LED Used to connect a microphone Indicates the power status of the system Remote Power on/off Terminal Block HDD LED Used to plug a remote power on/off terminal...
  • Page 13: Pc410

    PC400 / PC410 l User’s Manual Chapter 1: Product Introductions 1.3.2 PC410 Front Panel Removable HDD Bay SIM Card Socket Used to inserts a 2.5” HDD device Used to insert SIM card Antenna hole CFast Socket Used to connect an antenna for optional Mini- Used to insert CFast card PCIe WiFi module Rear Panel...
  • Page 14 PC400 / PC410 l User’s Manual Chapter 1: Product Introductions Side (Right) COM port AT/ATX mode select switch COM3~4 support RS232/422/485 serial device Used to select AT or ATX power mode PC/CAR mode select switch Universal I/O Bracket Used to select PC or CAR power mode Used to customized I/O output DELAY TIME switch Used to select Car power turn off delay-time...
  • Page 15 PC400 / PC410 l User’s Manual Chapter 1: Product Introductions VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm)
  • Page 16: Mechanical Dimension

    PC400 / PC410 l User’s Manual Chapter 1: Product Introductions 1.4 Mechanical Dimensions 1.4.1 PC400 Unit: mm...
  • Page 17: Pc410

    PC400 / PC410 l User’s Manual Chapter 1: Product Introductions 1.4.2 PC410 Unit: mm...
  • Page 18: Chapter 2 Switches And Connectors

    Chapter 2 Switches and Connectors...
  • Page 19: Switch And Connector Locations

    PC400 / PC410 l User’s Manual Chapter 2: Switches and Connectors 2.1 Switch and Connector Locations 2.1.1 Top View...
  • Page 20: Bottom View

    PC400 / PC410 l User’s Manual Chapter 2: Switches and Connectors 2.1.2 Bottom View...
  • Page 21: Connector / Switch Definition

    PC400 / PC410 l User’s Manual Chapter 2: Switches and Connectors 2.2 Connector / Switch Definition List of Connector / Switch Connector Location Definition AT_ATX2 AT / ATX Power Mode Switch CLR_CMOS1 Clear BIOS Switch CAR_PWR2 PC / Car Mode Switch DELAY_TIME2 Car mode PC turn off delay time CFAST1_2...
  • Page 22: Switch Definitions

    PC400 / PC410 l User’s Manual Chapter 2: Switches and Connectors 2.3 Switches Definitions AT_ATX1: AT / ATX Power Mode Switch Switch Definition 1-2 (Right) ATX Power Mode(Default) 2-3 (Left) AT Power Mode CLR_CMOS1: Clear BIOS Switch Switch Definition Normal Status (Default) Clear BIOS CAR_PWR2: PC / Car Mode Switch Switch...
  • Page 23 PC400 / PC410 l User’s Manual Chapter 2: Switches and Connectors Step of Setting Power Ignition Step 1: To select power ignition by PC/CAR switch. Step 2: To configure the power off delay time, please check the Delay Time Setting Options in advance.
  • Page 24: Connector Definitions

    PC400 / PC410 l User’s Manual Chapter 2: Switches and Connectors Chapter 2: Switches and Connectors 2.4 Connectors Definitions CFAST1_2: CFast Socket Definition Definition Definition PC10 SATA_TXP1 PC11 SATA_TXN1 PC12 PC13 +3.3V SATA_RXN1 PC14 +3.3V SATA_RXP1 PC15 PC16 PC17 PWR_SW2: Power Button Definition Definition Power Button...
  • Page 25 PC400 / PC410 l User’s Manual Chapter 2: Switches and Connectors Chapter 2: Switches and Connectors SIM1, SIM2: SIM Card Socket Definition Definition UIM_PWR UIM_VPP UIM_RESET UIM_DATA UIM_CLK COM: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 Full RS485 Half Duplex RS232 Definition Duplex Definition...
  • Page 26 PC400 / PC410 l User’s Manual Chapter 2: Switches and Connectors COM: RS232 / RS422 / RS485 Connector Connector Type: 2X5 10-pin box header, 2.54mm pitch RS422 / 485 Full RS485 Half Duplex RS232 Definition Duplex Definition Definition DATA- DATA+ DC_IN1: DC Power Input Connector (+9~50V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition...
  • Page 27 PC400 / PC410 l User’s Manual Chapter 2: Switches and Connectors DP: DisplayPort Connector Definition Definition DP_LANE0_P DP_LANE3_N DP_LANE0_N DP_LANE1_P DP_AUX_P DP_LANE1_N DP_LANE2_P DP_AUX_N DP_HPD DP_LANE2_N DP_LANE3_P +3.3V LINE_OUT1 : Line-out Jack (Green) Connector Type: 5-pin Phone Jack Definition OUT_R OUT_L MIC_IN1: Microphone Jack (Pink) Connector Type: 5-pin Phone Jack...
  • Page 28 PC400 / PC410 l User’s Manual Chapter 2: Switches and Connectors DIO1: Digital Input / Output Connector Connector Type: Terminal Block 2X9 18-pin, 3.5mm pitch Definition Definition DIN1 DOUT1 DIN2 DOUT2 DIN3 DOUT3 DIN4 DOUT4 DIN5 DOUT5 DIN6 DOUT6 DIN7 DOUT7 DIN8 DOUT8...
  • Page 29 PC400 / PC410 l User’s Manual Chapter 2: Switches and Connectors PWR_SW1 : Remote Power Switch Connector Type: Terminal Block 1X2 2-pin, 3.5mm pitch Definition Power Button...
  • Page 30 PC400 / PC410 l User’s Manual Chapter 2: Switches and Connectors LAN1, LAN2: RJ45 with LEDs Port Connector Type: RJ45 Connector Definition Definition LAN_MDI0P LAN_MDI2N LAN_MDI0N LAN_MDI1N LAN_MDI1P LAN_MDI3P LAN_MDI2P LAN_MDI3N Act LED Status Definition Blinking Yellow Data Activity No Activity Link LED Status Definition Steady Orange...
  • Page 31 PC400 / PC410 l User’s Manual Chapter 2: Switches and Connectors MINIPCIE1: Mini PCI-Express / mSATA Socket Definition Definition Definition WAKE# +3.3V USB2_D+ +3.3V RESET# +3.3V +1.5V +3.3VAUX CLKREQ# UIM_PWR DEVSLP USIM_DATA +1.5V REFCLK- UIM_CLK SMB_CLK +1.5V REFCLK+ UIM_RST SMB_DATA PCIE_MSATA_SEL USIM_VPP +3.3V...
  • Page 32 PC400 / PC410 l User’s Manual Chapter 2: Switches and Connectors PWR_LED2: Power LED Status Definition POWER LED+ POWER LED- HDD_LED2: HDD Access LED Status Definition HDD LED+ HDD LED-...
  • Page 33: Chapter 3 System Setup

    Chapter 3 System Setup...
  • Page 34: Set Torque Force To 3.5 Kgf-Cm To Execute All The Screwing And Unscrewing

    PC400 / PC410 l User’s Manual Chapter 3: System Setup 3.1 Set torque force to 3.5 kgf-cm to execute all the screwing and unscrewing In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source. 3.2 Installing SODIMM 1.
  • Page 35: Installing Mini Pcie Card / Msata

    PC400 / PC410 l User’s Manual Chapter 3: System Setup 3.3 Installing mini PCIe card / mSATA 1. Two mini PCIe slots are available for PC400 series. MiniPCIE1 supports mSATA. MiniPCIE2 MiniPCIE1 / mSATA 2. Insert mini PCIe card or mSATA module from 45 degree direction.
  • Page 36: Installing Hdd On Removable Sata Hdd Bay

    PC400 / PC410 l User’s Manual Chapter 3: System Setup 3.4 Installing HDD on removable STAT HDD bay 1. One removable SATA HDD bays is available for PC400 Series 2. Unscrew the two sun screws circled below to take out the removable SATA HDD bay.
  • Page 37 PC400 / PC410 l User’s Manual Chapter 3: System Setup 3. Lock the 2.5” HDD with HDD bracket using four screws (M3x4L). 4. Slide the HDD bracket back and then fasten the sun screws.
  • Page 38: Installing Cfast Card

    PC400 / PC410 l User’s Manual Chapter 3: System Setup 3.5 Installing CFast card 1. One CFast socket is available for PC100 series. Unscrew two screws to remove the bracket. 2. Insert CFast card into the socket until you hear the “click” sound. 3.
  • Page 39: Installing Sim Card

    Chapter 3: System Setup 3.6 Installing SIM card 1. For PC400 Series, two SIM card slots are available on system chassis between removable HDD bay and CFast slot. 2. Press the SIM card in until you hear the “click” sound.
  • Page 40 PC400 / PC410 l User’s Manual Chapter 3: System Setup 3. Please note that the installation of SIM 1 and SIM 2 has to match the installation of mini PCIe slots. SIM Card Socket Number Matching Mini PCIe Slot SIM 1 MiniPCIE1 / mSATA SIM 2 MiniPCIE2...
  • Page 41: Connecting Pc Module With Vio Display Module

    PC400 / PC410 l User’s Manual Chapter 3: System Setup 3.7 Connecting PC module with VIO display module 1. Hold the PC module with its connector facing towards the connector on the back of VIO display module. 2. Press the PC module downward to ensure two modules are firmly connected.
  • Page 42 PC400 / PC410 l User’s Manual Chapter 3: System Setup 3. Lock the below 6 screws (M4X5L) to finish assembly.
  • Page 43: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup...
  • Page 44: Bios Introduction

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.1 BIOS Introduction The system BIOS software is stored on EEPROM. The BIOS provides an interface to modify the configuration. When the battery is removed, all the parameters will be reset. BIOS Setup Power on the embedded system and by pressing <Del>...
  • Page 45: Main Setup

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility. The Main setup screen is showed as following when the setup utility is entered. System Date/Time is set up in the Main Menu. ■...
  • Page 46: Advanced Setup

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.3 Advanced Setup...
  • Page 47: Cpu Configuration

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.3.1 CPU Configuration ■ Intel Virtualization Technology Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple Virtual systems.
  • Page 48: Pch-Fw Configuration

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.3.2 PCH-FW Configuration 4.3.3 SATA and RST Configuration ■ SATA Controller(s) Enable or disable Serial ATA controller. ■ SATA Mode Selection This item allows users to select mode of SATA controller. ■...
  • Page 49: Rst (Uefi Raid) Configuration

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.3.4 RST (UEFI RAID) Configuration How to set the UEFI RAID: 1. When set to RAID, please save change reset system. 2. After reboot the system, please into BIOS utility and then will see “Intel (R) Rapid Storage Technology”...
  • Page 50 PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 3. Into Intel(R) Rapid Storage Technology, and start create RAID volume. 4. Start Create the RAID ■ Select Disk that you want to do the RAID ■ Select [x]; No-Select [ ]...
  • Page 51: Trusted Computing

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.3.5 Trusted Computing ■ Security Device Support Enable or disable Security Device Support. 4.3.6 ACPI Settings ■ Enable ACPI Auto Configuration Enable or disable ACPI Auto Configuration.
  • Page 52: Super Io Configuration

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.3.7 Super IO Configuration This setting allows you to select options for the Super IO Configuration, and change the value of the selected option. ■ Serial Port 1 Configuration  Serial Port This item allows you to enable or disable serial port.
  • Page 53 PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 2 Configuration  Serial Port This item allows you to enable or disable serial port.  Change Settings This item allows you to change the address & IRQ settings of the specified serial port. ...
  • Page 54 PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 4 Configuration  Serial Port This item allows you to enable or disable serial port.  Change Settings This item allows you to change the address & IRQ settings of the specified serial port. ...
  • Page 55: Hardware Monitor

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 6 Configuration  Serial Port This item allows you to enable or disable serial port.  Change Settings This item allows you to change the address & IRQ settings of the specified serial port. ...
  • Page 56: Serial Port Console Redirection

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.3.9 Serial Port Console Redirection ■ Console Redirection These items allows you to enable or disable COM1 console redirection. 4.3.10 Stack Configuration...
  • Page 57: Csm Configuration

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.3.11 CSM Configuration ■ CSM Support This item allows users to enable or disable for “CSM Support”. ■ GateA20 Active This item allows users to set Upon Request or Always for "GateA20 Active“. ■...
  • Page 58: Usb Configuration

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.3.12 USB Configuration ■ Legacy USB Support Allows USB keyboard/ mouse to be used in MS-DOS. ■ XHCI Hand-off Determines whether to enable XHCI (USB3.0) Hand-off feature for an operating system without XHCI (USB3.0) Hand-off support.
  • Page 59: Chipset

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.4 Chipset This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.4.1 System Agent (SA) Configuration ■...
  • Page 60 PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup ■ Graphic Configuration  GTT Size This item allows you to change the GTT size.  Aperture Size Aperture size optimal between 128MB, 256MB, 512MB, 1024MB or 2048MB.  DVMT Pre-Allocated DVMT pre-allocated (fixed) Graphics memory size optimal from 0M to 60M.
  • Page 61: Pch-Io Configuration

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.4.2 PCH-IO Configuration This section allows you to configure the chipset. ■ PCI Express Configuration...
  • Page 62 PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup  PCI Express Root Port 6 / 10 / 11  PCI Express Port 6 / 10 / 11 This item allows you to enable or disable PCI Express Port 6 / 10 / 11 in the chipset. ...
  • Page 63 PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup ■ HD Audio Configuration  HD Audio Control detection of the HD-Audio device. This item allows you to select <Enabled>, <Disabled> or <Auto>. Disabled: Azalia will be unconditionally be disabled. Enabled: Azalia will be unconditionally be enabled.
  • Page 64: Security

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.5 Security Security menu allow users to change administrator password and user password settings. ■ Administrator Password This item allows you to set Administrator Password. ■ User Password This item allows you to set User Password.
  • Page 65: Boot

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.6 Boot This menu allows you to setup the system boot options. ■ Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. ■ Bootup NumLock State This item selects the keyboard NumLock state.
  • Page 66: Save & Exit

    PC400 / PC410 l User’s Manual Chapter 4: BIOS Setup 4.7 Save & Exit This setting allows users to configure the boot settings. ■ Save Changes and Reset This item allows user to reset the system after saving the changes. This item allows user to reset the system after saving the changes.
  • Page 67: Appendix Wdt & Gpio

    Appendix WDT & GPIO This appendix provides the sample codes of WDT (Watch Dog Timer) and GPIO (General Purpose Input/ Output).
  • Page 68: Wdt Sample Code

    PC400 / PC410 l User’s Manual Appendix – WDT & GPIO WDT Sample Code // IO Address 0xA16 is time value // IO Address 0xA15 is WDT enable and configuration Example, Set 0xA16=-0x03, 0xA15=0x31, it will reset after 3 seconds #define TimePort 0xA16 #define TimeEnablePort 0xA15...
  • Page 69: Gpio Sample Code

    PC400 / PC410 l User’s Manual Appendix – WDT & GPIO GPIO Sample Code  GPI 1 ~ GPI 8 GPI 1 GPI 2 GPI 3 GPI 4 GPI 5 GPI 6 GPI 7 GPI 8 IO Address 0xA03h 0xA03h 0xA03h 0xA03h 0xA06h...
  • Page 70 PC400 / PC410 l User’s Manual Appendix – WDT & GPIO Sample Code: #1 : // Get GPI 1 status //Get GPI 0 Pin Status Register printf("Input port value = %x\n", ReadByte(GPI1to4_ADDR)); // bit4 = GPI 1 status // Get GPI 5 status //Get GPI 0 Pin Status Register printf("Input port value = %x\n", ReadByte(GPI_REG5to8));...
  • Page 71 Copyright 2016 C&T Solution Inc. All Rights Reserved www.candtsolution.com...
