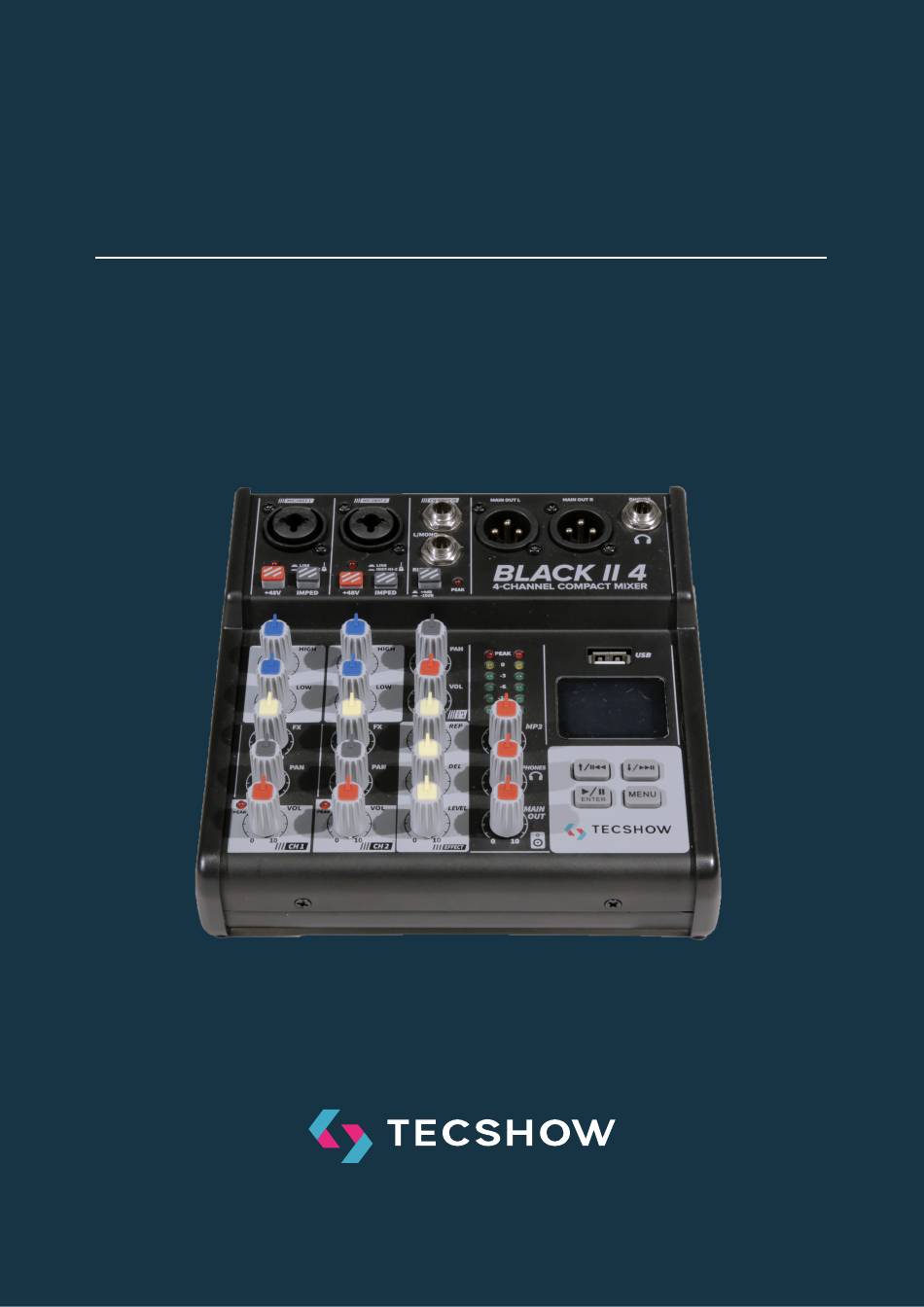

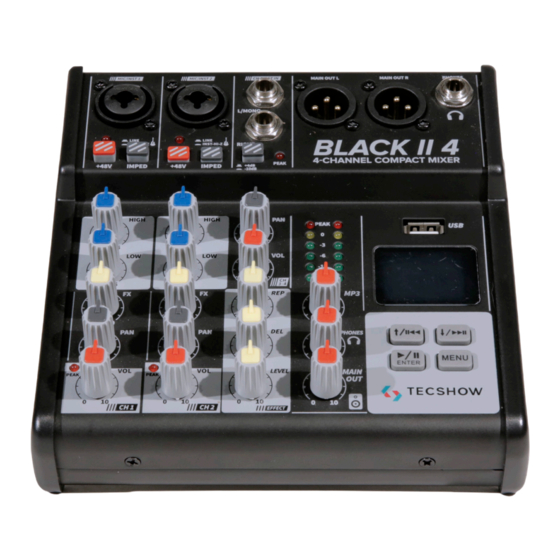

- Page 1 BLACK II 4 Reliable Analog Mixer USER MANUAL/MANUAL DE USUARIO PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR BLACK II 4 - P. 1...
- Page 2 Dynamic range: 102dB Reliable Analog Mixer - 2 Mic/Line +1 Stereo & 1 Mono • THD+N @ 1KHz: <0.03% Black II 4 is the second generation of Black mixers, • Stereo Crosstalk: 92 dB now with greater portability and versatility. It •...
- Page 3 7. Insert a plug of cord closely into the speaker jack at the speaker connection. 8. Clean this product by using soft dry cloth & poly-wax. BLACK II 4 - P. 3...
- Page 4 3. SCHEMATIC DIAGRAM OF EQUIPMENT CONNECTION P. 4 - BLACK II 4...
-
Page 5: Front Panel Function
4. FRONT PANEL FUNCTION BLACK II 4 - P. 5... - Page 6 19. Main output jacks: XLR balanced output wavefrom of the high and low bass equalizer interrupt for the connection of active speakers, is the shape of the broom, which affects the power amplifiers or other audio devices. P. 6 - BLACK II 4...
- Page 7 The bluetooth name of 7. Any setup changes will be stored and this module is “BT_SPEAKER”. memorized at the time of switch-off. 4. Music Mode: When the USB disk is inserted, BLACK II 4 - P. 7...
-
Page 8: System Block Diagram
5. SYSTEM BLOCK DIAGRAM P. 8 - BLACK II 4... - Page 9 BLACK II 4 - P. 9...
